Description

DS18 SB24BTX

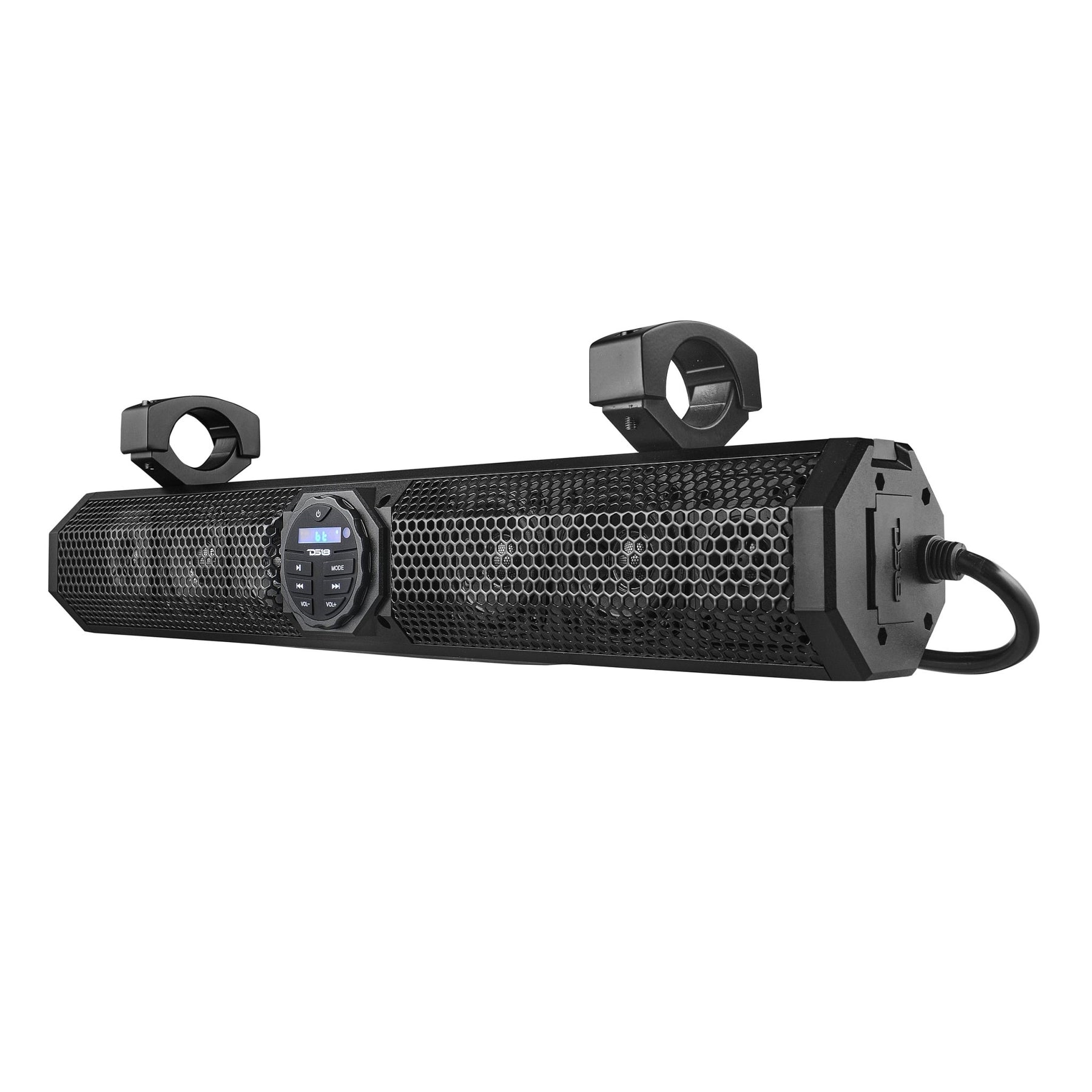

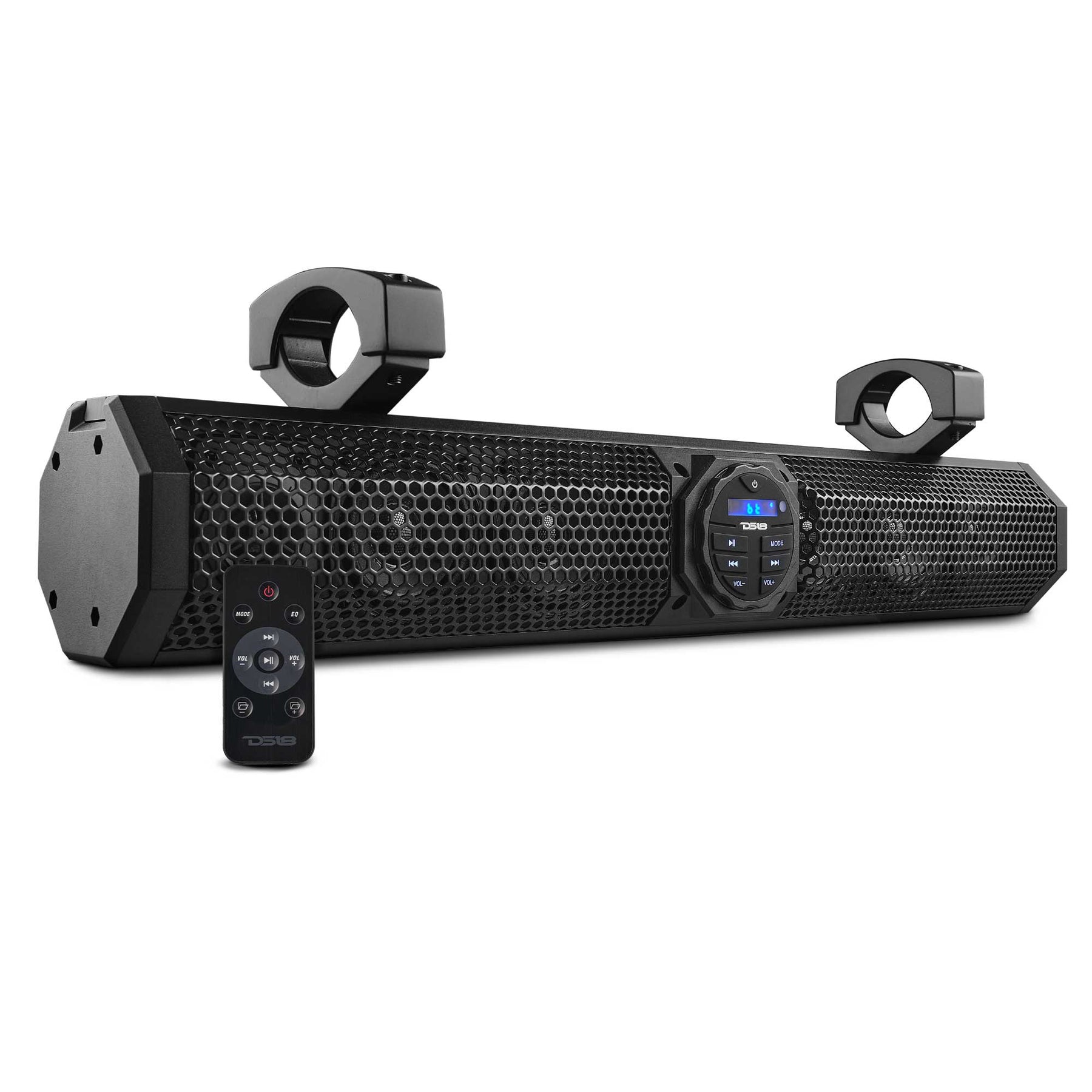

The SB24BTX is a 24″ marine‑grade amplified Bluetooth® sound bar designed for outdoor and powersports audio systems—perfect for UTVs, ATVs, boats, trailers, golf carts, or any rugged outdoor ride. It features a built‑in Class A/B amplifier with Bluetooth v5.0 connectivity, USB and AUX playback, a rotatable control panel, and a water‑resistant IP35 aluminum housing with steel mesh grille. With six speakers in a full‑range configuration, this sound bar delivers rich, clear audio with strong bass and crisp highs.

Specifications

Feature	Details
SKU	SB24BTX
Nominal Size	24 inch / 610 mm
Total Watts Peak	600W
RMS Power at 4 Ohm Internal Amp	100W
Max Power at 4 Ohm Internal Amp	200W
Frequency Response	45Hz to 20KHz
Storage Temperature	5°F to 176°F (-15°C to 80°C)
Operation Temperature	32°F to 140°F (0°C to 60°C)
Operation Voltage	12 Volts (10 to 16 Volts Range)

Body and Features

Feature	Details
Marine Grade Type	IP35
Body Material Color Finish	Aluminum / Oxidized Black Hemp Sand
Grill Type	Steel Mesh
Quantity Per Box	1 Piece
Clamps	2 Sets Tube Clamp Adjustable 1.5 inch to 2.25 inch
Front Logo	Yes
RCA Line Out Pre Amp	Yes L/R 2 Volts
Aux Line Input	Yes 720mV
EQ / DSP	5 Preset EQ (for BT and USB Mode)
Remote Out	Yes (+12V)

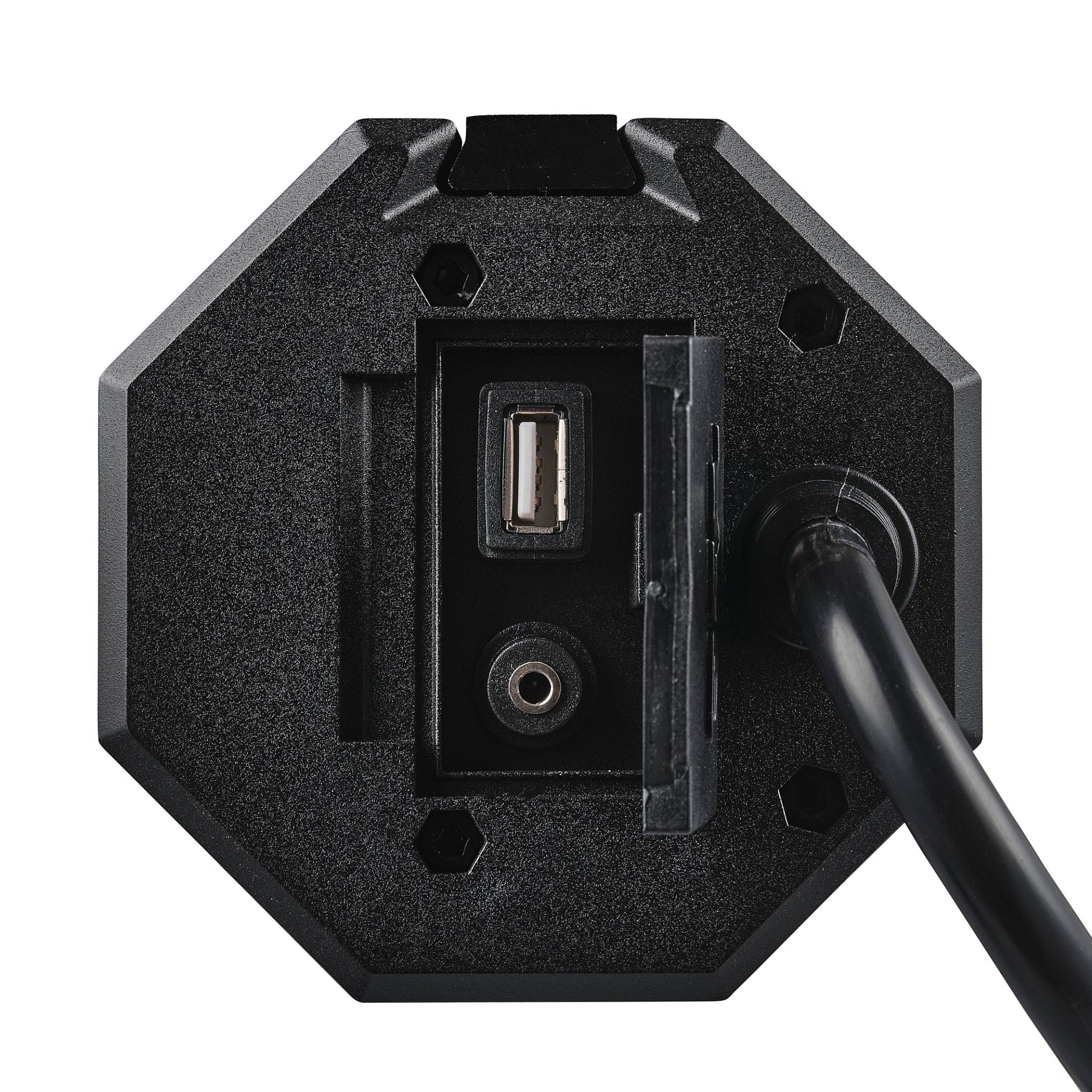

USB Player	Yes (WMA, MP3 files)
USB Charger	Yes 1 Amp
Buttons / Controls	Power, Mode, Play/Pause, Forward, Backward, Vol+, Vol-
Rotatable Control Panel	Yes 345°
Remote Control	Yes IR Card Type
Illumination	Blue Backlit
Bluetooth Version	v5.0
Audio Protocols	A2DP
Range	Greater than 33 ft (10 m) Class 2
Voice Coil Former Material	Kapton
Cone Material	Water Resistant Paper
Surround Material	Cloth
Basket Material	Steel
Magnet Material	Ferrite
Motor Diameter	2.36 inch / 60 mm

Tweeter Specifications

Feature	Details
Nominal Diameter	0.94 inch / 24 mm (2 Pieces)
Voice Coil Diameter	0.8 inch / 20.4 mm
Type	Dome
Diaphragm Material	Soft Dome
Magnet Material	Neodymium
Crossover	6 dB per Oct

Amplifier Specifications

Feature	Details
Amplifier Class	Class A/B
Amplifier Type	Stereo Full Range
Number of Channels	4
Minimum Impedance	3 Ohm
Signal to Noise Ratio	68 dB
THD	1% at 1000 Hz
Channel Separation	60 dB
Audio Source	BT / USB / AUX
Power Input Wire Size	2 x 16 ga
Recommended Fuse Size	10A
Max Current Draw	7A
Thermal Protection	Yes (>284°F / 140°C)
Over Load Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	No

Measurements

Feature	Details
Overall Width	24.6 inch / 625 mm
Overall Height	3.98 inch / 101 mm
Overall Depth	3.98 inch / 101 mm

Product Overview

Amplified Soundbar With Bluetooth® and USB Player

DS18’s SB24BTX gives your off-road ride the soundtrack it deserves. This amplified Bluetooth® soundbar is compact, rugged, and loaded with everything you need for a clean, high-output audio experience.

Big Sound, Small Footprint
Inside this 24.6″ powerhouse are built-in Class A/B amps delivering 100W RMS / 200W Max at 4Ω, plus a full-range stereo setup that pushes clear highs and deep lows across any terrain. Bluetooth® 5.0, AUX, and USB sources keep your options open—and your music playing.

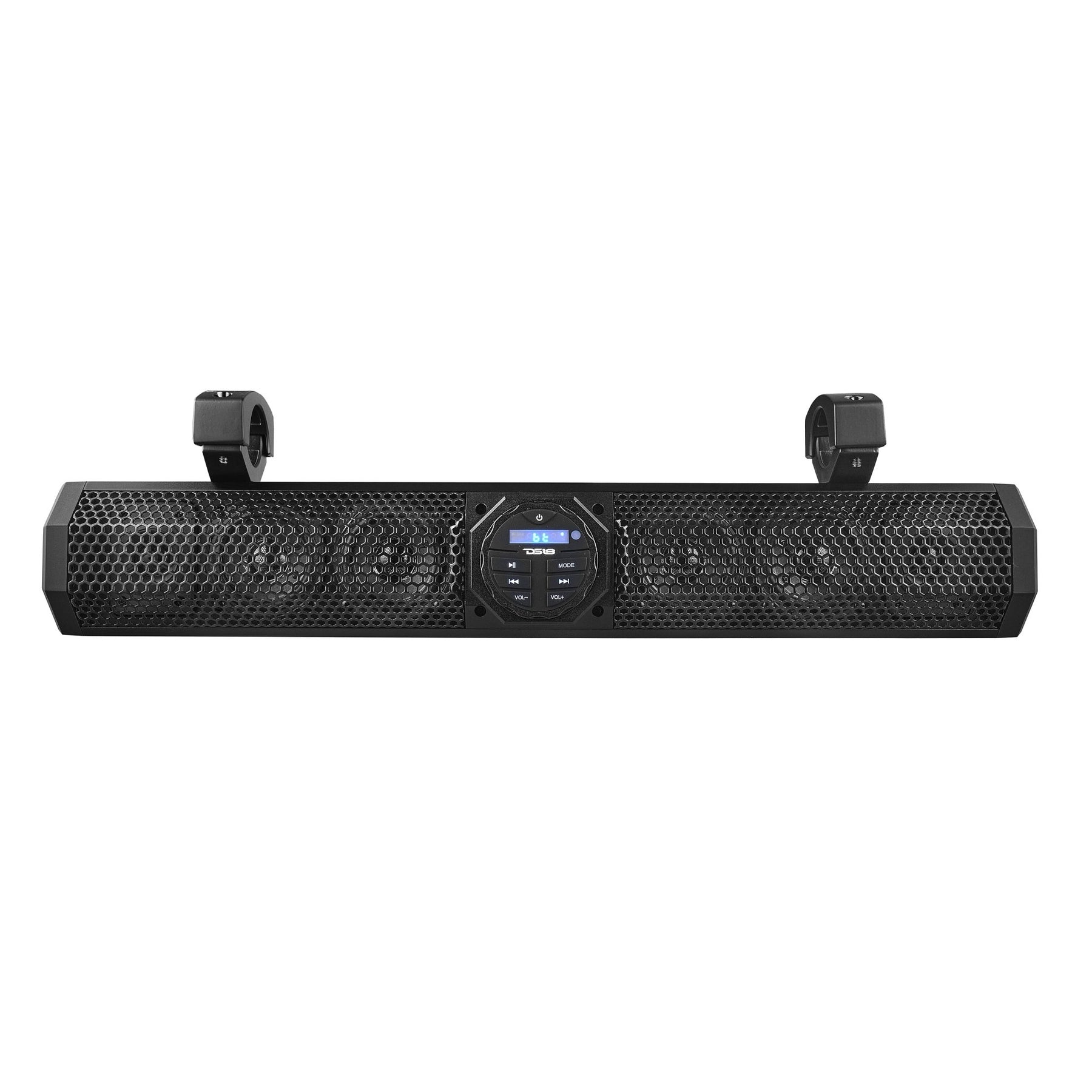

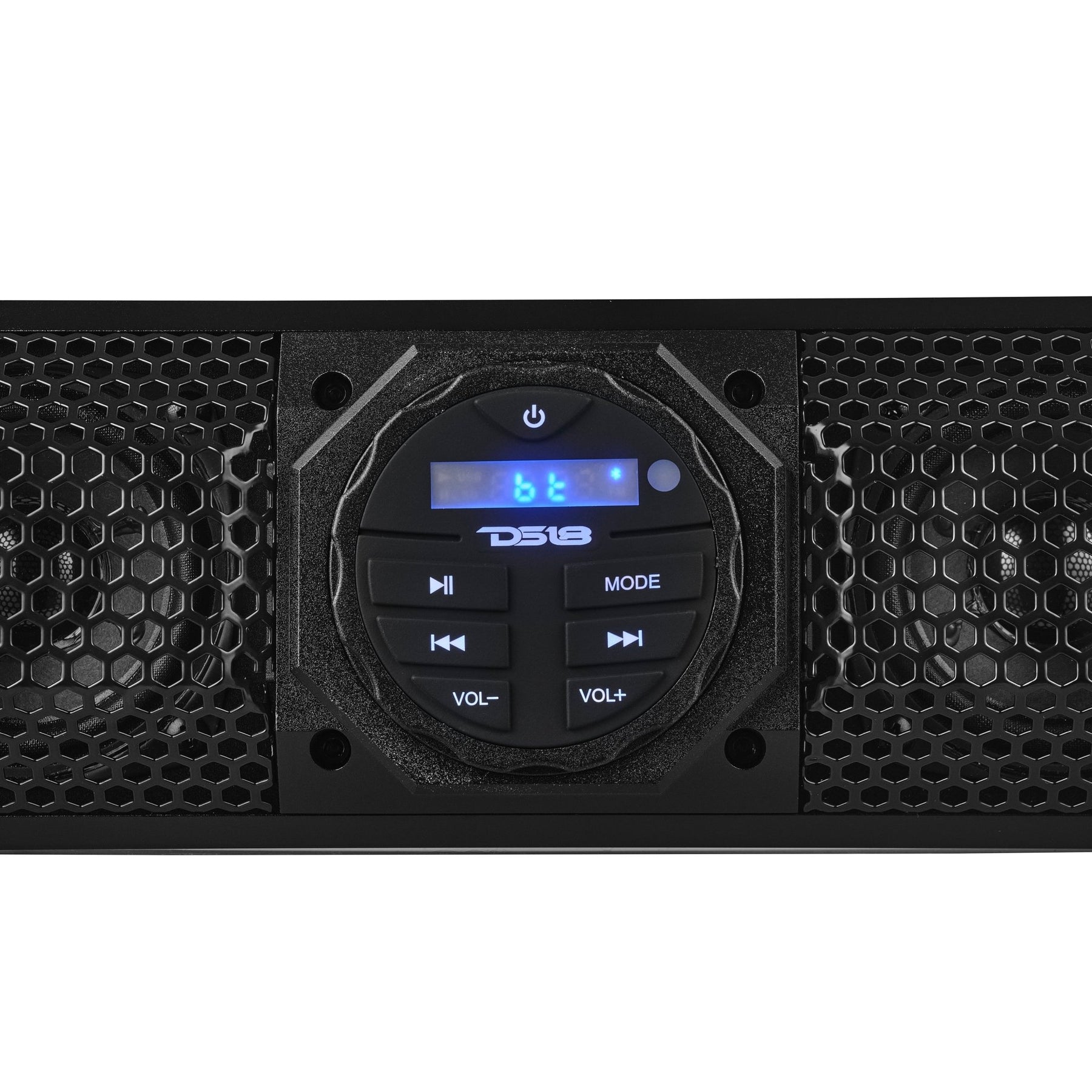

Rotatable Control Panel
Access your settings and playback controls from any angle with a rotatable front panel, ideal for tight or creative installs.

Ready to Expand
Need more power? Use the RCA pre-outs to feed an external amp or sub and take your system to the next level.

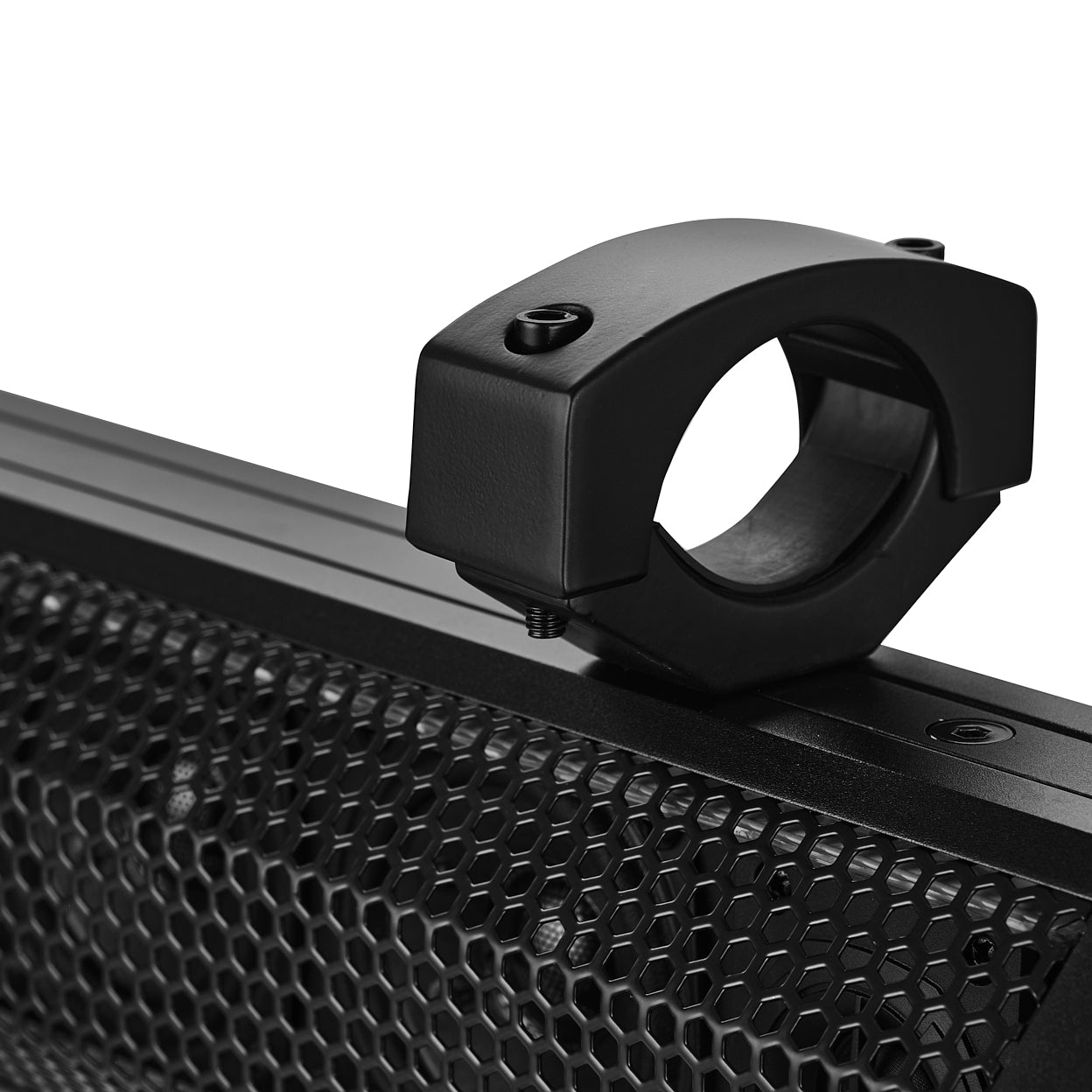

Rock-Solid Mounting
Want next-level stability on rough rides? Match the SB24BTX with DS18’s CLP-SB1.5 clamp adaptors for ultra-secure mounting on 1.5” tubing—perfect for UTV cages, roll bars, or rear racks.

Marine-Ready
Rated IP35 water-resistant, built with a steel mesh grille, and finished in oxidized black aluminum, the SB24BTX is made to ride through water, dust, and anything in between.

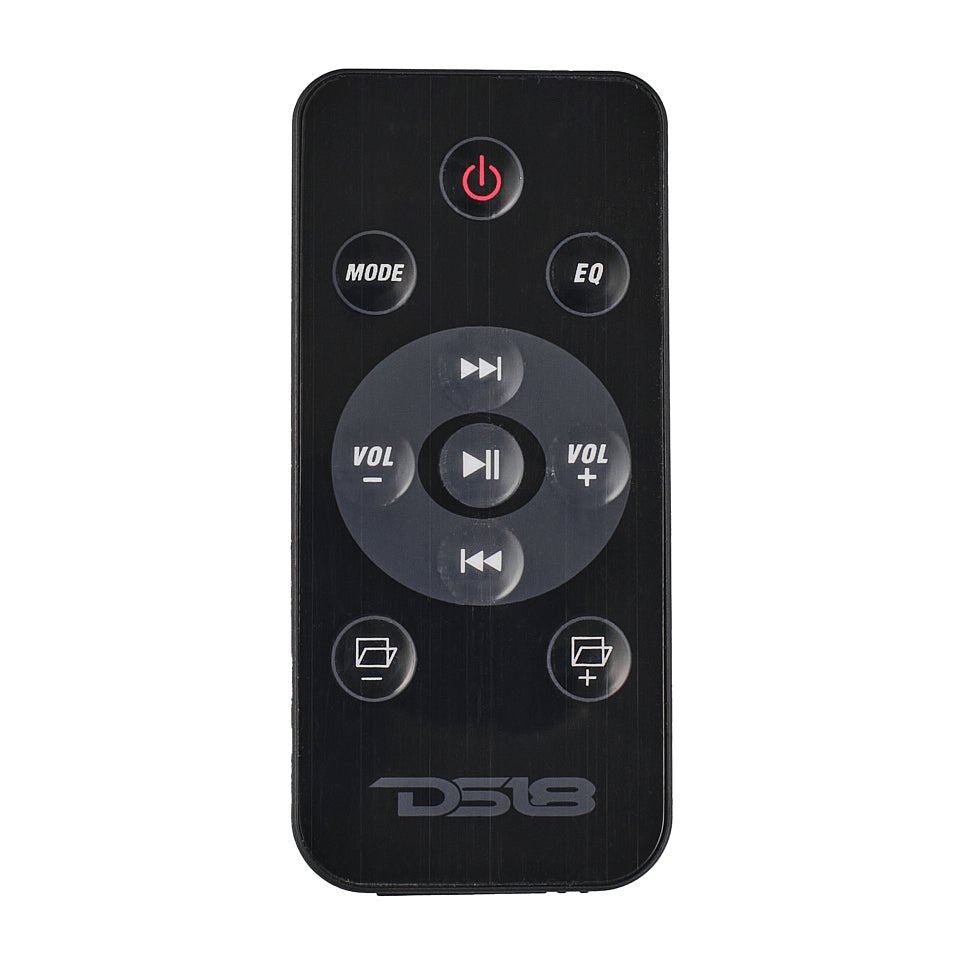

IR Remote + Built-In Control
Adjust EQ, skip tracks, change volume, or swap modes—either with the included IR remote or the on-board backlit controls
