Description

DS18 SB212

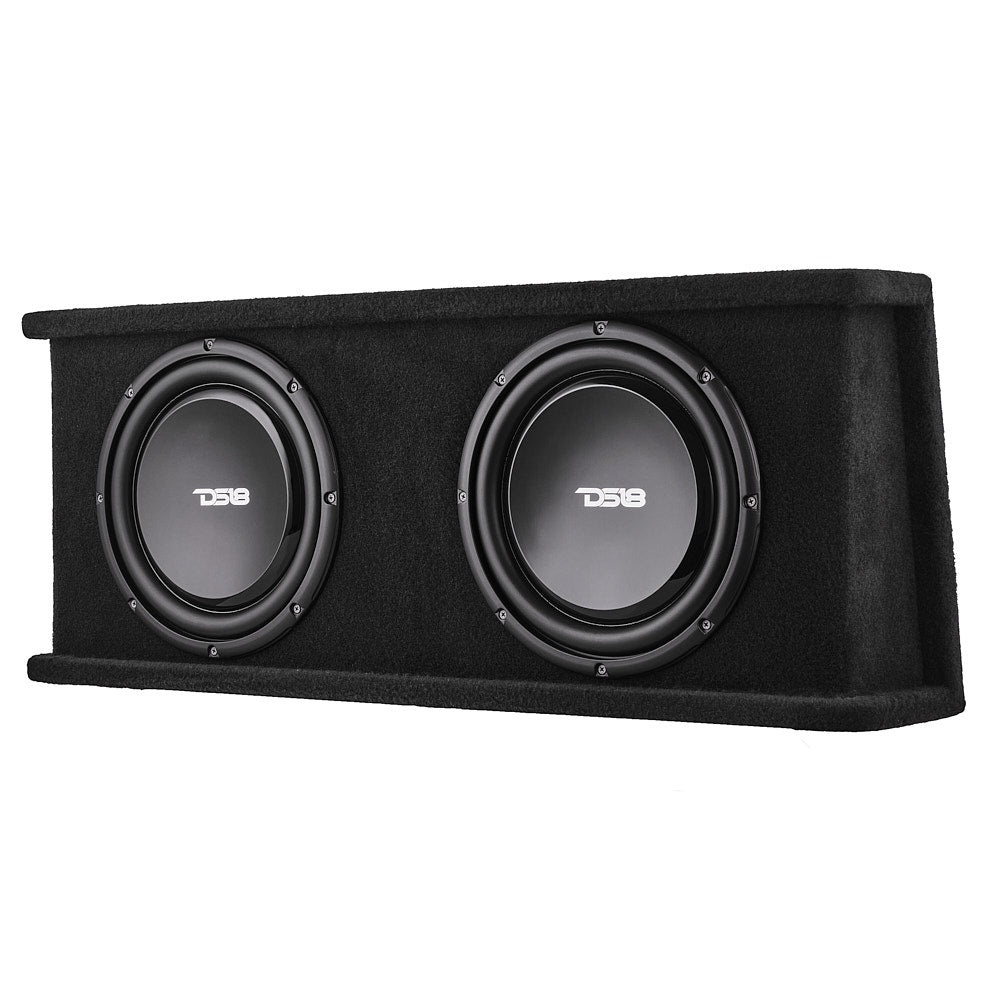

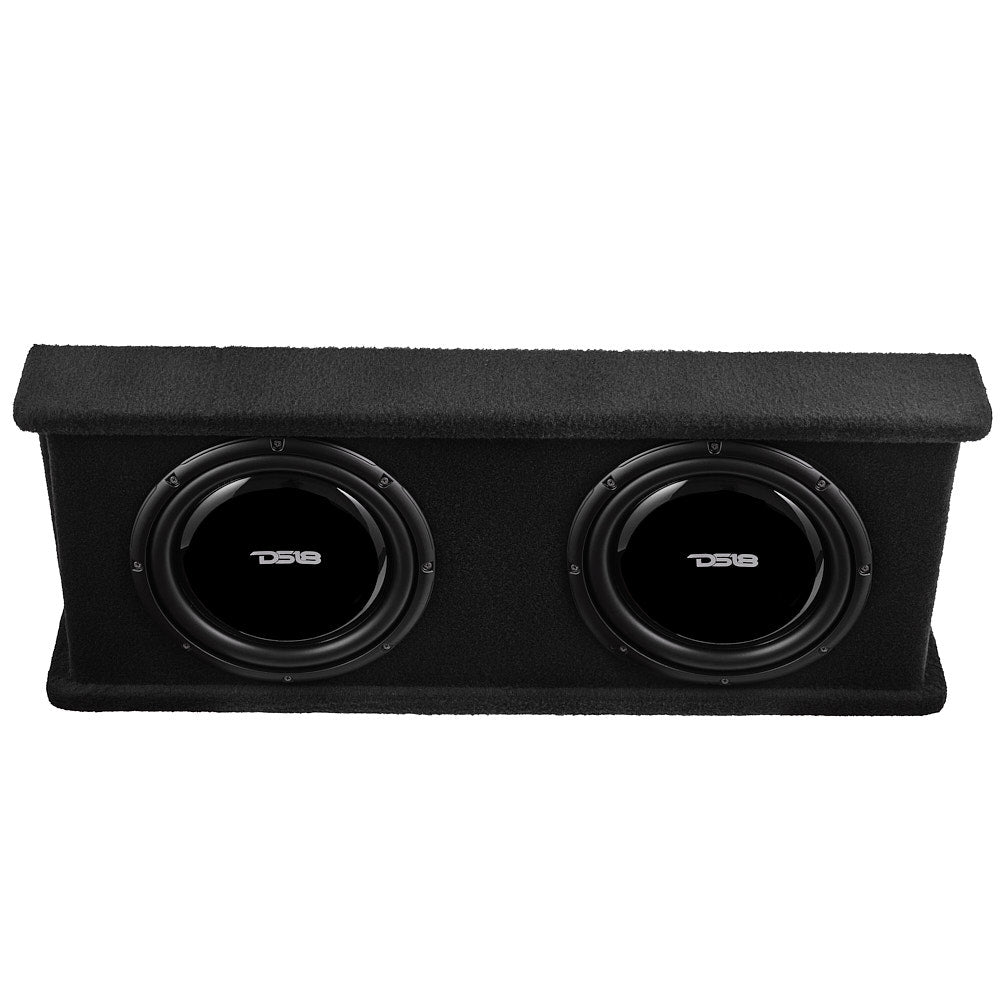

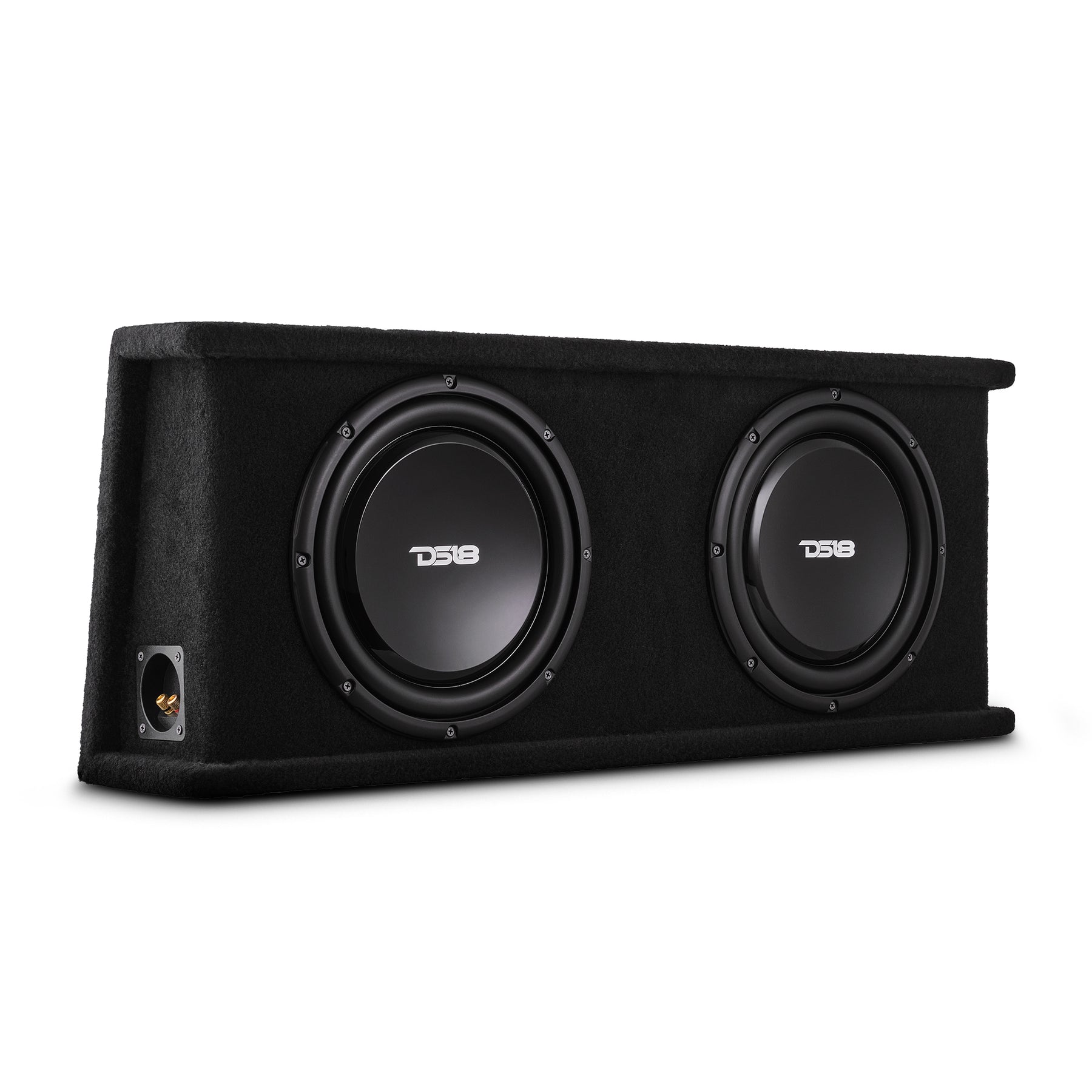

The DS18 SB212 is a dual 12″ loaded shallow subwoofer enclosure engineered to deliver deep, powerful bass in a compact sealed package that fits into tight spaces like trunks, cargo areas, or behind seats. Featuring two 12″ shallow‑mount woofers capable of handling up to 700 W RMS and 1400 W peak power at a 1 ohm impedance, this sealed sub box produces rich, controlled low‑frequency output from approximately 30 Hz to 250 Hz with 93 dB sensitivity for efficient performance. The enclosure is constructed from sturdy ½″ MDF with a black carpet finish, balancing durability with aesthetic appeal, and is ideal for car audio enthusiasts who want serious bass impact without sacrificing space.


Specifications

Category Specification
SKU SB212
Speaker Type / Size Dual 12″ / 312mm
Total Impedance 1 ohm
Total RMS Power Handling 700W
Total MAX Power Handling 1400W
Sensitivity (1W/1m) 93dB
Frequency Response 30-250Hz
Recommended Lo Pass Crossover 80Hz

Speaker Specifications
Attribute Specification
Voice Coil Diameter 1.75″ / 44.43mm
Voice Coil Former Material Aluminum
Winding Material EISV
Cone Material IPP
Dust Cap Material N/A
Surround Material Rubber
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 50 Oz

Box Specifications
Attribute Specification
Internal Volume 32L / 1.12ft³
Port Tune (Fb) N/A
Load Configuration Parallel in
Box Type Sealed Box
Box Material 0.59″ MDF
Finish Material Black Carpet
-3dB Dropping Point (F3) 45Hz

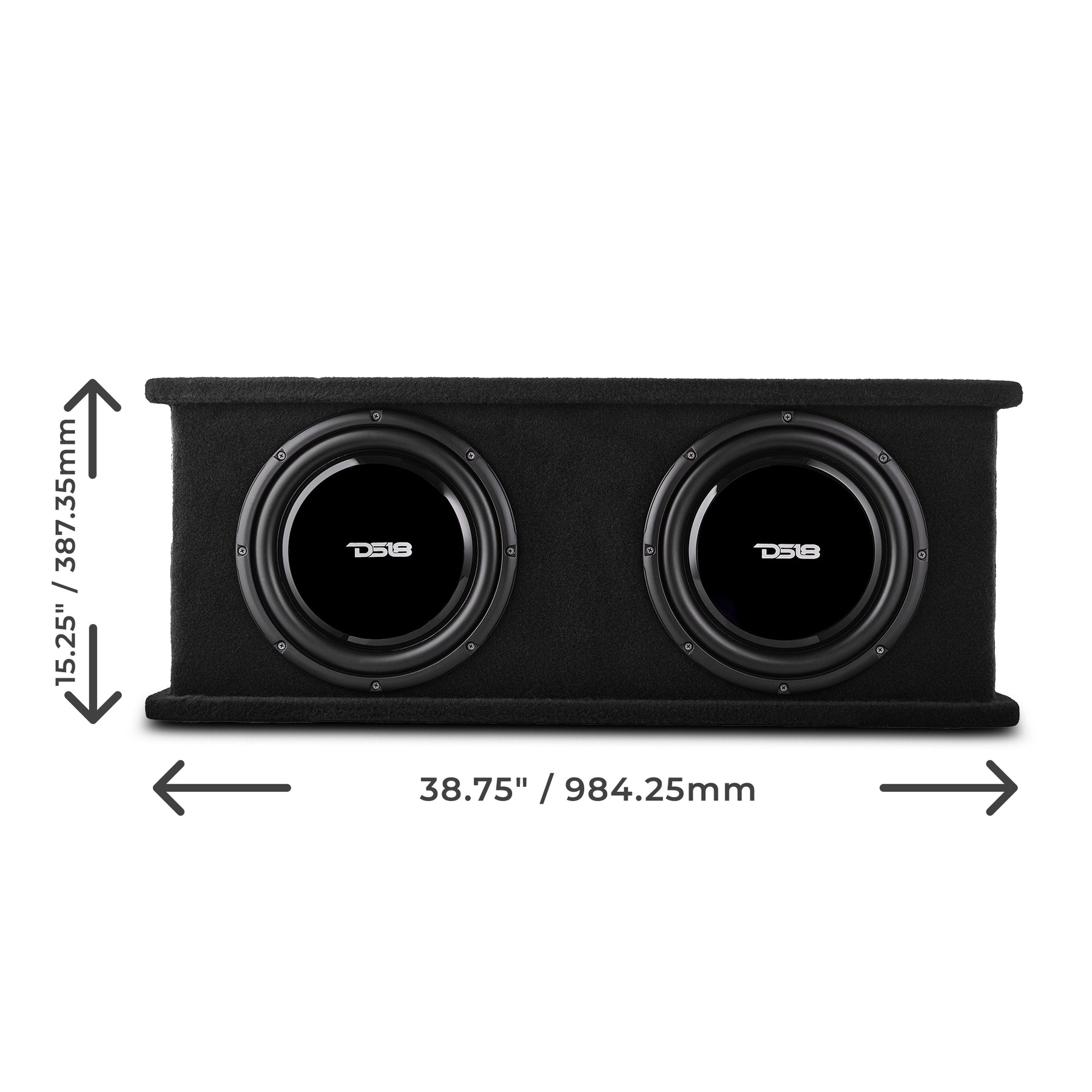

Measurements
Dimension / Attribute Specification
Height 15.25″ / 387.35mm
Length 38.75″ / 984.25mm
Depth 1 5.25″ / 133.35mm
Depth 2 7.5″ / 190.5mm
Gross Single Unit Weight 39 lbs / 17.7 kg
Master Carton Dimensions (W×L×H) 10″ × 41″ × 18″ / 254mm × 1041.4mm × 457.2mm
Gross Master Carton Weight 43 lbs / 19.5 kg
Quantity of Units in Master Carton 1 Pc

Product Overview

DS18’s SB212 is the ultimate solution for those seeking powerful bass in any tight space.

These slim dual 12-inch subwoofers housed in a compact sealed box defy expectations with chest-thumping bass in a package that fits into any vehicle. Crafted from rugged .6-inch MDF, the SB212 is built for everyday use and optimum sound quality.

The internal volume of 1.12ft3 strikes the perfect balance between compactness and performance, ensuring that you get the best sound without sacrificing space. Its impressive frequency response ranging from 30Hz to 250Hz gets even richer and deeper bass, thanks to the control allowed by the sealed box.

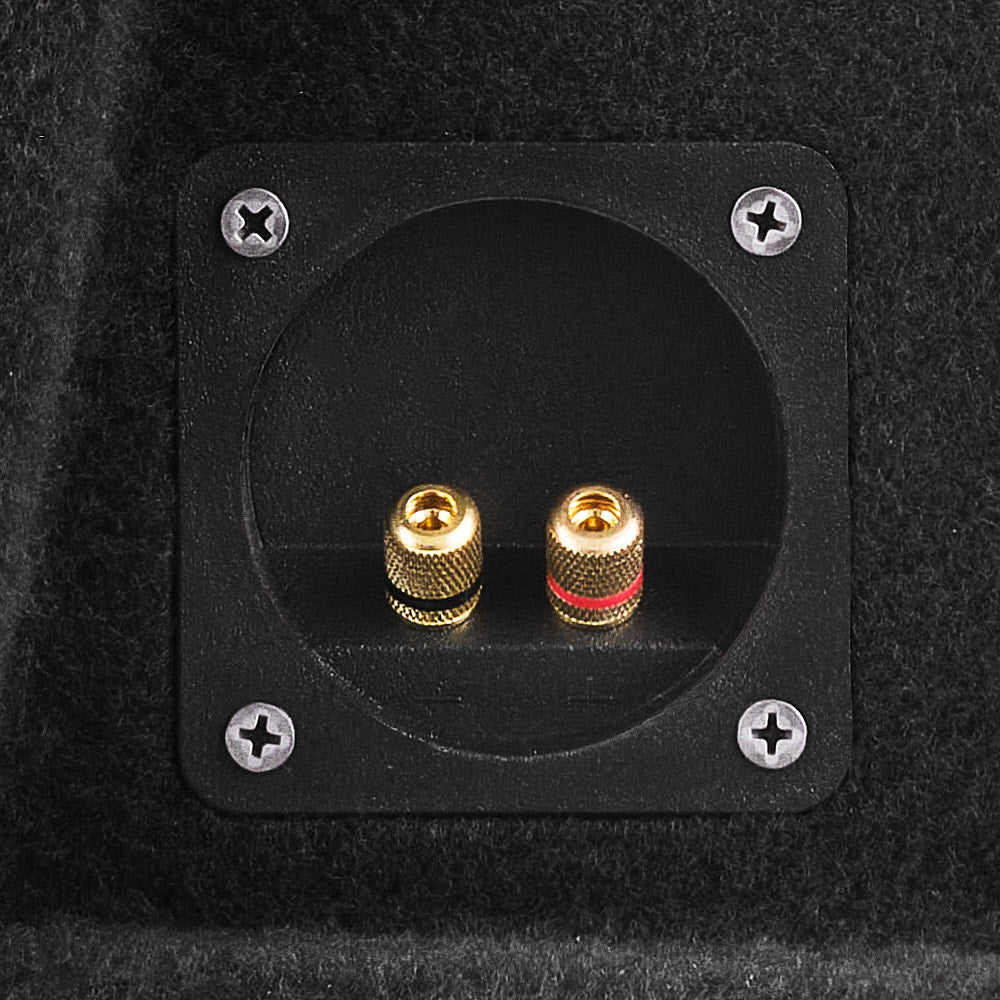

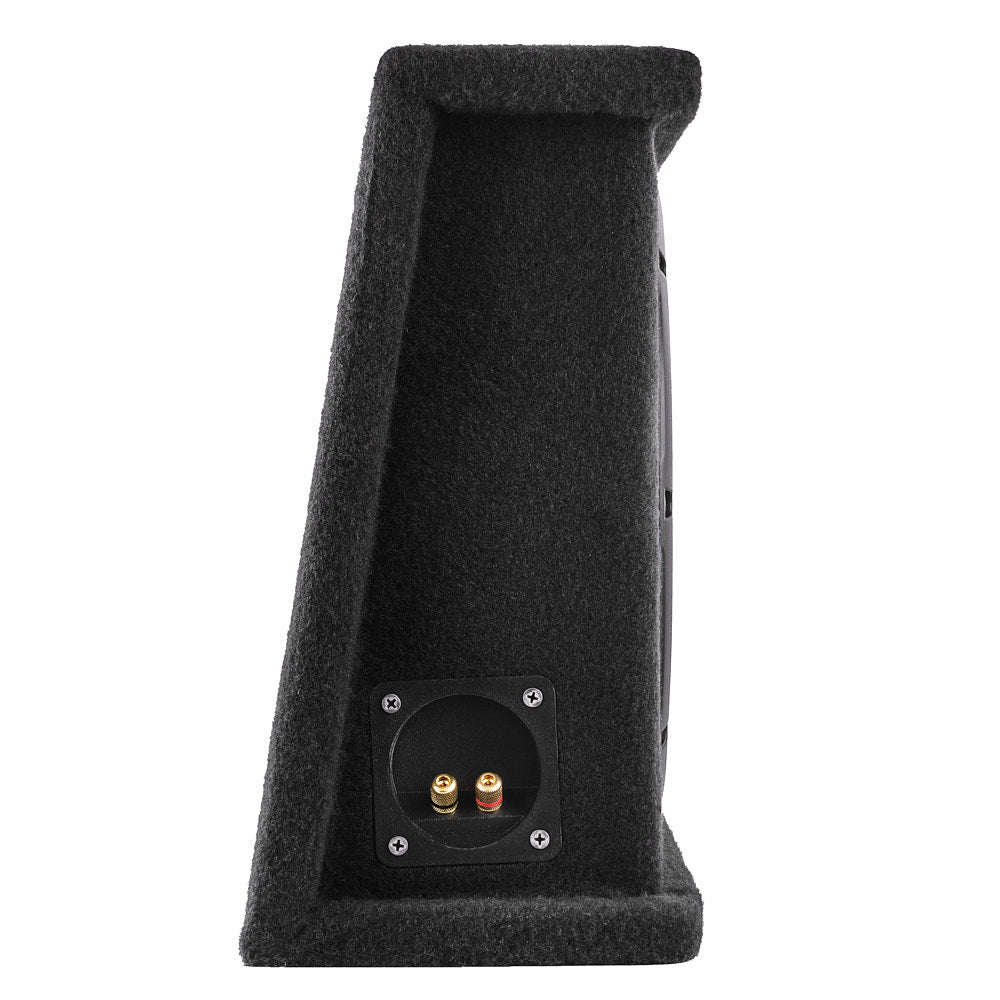

Connecting is easy with the SB212. The speaker connector allows for seamless integration into any existing audio system. Simply hook it up, sit back, and Get LOUD!

Reviews

There are no reviews yet.

Be the first to review “DS18 SB212”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of product is the DS18 SB212?

A1: It’s a dual 12″ sealed subwoofer enclosure with shallow‑mount woofers.

Q2: How much power can the SB212 handle?

A2: It’s rated for 700 W RMS and 1400 W peak power at 1 ohm impedance.

Q3: What is the frequency response range?

A3: The SB212 delivers bass from approximately 30 Hz to 250 Hz.

Q4: What size speakers does it include?

A4: It includes two 12″ shallow‑mount subwoofers.

Q5: What materials and construction does this enclosure use?

A5: The box is built from ½″ MDF with a black carpet finish for durability and looks.
