Description
DS18 S69

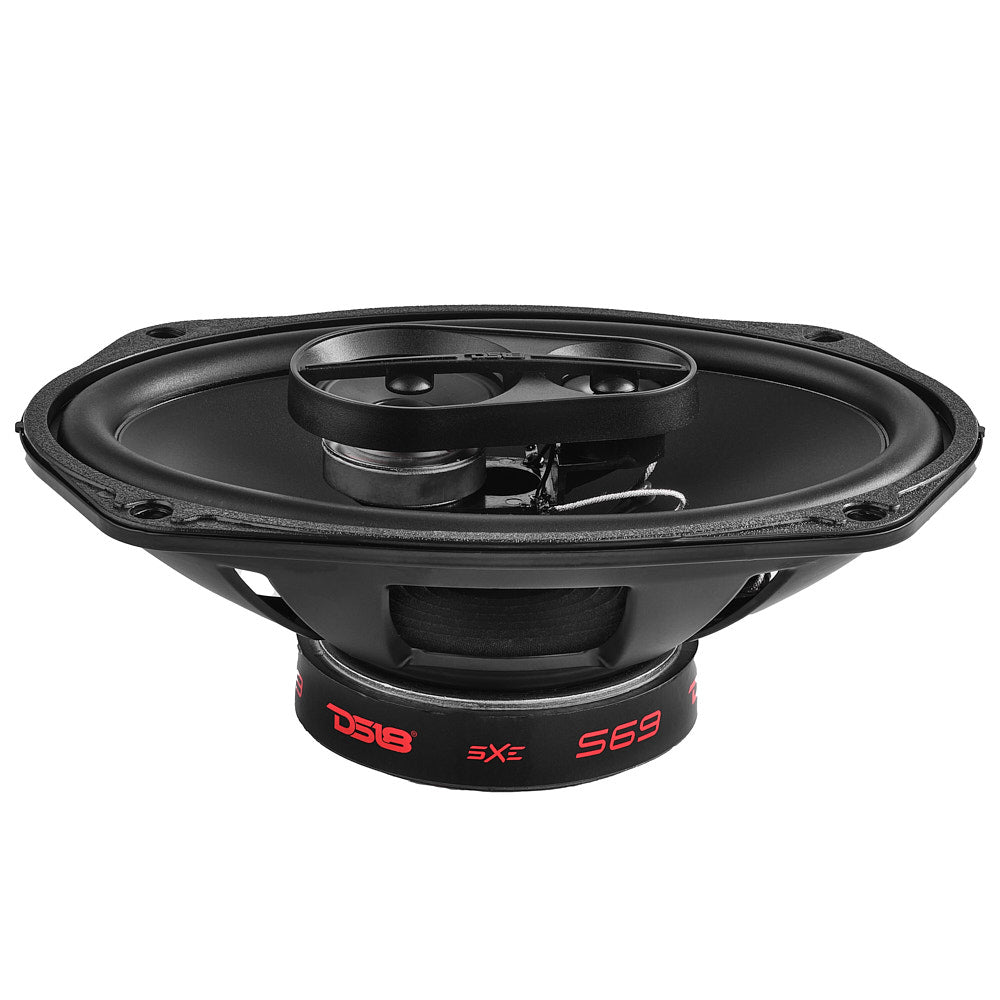

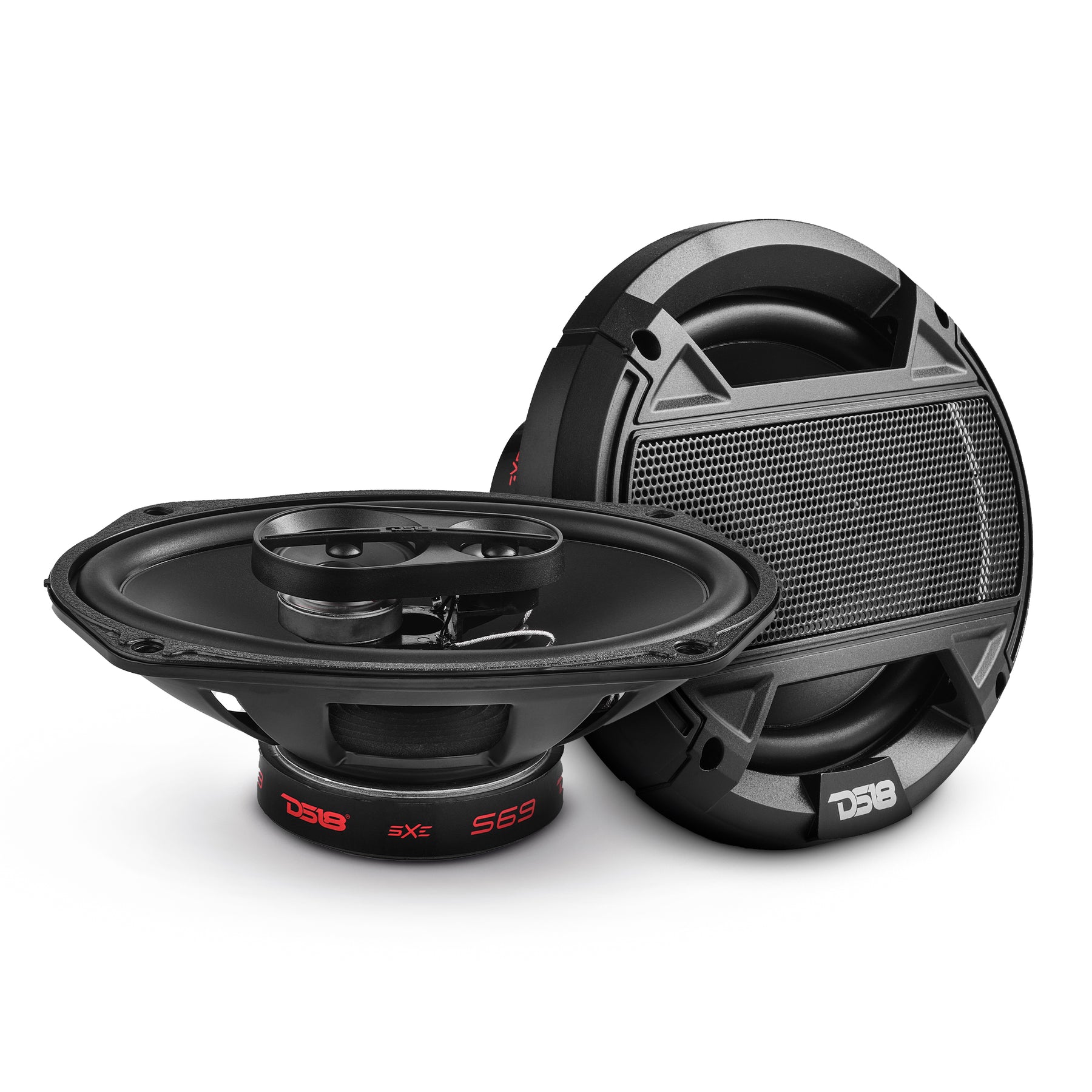

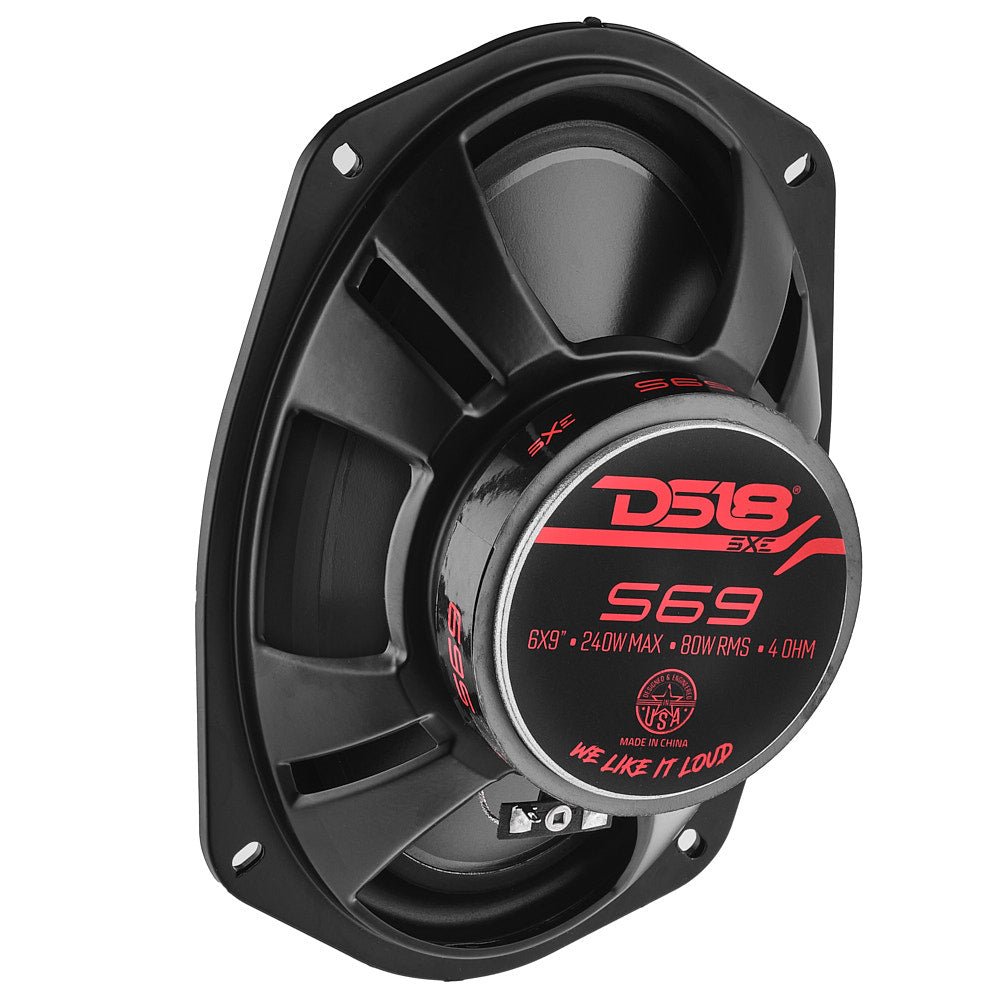

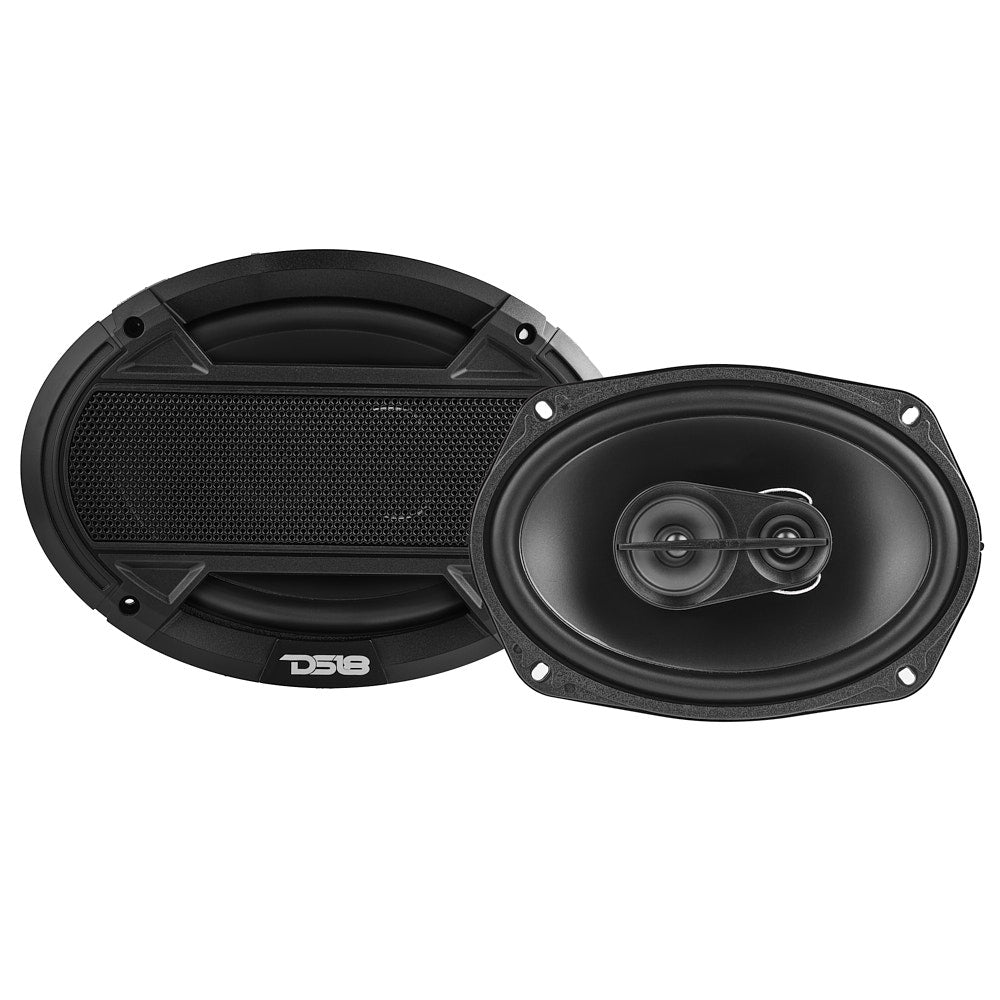

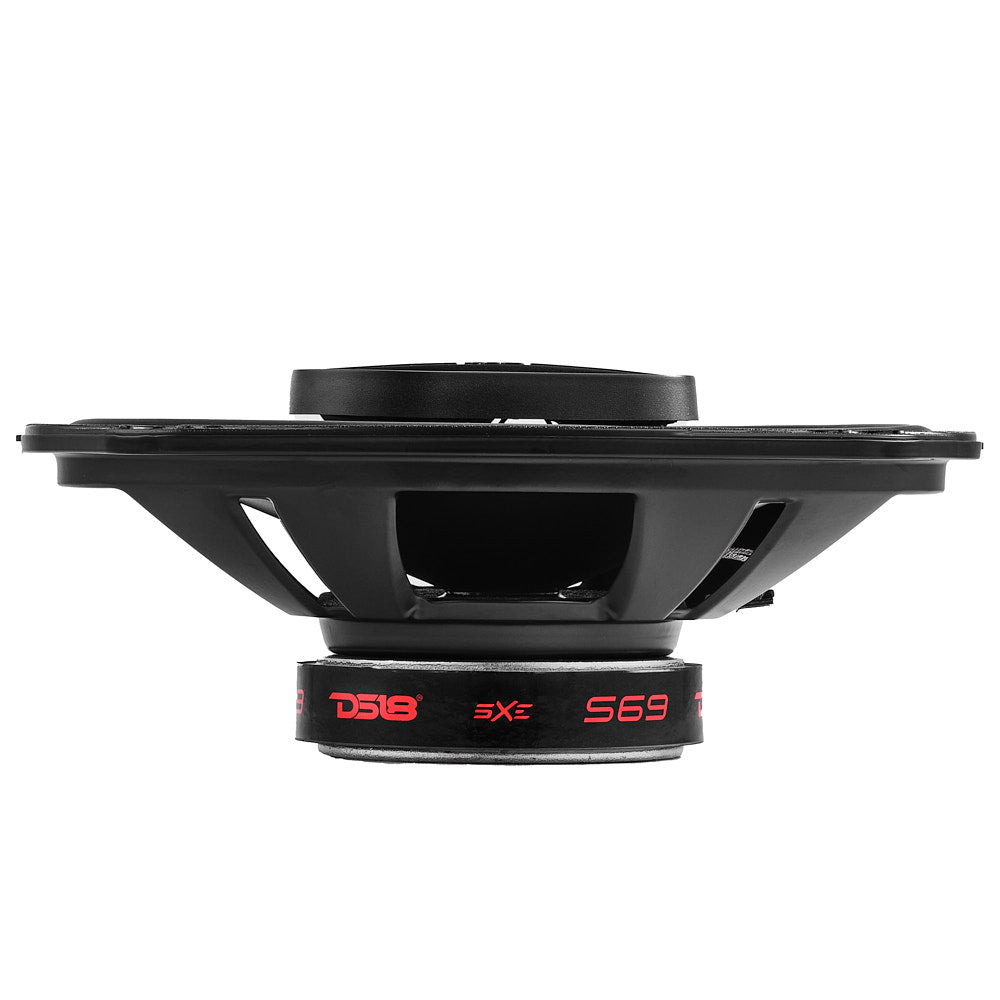

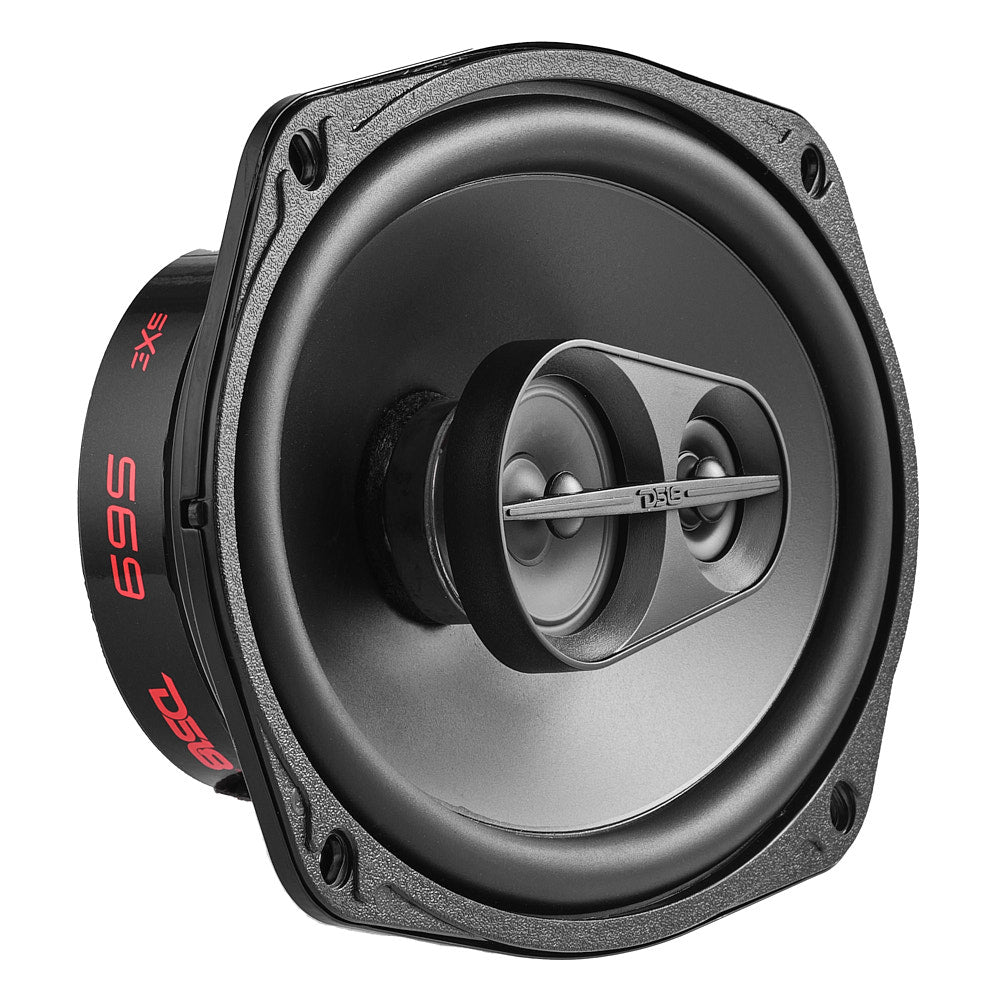

The DS18 S69 is a pair of 6×9‑inch 3‑way coaxial car audio speakers engineered to deliver full‑range sound with strong bass, clear mids, and crisp highs for everyday listening and upgrades to factory audio systems. With a nominal impedance of 4 Ω and 80 W RMS / 240 W peak power handling, these speakers produce dynamic output with good efficiency and detail. Their frequency response spans approximately 35 Hz to 20 kHz, allowing deep low end and bright highs with a sensitivity of 90.8 dB, making them easy to drive with most head units and amps. The woofer uses a PPI cone with a rubber surround for controlled excursion, while dual tweeters provide enhanced high‑frequency clarity. Constructed with a rugged steel basket and finished in matte black with included protective grills, the S69 speakers are versatile and visually appealing upgrades for car doors, rear decks, or other custom installations.
Specifications
| Category | Specification |
|---|---|
| SKU | S69 |
| Nominal Diameter | 6×9″ / 152x228mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 80W |
| MAX Power Handling | 240W |
| Sensitivity (1W/1m) | 90.8 dB |
| Frequency Response | 35Hz-20kHz |
| Recommended Hi Pass Crossover | 50Hz |
| Number of Ways | 3 |
| Pair or Single | Pair |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 15.7 Oz / 445g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 15.9L / 0.56 ft³ |
| Excursion (one way) Xmax | 3.3 mm |
| Free Air Resonance Fs | 61 Hz |
| Mechanical Factor Qms | 4.86 |
| Electrical Factor Qes | 1.79 |
| Total Factor Qts | 1.31 |
| Mechanical Mass Mms | 24 g |
| Mechanical Compliance Cms | 238 mm/N |
| BL Factor BL | 5.2 |
| Voice Coil Inductance Le | 199 µH |
| Cone Area Sd | 217 cm² |
| DC Resistance Re | 3.4 Ohms |
| Mechanical Mass w/o air Mmd | 20.5 g |
Tweeter Specifications
| Parameter | Tw1 | Tw2 |
|---|---|---|
| Nominal Diameter | 2.3″ / 59mm | 1.1″ / 29mm |
| Voice Coil Diameter | 0.6″ / 17mm | Piezo |
| Voice Coil Former Material | PESV | N/A |
| Winding Material | EISVM | N/A |
| Diaphragm Material | Mylar | Mylar |
| Magnet Material | Barium Ferrite | N/A |
| Magnet Weight | 35 g | N/A |

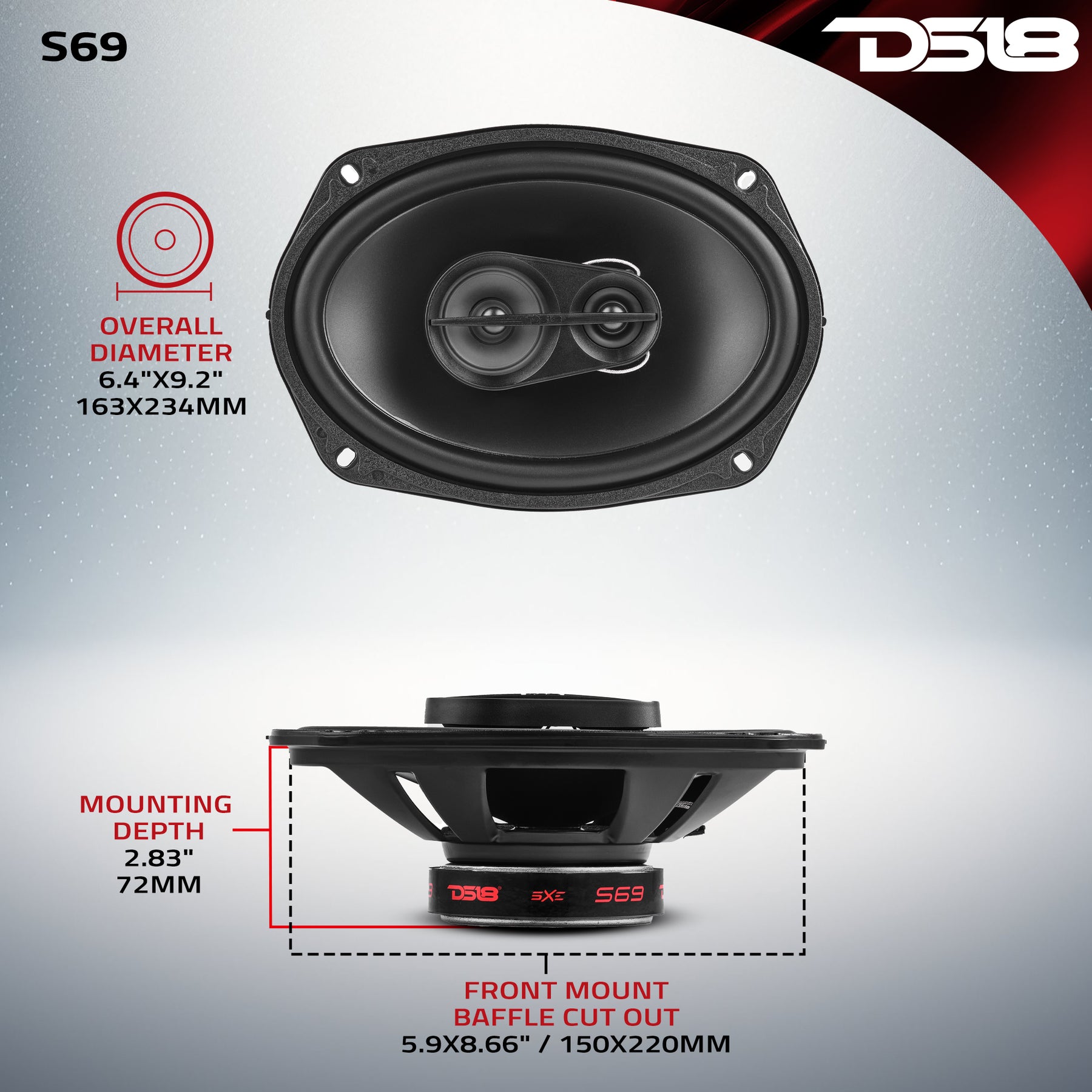

Speaker Measurement
| Parameter | Value |
|---|---|
| Overall Diameter | 6.4″x9.2″ / 163x234mm |
| Overall Depth | 3.15″ / 80mm |
| Overall Diameter (With Grill) | 7.5″x10.4″ / 190x264mm |
| Overall Depth (With Grill) | 4″ / 102mm |
| Front Mount Baffle Cutout | 5.9×8.66″ / 150x220mm |
| Mounting Depth | 2.83″ / 72mm |
| Motor Diameter | 3.93″ / 100mm |
| Tweeter Protrusion | 0.6″ / 16mm |
| Gross Single Unit Weight | 1.25 kg |
| Single Unit Box Dimensions (W x L x H) | 275 x 110 x 390 mm |
| Quantity of Units in Master Carton | 5 PRS/CTN |
| Gross Master Carton Weight | 14.5 kg |
| Master Carton Dimensions (W x L x H) | 575 x 290 x 410 mm |
Product Overview
6×9” 3-Way Coaxial Speakers
Get crystal-clear sound easy with DS18’s S69!
Designed for peak performance, these 3-way coaxial speakers have a nominal impedance of 4 OHM and an RMS power handling of 80W, for powerful and dynamic audio output.
These 6×9” speakers offer a wide frequency response of 35Hz-20KHz, allowing you to enjoy deep bass and crisp highs. The sensitivity rating of 90.8dB ensures that every note is reproduced with incredible detail and accuracy.
The woofer is equipped with a 1″ voice coil diameter and features ASV voice coil former material, ensuring durability and optimal performance. The cone is made from PPI material, providing excellent rigidity for enhanced bass response. The rubber surround allows for controlled cone movement, resulting in accurate sound reproduction. The tweeter consists of two units delivering clear and vibrant high-frequency sounds. Both tweeters are magnetically driven to ensure precise audio reproduction.
With its sleek black matte steel basket and included grill, these speakers sound and look amazing in any vehicle’s audio system. Upgrade your car audio system with DS18’s S69 and enjoy a truly immersive sound experience.
