Description
DS18 RZR-GBSUB10LD

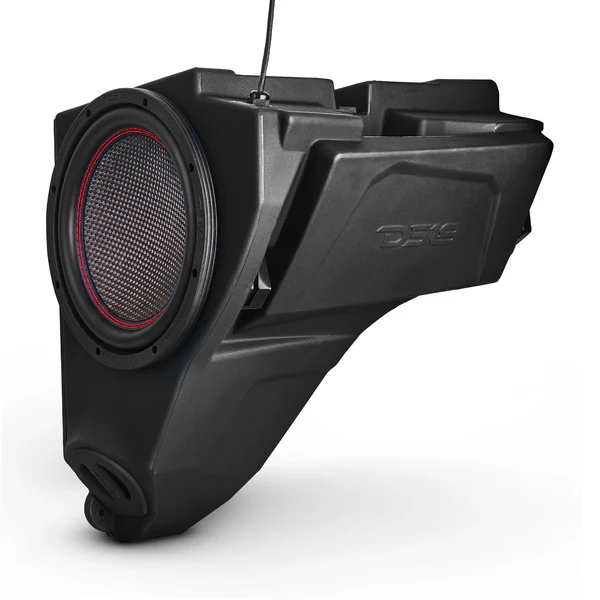

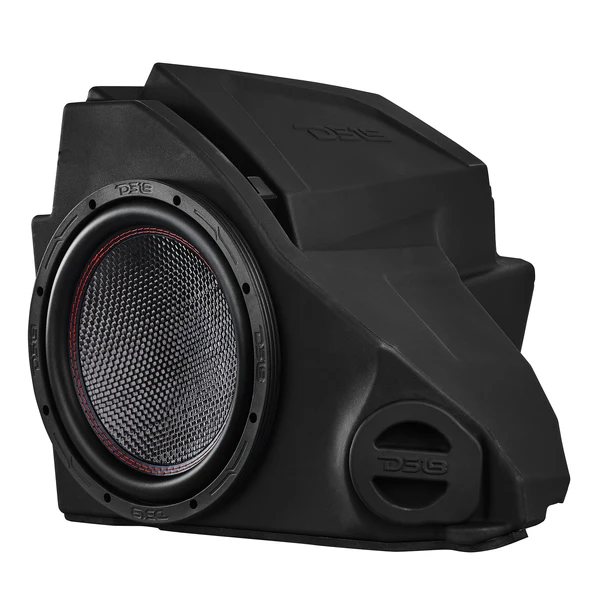

The RZR‑GBSUB10LD is a loaded 10″ subwoofer enclosure engineered specifically for Polaris RZR UTVs (2014 – 2023) that replaces the factory glove box compartment with a powerful bass‑enhancing module. This custom fit sub box includes a 10″ high‑output subwoofer capable of handling up to 600 W RMS (1200 W peak) and delivers deep, impactful low frequencies with a 92 dB sensitivity across a 25 Hz – 250 Hz range — perfect for riders who want robust bass without sacrificing interior space. Built from rugged IP65‑rated weather‑resistant polyethylene (PE), it ensures trail‑worthy durability, direct OEM texture matched finishes, and includes all mounting hardware and wiring harnesses required for easy installation.
Specifications
| Specification | Value |
|---|---|
| SKU | RZR-GBSUB10LD |
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 2 Ohms |
| RMS Power Handling | 600 W |
| MAX Power Handling | 1200 W |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Response | 25–250 Hz |
| Recommended Low-Pass Crossover | 120 Hz |
Body / Features
| Specification | Value |
|---|---|
| Enclosure Material | Polyethylene (PE) |
| Marine Grade | IP65 |
| Sold | Single |
| Color / Finish | Black |
| Port Plug Cover | Yes (Rubber) |
| Direct OEM Fit | Yes |
Woofer Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 81 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume VAS | 23.67 L / 0.835 ft³ |
| Excursion (XMAX) | 21 mm |
| Free Air Resonance FS | 37 Hz |
| Mechanical Factor QMS | 5.07 |
| Electrical Factor QES | 0.76 |
| Total Factor QTS | 0.66 |
| Moving Mass MMS | 140.16 g |
| Compliance CMS | 0.13 mm/N |
| Bl Factor BI | 9.26 |
| Voice Coil Inductance LE | 0.38 mH |
| Diaphragm Area SD | 352.99 cm² |
| DC Resistance RE | 2.01 Ohms |
Box Specifications
| Specification | Value |
|---|---|
| Sealed Internal Volume | 25.4 L / 0.9 ft³ |
| Sealed Box Output Response F3 | 64 Hz |
| Ported Internal Volume | 25.4 L / 0.9 ft³ |
| Port Size (Diameter × Length) | 2.75″ × 11.8″ / 70 × 300 mm |
| Port Tuning Frequency FB | 36 Hz |
| Ported Box Output Response F3 | 32 Hz |
Box Measurements
| Measurement | Value |
|---|---|
| Overall Height | 16.9″ / 430 mm |
| Overall Width | 16.9″ / 430 mm |
| Overall Depth | 14.17″ / 360 mm |
Product Overview
The Polaris RZR just got LOUDER with DS18’s RZR-GBSUB10LD: This 10″ Loaded Subwoofer Enclosure fits perfectly in the RZR’s Glove Box and delivers powerful bass in a weather-resistant design. Its direct OEM texture and fit ensure perfect integration into your RZR, so you don’t have to think too hard when thinking outside!

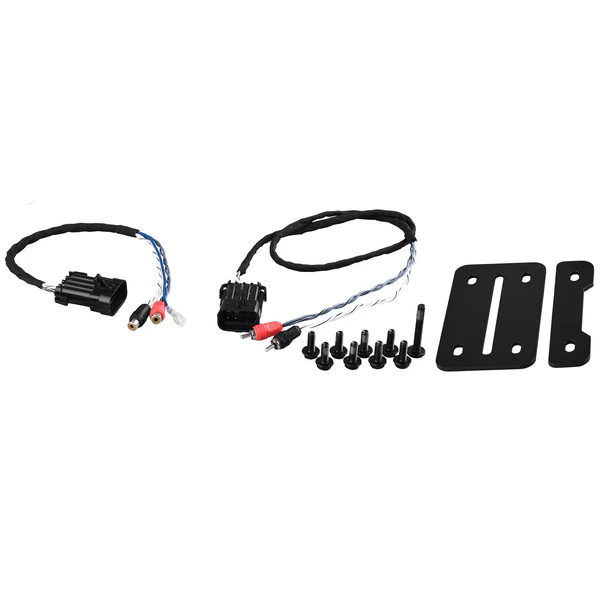

With a 10″ 1200W water-resistant subwoofer, this enclosure delivers deep, impactful bass that resonates. The included mounting brackets and screws minimize the mounting depth guaranteeing a hassle-free installation with no cutting or modifications needed.
This subwoofer enclosure has a nominal impedance of 2 ohms and RMS power handling of 600W, allowing it to handle even the most demanding systems. Its sensitivity rating of 92dB allows crystal-clear reproduction, while its frequency response of 25Hz-250Hz captures every drop accurately.

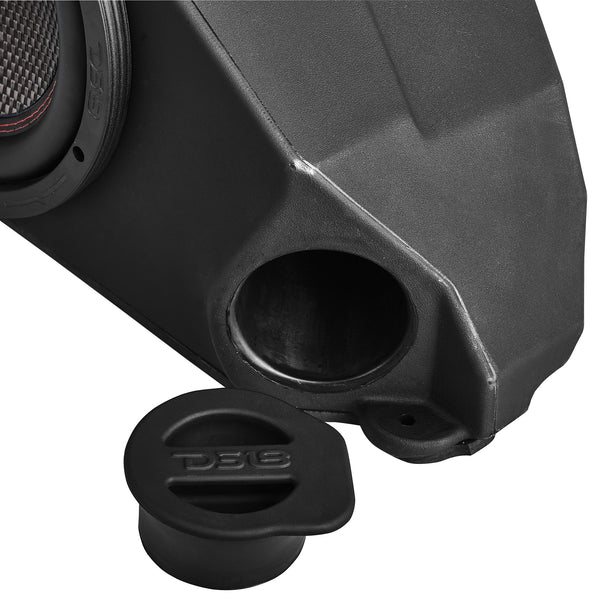

DS18’s RZR-GBSUB10LD has a range of impressive features: like the included port plug cover, adding an extra layer of protection when not in use. Or the enclosure material, also made from durable polyethylene (PE) and marine-grade IP65 rated, providing excellent protection against the elements on any trail!
Provided are two Ride Command Harnesses to connect the RZR-GBSUB10LD to your RZR’s Ride Command Center for easy amplifier installation. One comes with a remote and RCA output: this is used for your subwoofer. The other harness is a full range audio output used for audio signal only.
Get LOUD off-road like never before with DS18’s RZR-GBSUB10LD!
