Description

DS18 PRO-X8.4RGBCAP

The PRO-X8.4RGBCAP is an 8″ RGB LED midrange loudspeaker with a built-in capacitor crossover, designed for high-output pro audio and show-quality installations. Featuring vibrant multi-color RGB lighting, it delivers strong midrange clarity and punchy mid-bass while enhancing the visual appeal of your system. Ideal for car audio builds, motorcycles, Jeeps, and custom show setups, this speaker combines performance and style in one powerful package.


Specifications

Category Specification
SKU PRO-X8.4RGBCAP
Nominal Diameter 8″ / 203.2 mm
Nominal Impedance 4 Ω
RMS Power Handling 275 W
Maximum Power Handling 550 W
Sensitivity (1W/1m) 96 dB
Frequency Response 115Hz–16KHz
Recommended High-Pass Crossover 120 Hz

Motor / Voice Coil Specifications
Feature Specification
Voice Coil Diameter 1.5″ / 38.6 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material Steel
Magnet Weight 30 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 7.12 L / 0.25 ft³
Excursion (Xmax) 9.3 mm
Free Air Resonance (Fs) 114 Hz
Mechanical Factor (Qms) 9.052
Electrical Factor (Qes) 0.877
Total Factor (Qts) 0.8
DC Resistance (Re) 3.2 Ω

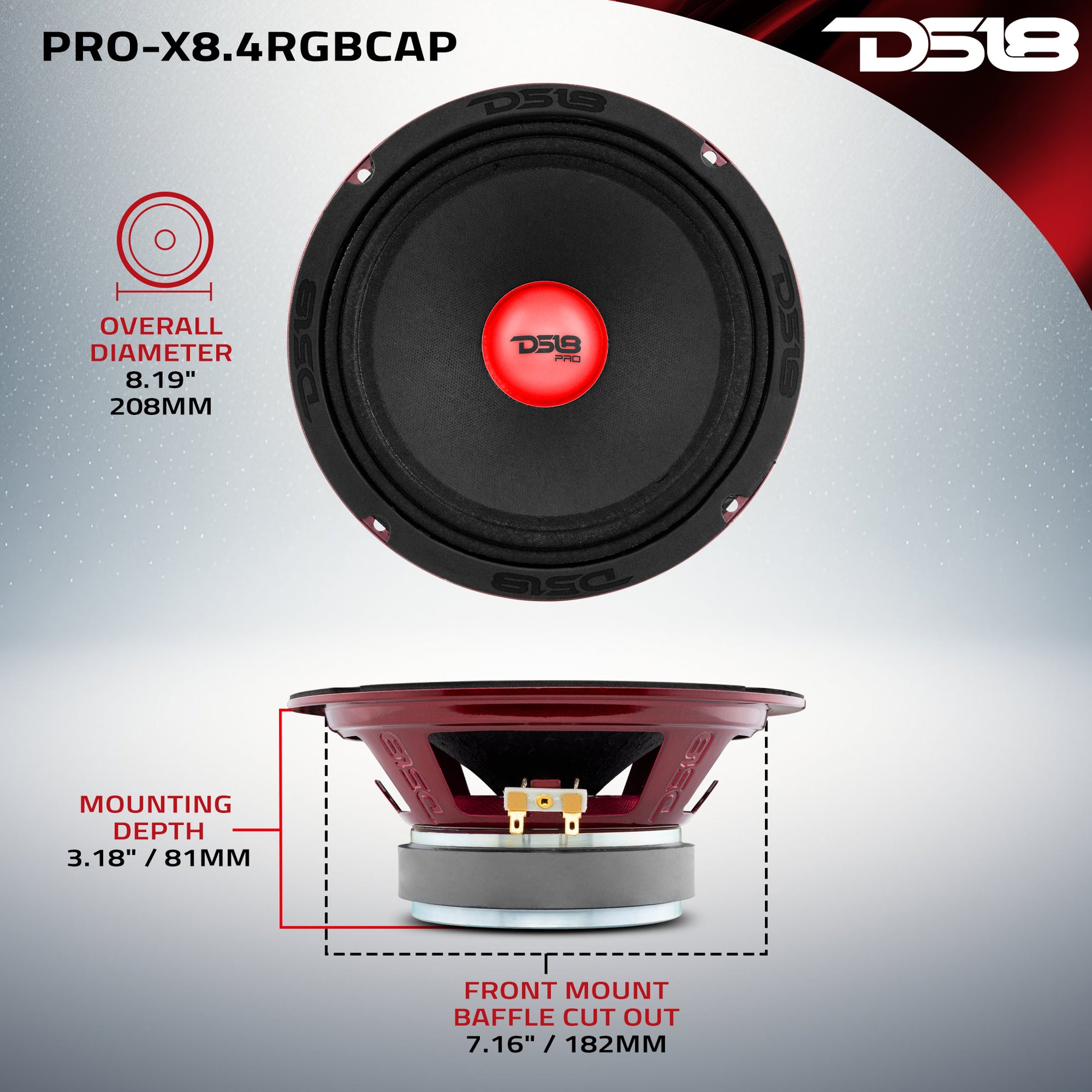

Measurements
Dimension / Feature Value
Overall Diameter 8.19″ / 208 mm
Front Mount Baffle Cutout 7.16″ / 182 mm
Mounting Depth 3.18″ / 81 mm
Overall Depth 3.42″ / 87 mm
Product Weight 6 lbs
Product Dimensions (W x L x H) 9 x 9 x 4 in
Master Carton Weight 50 lbs
Master Carton Dimensions 18.5 x 18.5 x 8.75 in
Quantity per Master Carton 8
Sold In Single

Product Overview

8″ Mid-Range Loudspeaker with RGB Lights 550 Watts Max 4-Ohm

The mid-range speaker that handles it all, now comes with an RGB LED Dust Cap. DS18’s PRO-X8.4RGBCAP combines stunning sound quality with a mesmerizing visual display, making it the ultimate choice for car audio enthusiasts like you.
One of the standout features of the PRO-X8.4RGBCAP is its high 96dB sensitivity. This means you can crank up the volume without worrying about any distortion, allowing you to experience a concert-quality performance every time you hit play.
The PRO-X8.4RGBCAP’s strong ferrite magnet and high wattage voice coil ensure optimal performance and durability, allowing you to push the limits without compromising on quality. The result? Exceptional sound reproduction and accuracy that will bring your music to life.
With a frequency response of 115Hz to 16KHz, this speaker delivers the strongest midrange and the brightest high frequencies, ensuring every note is reproduced with astonishing clarity and precision.

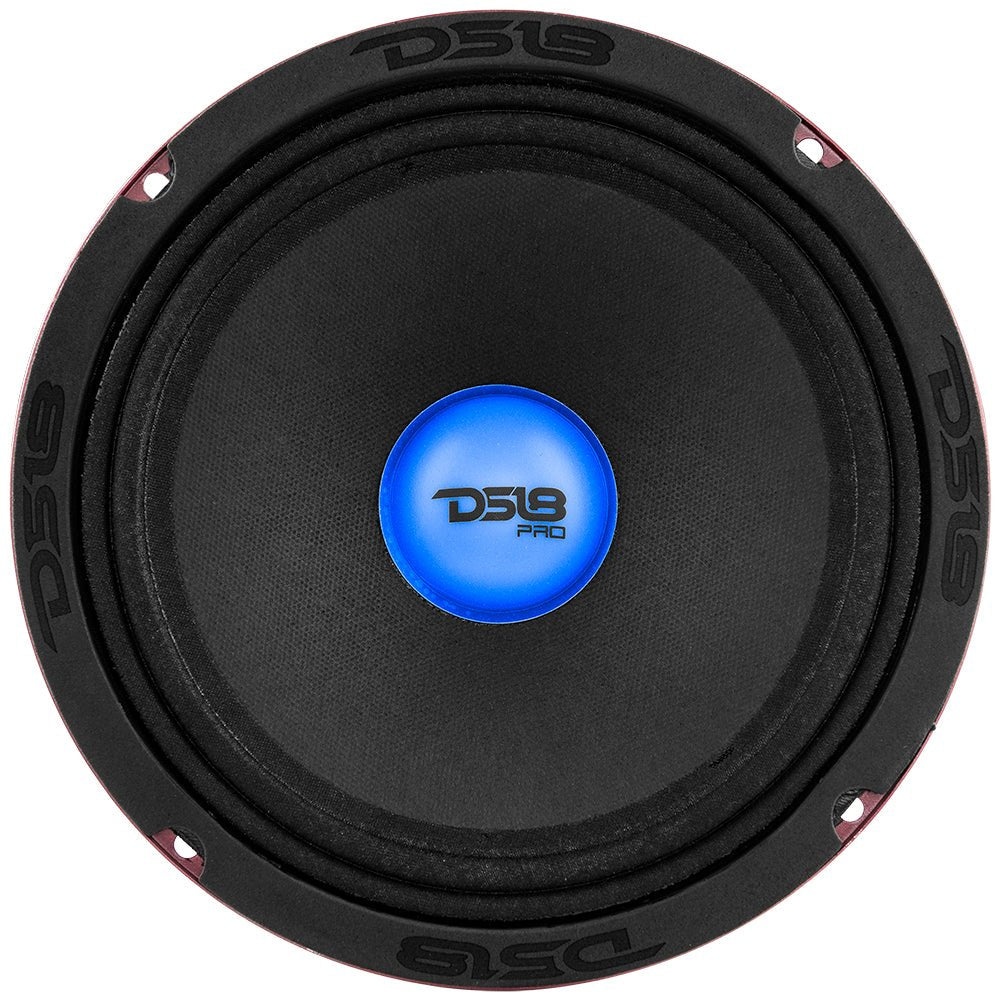

But that’s not all! The PRO-X8.4RGBCAP boasts an integrated RGB Dust Cap, adding a stunning visual element to your car audio setup. Immerse yourself in a captivating ambiance as the RGB LEDs illuminate your vehicle’s interior with over 16 million different colors to choose from. Control the mood and atmosphere with ease, using the sold separately LED-BTC or LC-RGB controller to create the perfect lighting experience.
With the DS18 PRO-X8.4RGBCAP, you have the freedom to customize your setup further. While the speaker is sold individually, you can enhance its protection and style by adding the recommended PRO-GRILL8, PRO-GRILL8RGB, PRO-GRILL8LGO, or PRO-GTW8 grills.
Don’t settle for ordinary, unleash the extraordinary with the PRO-X8.4RGBCAP.

Reviews

There are no reviews yet.

Be the first to review “DS18 PRO-X8.4RGBCAP”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the PRO-X8.4RGBCAP?

A1: It is an 8-inch pro audio midrange loudspeaker with built-in RGB LED lighting and a capacitor crossover.

Q2: What is special about this model?

A2: It features integrated RGB lighting for a custom show look along with strong midrange audio performance.

Q3: Where can this speaker be installed?

A3: It is ideal for car audio systems, motorcycles, Jeeps, UTVs, and custom show builds.

Q4: Does it produce deep bass?

A4: It is designed primarily for midrange and mid-bass frequencies. For deep bass, a dedicated subwoofer is recommended.

Q5: Do I need an amplifier?

A5: Yes, for best performance and loud output, pairing it with an external amplifier is recommended.
