Description
DS18 PRO-X8.4RGB

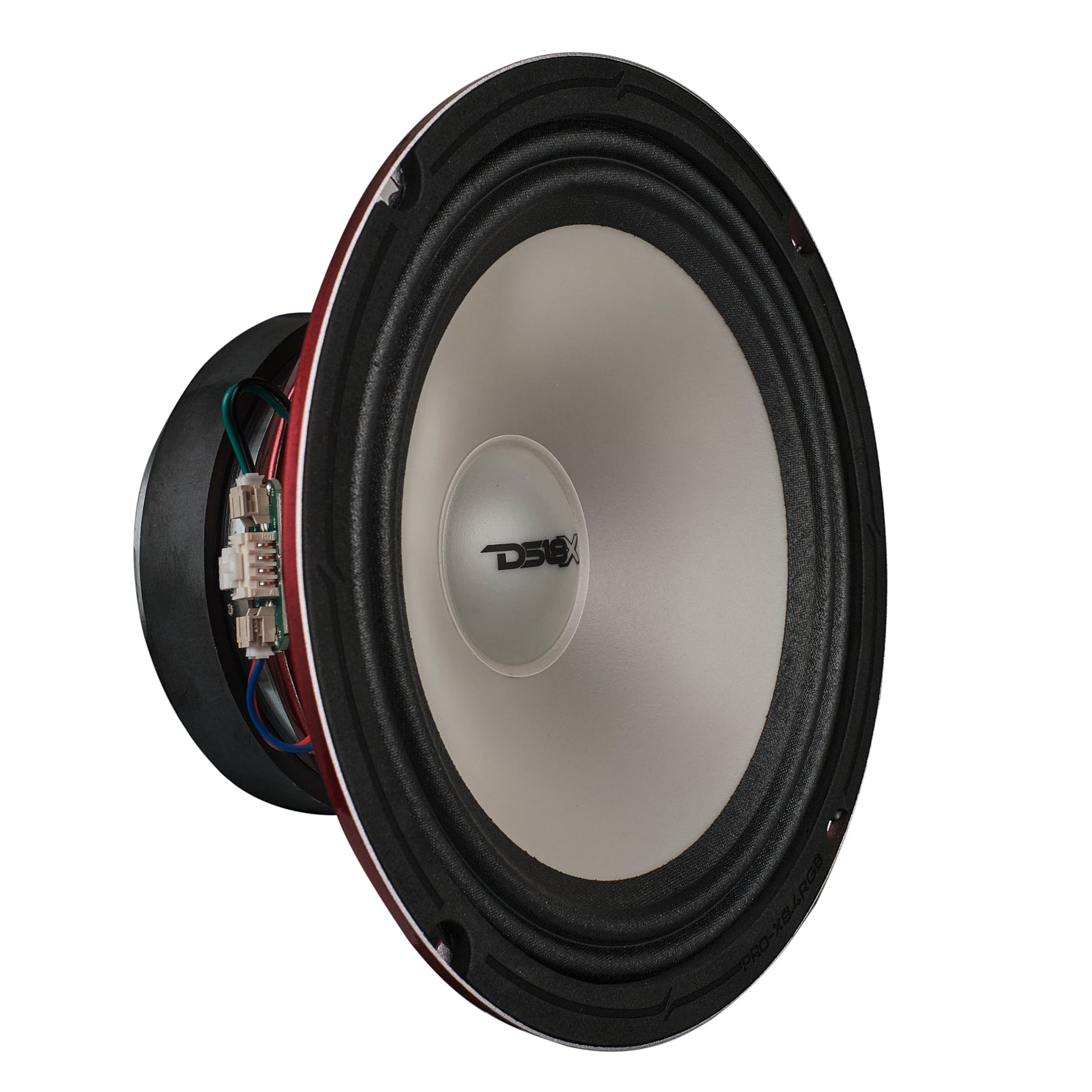

The DS18 PRO‑X8.4RGB is a high‑output 8″ mid‑range loudspeaker with Dual RGB LED lighting integrated into both the cone and dust cap, combining powerful sound with striking visual effects for custom car audio builds, show installations, or systems that demand aesthetics as well as performance.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-X8.4RGB |
| Nominal Diameter | 8″ / 203.2 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 275 W |
| Maximum Power Handling | 550 W |
| Sensitivity (1W/1M) | 95 dB |
| Frequency Response | 80 Hz – 5 kHz |
| Recommended High-Pass Crossover | 100 Hz |
| Sold In | Single |
| Grille Included | No |
| Water-Resistant Rating | IP65 |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Translucid PP with RGB LED |
| Dust Cap Material | Translucid PP with RGB LED |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 30 Oz |
| Displacement Volume | 0.049 L / 0.0017 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 13.2 L / 0.46 ft³ |
| Xmax (One Way) | 7 mm |
| Fs | 80 Hz |
| Qms | 9.31 |
| Qes | 0.75 |
| Qts | 0.7 |
| Mms | 22.3 g |
| Cms | 0.19 mm/N |
| BL | 6.96 |
| Le | 0.03 mH |
| Sd | 219.04 cm² |
| Re | 3.5 Ohms |
| Mmd (Without Air) | 20.5 g |

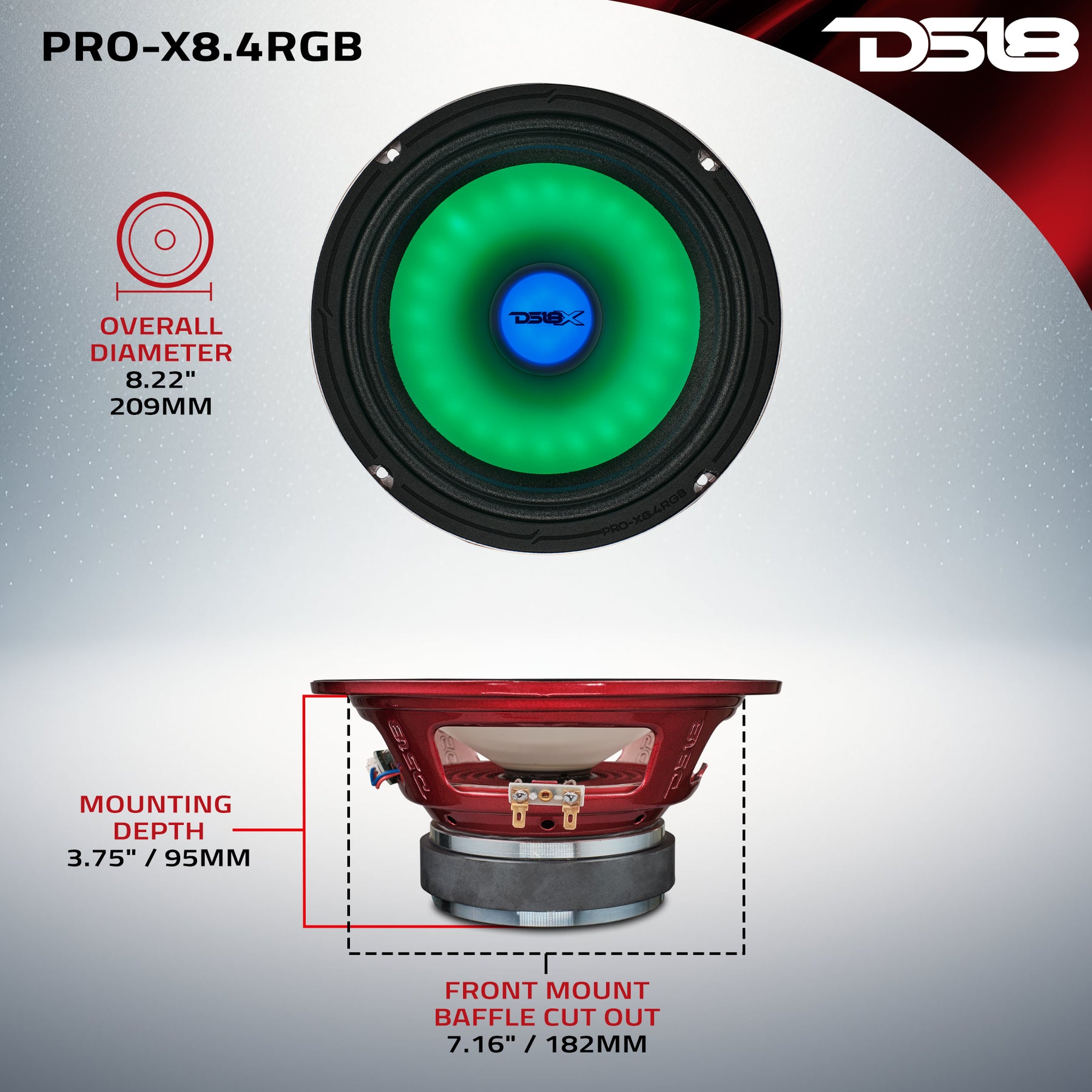

Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter | 8.22″ / 209 mm |
| Overall Depth | 4″ / 101.6 mm |
| Front Mount Baffle Cutout | 7.16″ / 182 mm |
| Mounting Depth | 3.75″ / 95 mm |
Product Overview

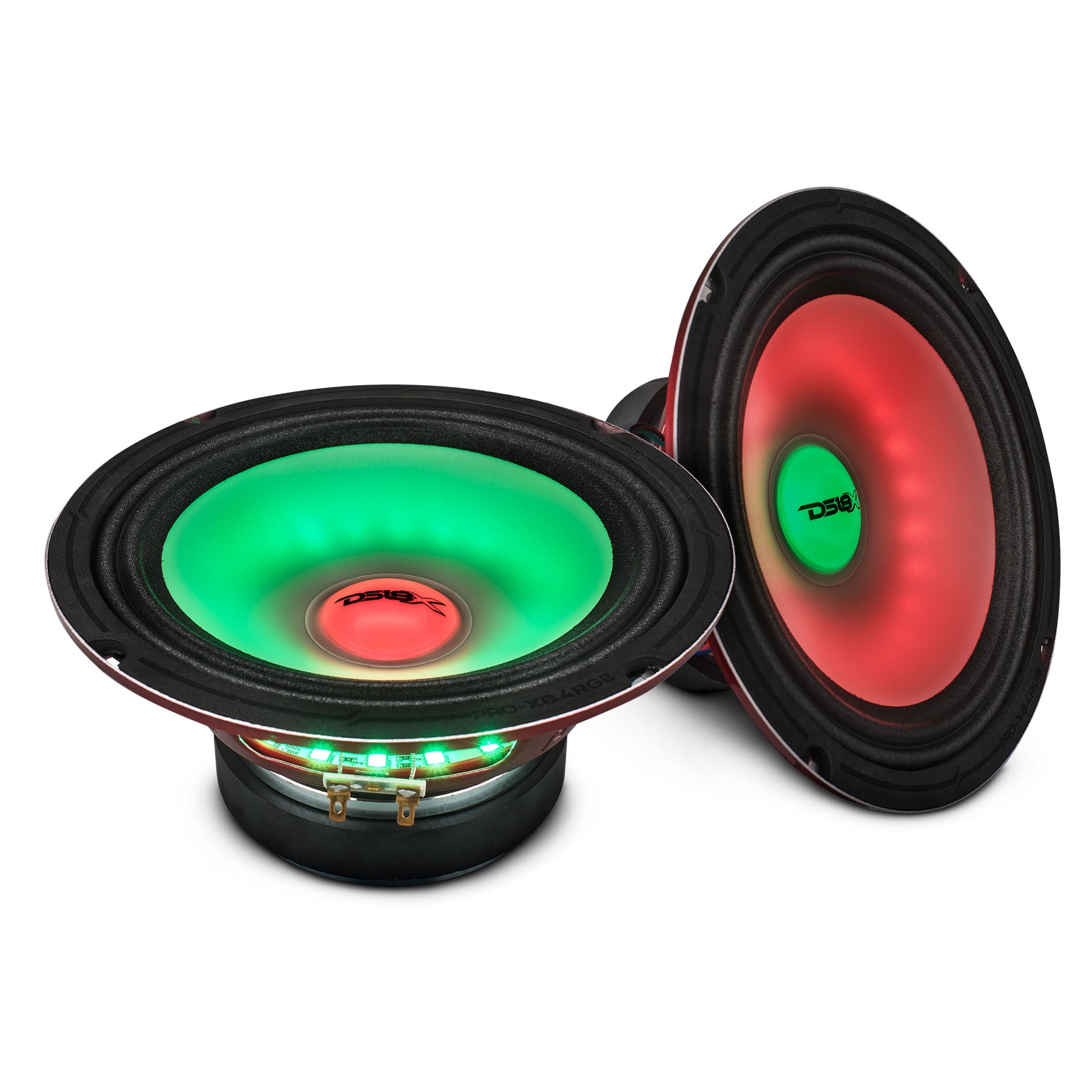

8″ Mid-Range Loudspeaker With Dual RGB LED For Cone & Dust Cap
Get LOUD with DS18’s PRO-X8.4RGB, an 8-inch loudspeaker engineered for excellence. This loudspeaker combines high-power audio with a striking visual flair, making it the perfect upgrade for competitive and casual systems.
The PRO-X8.4RGB handles up to 275W RMS and peaks at 550W, guaranteeing distortion-free sound even at high volumes. Its wide frequency response from 80Hz to 5kHz captures rich mid-range tones, while the exceptional sensitivity of 95 dB guarantees loud, detailed audio with minimal power input.

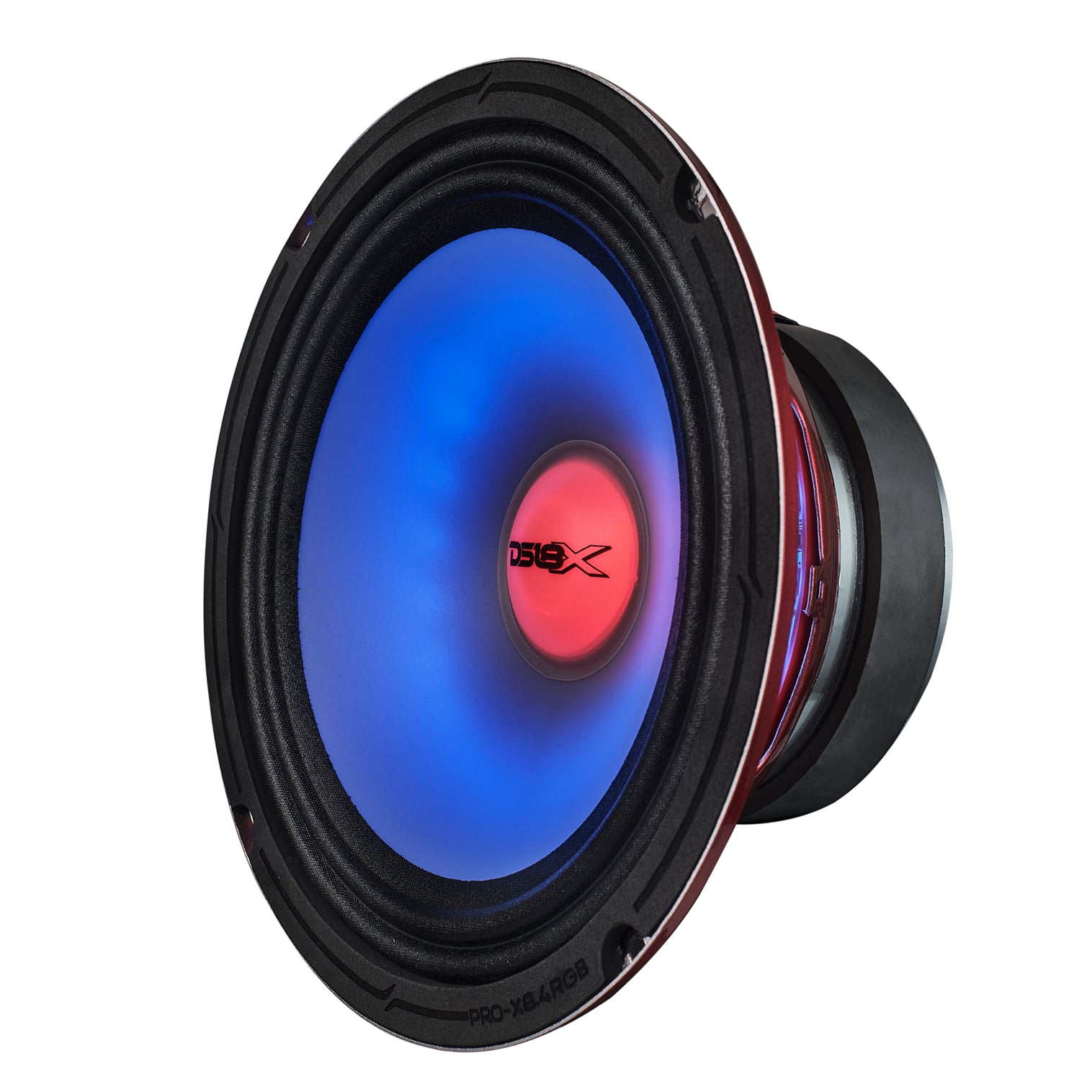

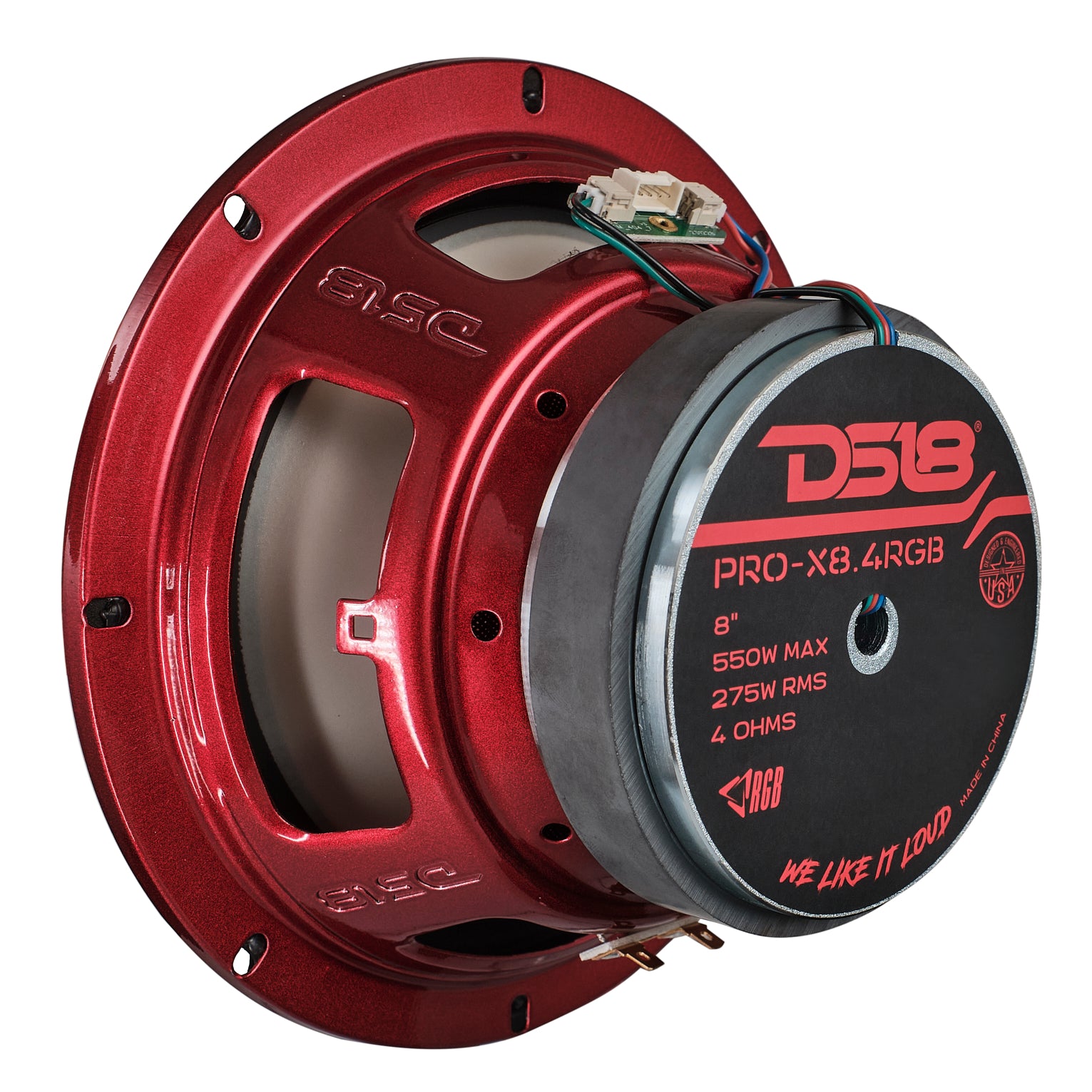

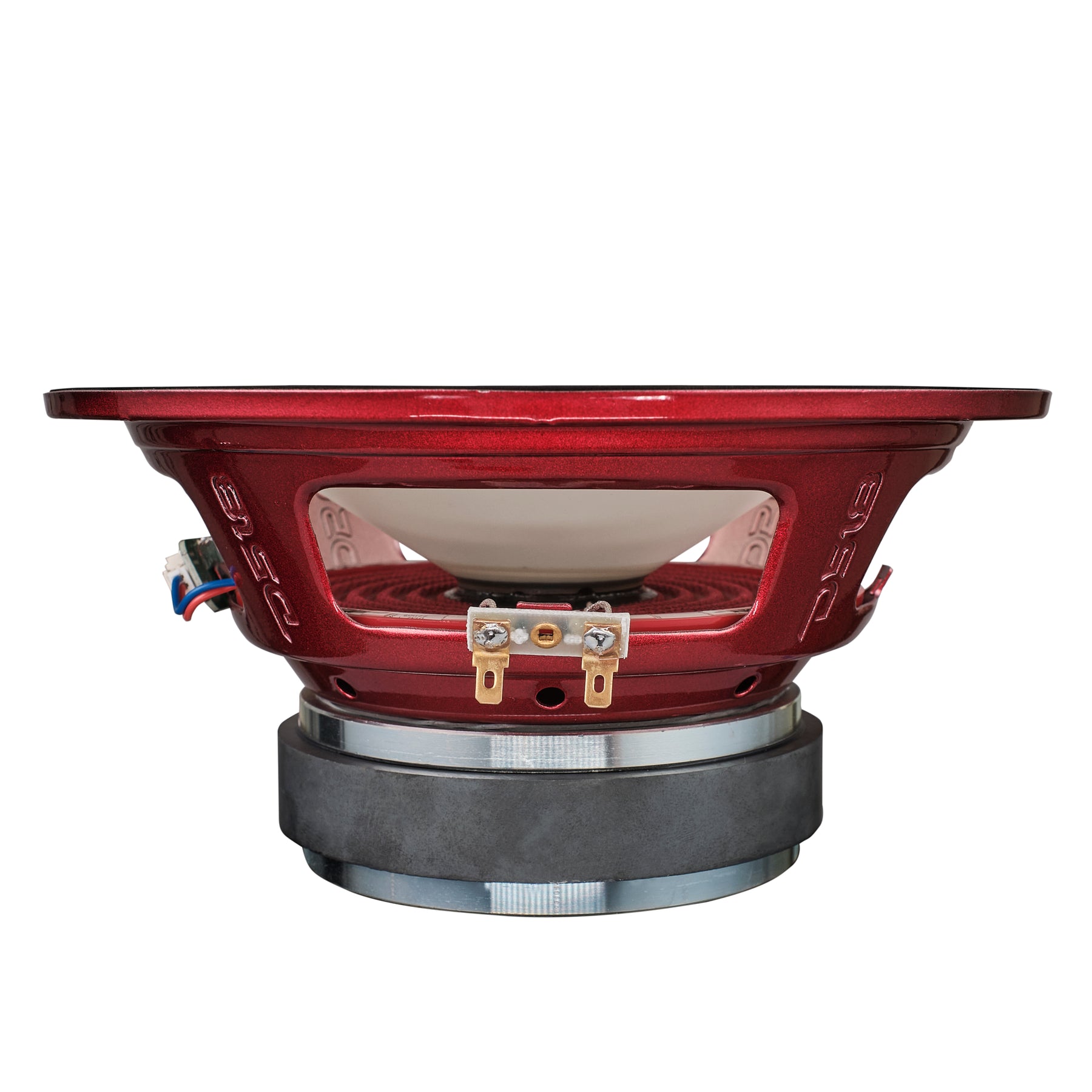

This mid-range speaker features a translucent polypropylene cone and dust cap integrated with RGB LEDs for dynamic lighting effects that can transform any show build from runner up to first place. The 1.5-inch voice coil with Kapton former and CCAW winding enhances durability and precision, while the glossy red steel basket ensures structural integrity. Its rugged ferrite magnet weighing 30 oz boosts reliability, making it perfect for any setup.

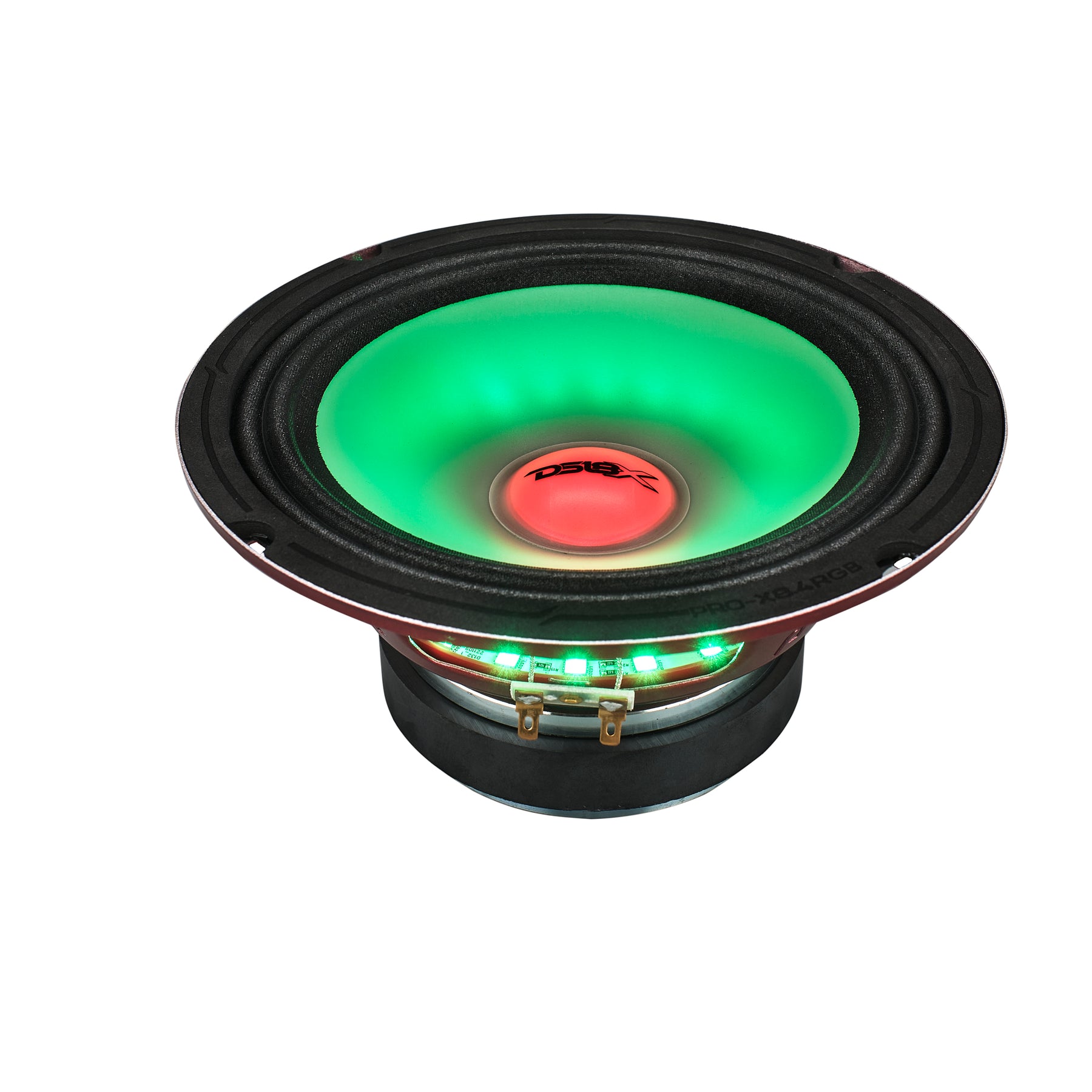

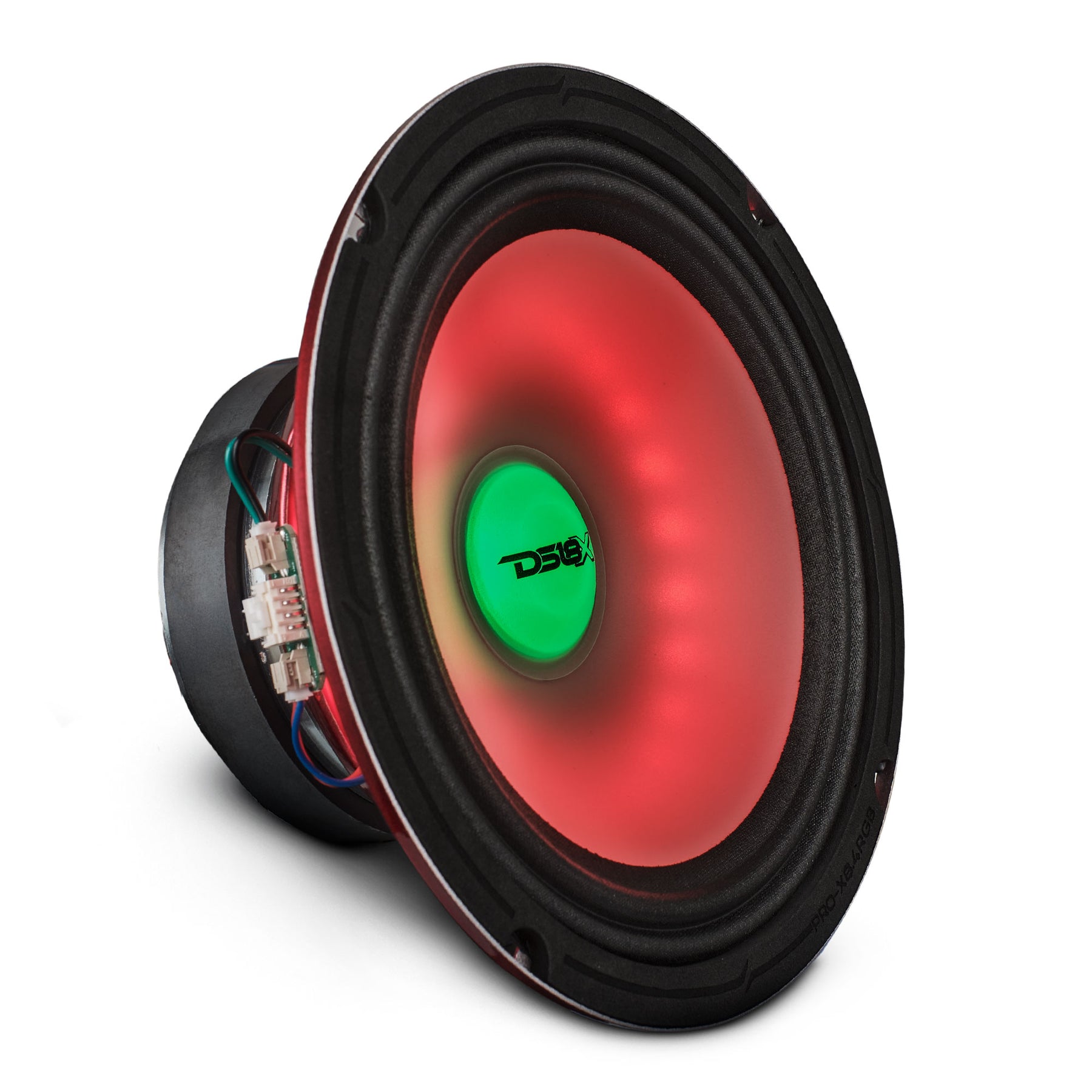

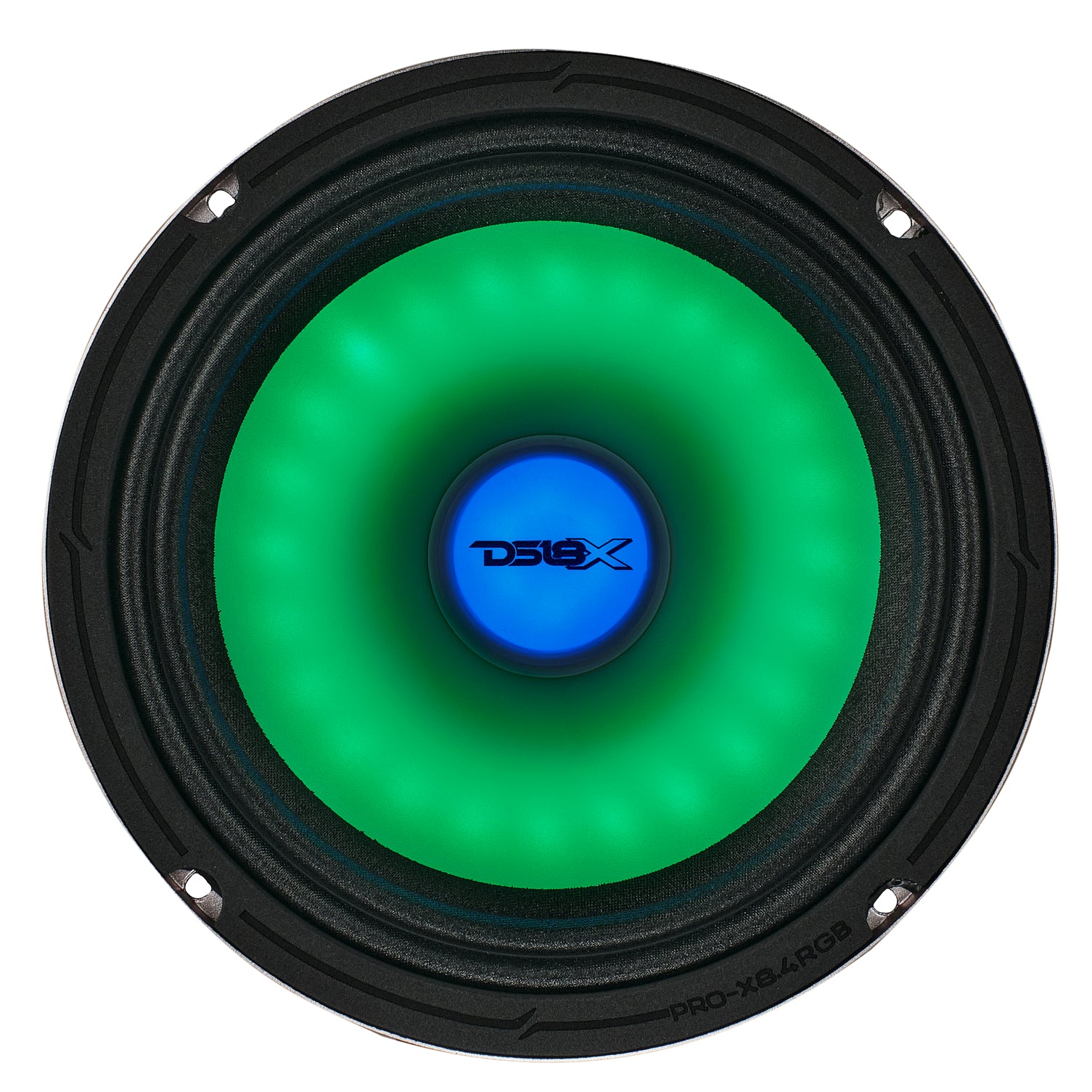

What sets the PRO-X8.4RGB apart is its customizable LED lighting system, offering both dual and single-color modes suitable for wet or dry environments. This feature allows you to tailor your setup’s aesthetics to your liking.
This speaker is perfect for every enthusiast. Its compact design with a 4-ohm impedance and 3.75″ mounting depth ensures effortless integration into various setups.
Choose the PRO-X8.4RGB for a speaker that stands out not just in sound but in style too.
