Description
DS18 PRO-TWX3TI
The PRO-TWX3TI is a professional-grade 3.8-inch super bullet compression tweeter designed to deliver crisp, powerful high-frequency sound for car and pro audio systems. Equipped with a robust 1.5-inch titanium voice coil and ferrite magnet, it handles up to 250 W RMS (500 W peak) while maintaining excellent clarity and minimal distortion. Its high sensitivity and extended frequency response make it ideal for enhancing treble, vocals, and sound detail. The built-in bass blocking capacitor protects the tweeter and ensures only high frequencies are reproduced, giving you bright, dynamic highs that elevate your overall audio performance.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWX3Ti |

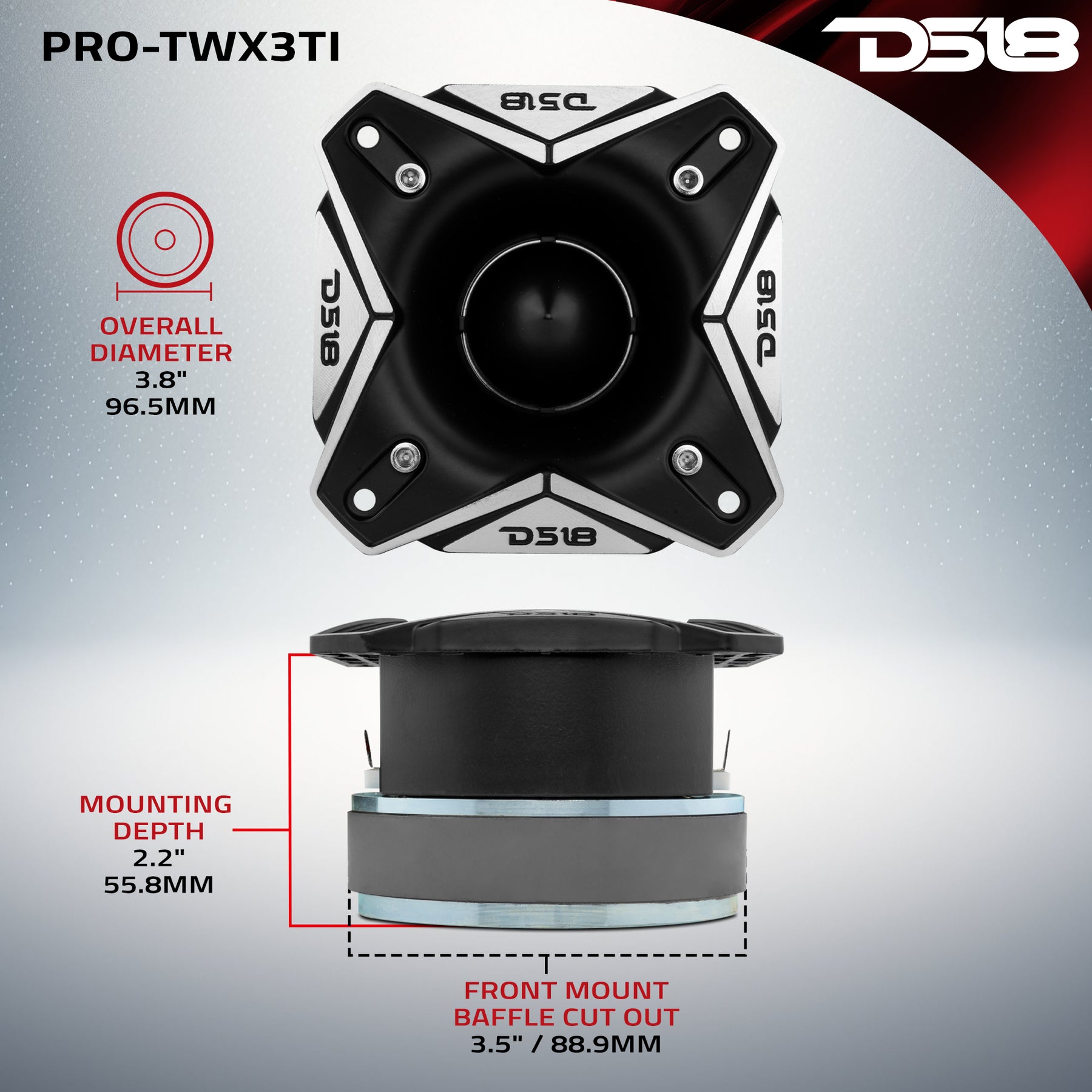

| Nominal Diameter | 3.8″ / 96.5 mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 125 W |
| Program Power Handling | 250 W |
| Peak Power Handling | 500 W |
| Sensitivity (1W/1M) | 108 dB |
| Frequency Response | 1.6 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2.5 kHz |
| Sold In Pair or Single | Single |
Body / Features
| Parameter | Details |
|---|---|
| Filter (Bass Blocker) | 4.7 µF / 50 V |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.1 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 15 Oz |
Product Overview
Super Bullet Compression Tweeter With 1.5” Titanium Voice Coil
DS18’s PRO-TWX3Ti builds on the elegance of the PRO-TWX3!
Designed to deliver intense volume with unmatched clarity, the PRO-TWX3Ti handles power efficiently for extended listening sessions!
This model comes equipped with a titanium voice coil to support this speaker in its production of clear rich highs.
These professional grade super tweeters can handle power as high as 500W and deliver accurate sounds with a high frequency response of 1.6KHz to 20KHz.
The PRO-TWX3Ti includes a Bass Blocking Capacitor for a cleaner signal that prevents lower frequencies from being produced; resulting in much brighter highs and added protection for both your speaker and voice coil!
Get the most out of your sound system by upgrading to DS18’s PRO-TWX3Ti: the concert quality tweeter your system deserves!
