Description
DS18 PRO-TWN6.8
The PRO-TWN6.8 is a professional-grade 4-inch high-compression neodymium super bullet tweeter designed to deliver extremely clear and powerful high-frequency sound in car and pro audio systems. Built with a robust 1.25-inch polyimide voice coil and lightweight neodymium magnet, it offers excellent sensitivity (109 dB) and efficient acoustic performance with minimal distortion. With a power handling of 75 W RMS (150 W program and up to 300 W peak), this tweeter produces sharp highs and vibrant treble for an immersive listening experience. Its compact aluminum body and universal fit make it easy to install in custom audio setups, enhancing clarity and detail in the upper frequency range.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWN6.8 |

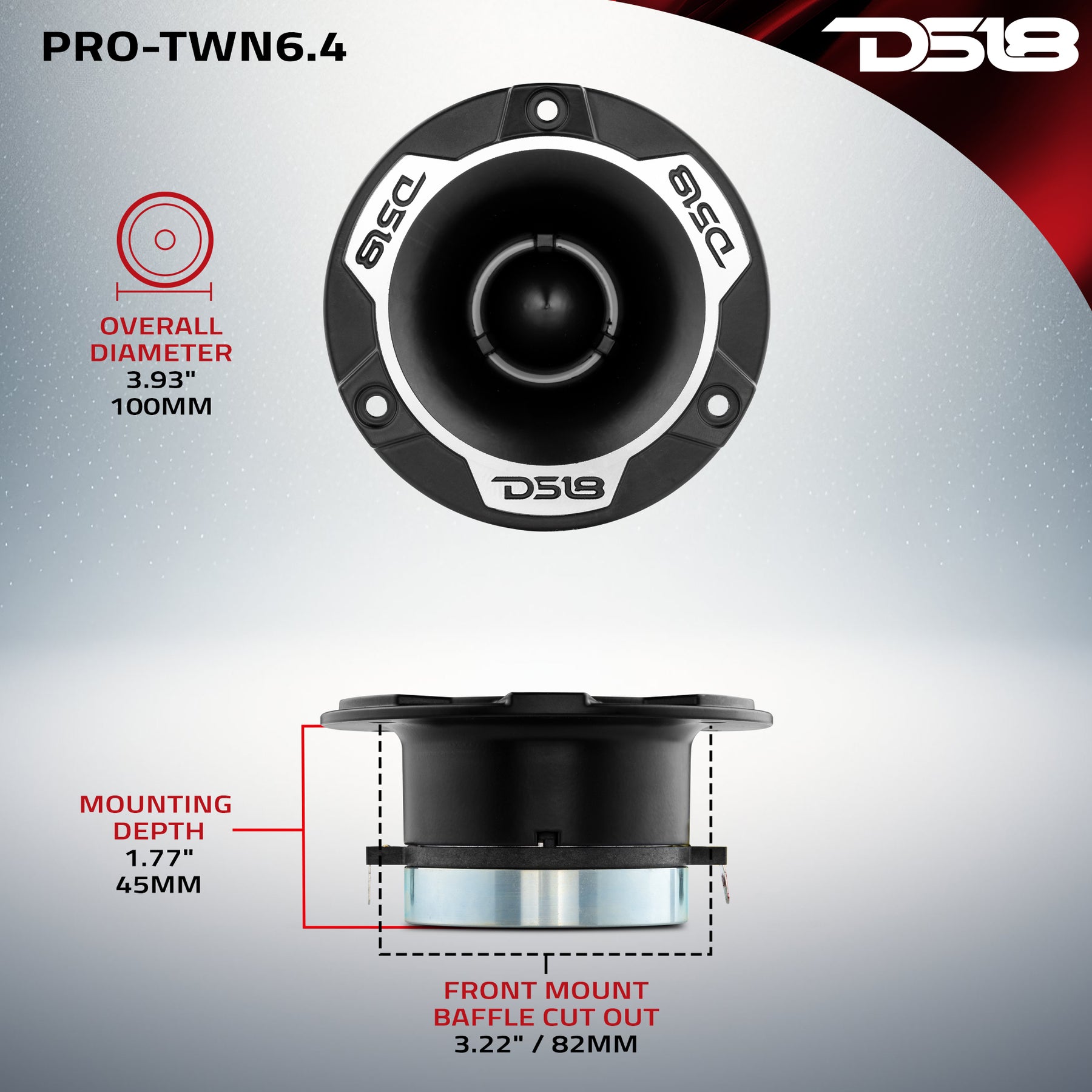

| Nominal Diameter | 4″ / 100 mm |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 75 W |
| Program Power Handling | 150 W |
| Peak Power Handling | 300 W |
| Sensitivity (1W/1M) | 109 dB |
| Frequency Response | 2 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 3 kHz |
Body
| Parameter | Details |
|---|---|
| Pair or Single | Single |
| Body Material | Aluminum |
| Body Color & Finish | Black / Machined |
| Bullet Material | Aluminum |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1.25″ / 32 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAR |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium |
| Body Material / Weight | 1.05 oz |
Product Overview
4” PRO High Compression Neodymium Tweeter 1.25” Voice Coil 8-Ohm
Unlock the full potential of your high frequency response with the DS18 PRO-TWN6.8.
The PRO-TWN Series Tweeter, a time-honored legend in the competitive professional audio scene, has returned with unparalleled brilliance and clarity. DS18’s PRO-TWN6.8 is a masterpiece, featuring a 1.25″ Voice Coil designed to harmonize seamlessly with 8-ohm car audio system’s.
Crafted with an aluminum body, the PRO-TWN6.8 not only delivers exceptional sound but also exudes elegance and sophistication. The black and machined finish adds a touch of class, ensuring that it effortlessly blends into the aesthetics of your vehicle. Its 1.25″ voice coil, encased in Kapton and wound with CCAR, guarantees durability and superior heat resistance, allowing you to enjoy its mesmerizing sound for years to come. The Polyimide diaphragm faithfully reproduces even the most intricate musical details, capturing the essence of every melody with utmost accuracy.
But, what sets DS18’s PRO-TWN6.8 apart from the rest is its revolutionary neodymium magnet. By utilizing this magnet, we have unlocked new levels of efficiency while significantly reducing the tweeter’s weight. With an unrivaled sensitivity of 109 dB, DS18’s PRO-TWN6.8 effortlessly achieves mind-blowing volumes with minimal power consumption.
With the power of cutting-edge technology, the PRO-TWN6.8 handles AES Power at 75W, Program Power at 150W, and Peak Power at an electrifying 300W. Prepare yourself for a sonic adventure that will leave you breathless.
Designed to fit seamlessly into most spaces with slight modification or fabrication, the PRO-TWN6.8’s integrate flawlessly with your setup, taking center stage in your audio performance.
