Description
DS18 PRO-TWN2PL
The PRO‑TWN2PL is a high‑compression 3‑inch neodymium hybrid driver/tweeter engineered to deliver crisp, powerful high‑frequency sound in car and pro audio systems. Featuring a 1‑inch polyester voice coil, neodymium magnet, and robust ABS body, it offers 100 W RMS (200 W peak) power handling and 108 dB sensitivity for loud, detailed treble with minimal distortion. With a wide frequency response from approximately 1.5 kHz to 20 kHz, the PRO‑TWN2PL enhances vocals and high‑end detail while maintaining clarity across all music genres. Its compact size and flush‑style mount make installation easy in custom audio setups, adding depth and precision to your sound system.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWN2PL |
| Nominal Diameter | 3″ / 77.2 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50 W |
| Program Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Sensitivity (1W/1M) | 108 dB |
| Frequency Response | 1.5 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2 kHz |
| Pair or Single | Single |
| Body Material | ABS |
| Body Color / Finish | Black Matte |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Magnet Weight | 2 Oz |
| Magnet Size | 1.86 Oz |

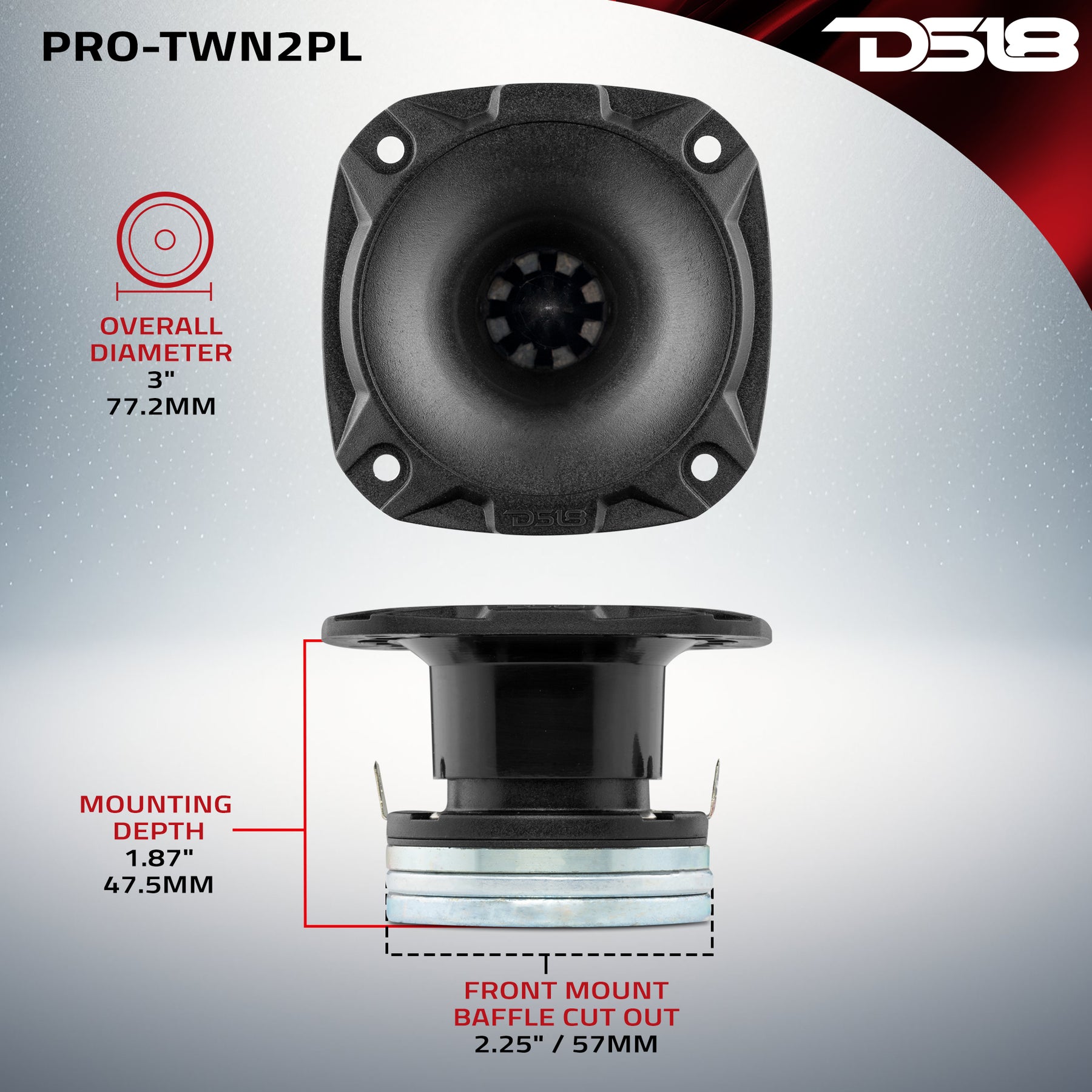

Measurements & Shipping
| Parameter | Details |
|---|---|
| Overall Diameter | 3″ / 77.2 mm |
| Overall Depth | 2″ / 52.2 mm |
| Front Mount Baffle Cutout | 2.25″ / 57 mm |
| Mounting Depth | 1.87″ / 47.5 mm |
| Motor Diameter | 2.2″ / 56 mm |
| Product Weight | 1 lb |
| Product Dimensions | 3.25 × 3.25 × 2.5 Inches |
| Master Carton Weight | 10.5 lbs |
| Master Carton Dimensions | 10.75 × 7.25 × 6 Inches |
| Master Carton Quantity | 12 |
| Sold In | Piece |
Product Overview
3” High Compression Super Bullet Tweeter with 1” Polyester Voice Coil and Neodymium Magnet
Designed with the audiophile in mind, the PRO-TWN2PL combines cutting-edge technology, exceptional craftsmanship, and unparalleled performance to redefine your listening experience.
DS18’s PRO-TWN2PL features an extremely durable design that seamlessly integrates into any car interior, creating an aesthetic that is both elegant and captivating. With its compact dimensions, this tweeter effortlessly fits into super tweeter enclosures, allowing you to achieve a truly immersive soundstage without compromising on space.
But don’t be fooled by its small size. The PRO-TWN2PL packs a punch that belies its stature. Featuring a polyester 1-inch voice coil, this neodymium-powered tweeter can handle a staggering 100 watts RMS and 200 watts peak power. With a frequency response spanning from 1kHz to 20kHz, the PRO-TWN2PL captures the full spectrum of sound with remarkable precision. Prepare to be blown away as the crisp highs bring your music to life like never before.
One of the standout features of the PRO-TWN2PL is its neodymium magnet, which not only enhances the efficiency of the tweeter but also significantly reduces its weight. This technological marvel ensures optimal performance and effortless installation, without sacrificing power or compromising on sound quality. It’s the perfect blend of strength and finesse.

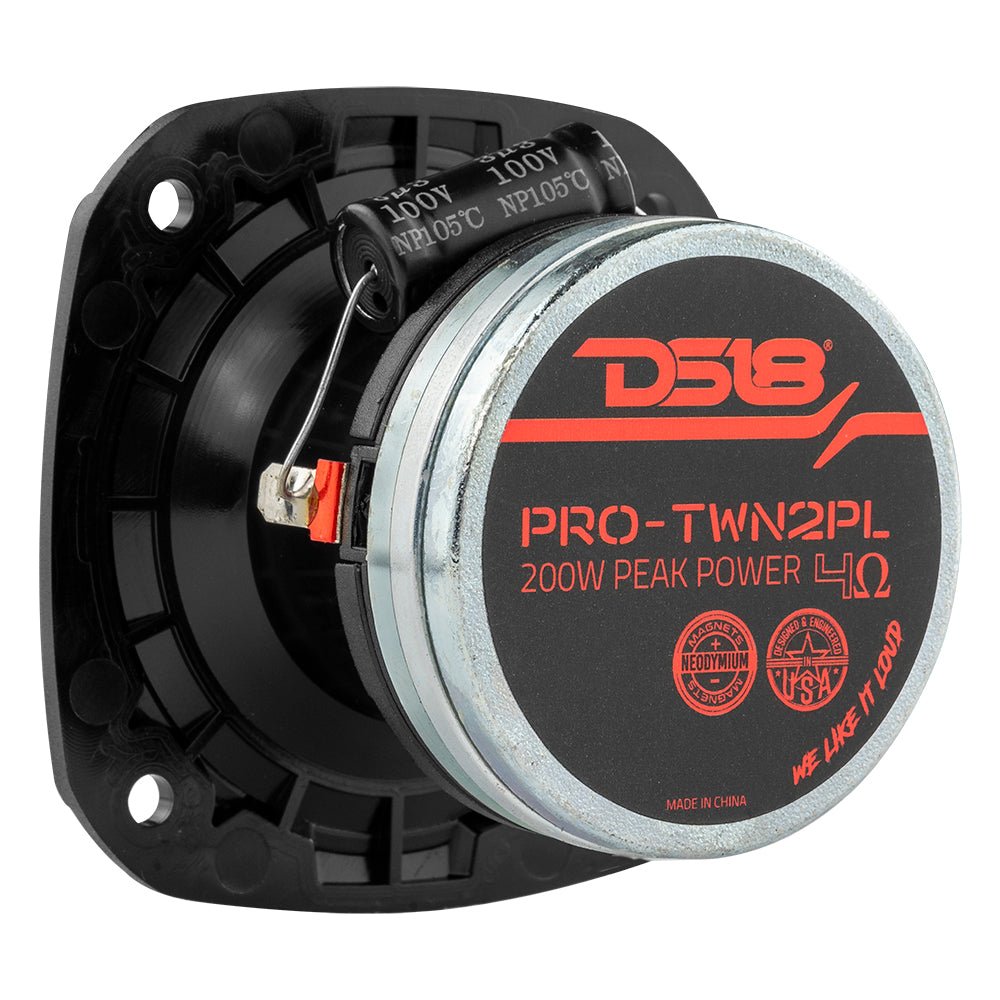

Your listening pleasure is our utmost priority, which is why we’ve included a bass blocker with every PRO-TWN2PL tweeter. This invaluable addition provides an extra layer of protection, shielding your tweeter from potentially damaging frequencies. Now you can push the boundaries of sound without worrying about equipment fatigue, giving you peace of mind to get LOUD!
