Description
DS18 PRO-TW120

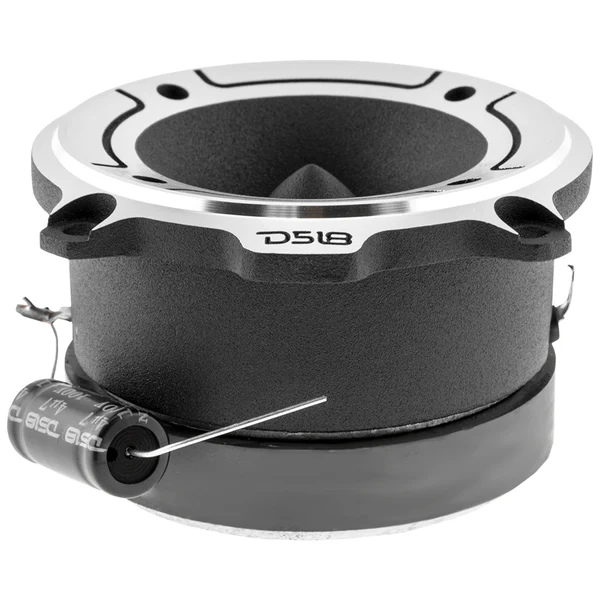

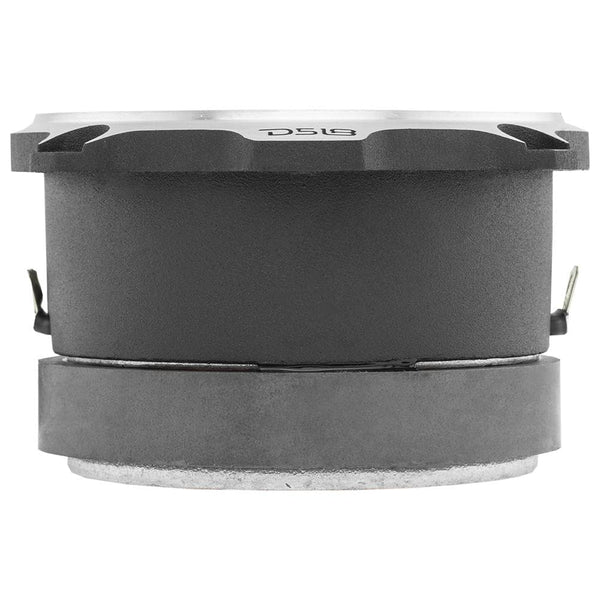

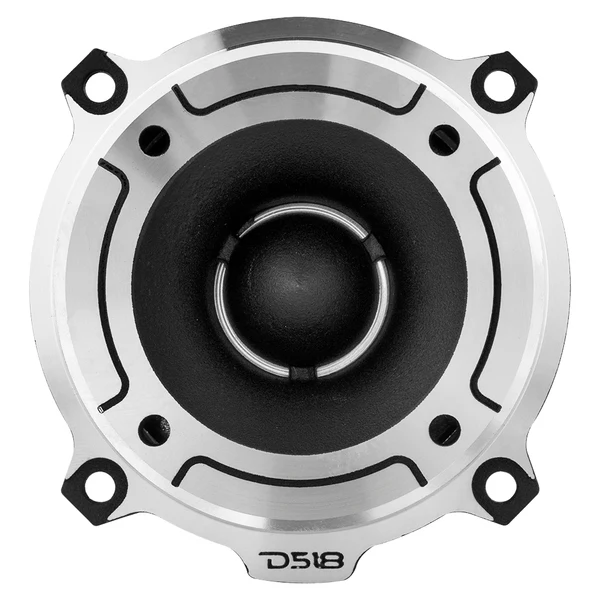

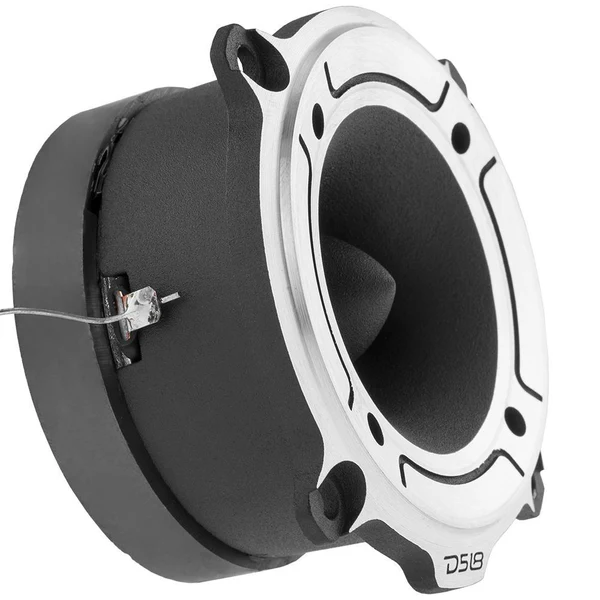

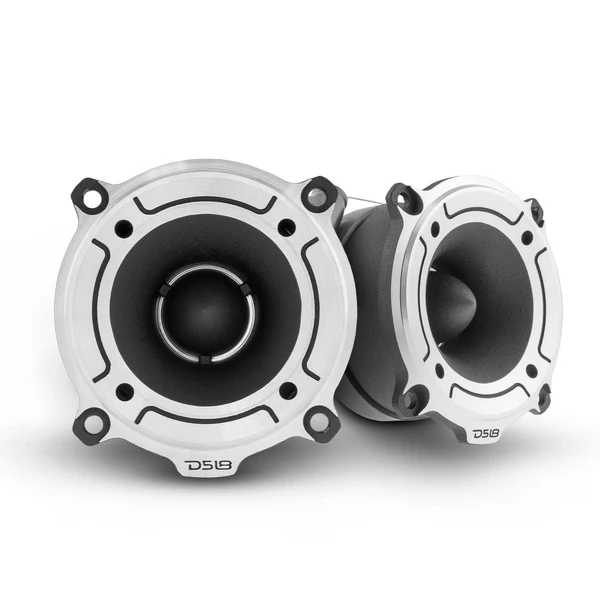

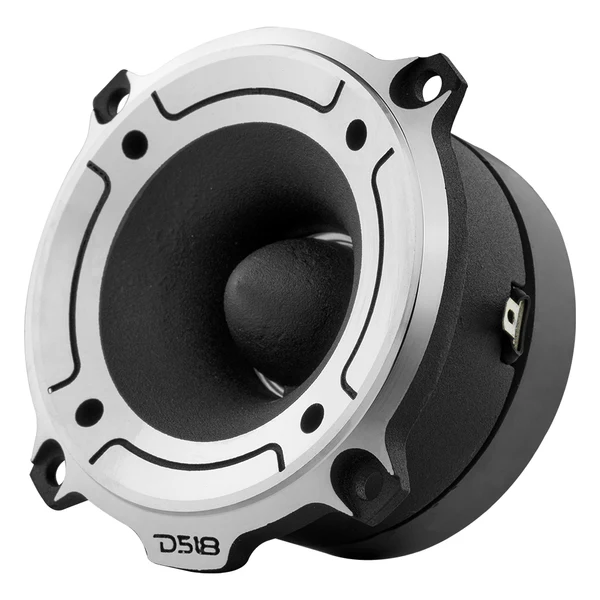

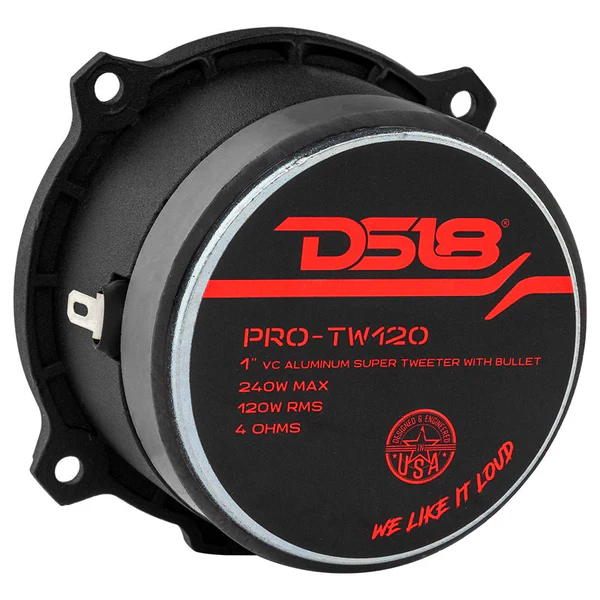

The PRO-TW120 is a pair of professional-grade aluminum super bullet tweeters designed to add crisp, high-frequency sound to any audio system, whether in vehicles, powersports setups, motorcycles, boats, or custom speaker builds. Each tweeter features a robust 1″ voice coil, lightweight but rigid aluminum diaphragm, and a built-in crossover capacitor that protects the driver and enhances treble performance. With a sensitivity of 103 dB and a frequency response range of 2 kHz to 20 kHz, these tweeters deliver loud, clear highs that fill in detail your factory speakers may lack. Their compact size and shallow mounting depth make them easy to install in a variety of locations, while the bullet-style design ensures the sound cuts through ambient noise.
Specifications
| Specification | Value |
|---|---|
| SKU | PRO-TW120 |
| Nominal Diameter | 3.0″ |
| Nominal Impedance | 4 ohm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1W/1M) | 103 dB |
| Frequency Response | 2 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 3 kHz |
Motor Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1″ (25.4 mm) |
| Voice Coil Former Material | CCAW |
| Winding Material | Aluminum |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 6.5 oz |
| Body Material | Aluminum |
Measurements
| Specification | Value |
|---|---|
| Overall Width | 3.14″ (80 mm) |
| Overall Depth | 1.96″ (50 mm) |
| Cutout Diameter | 2.83″ (72 mm) |
| Mounting Depth | 1.65″ (42 mm) |
| Adapter Ring Overall Width | 3.77″ (96 mm) |
| Mounting Depth w/ Adapter Ring | 1.37″ (35 mm) |
Product Overview
Get SCREAMING Highs with DS18’s PRO-TW120, the 3” PRO Aluminum Super Bullet Tweeter known for it’s superior high-frequency accuracy.
The magic lies in their frequency response, spanning from 2KHz to 20KHz, these professional-grade super tweeters fill in the gaps your factory stereo system left behind.
The robust Titanium 4-Ohms 1-inch voice coil is engineered to handle 60W AES, 120W program power, and a staggering 240W peak power rating. Each tweeter is equipped with a built-in capacitor filter that acts as a safeguard against damaging frequencies, ensuring long-lasting performance you can count on.
The Bullet dust cover isn’t merely protective; it guarantees that your sound pierces through ambient noise like a arrow. With an extraordinary 103 dB rating, expect SCREAMING-LOUD high frequencies delivered with remarkable accuracy.
Installation is a breeze, and maintenance is even simpler. Our drop-in voice coil kits can be replaced in under five minutes. Plus, the sleek mounting depth of only 1.65 inches allows for versatile applications across an array of setups.
Upgrading with DS18’s PRO-TW120 lets you make the most out of your sound system!
