Description
DS18 PRO-NEO10SLIM
The DS18 PRO-NEO10SLIM is a 10-inch slim neodymium midrange loudspeaker designed for high-output performance in tight installation spaces. Featuring a powerful neodymium magnet structure, this speaker delivers exceptional efficiency, lightweight design, and strong midrange projection without requiring deep mounting depth. Rated at 500 W RMS and 1000 W peak power handling, the PRO-NEO10SLIM produces aggressive, crystal-clear vocals and punchy mids with minimal distortion. Its slim profile makes it ideal for door panels, custom walls, and space-limited SPL builds, offering professional-grade sound performance in compact car audio systems.
Specifications
| Parameter | Value |
|---|---|
| SKU | PRO-NEO10SLIM |
| Nominal Diameter | 10″ / 254mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 100Hz – 3.7kHz |
| Recommended HI Pass Crossover | 120Hz |
| Sold | Single |
| Grill Included | No |
Motor & Construction
| Component | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | CNC Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Neodymium |
| Magnet Weight | 7.9 Oz |
| Displacement Volume | 0.85L / 0.03ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 21.86L / 0.77ft³ |
| Excursion (Xmax, one way) | 1.45 mm |
| Free Air Resonance (Fs) | 80 Hz |
| Mechanical Q (Qms) | 6.58 |
| Electrical Q (Qes) | 0.39 |
| Total Q (Qts) | 0.37 |
| Mechanical Mass (Mms) | 24.95 g |
| Mechanical Mass (w/o air) | 17.66 g |
| Mechanical Compliance (Cms) | 0.129 mm/N |
| BL Factor | 8.93 |
| Voice Coil Inductance (Le) | 0.05 mH |
| Cone Area (Sd) | 346.36 cm² |
| DC Resistance (Re) | 3.3 Ohms |

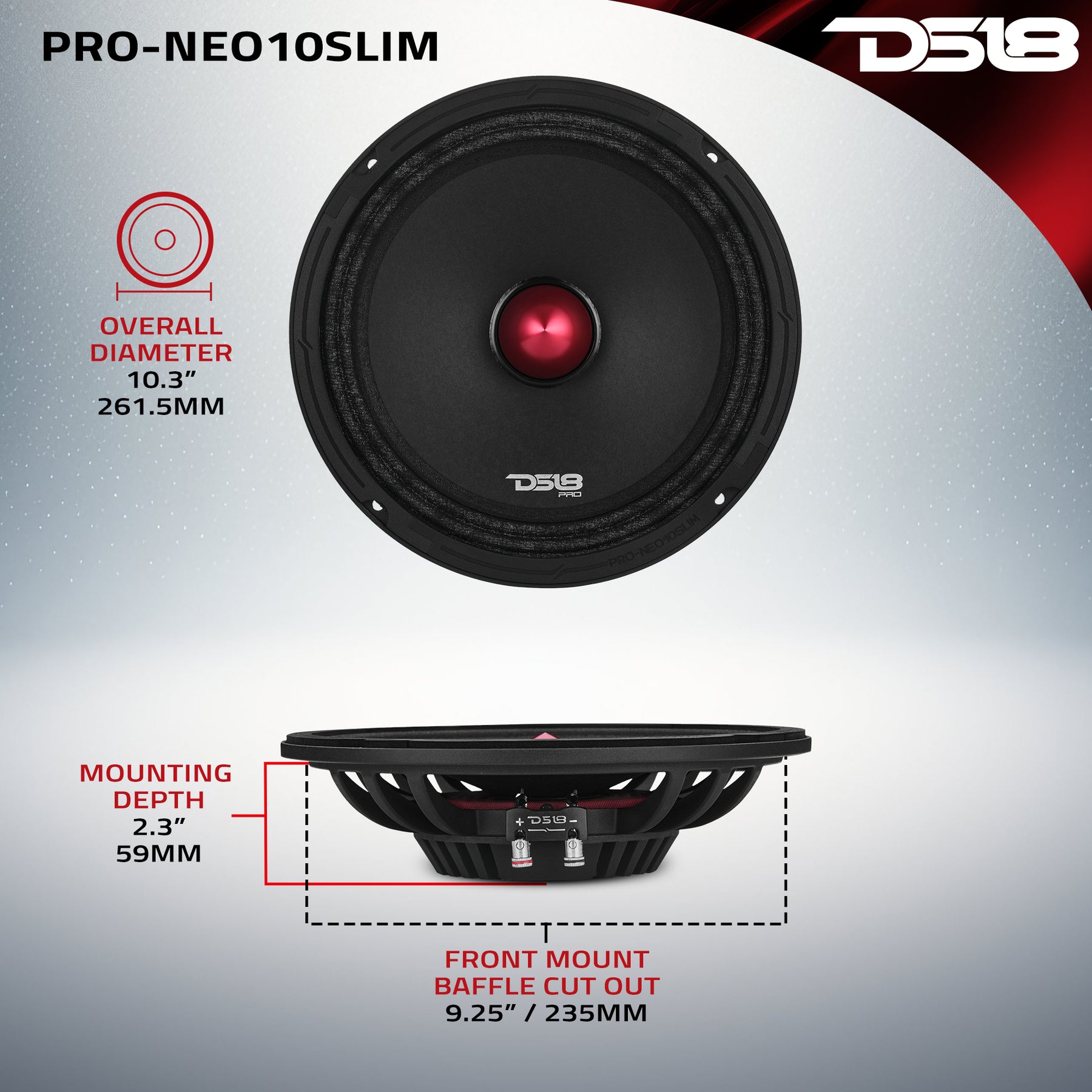

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 10.3″ / 261.5mm |
| Overall Depth | 2.75″ / 70mm |
| Front Mount Baffle Cutout | 9.25″ / 235mm |
| Mounting Depth | 2.3″ / 59mm |
| Motor Diameter | 4.13″ / 105mm |
Product Overview
10” Slim Neodymium Mid-Range Loudspeaker with Bullet
DS18’s PRO-NEO10SLIM is a shallow-mount 10” mid-range loudspeaker engineered for crushing volume and pro-grade clarity—all in a low-profile frame.
Compact Frame, Massive Output
With a mounting depth of just 2.3″, the PRO-NEO10SLIM fits where standard 10” drivers won’t. Despite its slim form, it pumps out a powerful 250W RMS (500W MAX), driven by a neodymium magnet and a 2″ Kapton voice coil.
Pro-Level Sound
A CNC-machined aluminum bullet boosts dispersion and cuts distortion, while the paper cone and cloth surround maintain tight response from 100Hz to 3.7kHz. With a sensitivity rating of 97dB, this speaker delivers high output with minimal power.
Light Magnet, Heavy Impact
With an extremely lightweight neodymium motor weight, the PRO-NEO10SLIM gives you all the output without the bulk. More room for air movement, so it’s the loudest “slim” you’ll ever hear.
If you want a high-powered midrange to punch through your mix, the PRO-NEO10SLIM gives you pro-audio performance in a form factor that fits almost anywhere.
