Description

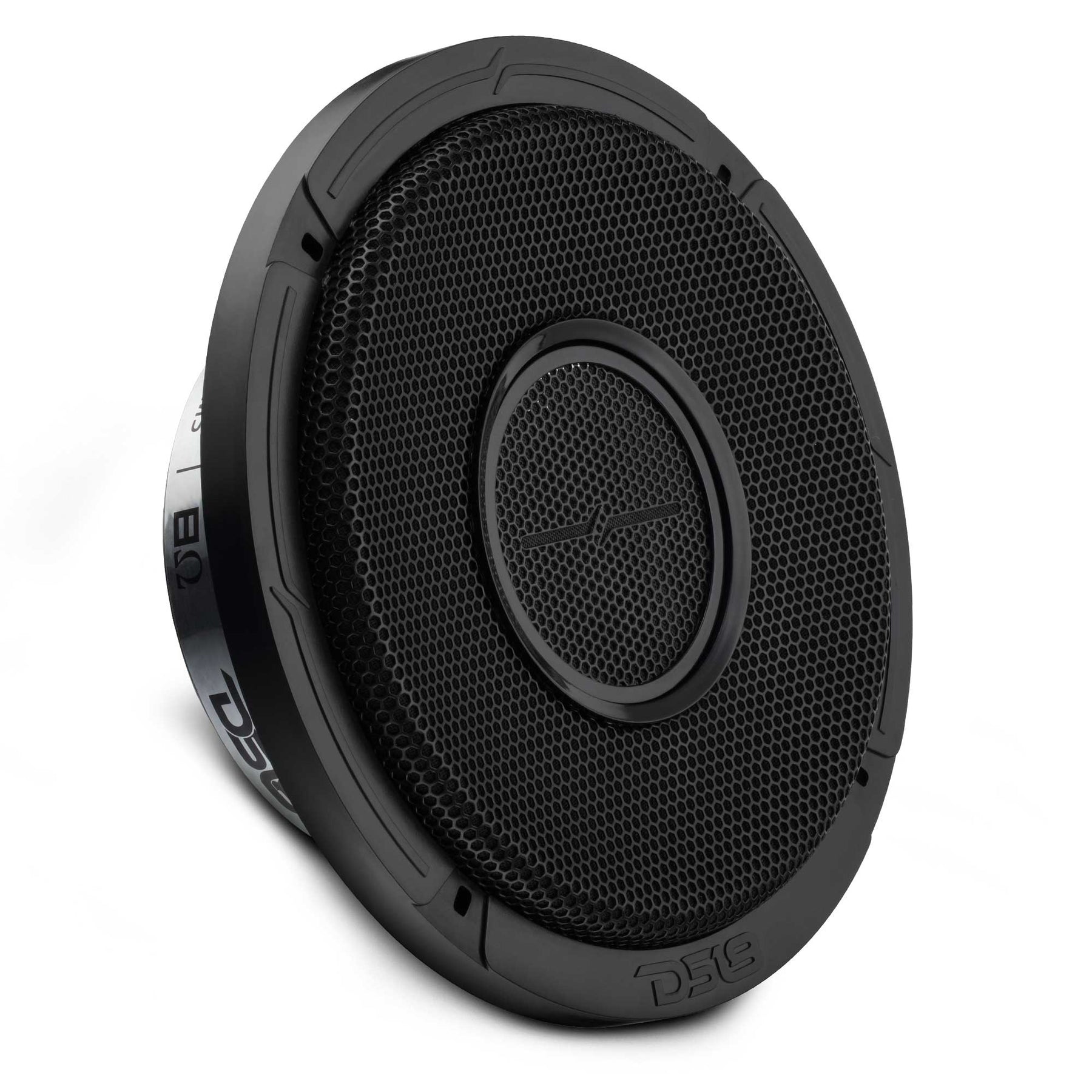

DS18 PRO-HY8MSL

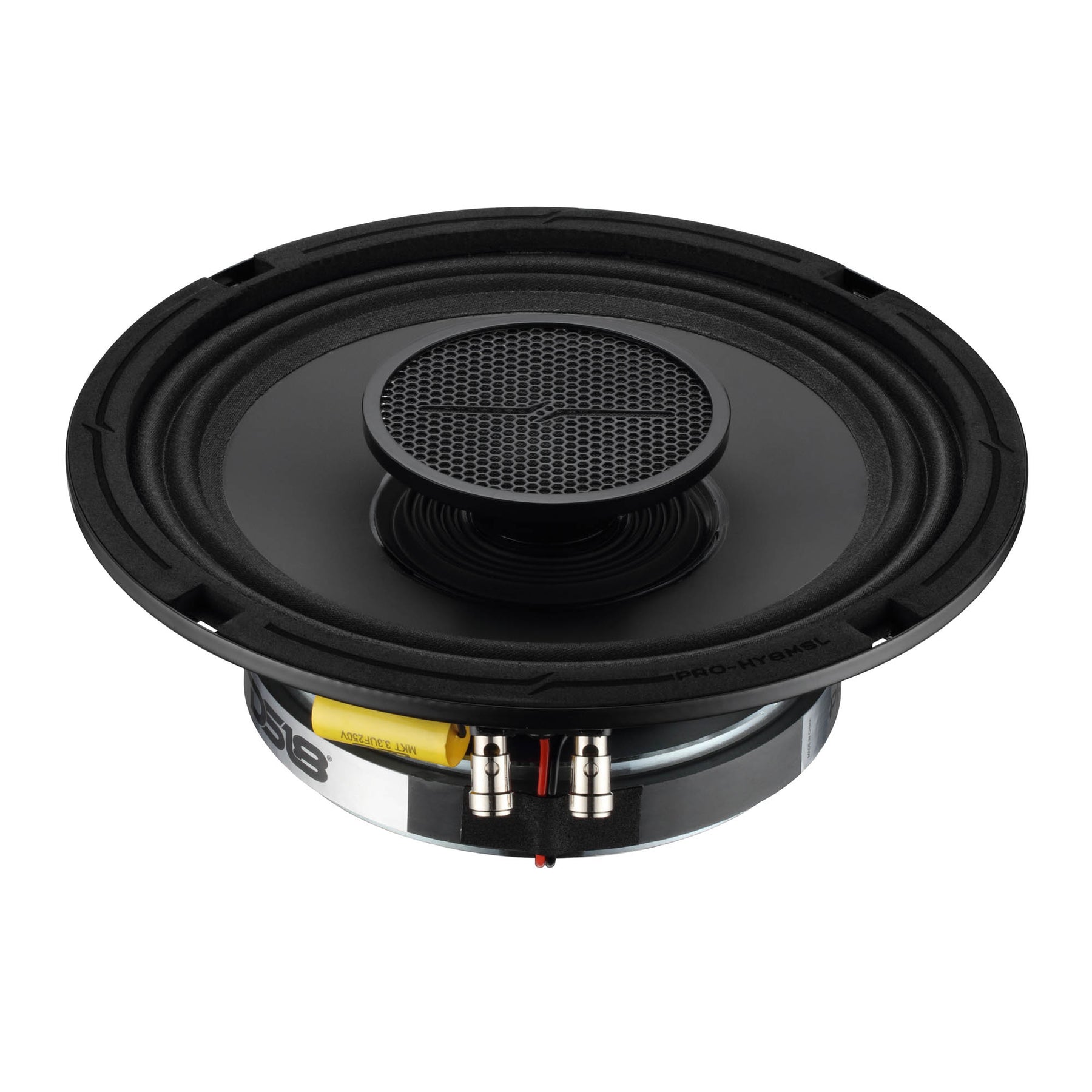

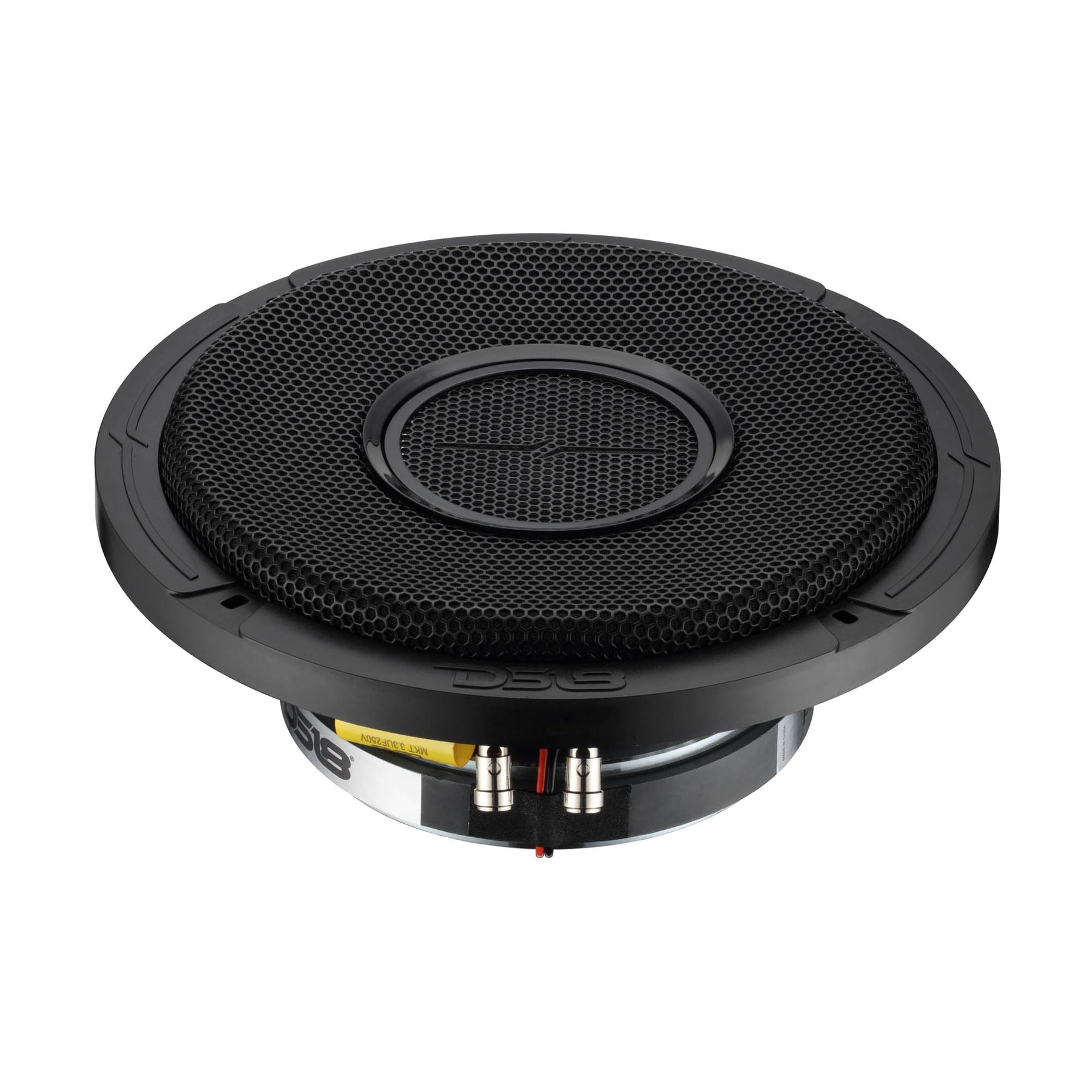

The DS18 PRO‑HY8MSL is an 8″ hybrid slim coaxial mid‑range loudspeaker with a built‑in 1″ titanium compression driver horn, engineered to deliver powerful, full‑range audio in shallow‑mount installations. Its rugged, water‑resistant design makes it perfect for motorcycles, ATVs, UTVs, Slingshots, and custom vehicles where space is limited but sound clarity and volume are critical.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HY8MSL |
| Nominal Diameter | 8″ / 203.2 mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 200 W |
| Maximum Power Handling | 400 W |
| Sensitivity (1W/1M) | 98 dB |
| Frequency Response | 100 Hz – 20 kHz |
| Recommended High-Pass Crossover | 120 Hz |
| Number of Ways | 2 Way |
| Sold In | Single |
| Grille Included | Yes |
Woofer Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 29.5 Oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 7.85 L / 0.277 ft³ |
| Xmax (One Way) | 2 mm |
| Fs | 114 Hz |
| Qms | 6.282 |
| Qes | 0.984 |
| Qts | 0.851 |
| Mms | 16.357 g |
| Cms | 118.033 mm/N |
| BL | 8.817 |
| Le | 12.06 mH |
| Sd | 216.424 cm² |
| Re | 6.5 Ohms |
| Mmd (Without Air) | 14.527 g |
Driver Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3″ / 76.2 mm |
Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter | 8.2″ / 209 mm |
| Overall Depth | 4″ / 102.5 mm |
| Front Mount Baffle Cutout | 7.16″ / 182 mm |

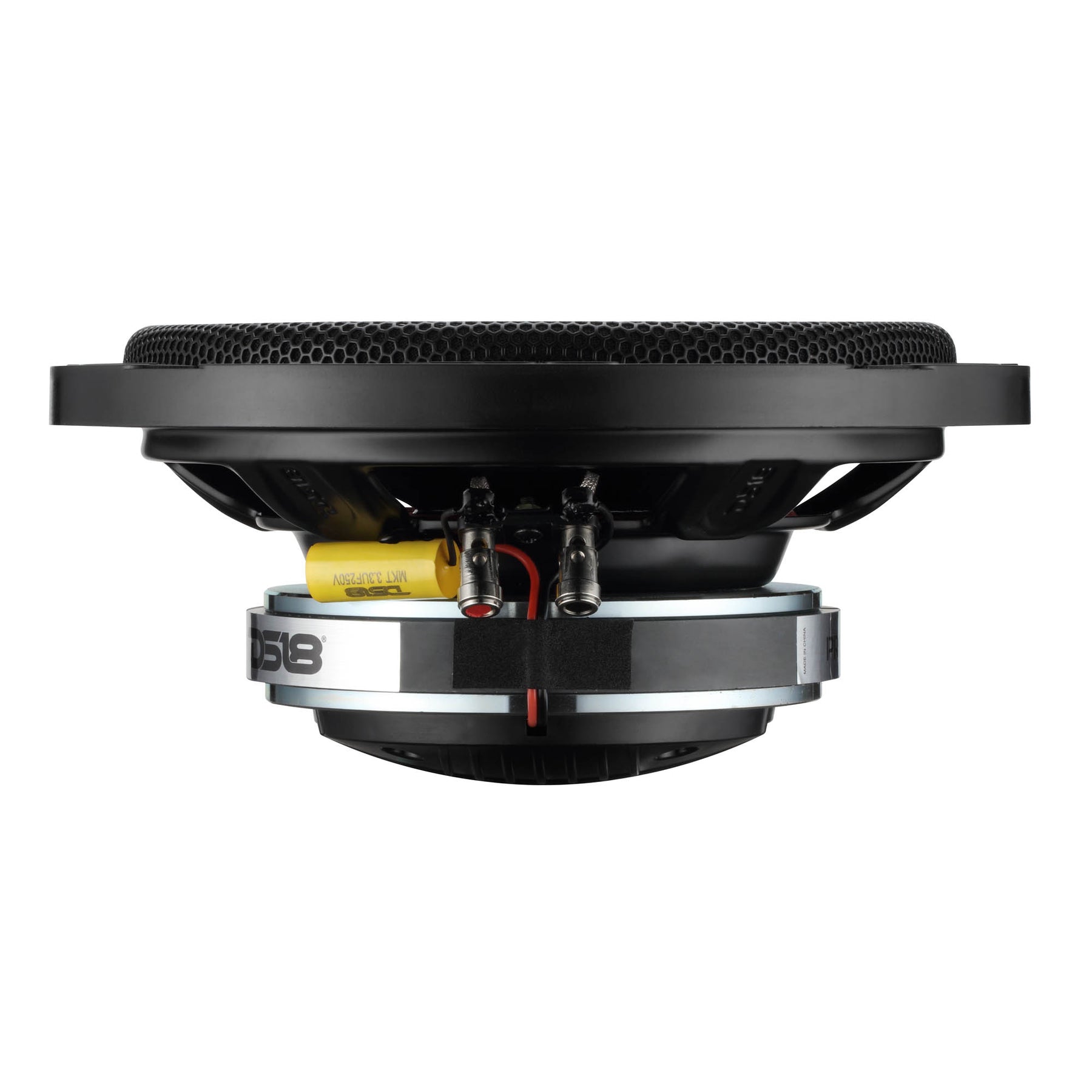

| Mounting Depth | 3.15″ / 80 mm |
| Motor Diameter | 5.27″ / 134 mm |
Shipping Info
| Info | Details |
|---|---|
| Gross Single Unit Weight | 5.75 lbs |
| Single Unit Box Dimensions (L x W x H) | 9 x 9 x 4.75 in |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 49 lbs |
| Master Carton Dimensions (L x W x H) | 18.5 x 18.5 x 10.25 in |
Product Overview

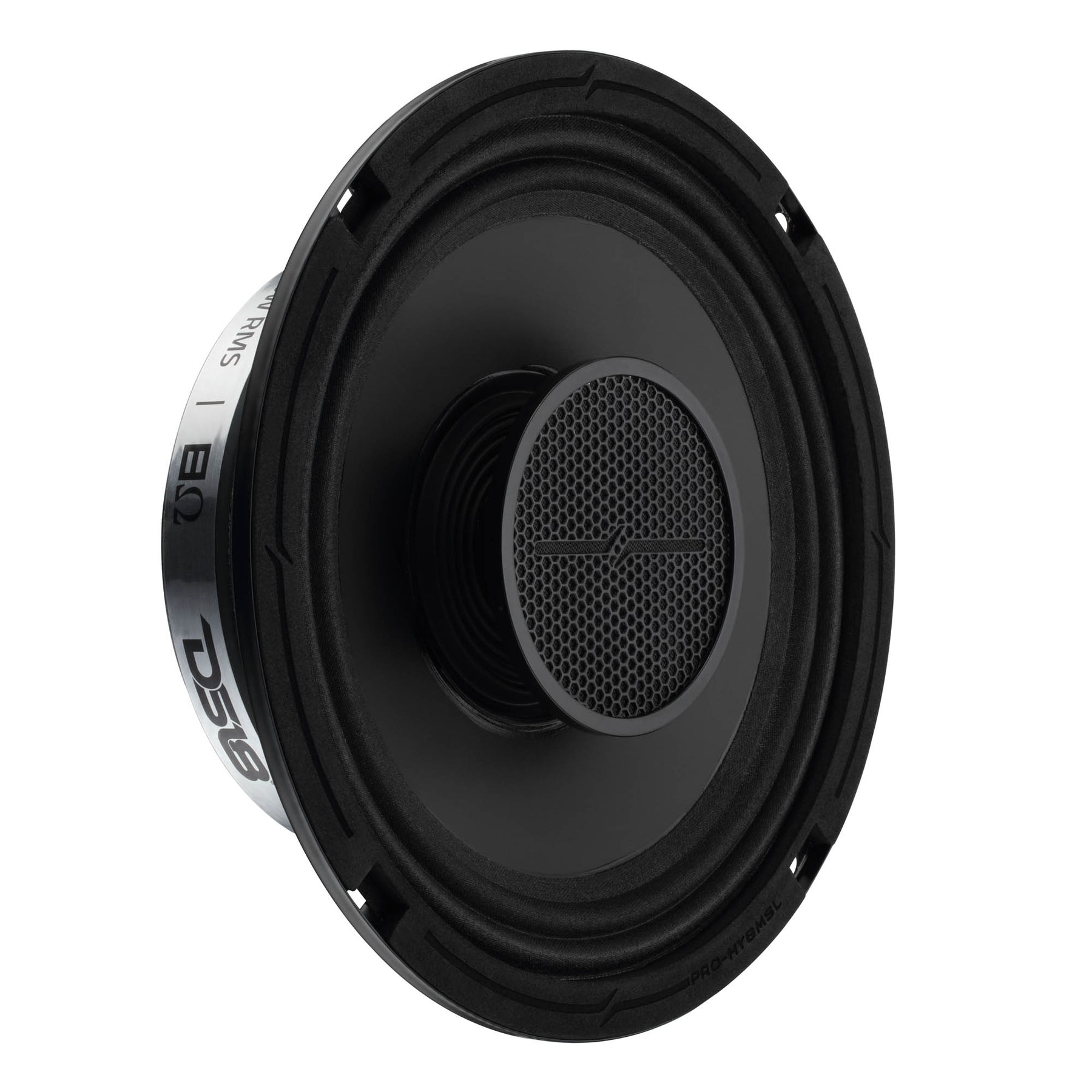

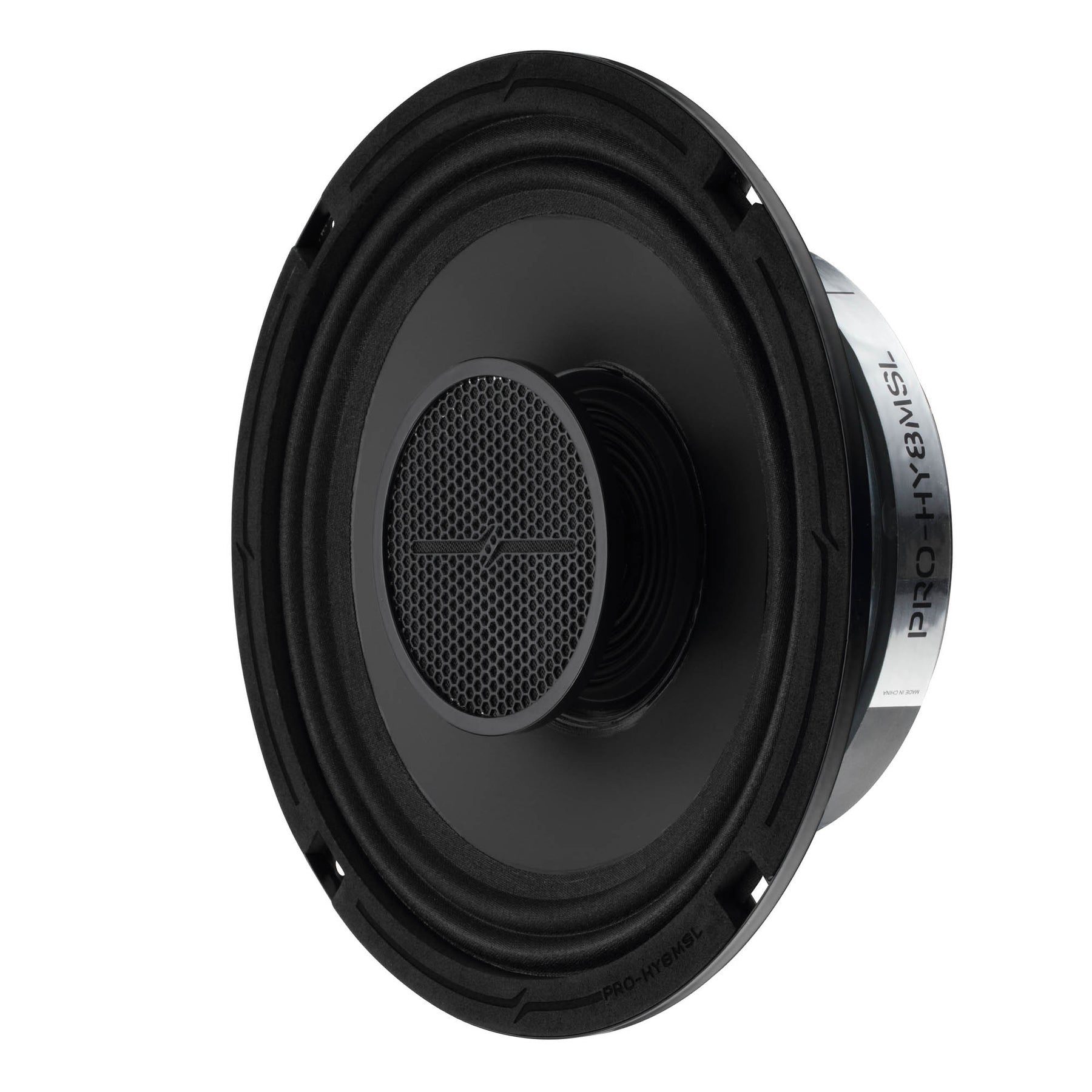

8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
The PRO-HY8MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND

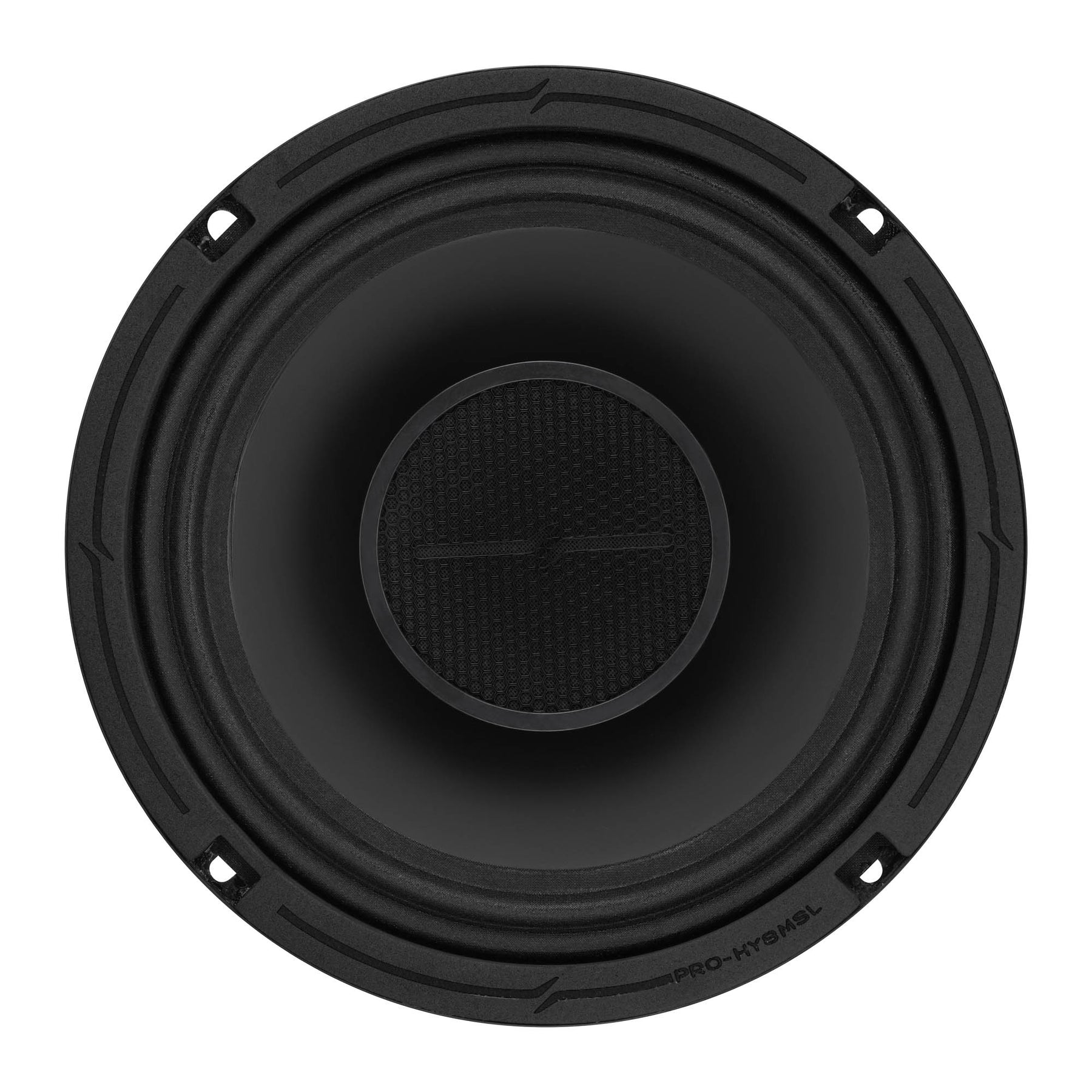

This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 200W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.
SHALLOW MOUNT. BIG SOUND.
With a mounting depth of only 3.15”, the PRO-HY8MSL is perfect for motorcycles, UTVs, SXS, Slingshots, and Jeep pods. It fits in tight panels and fairings while still delivering 97dB sensitivity for serious volume at any power level.
IP65 WATER-RESISTANT + SUN PROTECTED

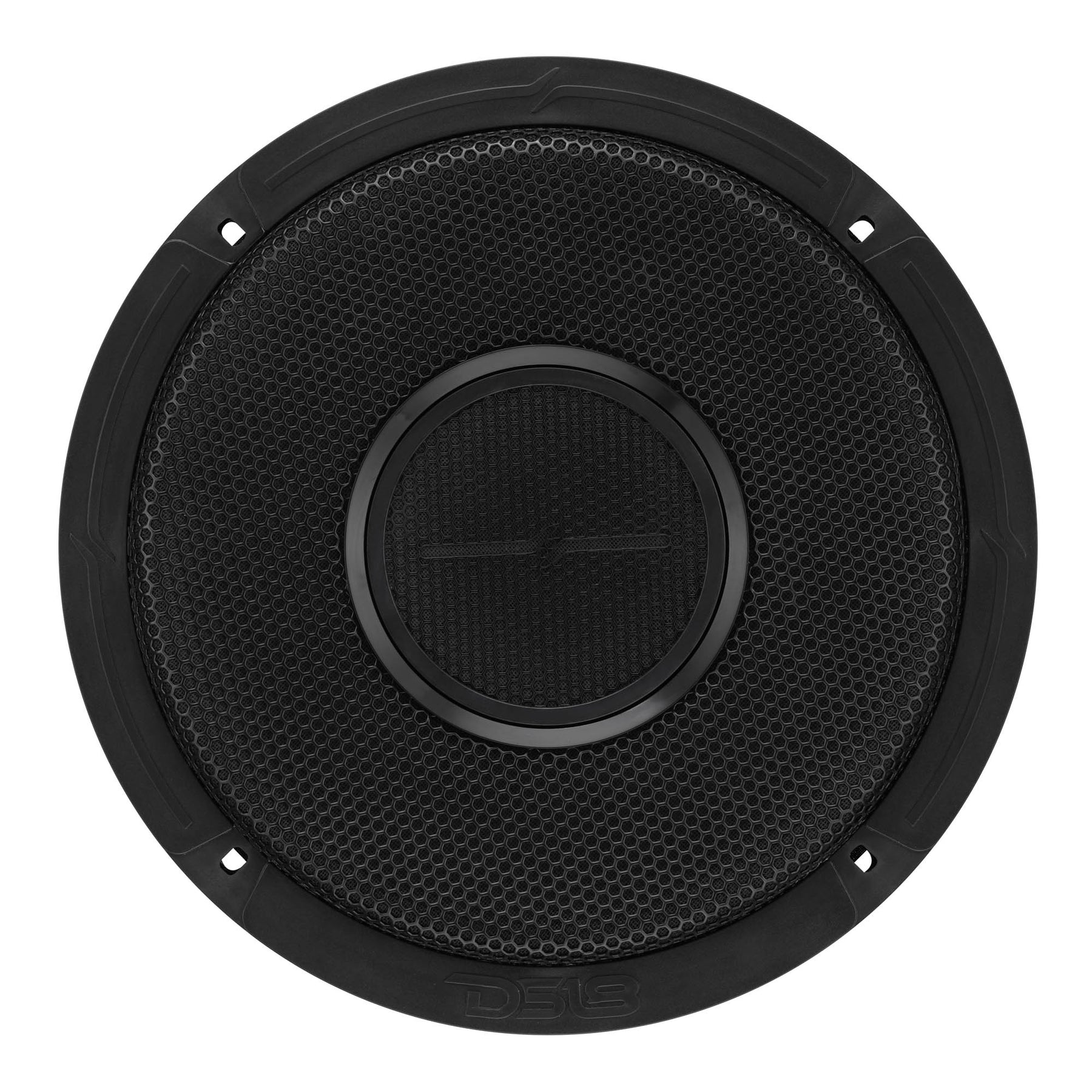

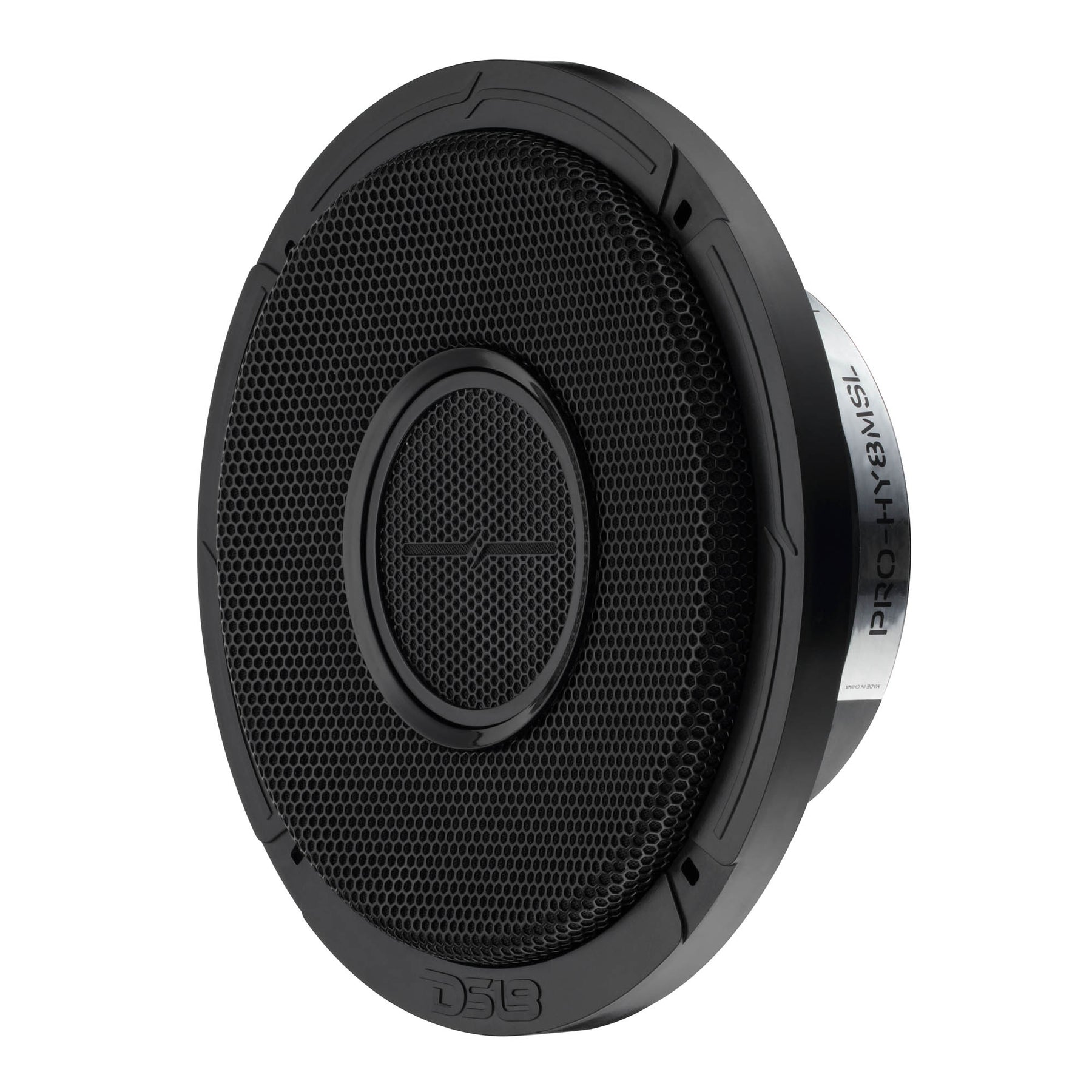

The PRO-HY8MSL features upgraded treated cloth surrounds and a water-resistant cone. The included grille now has a sun- and water-protective cloth backing, and the entire speaker is IP65 rated to withstand anything you run into on- or off-road.

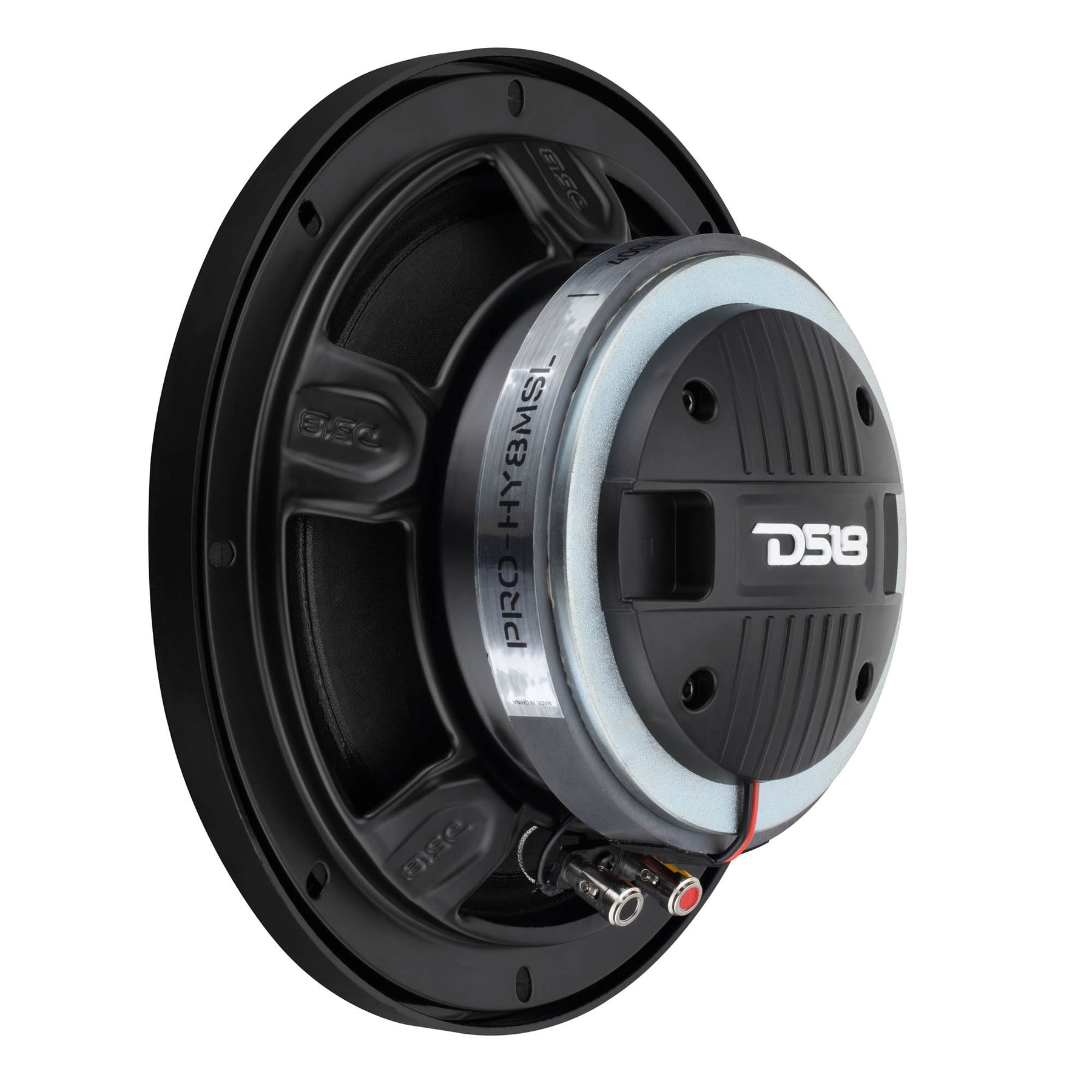

NEODYMIUM DRIVER + 3” HORN FOR MAX OUTPUT
Inside the 1” titanium compression driver is a neodymium motor, giving you fast, accurate highs in a compact form. The 3” horn helps project sound clearly through wind and road noise so your music cuts through—on the move or at full throttle.
8Ω COMPATIBILITY FOR EASY SYSTEM MATCHING
With a 8Ω impedance, the PRO-HY8MSL is easy to pair with aftermarket amps and crossovers. Upgrading your factory pods or building a custom system? It’s ready to get loud!
The PRO-HY8MSL is slim enough to fit anywhere, loud enough to lead, and built tough enough to survive your wildest rides.
