Description
DS18 PRO-HY8.4MSL

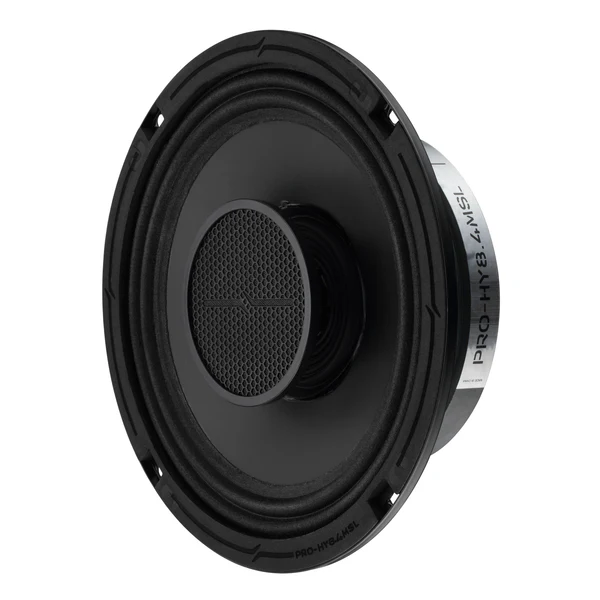

The DS18 PRO‑HY8.4MSL is an 8″ hybrid slim mid‑range loudspeaker that delivers powerful full‑range sound in a shallow, compact mount design — ideal for motorcycles, UTVs, Jeep pods, or custom audio builds where space is limited but sound output matters. It combines a treated midrange woofer with a built‑in 1″ titanium compression driver horn for extended high‑frequency response and high SPL performance.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HY8.4MSL |
| Nominal Diameter | 8″ / 203.2 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200 W |
| Maximum Power Handling | 400 W |
| Sensitivity (1W/1M) | 98 dB |
| Frequency Response | 100 Hz – 20 kHz |
| Recommended High-Pass Crossover | 120 Hz |
| Number of Ways | 2 Way |
| Sold In | Single |
| Grille Included | Yes |
Woofer Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 29.5 Oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 7.42 L / 0.262 ft³ |
| Xmax (One Way) | 2 mm |
| Fs | 108 Hz |
| Qms | 6.418 |
| Qes | 0.759 |
| Qts | 0.704 |
| Mms | 18.575 g |
| Cms | 111.62 mm/N |
| BL | 7.206 |
| Le | 19.2 mH |
| Sd | 216.424 cm² |
| Re | 3.2 Ohms |
| Mmd (Without Air) | 16.744 g |
Driver Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3″ / 76.2 mm |

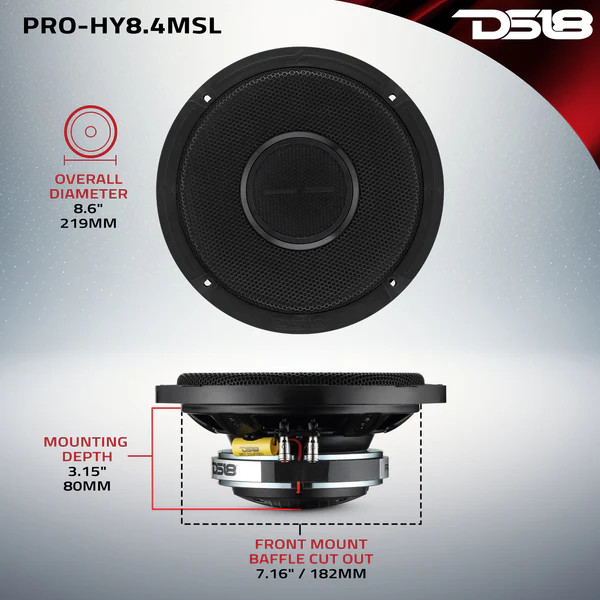

Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter | 8.62″ / 219 mm |
| Overall Depth | 4″ / 102.5 mm |
| Front Mount Baffle Cutout | 7.12″ / 181 mm |
| Mounting Depth | 3.11″ / 79 mm |
| Motor Diameter | 5.27″ / 134 mm |
Shipping Info
| Info | Details |
|---|---|
| Gross Single Unit Weight | 5.75 lbs |
| Single Unit Box Dimensions (L x W x H) | 9 x 9 x 4.75 in |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 49 lbs |
| Master Carton Dimensions (L x W x H) | 18.5 x 18.5 x 10.25 in |
Product Overview
8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
The PRO-HY8.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND
This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 200W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.

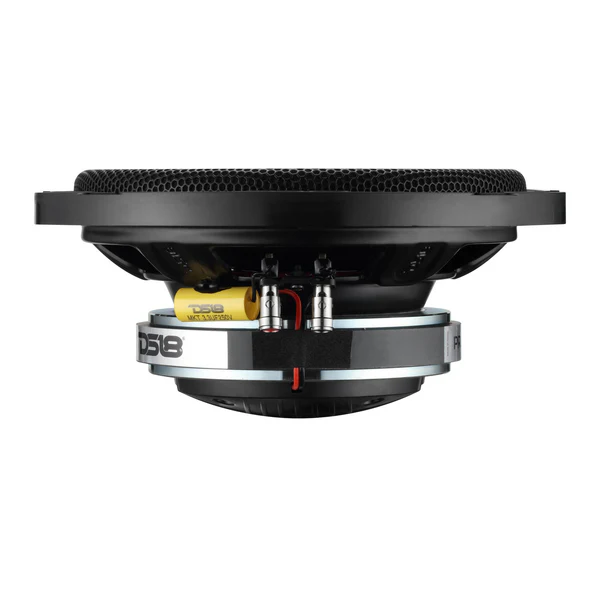

SHALLOW MOUNT. BIG SOUND.
With a mounting depth of only 3.15”, the PRO-HY8.4MSL is perfect for motorcycles, UTVs, SXS, Slingshots, and Jeep pods. It fits in tight panels and fairings while still delivering 97dB sensitivity for serious volume at any power level.
IP65 WATER-RESISTANT + SUN PROTECTED
The PRO-HY8.4MSL features upgraded treated cloth surrounds and a water-resistant cone. The included grille now has a sun- and water-protective cloth backing, and the entire speaker is IP65 rated to withstand anything you run into on- or off-road.

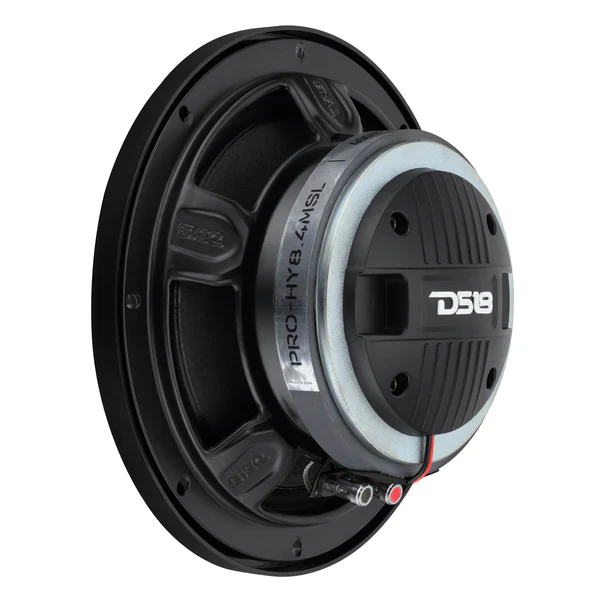

NEODYMIUM DRIVER + 3” HORN FOR MAX OUTPUT
Inside the 1” titanium compression driver is a neodymium motor, giving you fast, accurate highs in a compact form. The 3” horn helps project sound clearly through wind and road noise so your music cuts through—on the move or at full throttle.
4Ω COMPATIBILITY FOR EASY SYSTEM MATCHING
With a 4Ω impedance, the PRO-HY8.4MSL is easy to pair with aftermarket amps and crossovers. Upgrading your factory pods or building a custom system? It’s ready to get loud!
The PRO-HY8.4MSL is slim enough to fit anywhere, loud enough to lead, and built tough enough to survive your wildest rides.
