DS18 PRO-HY69.2MSL

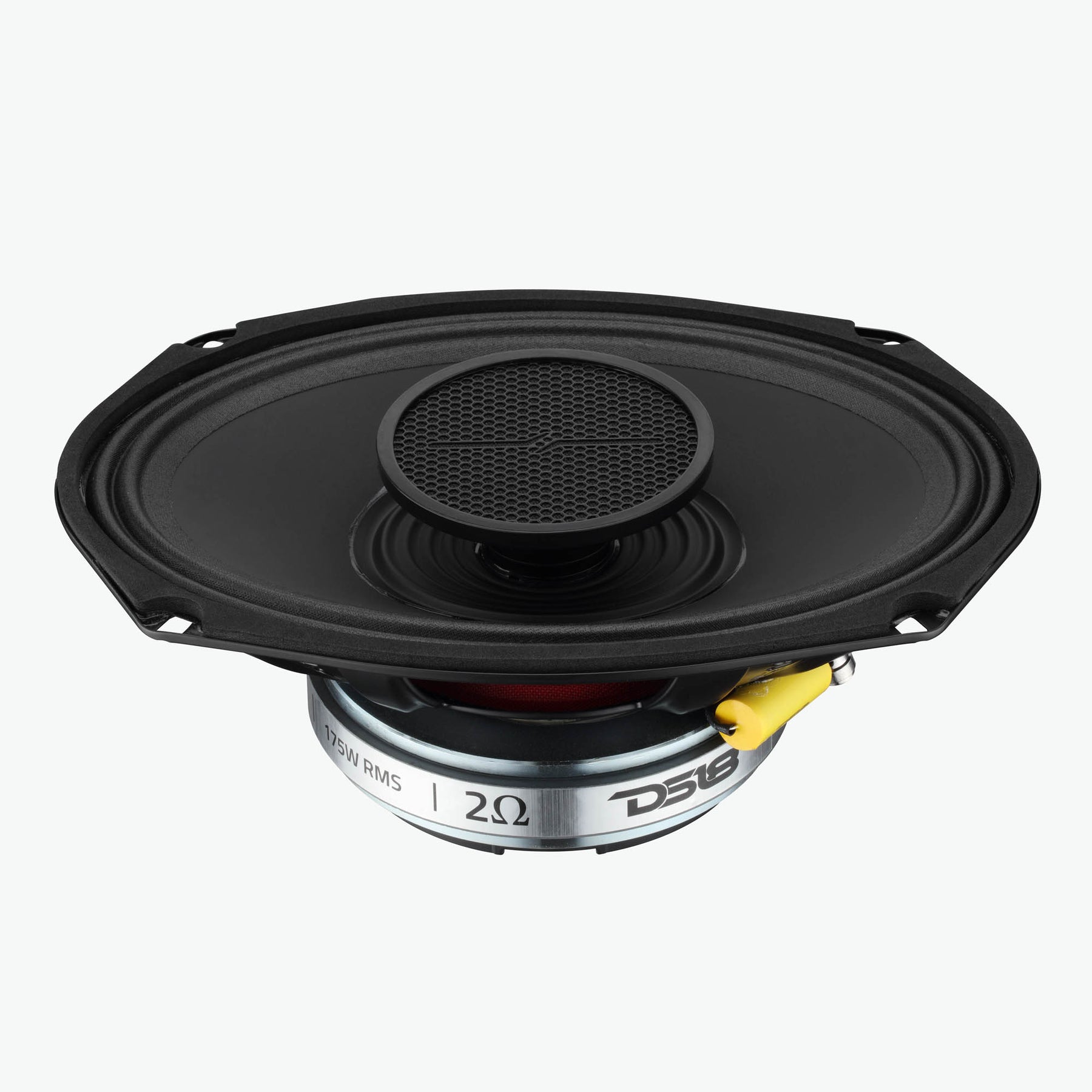

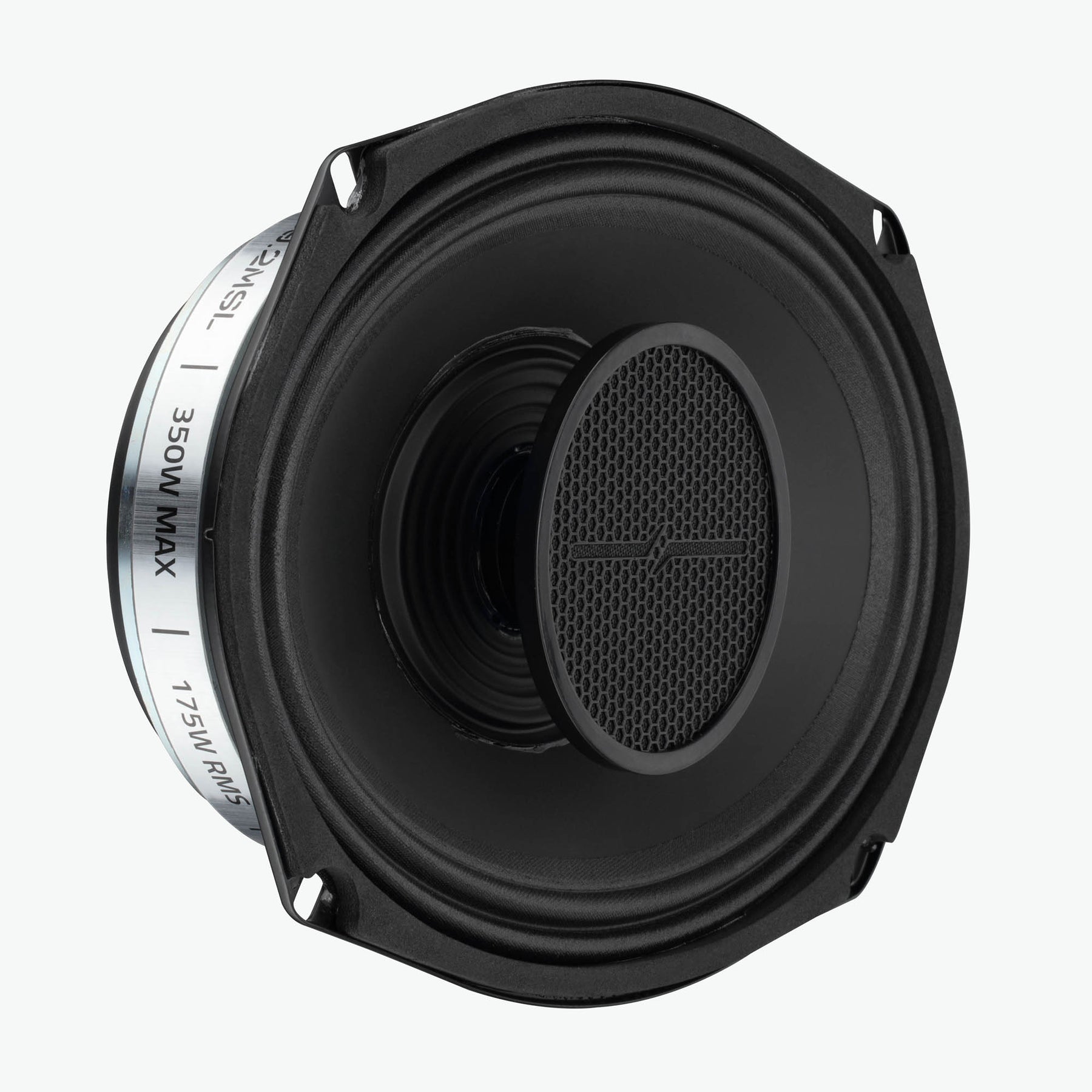

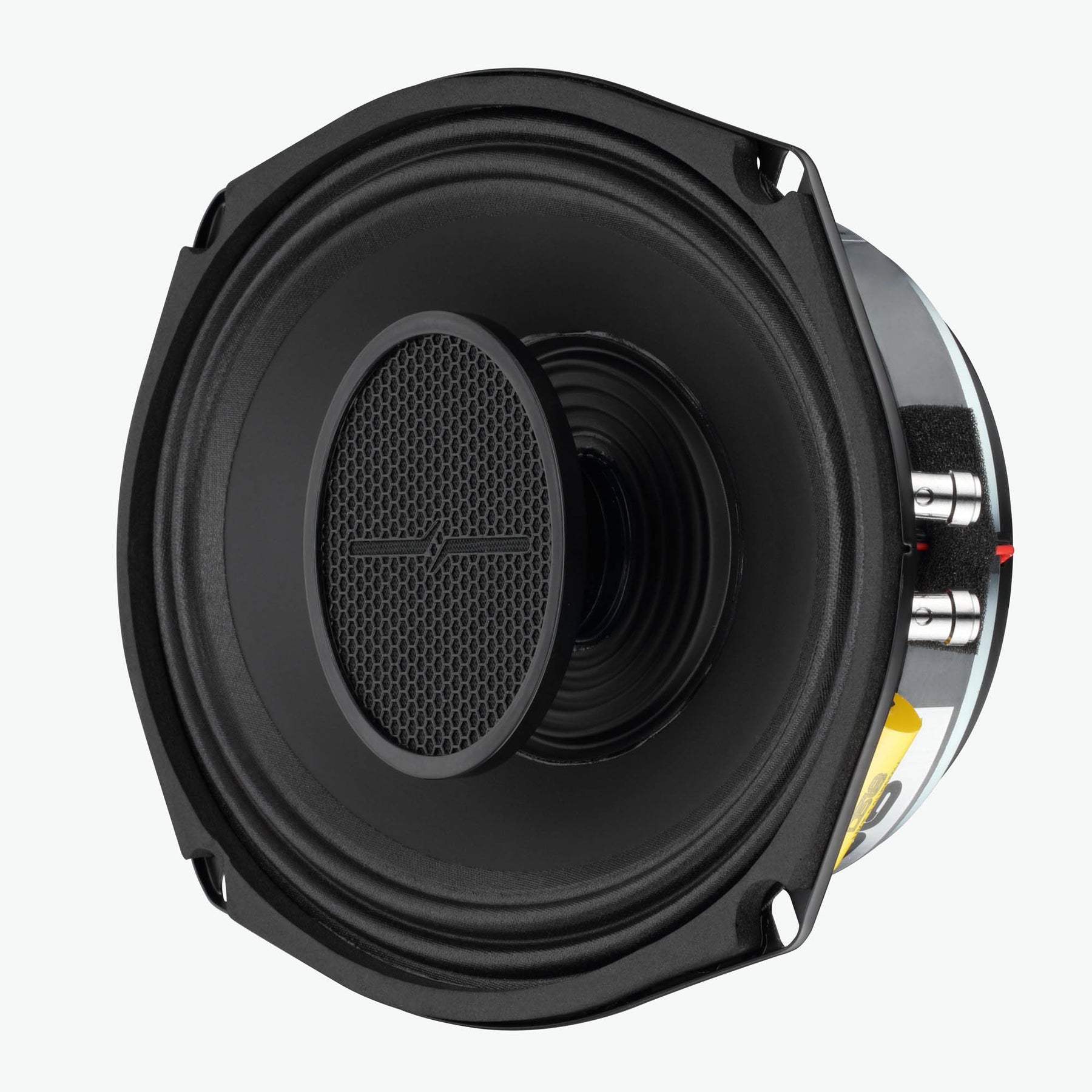

The PRO‑HY69.2MSL Speaker is a 6×9″ hybrid slim loudspeaker designed for riders and custom audio builders who want powerful full-range sound in a shallow, space-saving package. It combines a water-resistant woofer with a 1″ titanium compression driver horn to deliver wideband audio output from mid to high frequencies with exceptional sensitivity and durability.
Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 6 x 9 inch / 152 x 228 mm |
| Nominal Impedance | 2 Ohms |
| RMS Power Handling | 175 Watts |
| Maximum Power Handling | 350 Watts |
| Sensitivity (1W/1M) | 97 dB |
| Frequency Response | 60 Hz – 20 kHz |
| Recommended High-Pass Crossover | 80 Hz |
| Number of Ways | 2 Way |
| Water-Resistant Rating | IP65 |
| Sold In | Single |
| Grille Included | Yes – With Water & Sun Protection Cloth |
Woofer Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5 inch / 38.6 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 25.5 Oz |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Vas | 5.68 L / 0.2 ft³ |
| Xmax (One Way) | 2 mm |
| Fs | 120 Hz |
| Qms | 9.621 |
| Qes | 0.679 |
| Qts | 0.571 |
| Mms | 15.242 g |
| Cms | 0.103 mm/N |
| BL | 4.787 |
| Le | 0.48 mH |
| Sd | 156.2 cm² |
| Re | 1.9 Ohms |
| Mmd (Without Air) | 12.3 g |
Driver Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1 inch / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.15 inch / 80 mm |

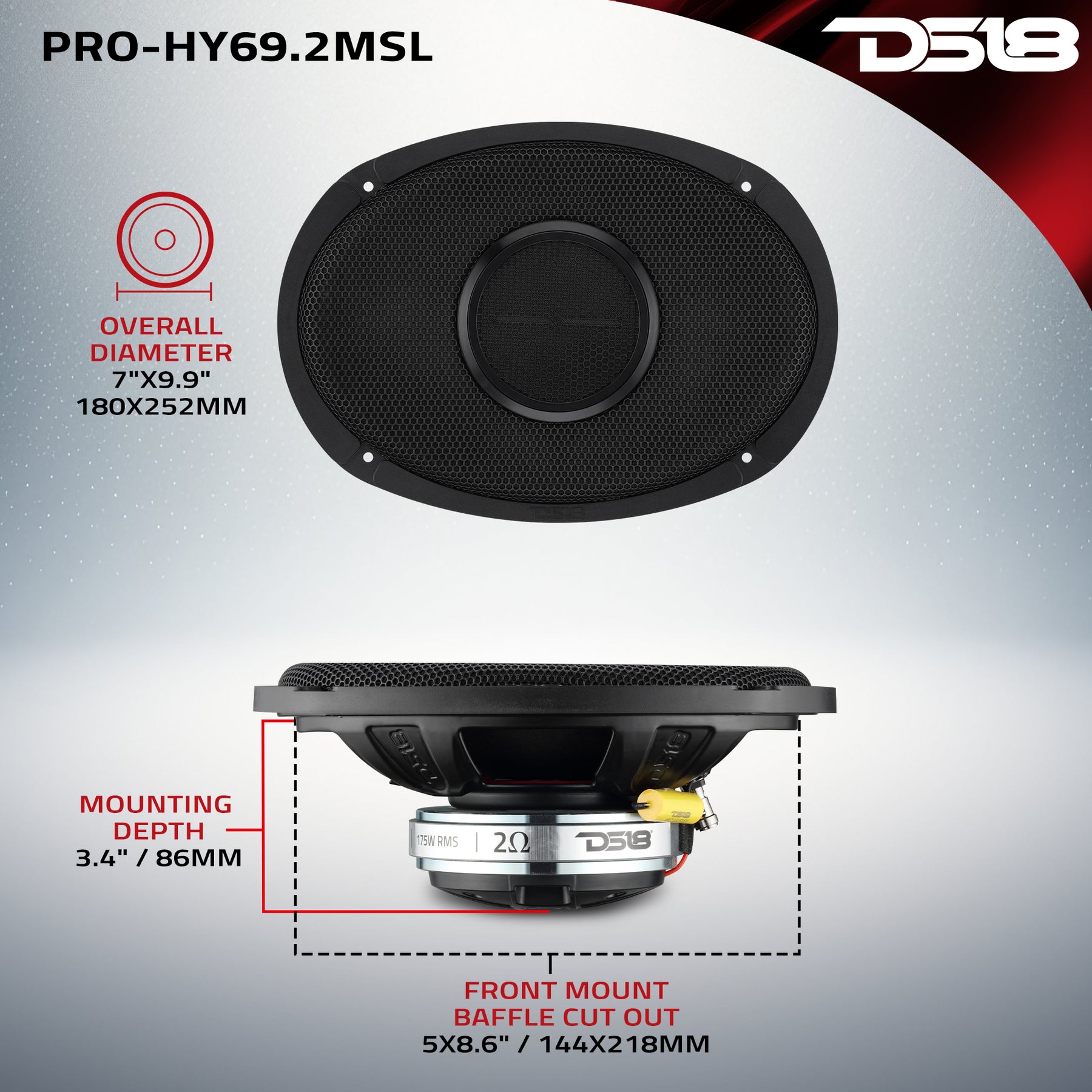

Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter (Without Grill) | 6.4 x 9.2 inch / 164 x 234 mm |
| Overall Diameter (With Grill) | 7 x 9.9 inch / 180 x 252 mm |
| Overall Depth (Without Grill) | 3.9 inch / 100 mm |
| Overall Depth (With Grill) | 4.2 inch / 107 mm |
| Front Mount Baffle Cutout | 5.7 x 8.6 inch / 144 x 218 mm |
| Mounting Depth | 3.4 inch / 86 mm |
| Motor Diameter | 4.7 inch / 120 mm |
Product Overview
6×9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn
The PRO-HY69.2MSL is a slim hybrid 6×9” speaker made to give riders the best of both worlds: big volume that fits and is extremely durable.
2-Way Hybrid = Full-Range Output
We’ve combined a water-resistant woofer with a 1” titanium compression driver—all in one slim speaker. This combination delivers wide-bandwidth sound from 60Hz to 20kHz with 97dB sensitivity.
Easy Fit
At just 3.4” mounting depth, the PRO-HY69.2MSL installs cleanly in fairings, pods, or panels—especially in motorcycles, UTVs, Slingshots, and Jeeps where space is tight.
IP65-Rated Water Resistance
Rain, washdowns, and trail spray are no threat. The water-resistant paper cone and cloth surround hold up against the elements, while the grille’s built-in sun/water protection cloth keeps your internals safe.
Ferrite + Neodymium = Lightweight Power
A 25.5 oz ferrite magnet drives the woofer, while a neodymium motor powers the compression driver. This combo gives you the output of a full-size system in a lighter, tighter form.
Ready for Real Builds
With a 2Ω impedance, it’s easy to load multiple drivers or match with your amp. Build a full audio wall or upgrade your factory pods with a driver that drops in and turns heads.
The PRO-HY69.2MSL is a hybrid speaker made to play LOUD, stay tough, and fit where others can’t: order yours today and get the best of both worlds!
