Description
DS18 PRO-HY6.2MSL
The DS18 PRO-HY6.2MSL is a 6.2-inch hybrid midrange loudspeaker available in 2-ohm, 4-ohm, and 8-ohm configurations, designed to deliver powerful, crystal-clear vocals and midrange performance in high-output car audio systems. Engineered for efficiency and durability, it produces strong, detailed sound with excellent projection and clarity, making it ideal for door panels, custom builds, and SPL setups. Its rugged construction ensures reliable performance under demanding conditions, while the multiple impedance options provide flexible wiring compatibility for different amplifier setups. The PRO-HY6.2MSL is perfect for enthusiasts seeking loud, clean, and dynamic midrange response in professional-grade audio systems.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HY6.2MSL |
| Nominal Diameter | 6.5 inch / 165.1 mm |
| Nominal Impedance | 2 Ohms |
| RMS Power Handling | 150 Watts |
| Maximum Power Handling | 300 Watts |
| Sensitivity (1W/1M) | 97 dB |
| Frequency Response | 120 Hz – 20 kHz |
| Recommended Hi Pass Crossover | 140 Hz |
| Number of Ways | 2 Way |
| Sold In | Single |
| Grill Included | Yes |
Woofer Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5 inch / 38.6 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 19.5 Oz |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Vas | 7 L / 0.248 ft³ |
| Xmax (One Way) | 1.5 mm |
| Fs | 163 Hz |
| Qms | 7.488 |
| Qes | 1.102 |
| Qts | 0.96 |
| Mms | 2.87 g |
| Cms | 0.333 mm/N |
| BL | 2.287 |
| Le | 0.07041 mH |
| Sd | 136.8 cm² |
| Re | 1.9 Ohms |
| Mmd (Without Air) | 20.7 g |
Driver Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1 inch / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.15 inch / 80 mm |

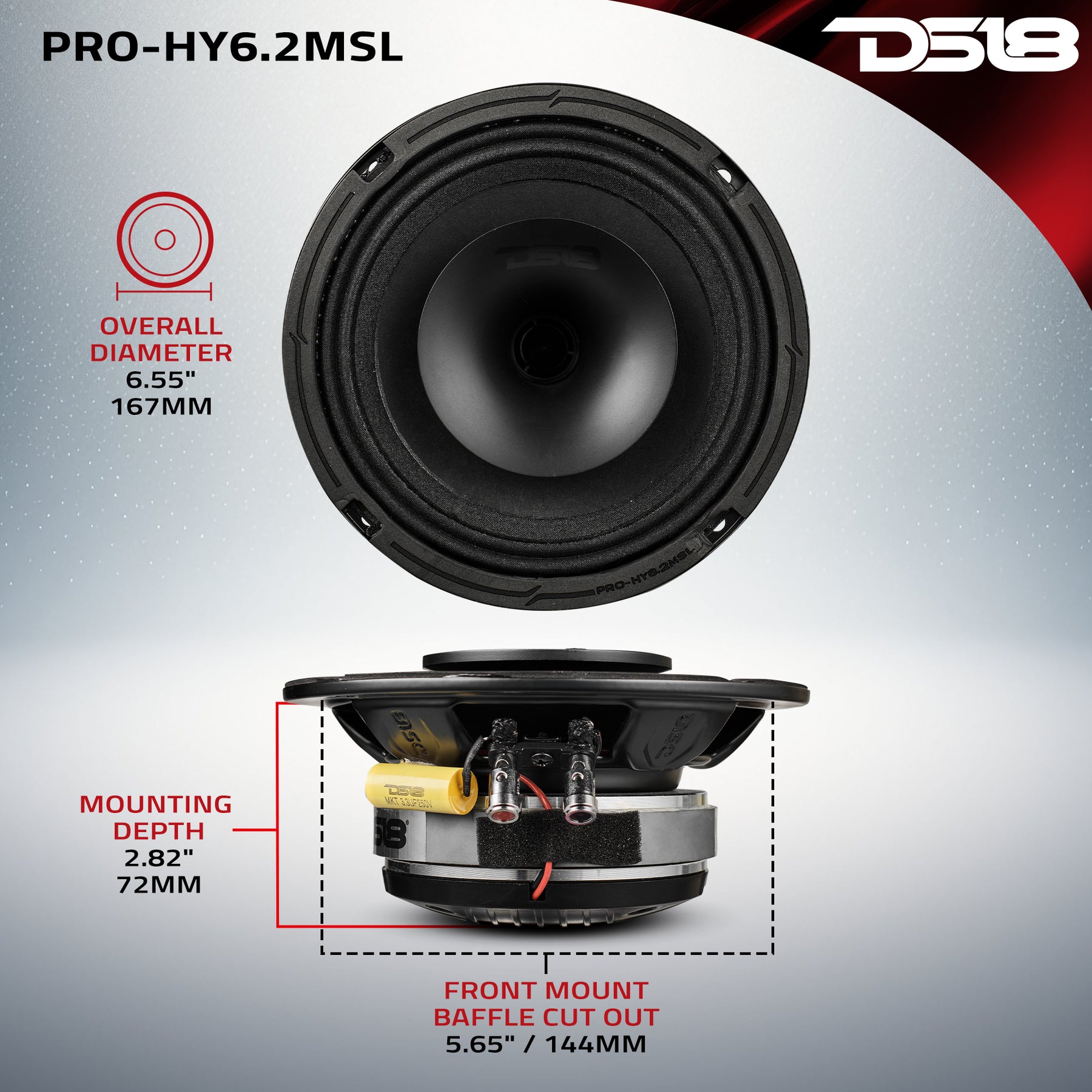

Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter Without Grill | 6.55 inch / 167 mm |
| Overall Diameter With Grill | 6.93 inch / 176 mm |
| Overall Depth Without Grill | 3.26 inch / 83 mm |
| Overall Depth With Grill | 3.45 inch / 88 mm |
| Front Mount Baffle Cutout | 5.65 inch / 144 mm |
| Mounting Depth | 2.82 inch / 72 mm |
| Motor Diameter | 4.31 inch / 110 mm |
Product Overview
6.5″ Hybrid Slim Loudspeaker with 1″ Compression Driver Horn
DS18’s PRO-HY6.2MSL is made for tight builds that need BIG sound. With a hybrid design that pushes full-range clarity in a slim profile, this 2-ohm loudspeaker is the perfect solution for motorcycles, UTVs, Slingshots, Jeeps, and other powersports vehicles.
Hybrid Power
This compact beast combines a 6.5” midrange woofer with a built-in 1” compression driver horn—giving you the full range of frequencies in one clean unit. It hits 150W RMS / 300W MAX, with 97dB sensitivity and a wide 120Hz–20KHz response, delivering loud, accurate audio where it matters most.
Built to Ride
The PRO-HY6.2MSL features a paper cone, cloth surround, and a black steel basket backed by a 19.5oz ferrite magnet. The compression driver brings the heat with a titanium diaphragm, Kapton voice coil, and neodymium magnet.
Fits Tight
At just 2.82” mounting depth and a slim 6.55” total diameter, the PRO-HY6.2MSL mounts just about anywhere your setup needs some punch. Offering a clean fit and getting louder than anything else in its class.
