DS18 PRO-HY10.4B
Specifications
| Parameter | Value |
|---|---|
| SKU | PRO-HY10.4B |
| Nominal Diameter | 10 inch / 254 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 350 W |
| Max Power Handling | 700 W |
| Sensitivity (1W/1M) | 100 dB |
| Frequency Response | 40 Hz – 20 kHz |
| Recommended High Pass Crossover | 70 Hz |
| Number of Ways | 2 Ways |
| Sold As | Single |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 2 inch / 50.8 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper (IPx5) |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 49 Oz |
| Displacement Volume | 2.86 L / 0.1 ft³ |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 21.8 L / 0.76 ft³ |
| Excursion Xmax (One Way) | 10 mm |
| Free Air Resonance Fs | 95 Hz |
| Mechanical Factor Qms | 12.59 |
| Electrical Factor Qes | 0.995 |
| Total Factor Qts | 0.922 |
| Mechanical Mass Mms | 26.78 g |
| Mechanical Compliance Cms | 0.125 mm/N |
| BL Factor | 6.851 |
| Voice Coil Inductance Le | 0.313 mH |
| Cone Area Sd | 352.99 cm² |
| DC Resistance Re | 3.4 Ohm |
| Mechanical Mass Without Air Mmd | 25 g |
Driver Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1.5 inch / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 4.25 inch / 108 mm |

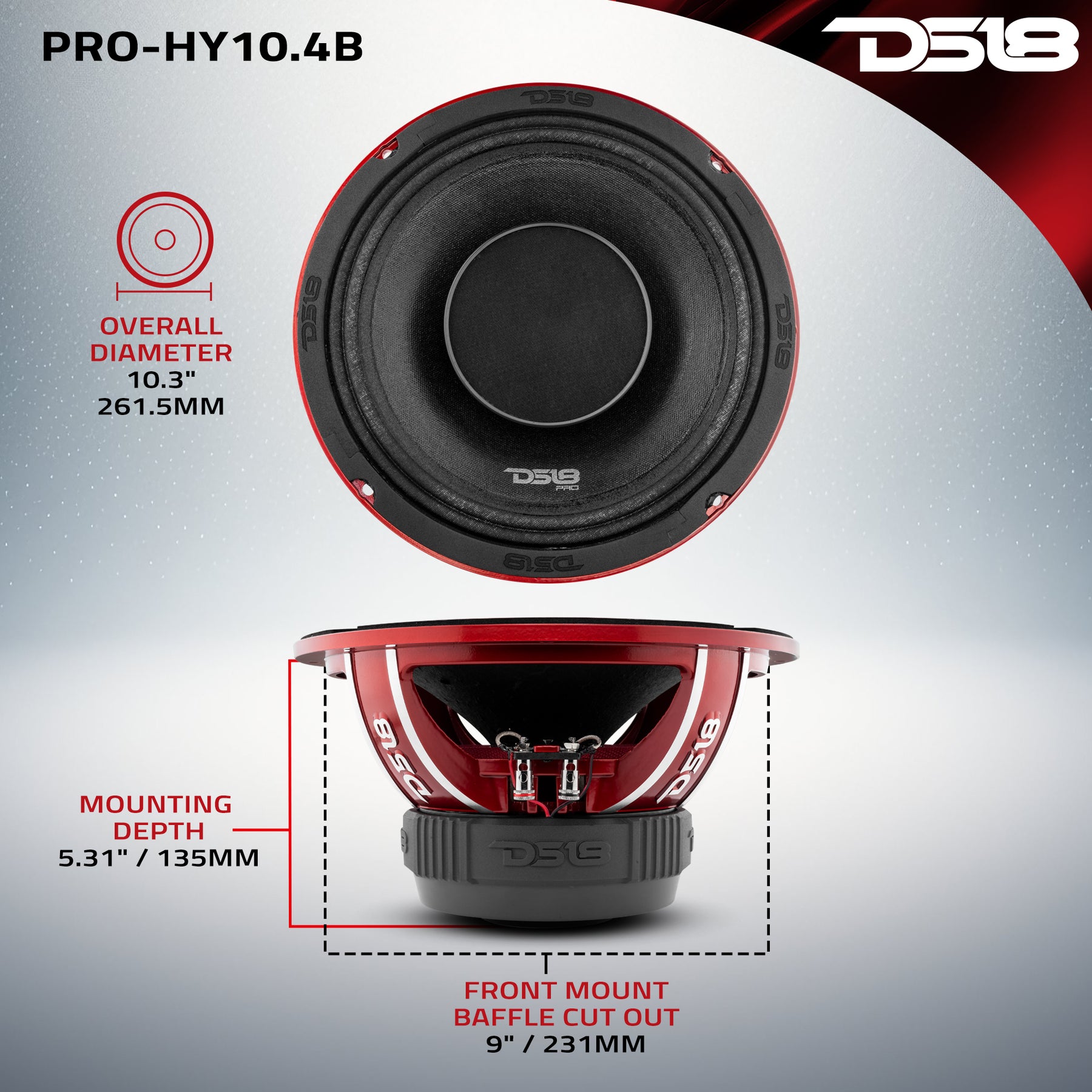

Speaker Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 10.3 inch / 261.5 mm |
| Overall Depth | 5.7 inch / 144.4 mm |
| Front Mount Baffle Cutout | 9 inch / 231 mm |
| Mounting Depth | 5.31 inch / 135 mm |
| Motor Diameter | 5.7 inch / 145 mm |
Product Overview
10” Water Resistant Hybrid Loudspeaker With 1.5” Compression Driver Horn
The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10″ midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
The PRO-HY10.4B features a 1.5″ compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
