Description

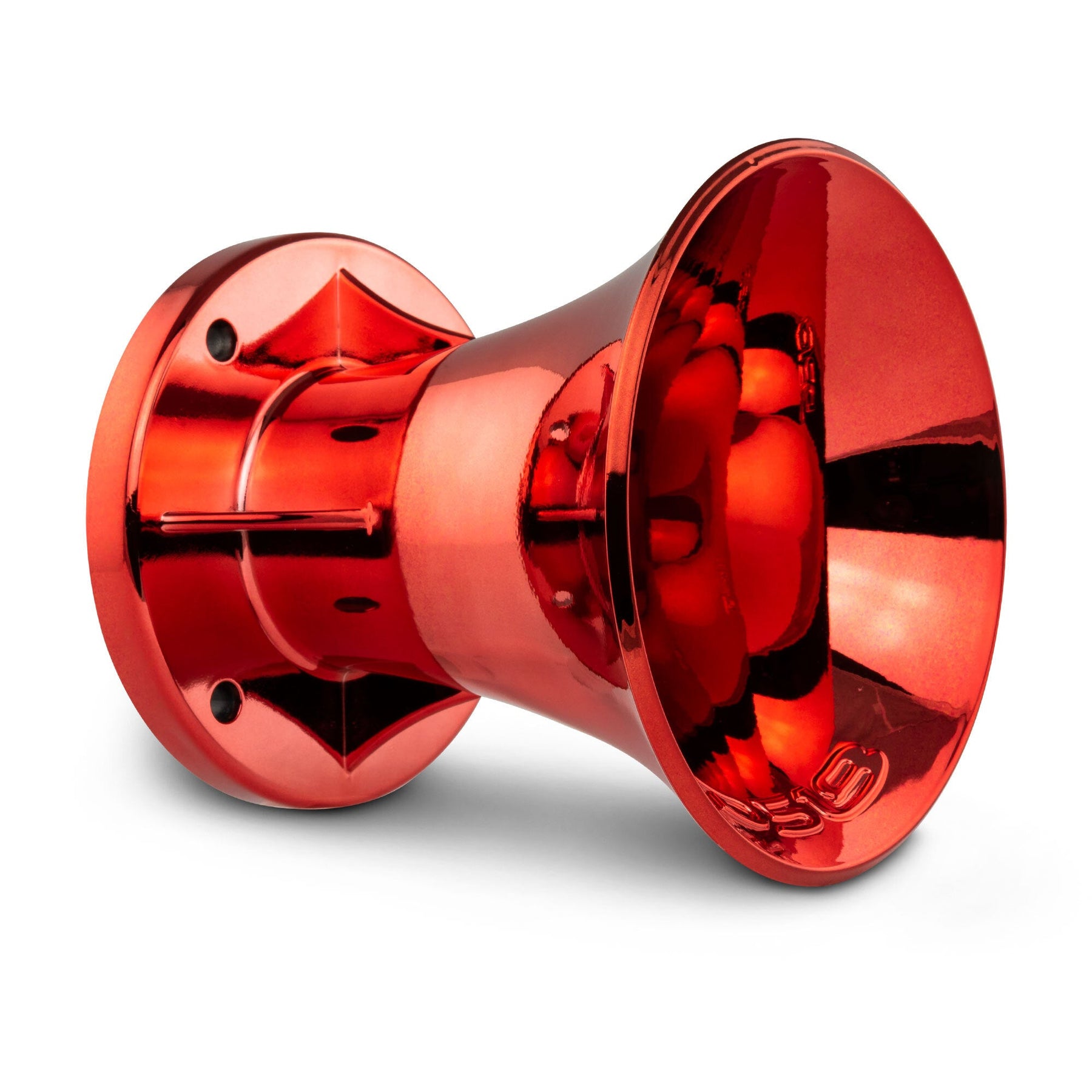

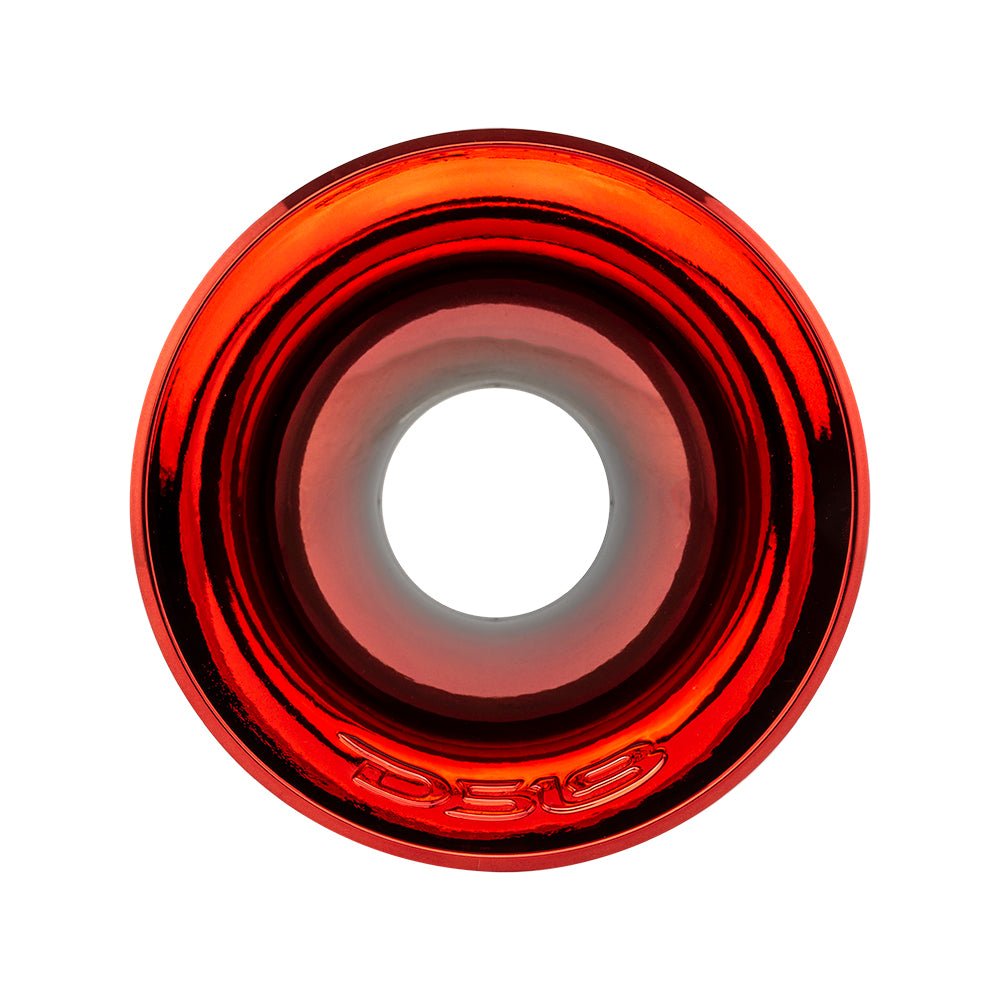

DS18 PRO-HPR/RD
The PRO-HPR is a high-performance horn designed to deliver powerful and clear high-frequency sound for car audio and professional sound systems. Engineered to improve treble projection and vocal clarity, it efficiently directs sound with minimal distortion, even at high SPL levels. Its horn-loaded design enhances sensitivity and sound dispersion, making it ideal for SPL systems, PA setups, and demanding audio environments. Built from durable materials, the PRO-HPR ensures reliable and long-lasting performance, providing sharper, more defined highs for a professional audio setup.
Specifications
General Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HPR |
| Installation Type | Bolt-On |
| Throat Diameter | 2″ / 50.8 mm |
| Nominal Horn Diameter | 6.5″ |
| Sound Coverage | 90° |
| Color Options | Raw, Chrome Red, Chrome Gold, Clear RGB |
| Material | ABS / PC |
Dimensions
| Measurement | Dimensions |
|---|---|
| Overall Diameter | 5.35″ / 136 mm |
| Overall Depth | 5.29″ / 134.4 mm |
| Mounting Depth | 5.29″ / 134.4 mm |
| Net Weight | 0.45 lb / 205 g |
Shipping Information
| Specification | Details |
|---|---|
| Gross Single Unit Weight | 0.48 lb |
| Single Unit Box Dimensions (W × L × H) | 5.5 × 5.5 × 5.25 in |
| Quantity of Units in Master Carton | 48 |
| Gross Master Carton Weight | 28 lb |
| Master Carton Dimensions (W × L × H) | 22.5 × 22.5 × 17.5 in |
Product Overview

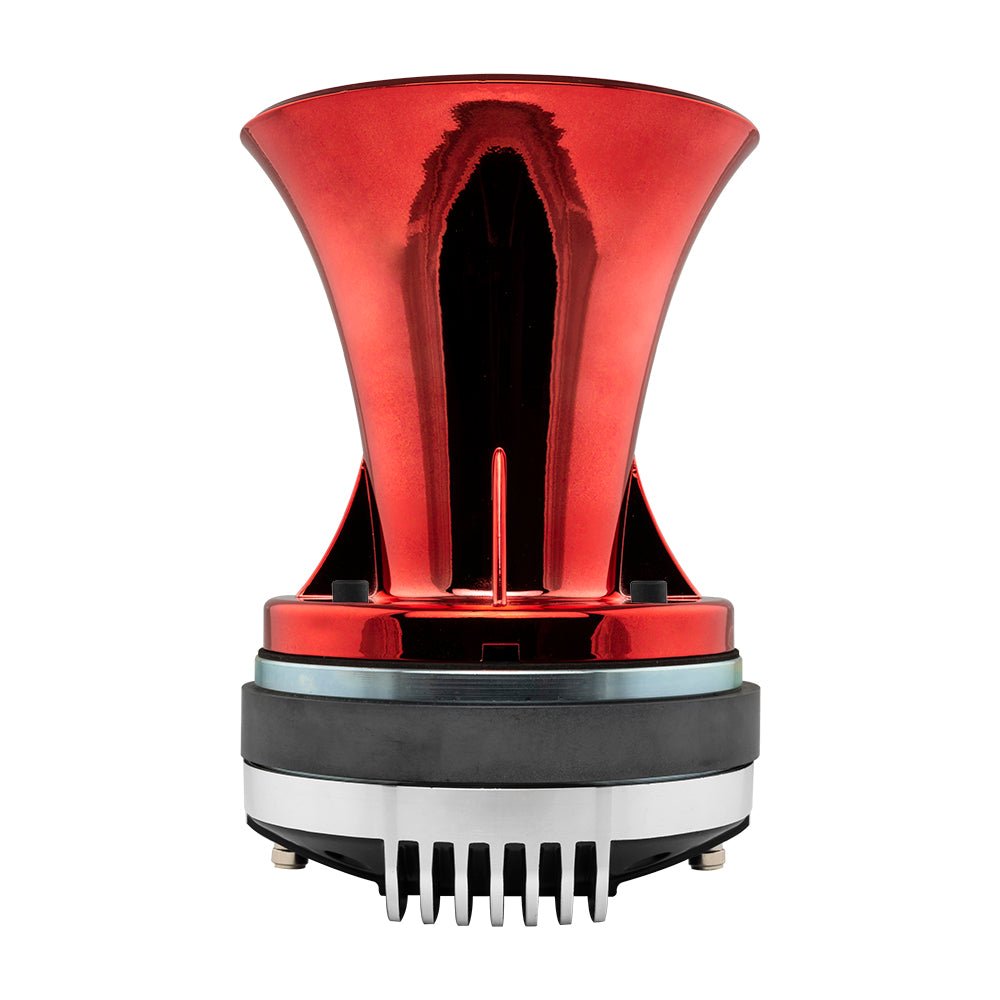

Bolt On 2″ Throat 5.29″ Mounting Horn
DS18’s PRO-HPR is the ultimate solution for installers seeking seamless custom sound enhancement.
Crafted with high-quality ABS/PC material, this horn is perfect for molding custom driver throats into fiberglass panels. With its screw-down installation type and 2″ throat diameter, it effortlessly fits most drivers with 4 bolt connections.
Whether it’s stunt walls, door panels, or custom fiberglass boxes, achieve that flawless, smooth look you desire.
