Description

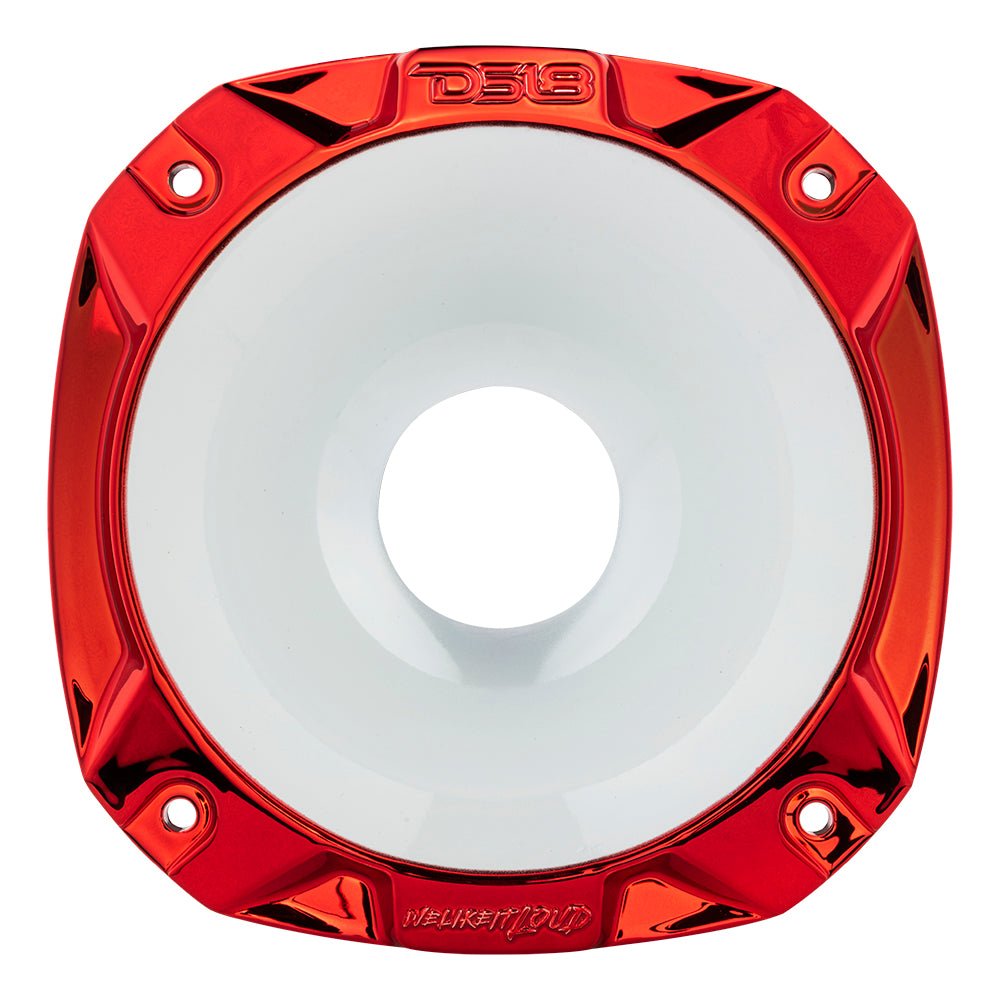

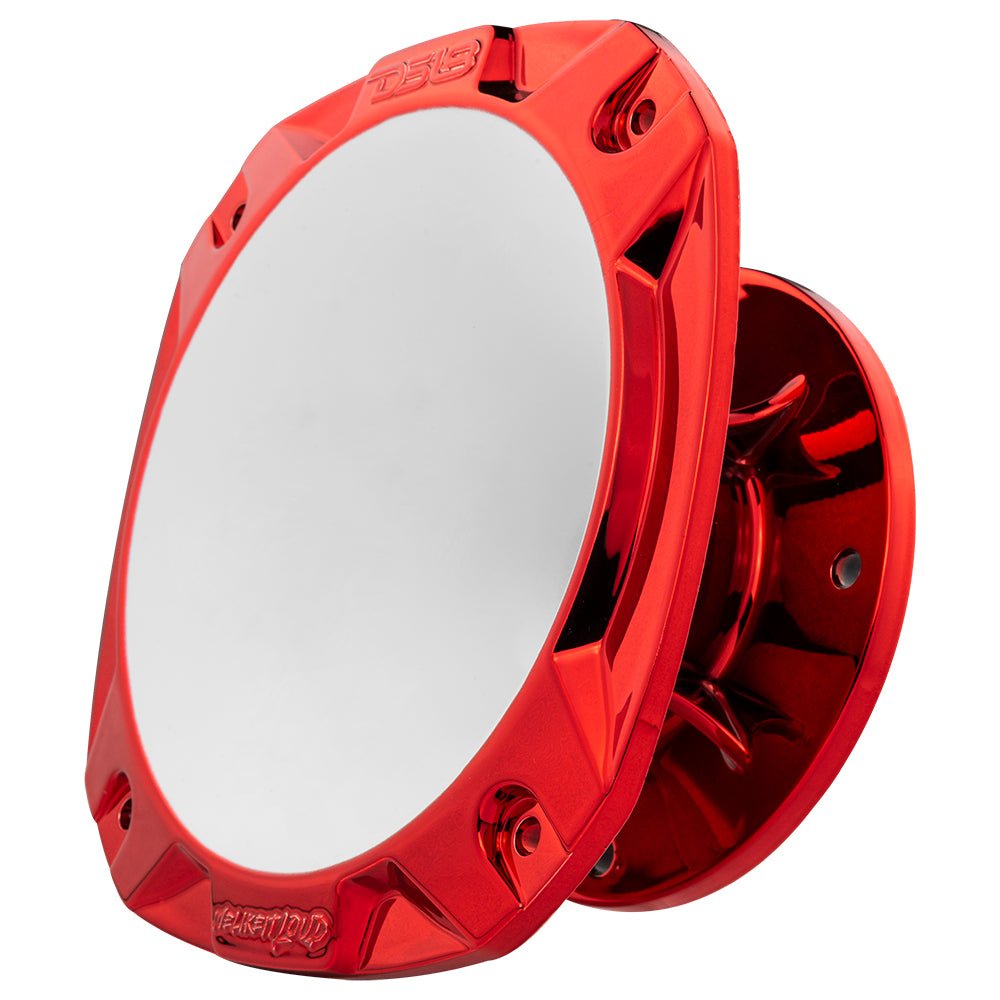

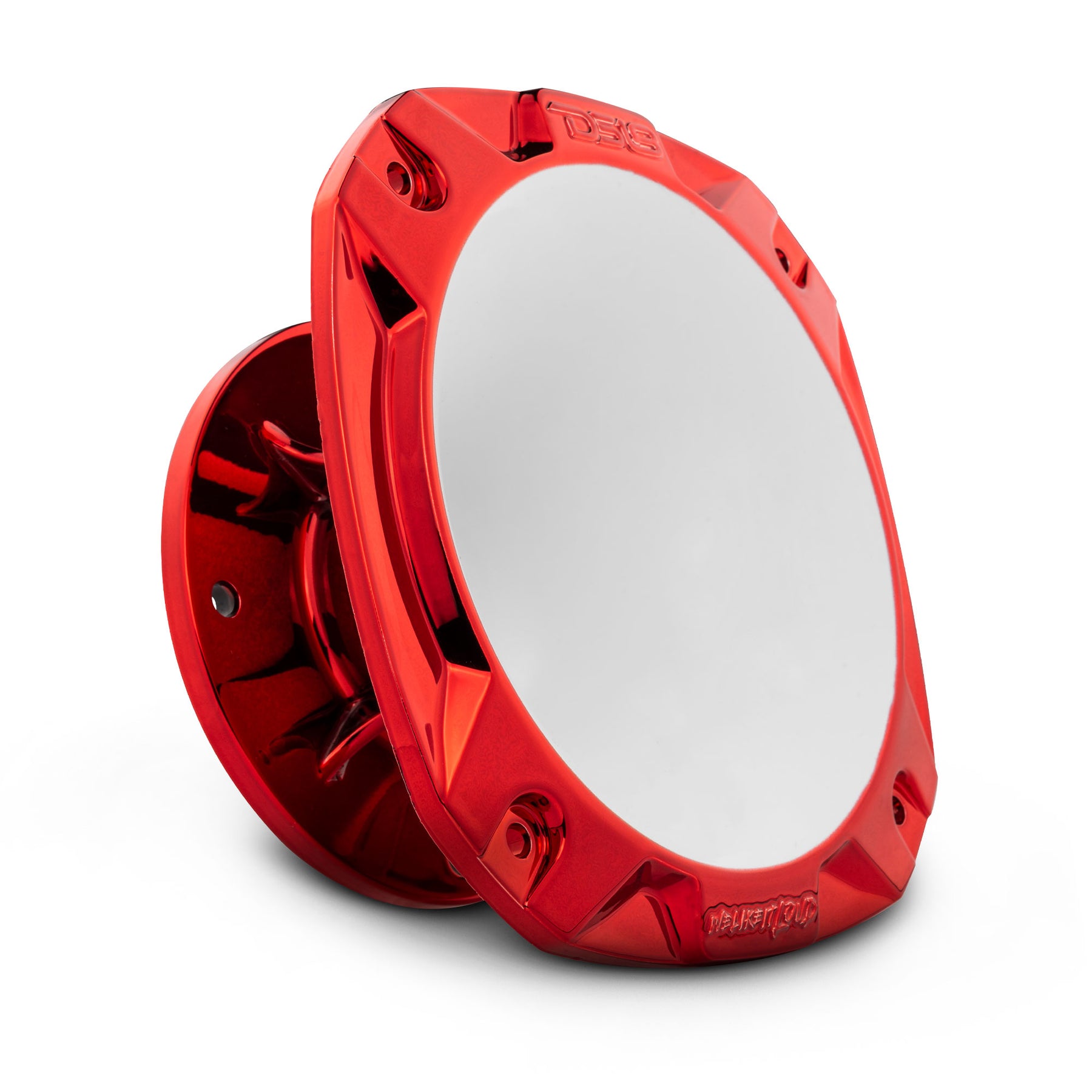

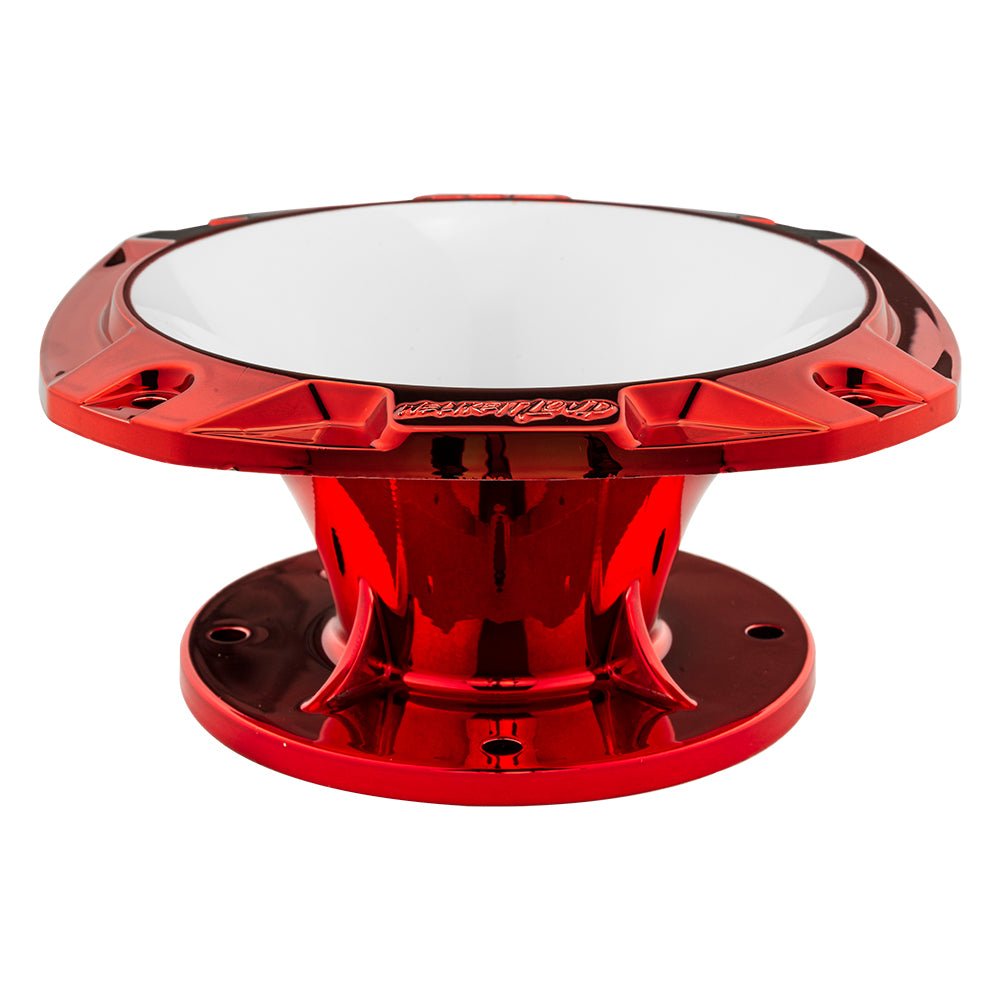

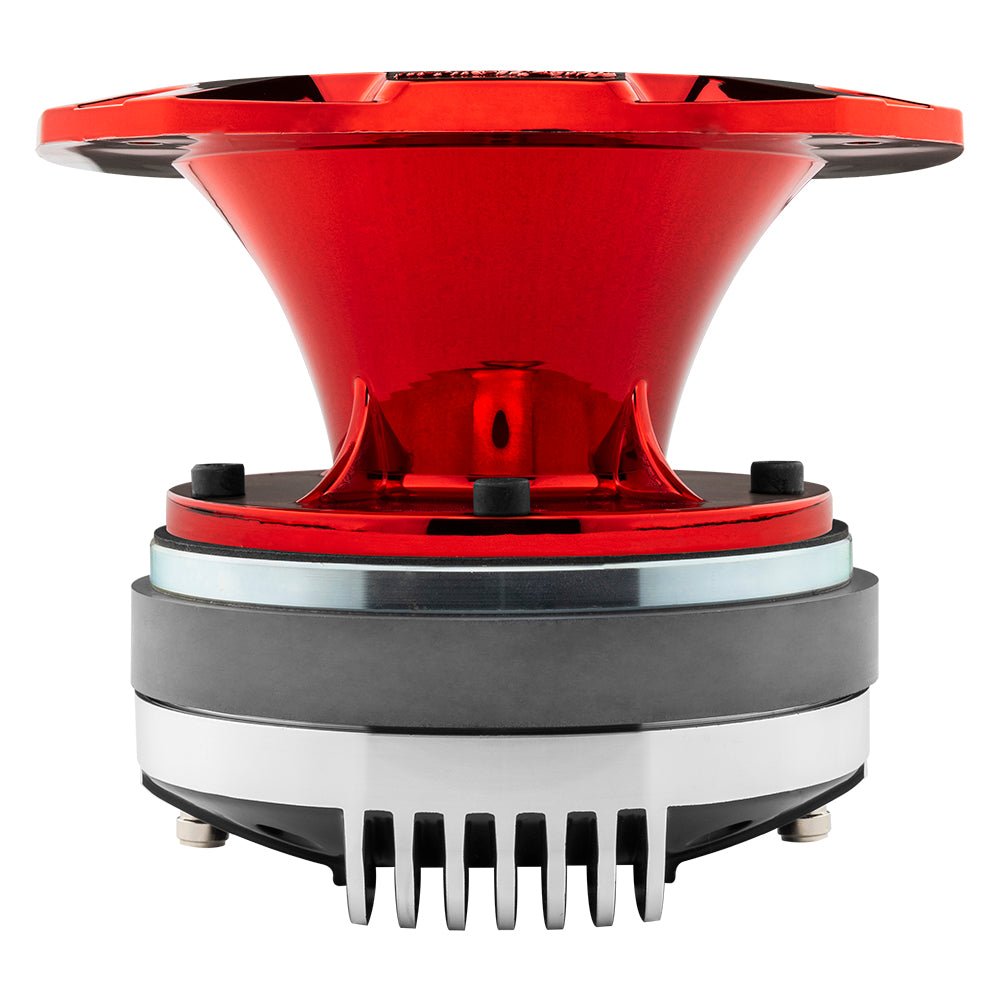

DS18 PRO-HP52/CRDWH
The PRO-HP52 is a compact, high-efficiency audio horn designed to improve high-frequency sound projection and clarity in car audio and professional sound systems. Engineered with a horn-loaded design, it increases sensitivity and directs sound more effectively, making vocals and treble frequencies sharper and more defined at high volume levels. Its durable construction ensures reliable performance in demanding SPL and PA applications, while the compact size allows easy integration into various custom audio setups. The PRO-HP52 is an ideal choice for users seeking loud, focused, and distortion-free high-frequency output.
Specifications
General Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HP52 |
| Nominal Diameter | 6.5″ / 165 mm |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Sound Coverage | 57° Rounded |
| Body Material | Plastic ABS |
| Color Options | Black, Chrome Blue, Chrome Gold, Chrome Red, Chrome Red/White |
Dimensions
| Measurement | Dimensions |
|---|---|
| Overall Diameter | 6.4″ / 162.5 mm |
| Overall Depth | 2.96″ / 75.2 mm |
| Mounting Depth | 2.61″ / 66.3 mm |
| Mounting Hole Diameter | 5.43″ / 138 mm |
| Bolt Pattern (Horn) | 6.33″ / 161 mm × 4 – 0.21″ / 5.5 mm |
| Bolt Pattern (Driver) | 4″ / 102 mm × 4 – 0.26″ / 6.8 mm |
Shipping Information
| Specification | Details |
|---|---|
| Gross Single Unit Weight | 0.5 lb |
| Single Unit Box Dimensions (W × L × H) | 6.75 × 6.75 × 3.5 in |
| Quantity of Units in Master Carton | 30 |
| Gross Master Carton Weight | 22.5 lb |
| Master Carton Dimensions (W × L × H) | 20.75 × 13.75 × 17.75 in |
Product Overview
2″ Throat Shallow Bolt On 57° 2.61″ Depth Plastic Horn
DS18’s PRO-HP52 is the latest innovation in our short-throated horn series!
Designed to deliver extreme directional sound in a compact package, this waveguide boasts a mounting depth of 2.61″ and a throat diameter of 2″.
Crafted from durable ABS Plastic, the PRO-HP52 offers superior resistance to corrosion and physical damage, ensuring longevity and reliability. Plus, it comes in five vibrant colors – Black, Chrome Blue, Chrome Gold, Chrome Red, and Chrome Red/White – allowing you to customize your system’s look.
With its shorter style design, the PRO-HP52 saves valuable mounting depth space without compromising on volume. The 4-bolt pattern ensures compatibility with most bolt-on drivers.
Don’t sacrifice valuable space for directional sound. Upgrade to DS18’s PRO-HP52 and get enhanced audio performance without compromise.
