Description

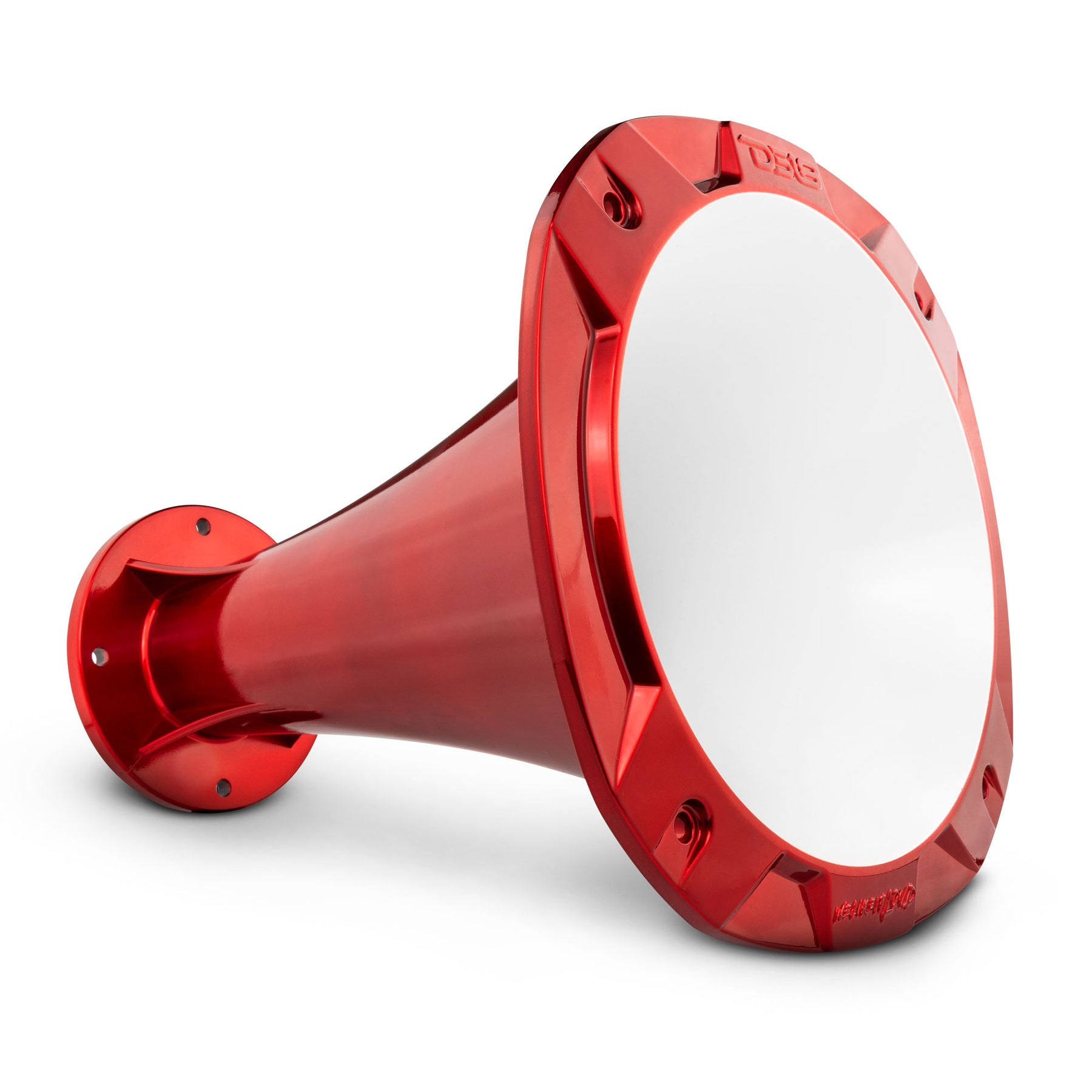

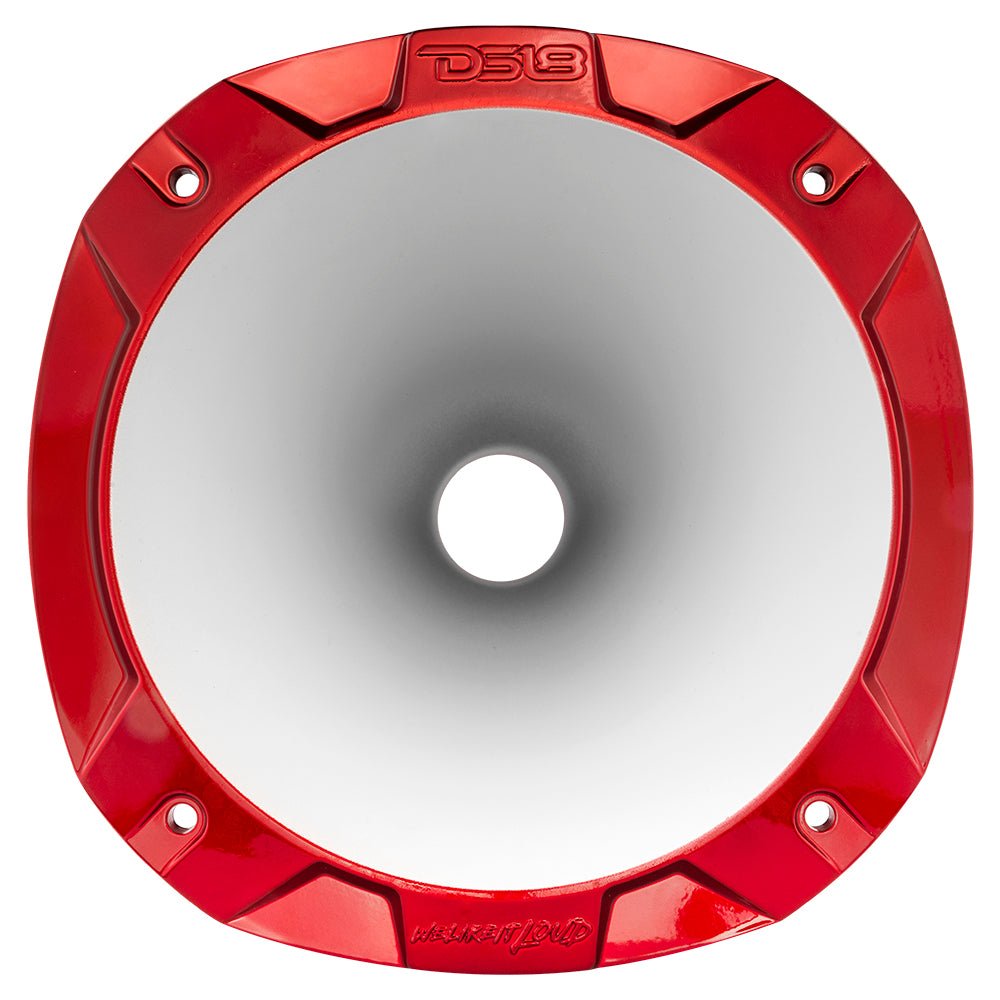

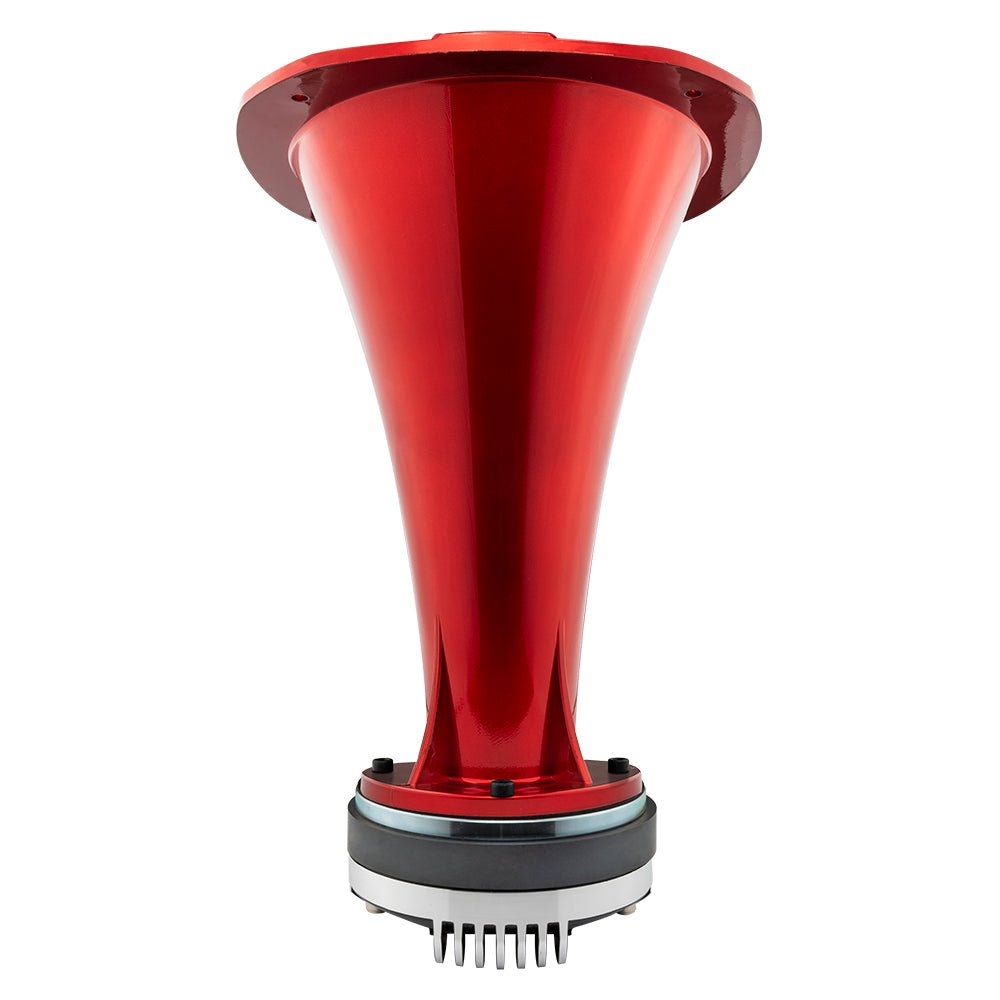

DS18 PRO-HP202/CRDWH
The PRO-HP202 is a high-performance horn tweeter designed to deliver loud, clear, and crisp high-frequency output for car audio and professional sound systems. Engineered for strong treble projection and improved vocal clarity, it efficiently handles high sound pressure levels while maintaining low distortion. Its horn-loaded design enhances sound dispersion and sensitivity, making it ideal for SPL builds and demanding audio setups. Constructed from durable materials, the PRO-HP202 ensures reliable performance and long service life, even under continuous high-output use. It is an excellent choice for users looking to add powerful, sharp highs and improved detail to their sound system.
Specifications
General Specifications
| Specification | Details |
|---|---|
| SKU | PRO-HP202 |
| Nominal Diameter | 8″ / 203 mm |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Sound Coverage | 27° Rounded |
| Body Material | Plastic ABS |
| Color Options | Black, Chrome Red, Chrome Blue, Chrome Gold, Chrome Red/White |
Measurements
| Measurement | Dimensions |
|---|---|
| Overall Diameter | 9″ / 230 mm |
| Overall Depth | 11.25″ / 286 mm |
| Mounting Depth | 10.84″ / 275.5 mm |
| Mounting Hole Diameter | 7.95″ / 202 mm |
| Bolt Pattern (Horn) | 8.58″ / 218 mm × 4 – 0.21″ / 5.5 mm |
| Bolt Pattern (Driver) | 4″ / 102 mm × 4 – 0.26″ / 6.8 mm |
Shipping Information
| Specification | Details |
|---|---|
| Gross Single Unit Weight | 2.5 lb |
| Single Unit Box Dimensions (W × L × H) | 9.25 × 9.25 × 11.5 in |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight | 31 lb |
| Master Carton Dimensions (W × L × H) | 28.75 × 19.5 × 24.25 in |
Product Overview
2″ Throat Bolt On 27° 10.84″ Depth Plastic Horn
DS18’s PRO-HP202 is the pinnacle of throated horn technology. Amplify your sound experience with this remarkable horn boasting a mounting depth of 10.84″ and a throat diameter of 2″. Prepare to be blown away as the directional sound expands by nearly ONE HUNDRED TIMES!
Crafted from ABS Plastic, the PRO-HP202 offers superior resistance to corrosion and physical damage, ensuring long-lasting performance. Match your horn to your system, DS18 presents the PRO-HP202 in four stunning glossy finishes: Blue, Gold, Red, and Red with White Inside.
Designed for compatibility, this bolt-on throat horn requires a 4-bolt pattern on your driver for seamless installation. With its ABS Plastic frame, extended length for extreme directional volume, and wide sound coverage of 27°, the PRO-HP202 guarantees unparalleled audio immersion.
Upgrade your sound system with DS18’s PRO-HP202 and experience the power of precisely engineered audio technology.
