Description

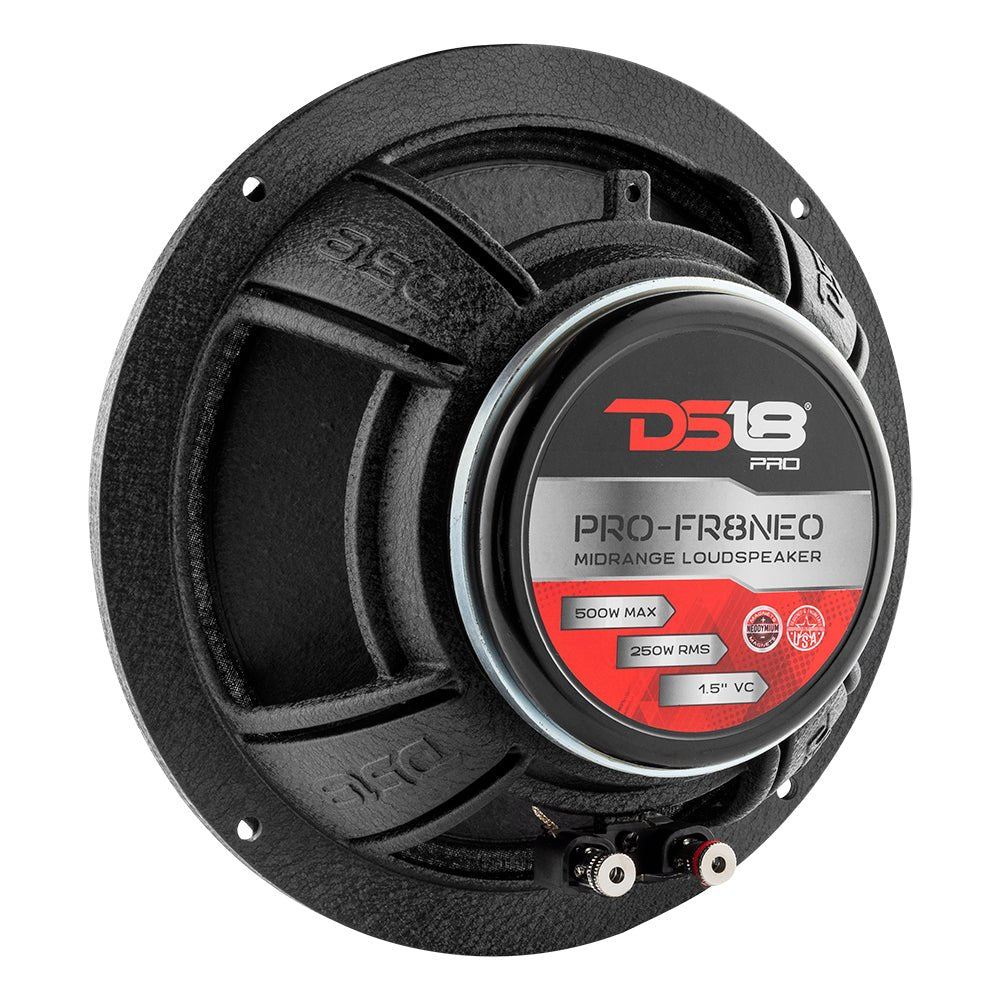

DS18 PRO-FR8NEO
The DS18 PRO-FR8NEO is an 8-inch full-range loudspeaker built with a high-efficiency neodymium magnet to deliver powerful, clear, and balanced audio performance. Designed for strong midrange and high-frequency output, it produces crisp vocals, detailed instruments, and dynamic overall sound. Its lightweight yet durable construction ensures reliable performance for daily driving, custom car audio builds, and compact installations. The PRO-FR8NEO works effectively as a standalone full-range speaker or integrated into multi-way systems, providing precise, high-quality sound reproduction for an immersive in-car audio experience.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-FR8NEO |
| Nominal Diameter | 8 inch |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250 Watts |
| Maximum Power Handling | 500 Watts |
| Sensitivity (1W/1M) | 99 dB |
| Frequency Response | 160 Hz – 12.5 KHz |
| Recommended Hi Pass Crossover | 180 Hz |
| Sold In | Piece |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5 inch / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | KCCAW |
| Basket Material | Aluminum |
| Magnet Weight | Not specified |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Vas | 7.872 L |
| Xmax | 6.8 mm |
| Fs | 128.77 Hz |
| Qms | 3.356 |
| Qes | 0.376 |
| Qts | 0.338 |
| Re | 3.2 Ohms |

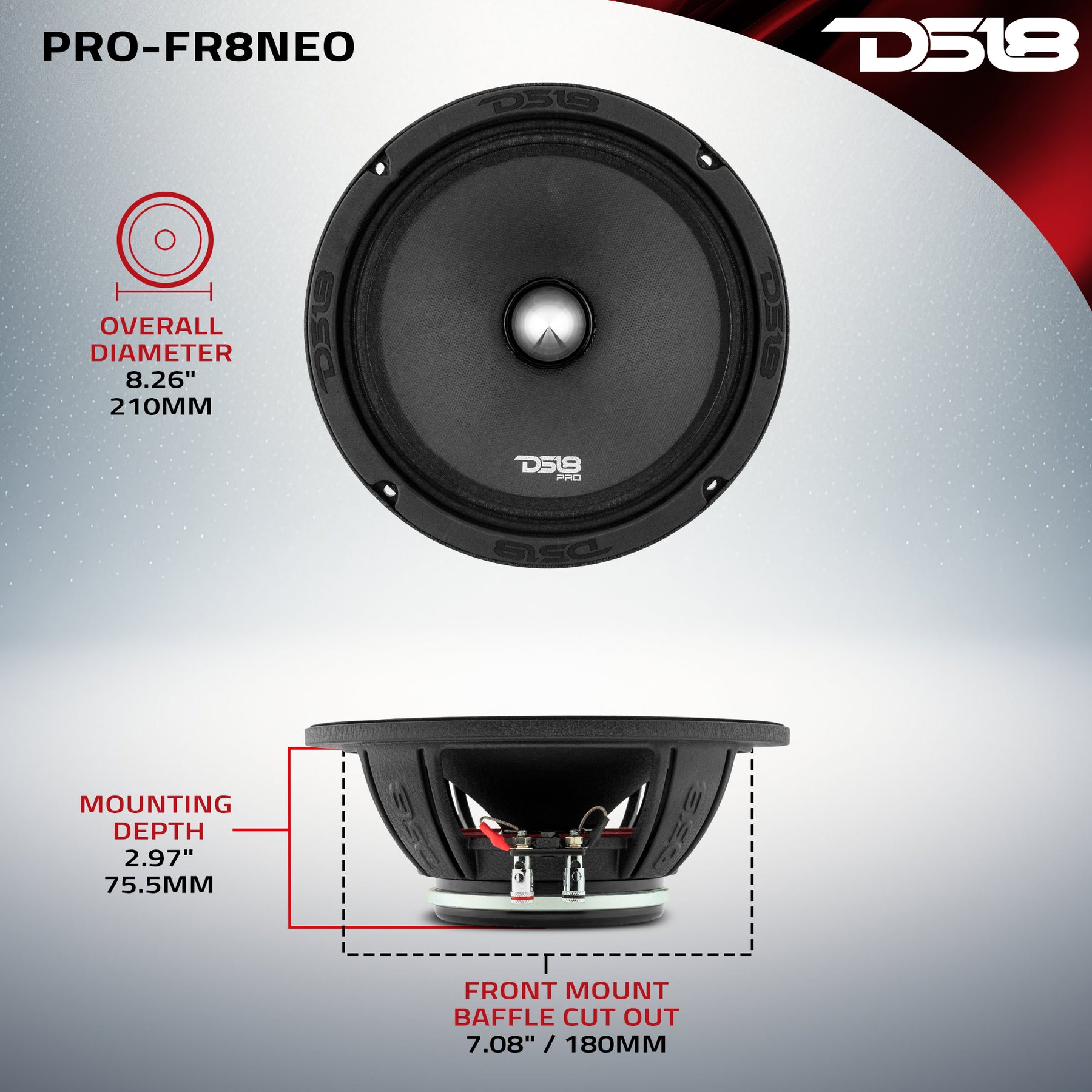

Measurements and Packaging
| Measurement | Details |
|---|---|
| Overall Diameter | 210 mm / 8.26 inch |
| Front Mount Baffle Cutout | 180 mm / 7.08 inch |
| Mounting Depth | 75.5 mm / 2.97 inch |
| Overall Depth | 82.7 mm / 3.25 inch |
| Product Weight | 4 lbs |
| Product Dimensions | 9.5 x 9.5 x 3.75 inch |
| Master Carton Weight | 35.5 lbs |
| Master Carton Dimensions | 19.75 x 10.75 x 16 inch |
| Master Carton Quantity | 8 |
Product Overview

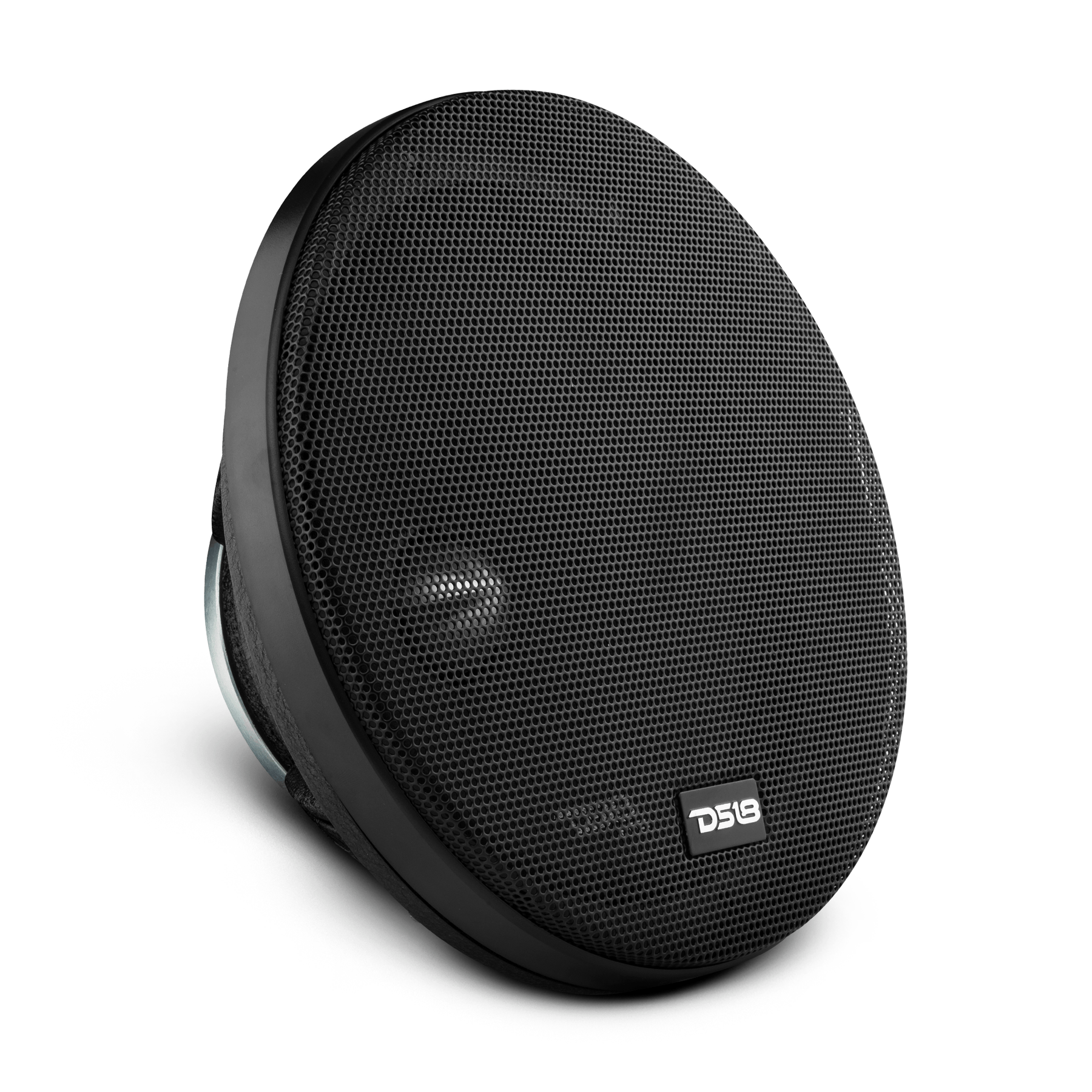

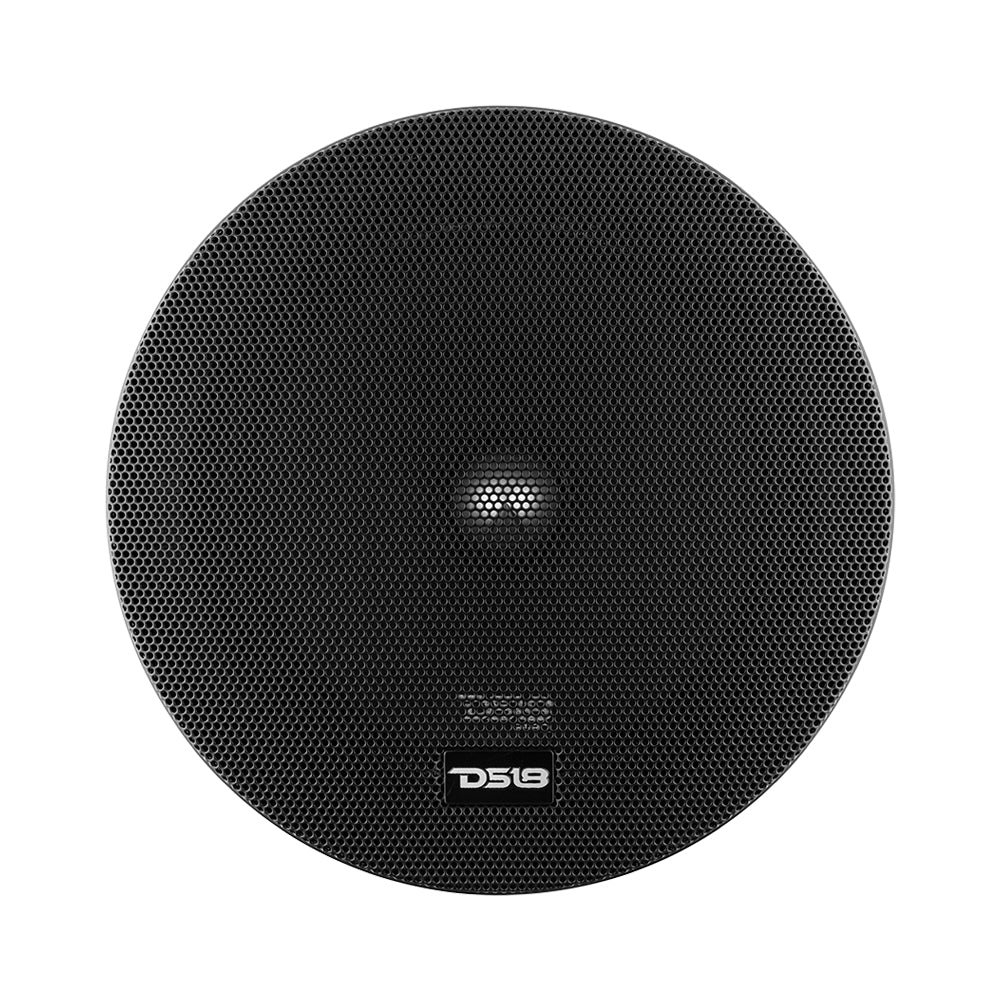

8” Neodymium Full-Range Loudspeaker With Bullet and Grill 500W 4-Ohm
Unleash the power of your music with the DS18 PRO-FR8NEO – an 8″ neodymium full-range loudspeaker that is guaranteed to bring your music to life! With a staggering 500 watts of maximum power, this speaker delivers unparalleled volume and clarity that will transport you to a new dimension of sound.
The PRO-FR8NEO’s high-powered neodymium magnet generates a much greater action force in the voice coil, providing a higher magnetic flux density in the air gap. As the strongest permanent magnet of all commercially available speakers, neodymium magnets are the perfect choice for those seeking simple perfection in sound.
Designed with DS18’s signature attention to detail, the PRO-FR8NEO boasts a beautiful, tooled aluminum brushed accented basket and high-quality terminals that complement its sleek and modern design.
Additionally, the Silver Bullet integrated in this speaker’s design widens the higher range of frequencies it reproduces bringing you a fuller range of frequencies to blast. With a frequency response of 160Hz – 12.5KHz, an impedance of 4 Ohms, and a sensitivity of 99 dB, the PRO-FR8NEO provides crystal-clear audio with no distortion. Its cloth edge surround, aluminum frame, and non-pressed paper cone ensure the highest quality materials for the best possible sound.
Don’t settle for less, get the best with the PRO-FR8NEO.
