Description
DS18 PRO-FR6NEORGB
The DS18 PRO‑FR6NEORGB is a 6.5″ full‑range car loudspeaker that combines powerful audio performance with vibrant RGB LED lighting, making it ideal for custom car audio upgrades, show installations, or systems that merge sound and lighting. It features a neodymium magnet motor for efficient performance and RGB lighting in the bullet tweeter housing for striking visual effects.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-FR6NEO |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 225 W |
| Maximum Power Handling | 450 W |
| Sensitivity (1W/1M) | 96 dB |
| Frequency Response | 200 Hz – 16 kHz |
| Recommended High-Pass Crossover | 200 Hz |
| Sold In | Single |
| Grille Included | Yes |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Bullet Material | CNC Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 7.67 Oz |
| Displacement Volume | 0.042 L / 0.0015 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 2.11 L / 0.074 ft³ |
| Xmax (One Way) | 0.8 mm |
| Fs | 166 Hz |
| Qms | 3.173 |
| Qes | 0.409 |
| Qts | 0.362 |
| Mms | 11.31 g |
| Cms | 0.08 mm/N |
| BL | 9.79 |
| Le | 0.472 mH |
| Sd | 136.85 cm² |
| Re | 3.3 Ohms |

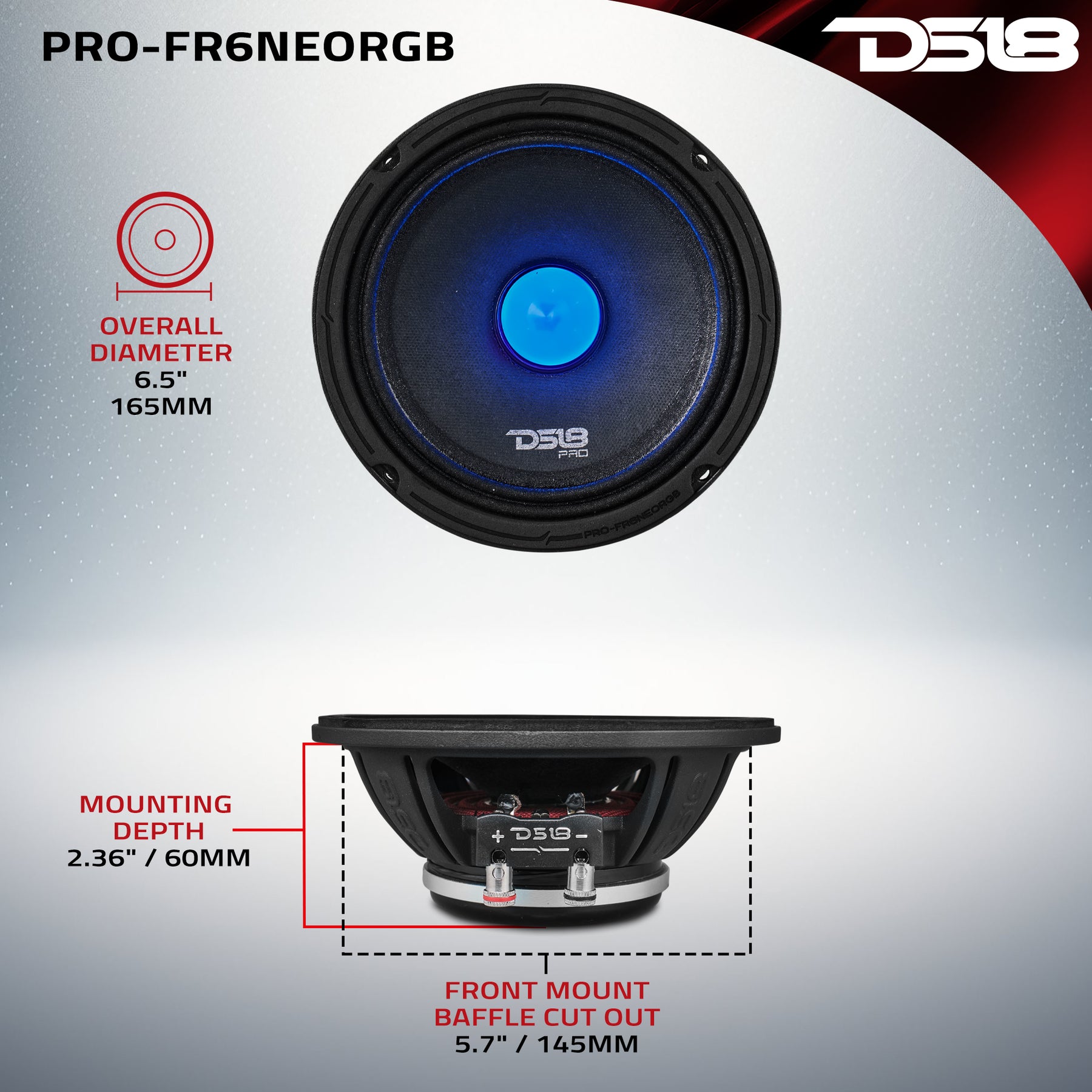

Speaker Measurements
| Measurement | Details |
|---|---|
| Overall Diameter | 6.5″ / 165 mm |
| Overall Diameter (With Grill) | 7.1″ / 181 mm |
| Overall Depth | 2.63″ / 67 mm |
| Overall Depth (With Grill) | 3.45″ / 88 mm |
| Front Mount Baffle Cutout | 5.7″ / 145 mm |
| Mounting Depth | 2.36″ / 60 mm |
| Motor Diameter | 3.54″ / 90 mm |
Product Overview
6.5″ Full-Range Loudspeaker With RGB LED Bullet & Neodymium Magnet
Superior sound comes alive with DS18’s PRO-FR6NEORGB!
This 6.5” high-performance loudspeaker combines powerful sound with vibrant RGB lighting. At its core, this speaker has a robust neodymium magnet, providing lightweight structural integrity that offers both powerful performance and durability. With an impressive RMS power handling of 225W and peak power of 450W, it delivers crystal-clear sound across a broad frequency range of 120Hz to 16kHz.
The stunning translucent ABS bullet material infused with RGB LED lighting, controllable via the DS18 LC app on both Android and iPhone devices. Customize your vehicle’s atmosphere with ease using the optional DS18 LC-RGB controller for tailored lighting effects that match your mood or style. Installation is straightforward with options for RGB module connectivity or direct wiring modes.
Perfect for car audio upgrades or professional installations, DS18’s PRO-FR6NEORGB is tailored for enthusiasts who prioritize exceptional audio performance and striking design.
