Description
DS18 PRO-DN24XPH.8
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DN24XPH.8 |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 250W |
| Program Power Handling | 500W |
| Peak Power Handling | 1000W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 400Hz – 8KHz |
| Recommended Hi Pass Crossover | 600 Hz |
| Sold in | Single |

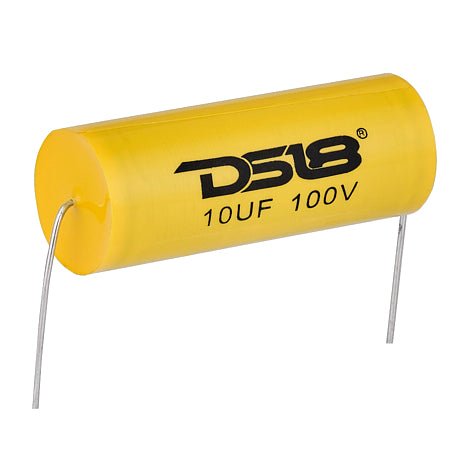

| Filter (Bass Blocker) | 10Uf / 100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
| Compression Ring (Spacer) | Yes |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 4″ / 101.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Weight | 24.1 oz |
Measurements
| Feature | Details |
|---|---|
| Overall Diameter | 6.06″ / 154 mm |
| Overall Depth | 3″ / 76 mm |
| Bolt Pattern / Type | 4xM6 – 4″ / 102 mm |
Shipping Info
| Feature | Details |
|---|---|
| Gross Single Unit Weight | 4.4 kg |
| Single Unit Box Dimensions (W x L x H) | 190 x 188 x 136 mm |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight | 18.5 kg |
| Master Carton Dimensions (W x L x H) | 390 x 200 x 287 mm |
Product Overview

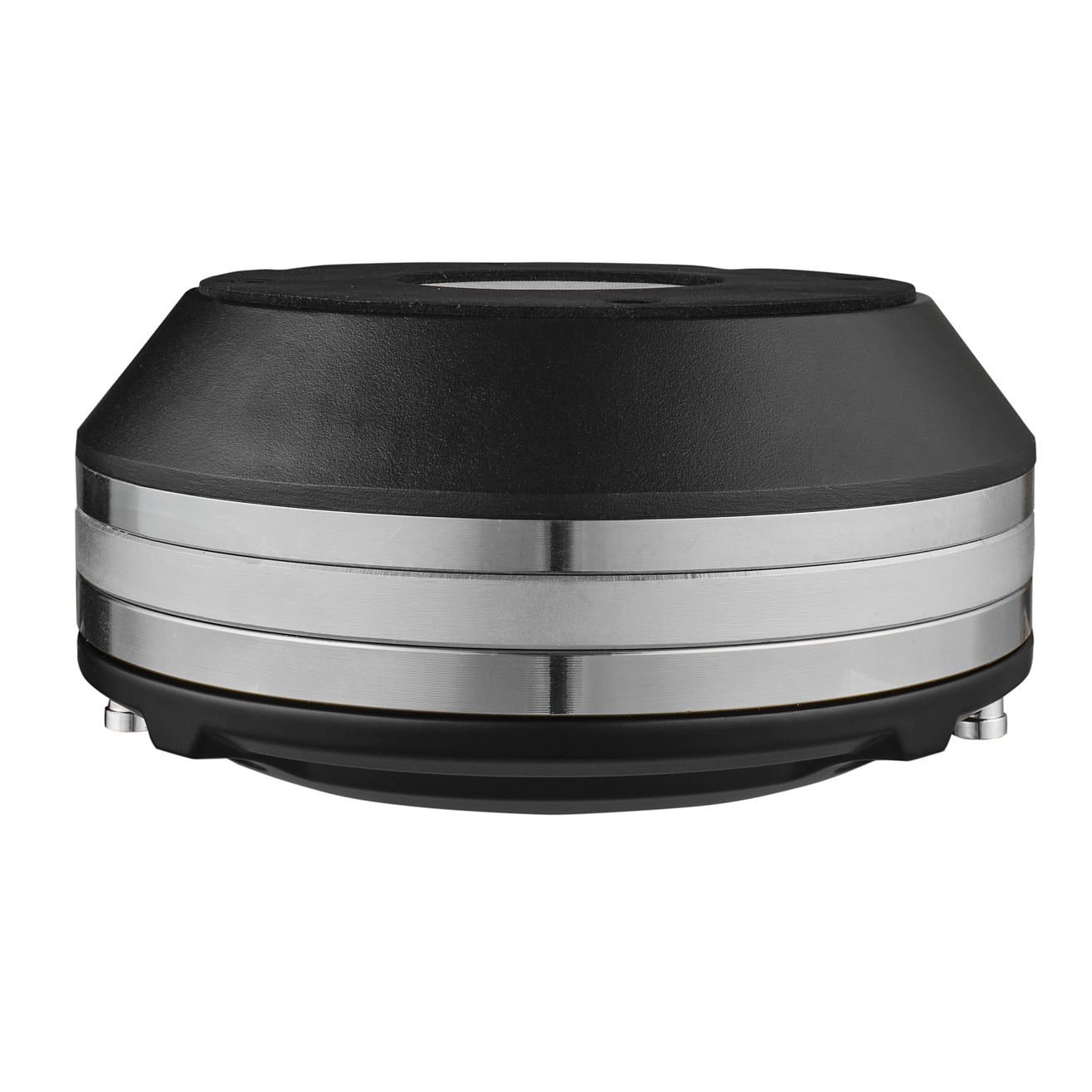

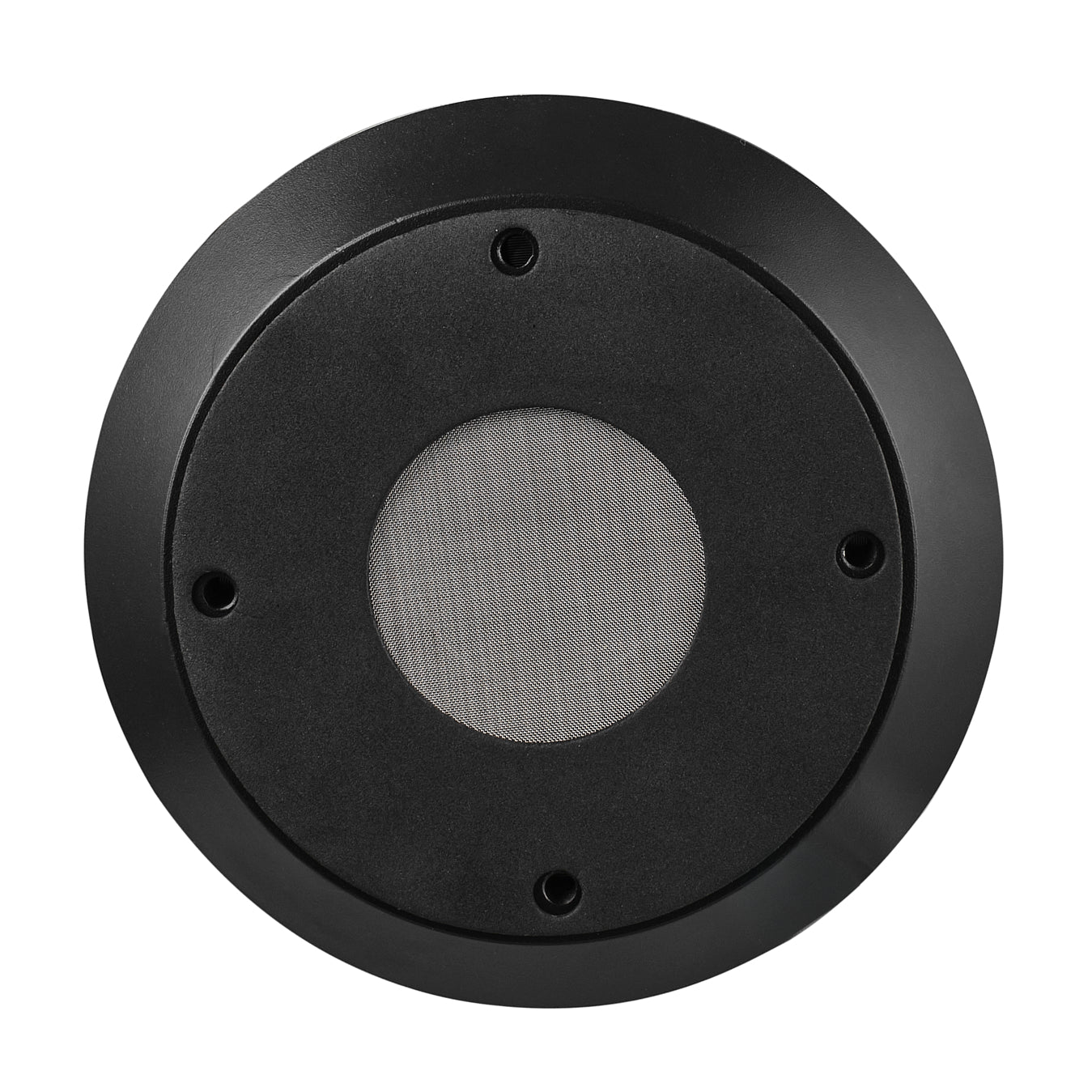

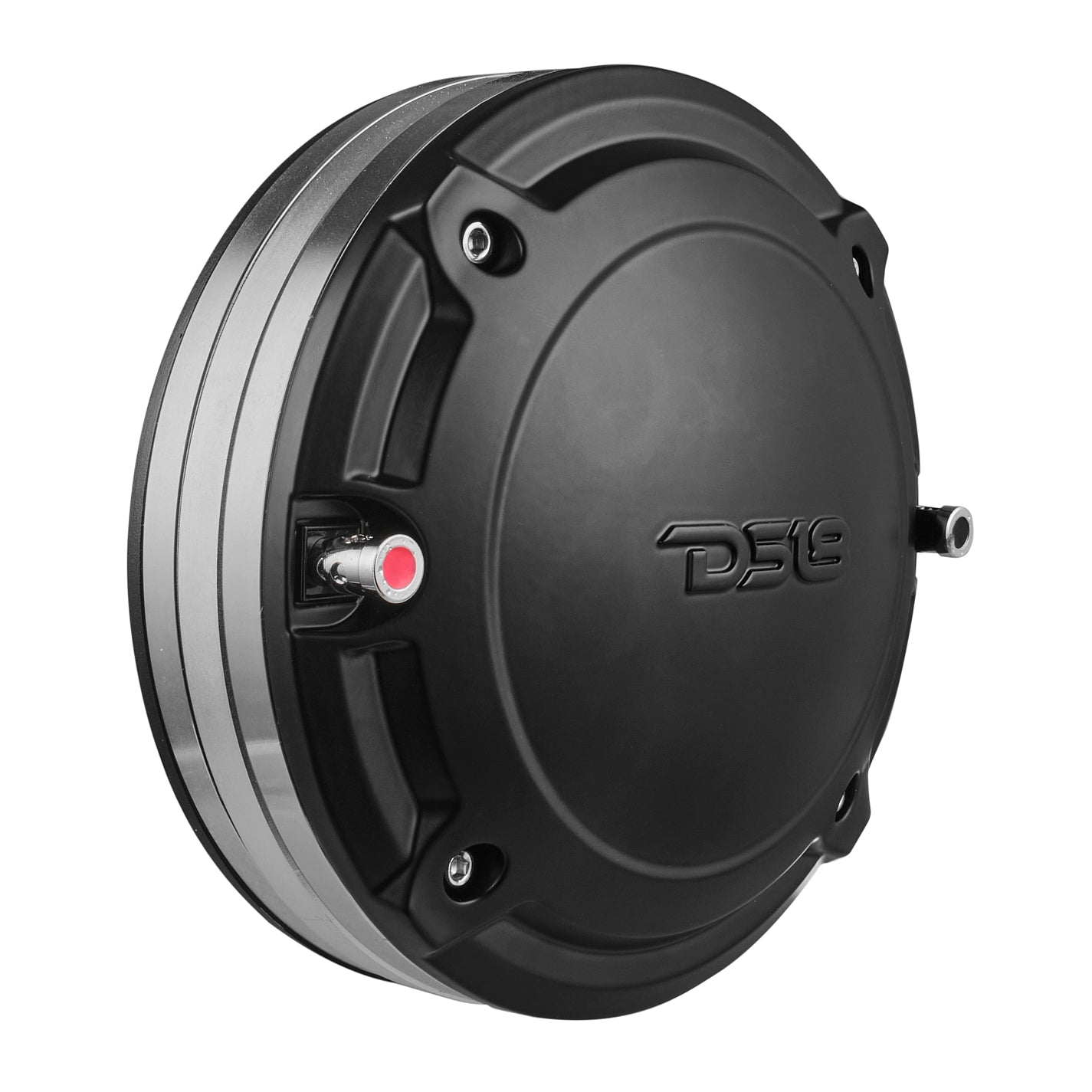

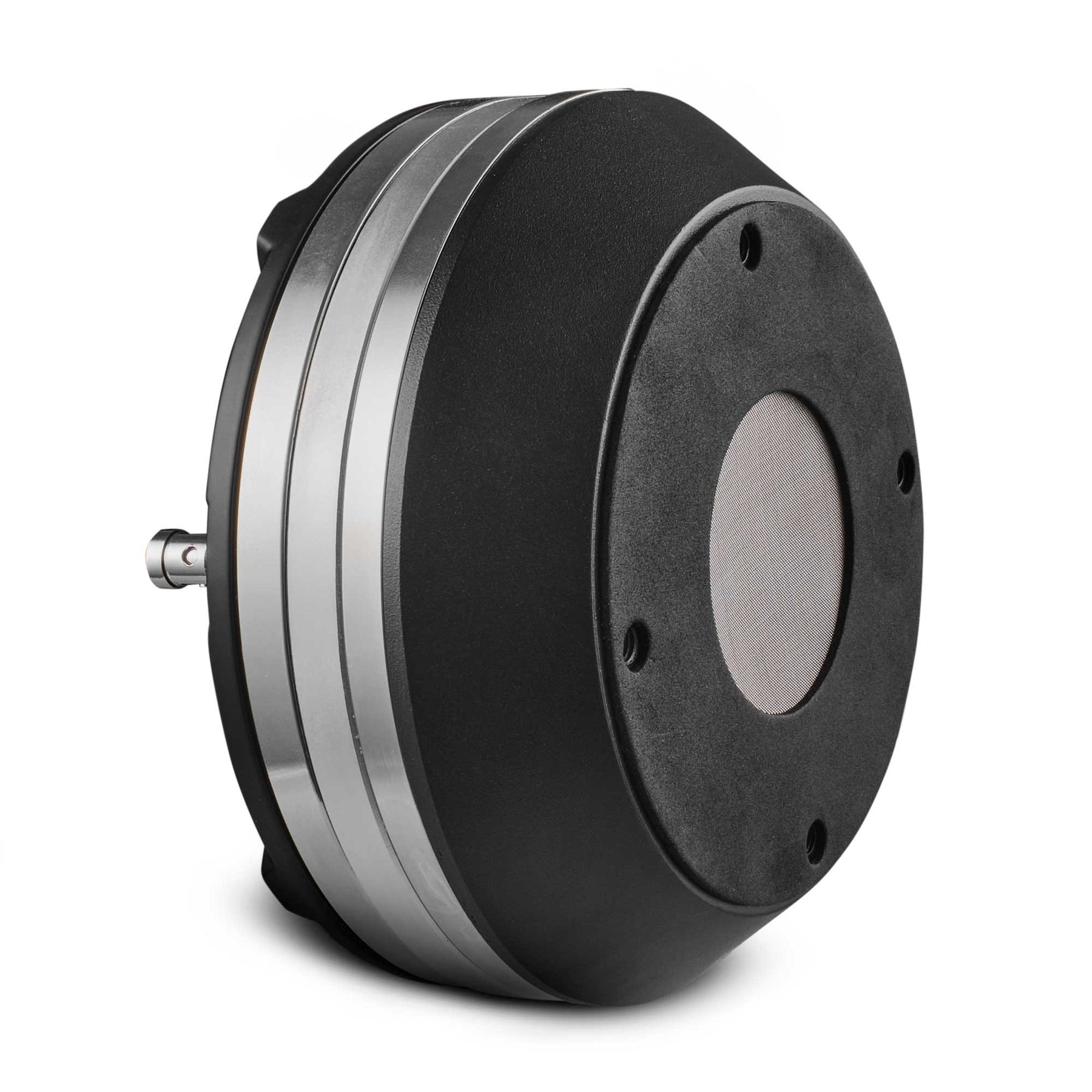

2” Throat Bolt-On Compression Driver With Spacer (4” Phenolic Voice Coil)
DS18’s PRO-DN24XPH.8 is a powerhouse in professional-grade sound performance. Engineered for those who demand excellence, this 2″ compression driver elevates in-car audio to a whole new level. With an astounding 250W AES / 500W Program Power / and 1000W PEAK, the PRO-DN24XPH.8 delivers explosive sound that is sure to impress.
Designed for precision, the PRO-DN24XPH.8 excels in the mid-high frequency range, operating smoothly from 400Hz to 8KHz. Its high sensitivity of 109 dB ensures powerful sound output with minimal energy consumption, making it both efficient and environmentally friendly. The integrated 4″ phenolic diaphragm provides warm and natural sound tones, perfect for a rich audio experience.
Crafted with cutting-edge materials, this bolt-on audio driver features a lightweight yet powerful neodymium magnet speaker, ensuring robust performance without weighing down your setup. Its durable aluminum body sports a sleek black machined finish, offering elegance alongside resilience to withstand automotive heat and vibrations.

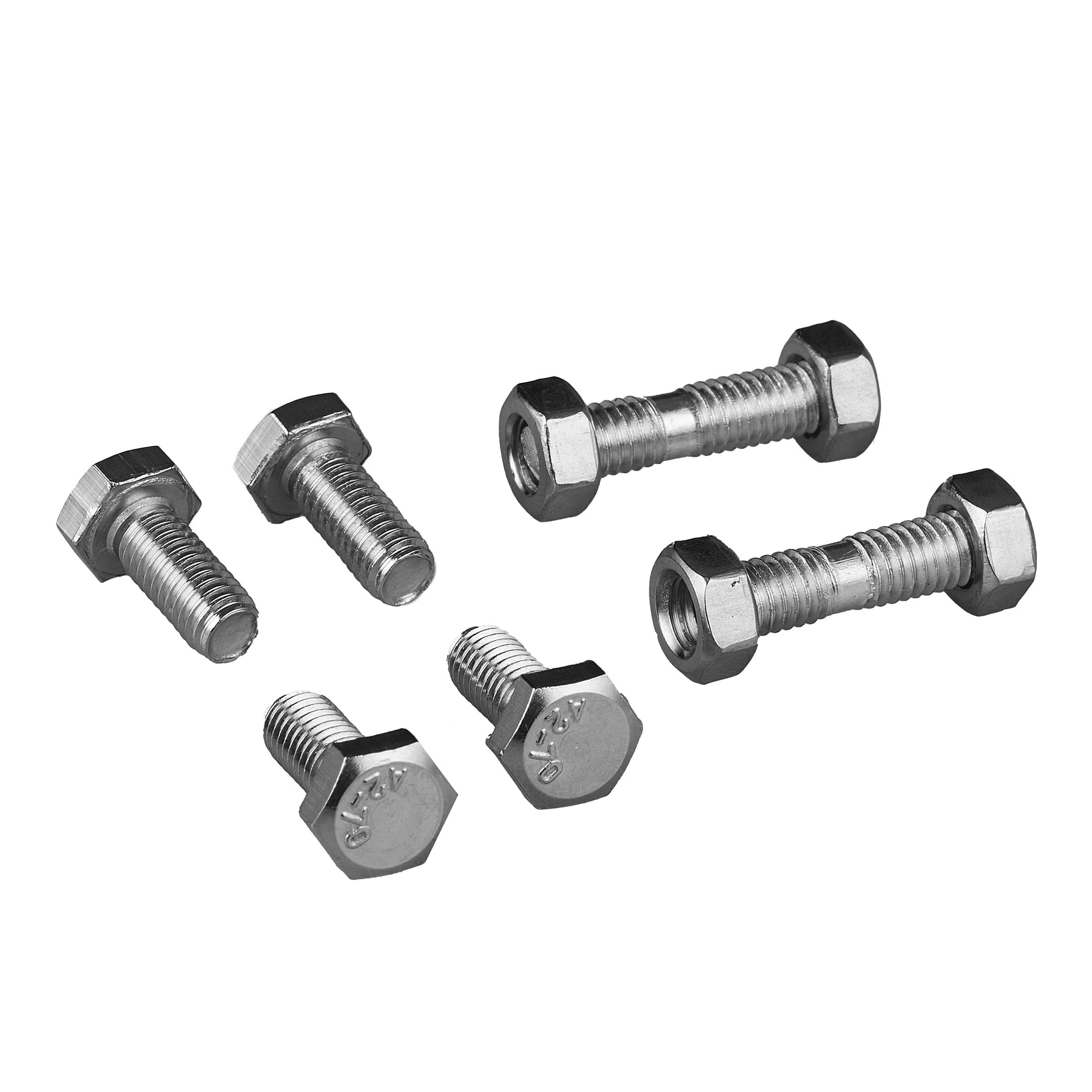

Installation is a breeze with the standard 4xM6 bolt-on pattern and included compression ring spacer, ensuring compatibility with high-end professional car sound systems. This makes it an ideal choice for car audio upgrades tailored for enthusiasts who desire pro-level customization and quality.
Dive into superior sound quality and let the PRO-DN24XPH.8 make every journey LOUD.
