Name: DS18 PRO-DN24PH.8
SKU: PRO-DN24PH.8
Availability: InStock

Description

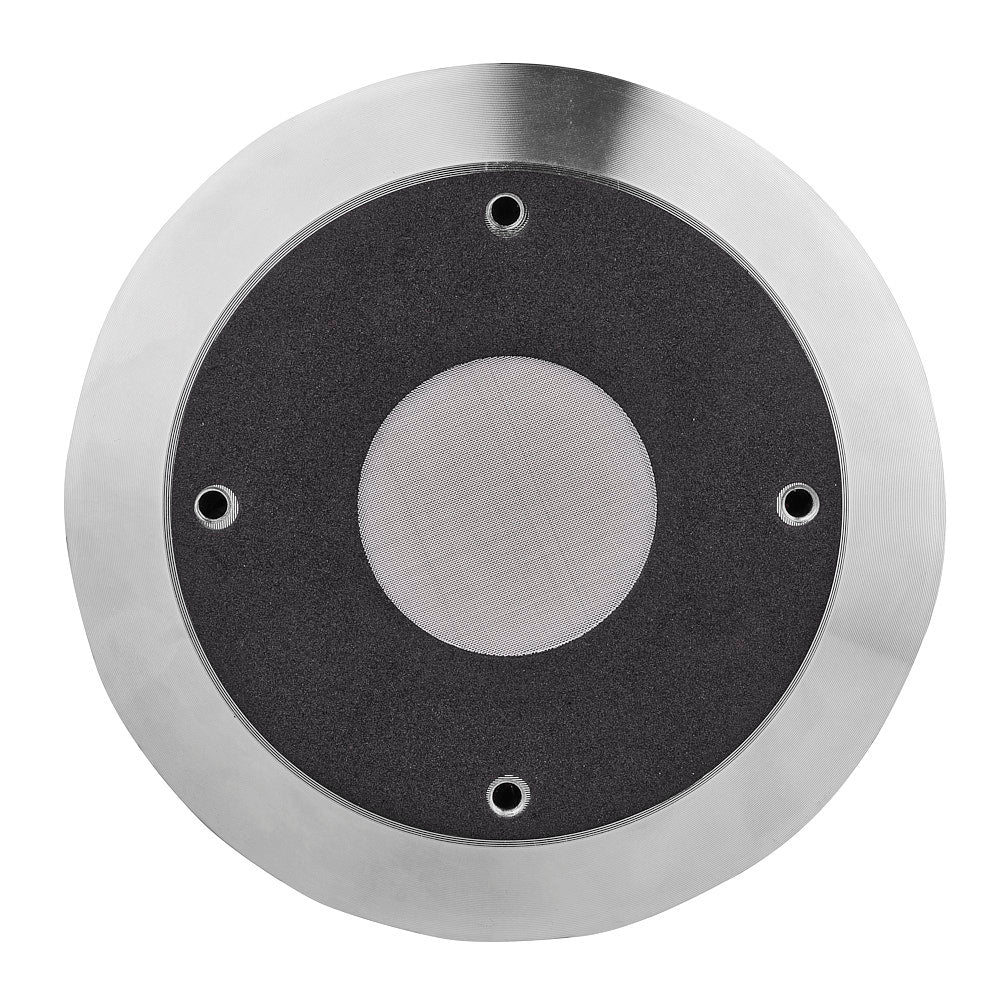

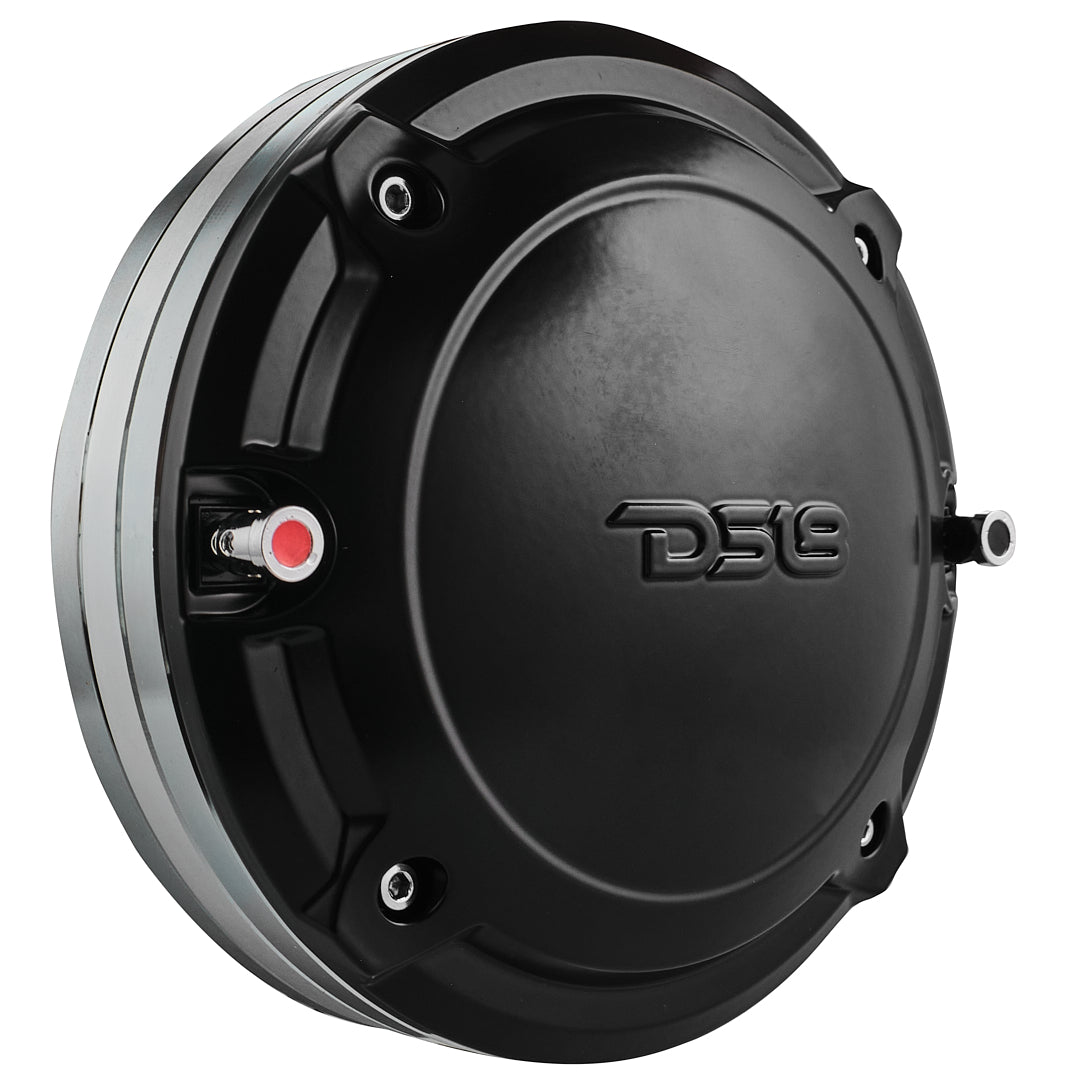

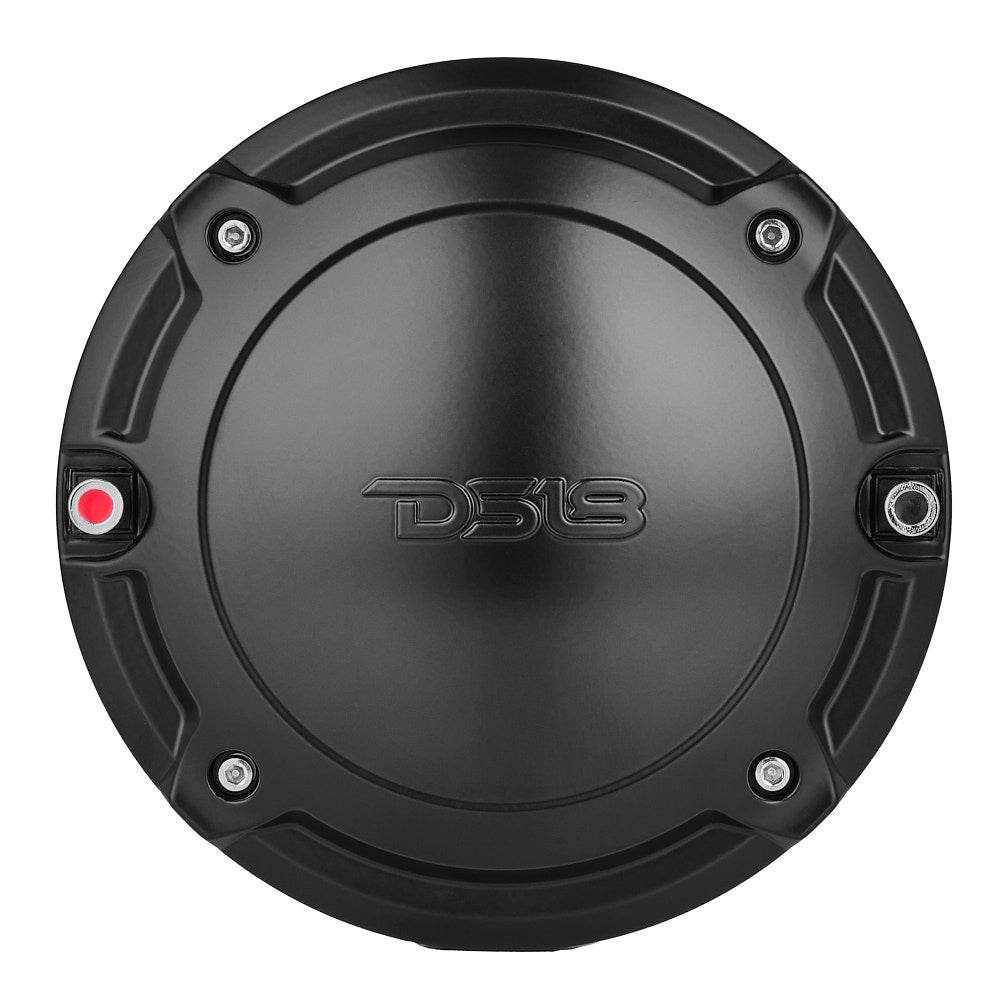

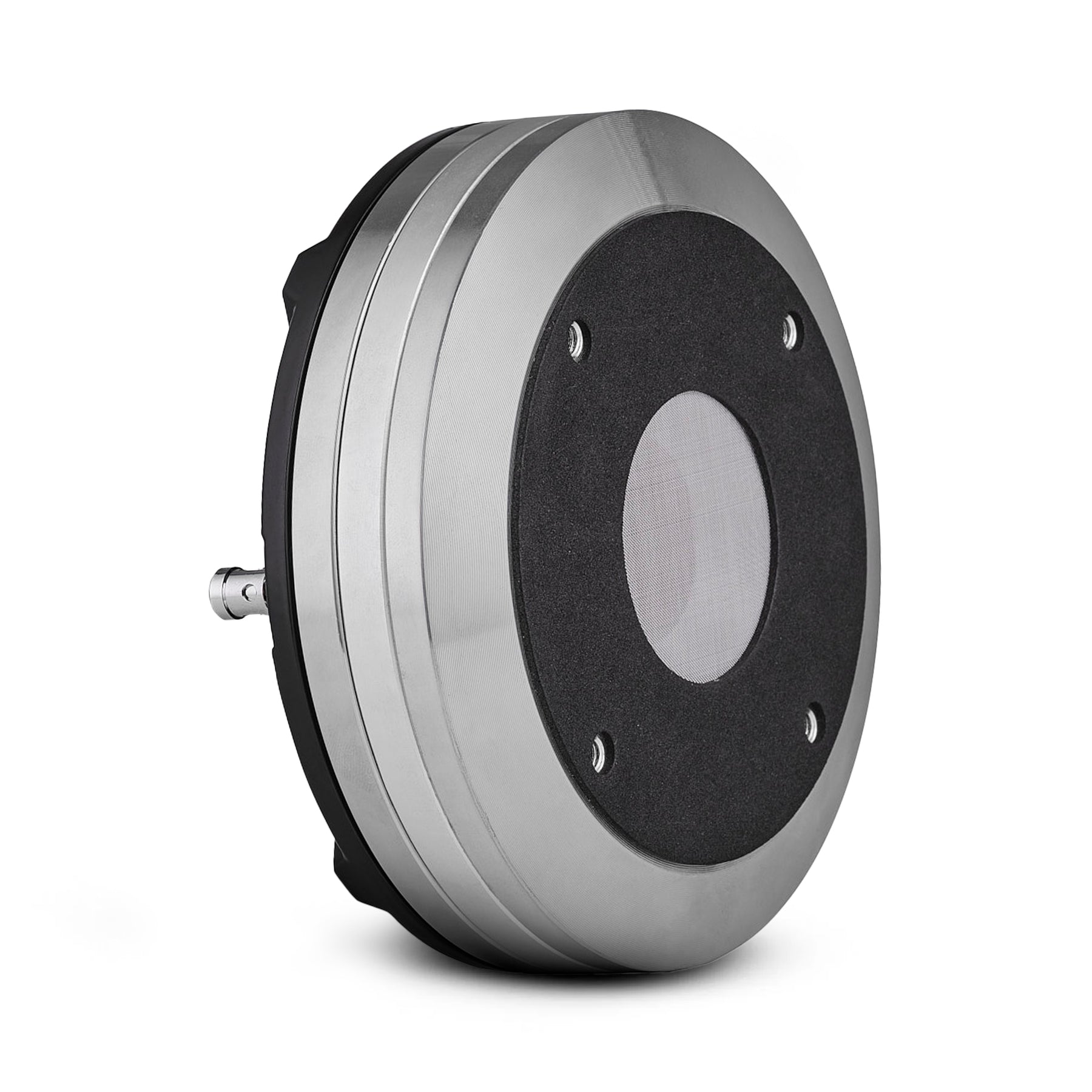

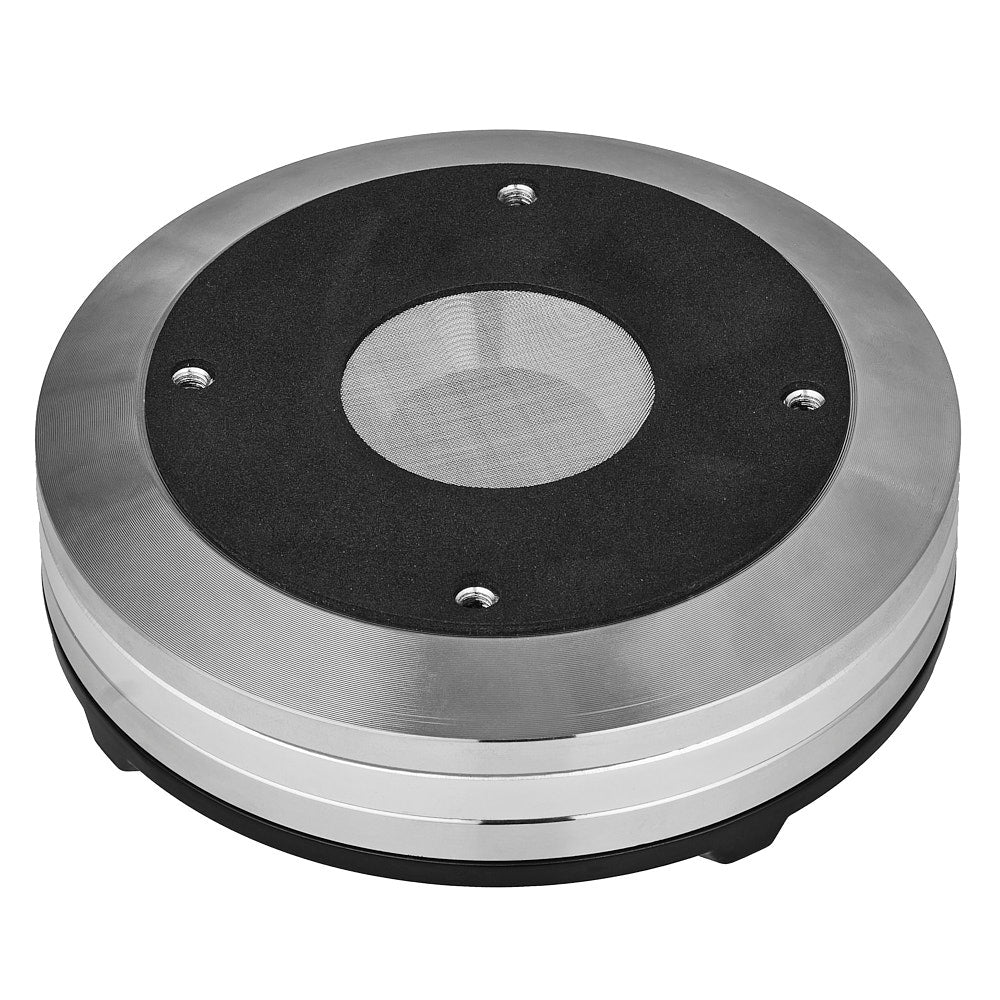

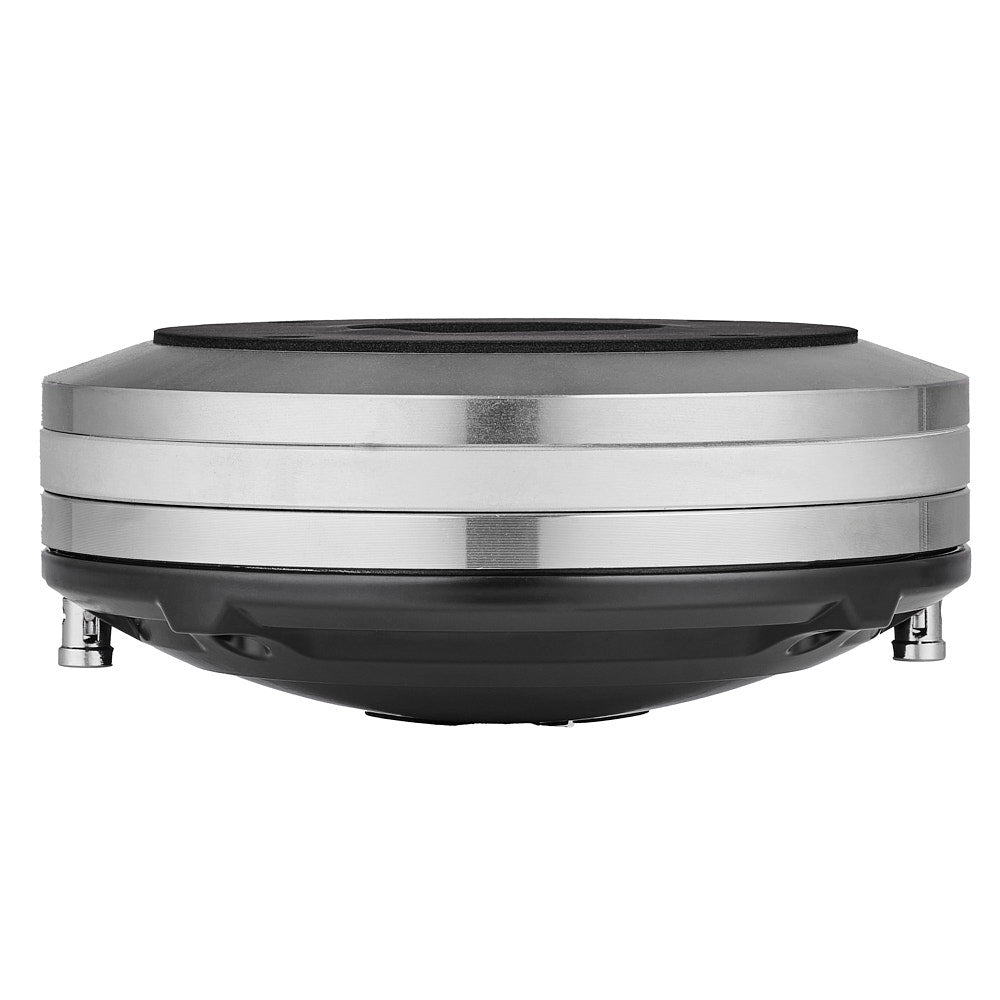

DS18 PRO-DN24PH.8

The PRO-DN24PH.8 is a high-performance 2.4″ throat compression driver with a polyimide diaphragm, designed for car audio SPL systems and professional PA applications. It delivers crisp, clear, and detailed high-frequency sound with excellent efficiency and low distortion, making it ideal for vocals, cymbals, and other treble-rich audio. With an 8-ohm impedance, it pairs with compatible horns or waveguides for precise sound projection and controlled dispersion. Its durable construction ensures consistent performance in high-output setups, providing professional-grade treble clarity and reliability for SPL builds and PA systems.

Specifications

General Specs

Feature	Details
SKU	PRO-DN24PH.8
Throat Diameter	2″ / 50.8 mm
Installation Type	Bolt-On
Nominal Impedance	8 Ohms
AES Power Handling	250W
Program Power Handling	500W
Peak Power Handling	1000W
Sensitivity (1w/1m)	107.5 dB
Frequency Response	400Hz – 12.5KHz
Recommended Hi Pass Crossover	500 Hz
Sold in	Single
Filter (Bass Blocker)	10Uf / 100V
Body Material	Aluminum
Body Color / Finish	Black / Machined

Motor

Feature	Details
Voice Coil Diameter	4″ / 101.6 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Diaphragm Material	Phenolic
Magnet Material	Neodymium
Magnet Weight	21.8 oz

Measurements

Feature	Details
Overall Diameter	6.06″ / 154 mm
Overall Depth	2.56″ / 65 mm
Bolt Pattern / Type	4 × M6 – 4″ / 102 mm

Product Overview

DS18 PRO-DN24PH.8

DS18’s PRO-DN24PH.8 is a screaming powerhouse designed to deliver exceptional performance and high frequency clarity.

DS18’s PRO-DN24PH.8 features a 2″ throat diameter and bolt-on installation type guaranteeing a secure fit. Its nominal impedance of 8 Ohm ensures compatibility with a wide range of audio setups. Crafted with meticulous attention to detail, this compression driver features a 4″ voice coil diameter attached to a phenolic diaphragm and neodymium magnet, for deeper tones and a wider response range.

Featuring an AES Power Rating of 250W, a Program Power Rating of 500W, and a Peak Power Rating of 1000W, the PRO-DN24PH.8 handles immense power with unparalleled accuracy. The PRO-DN24PH.8’s sensitivity of 107.5dB, allows it to fill any venue with rich, immersive sound: while it’s frequency response of 400Hz-12.5KHz ensures crystal-clear audio reproduction.

Experience the DS18 Difference with our PRO-DN24PH.8 and unlock the true potential of your sound system.
