Description

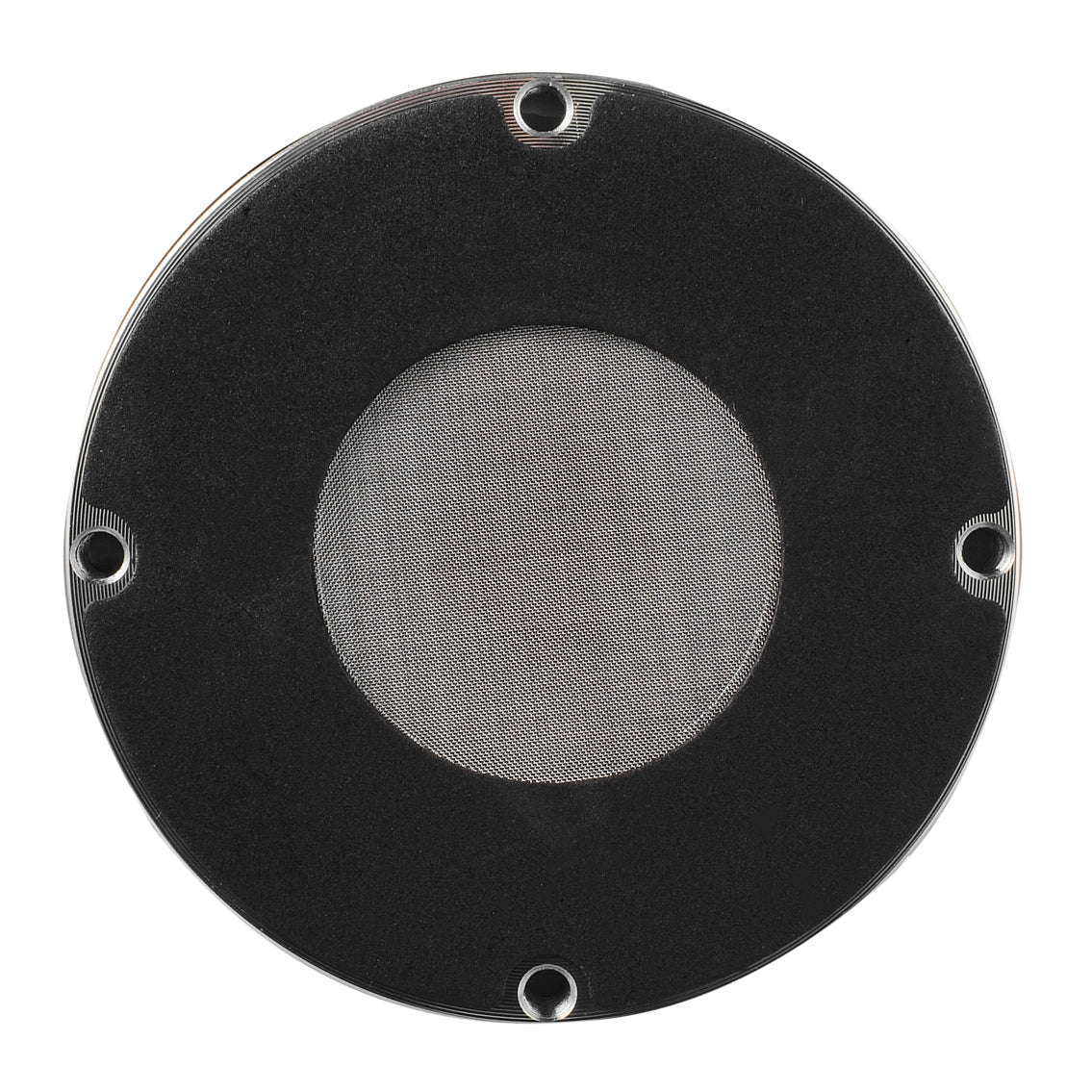

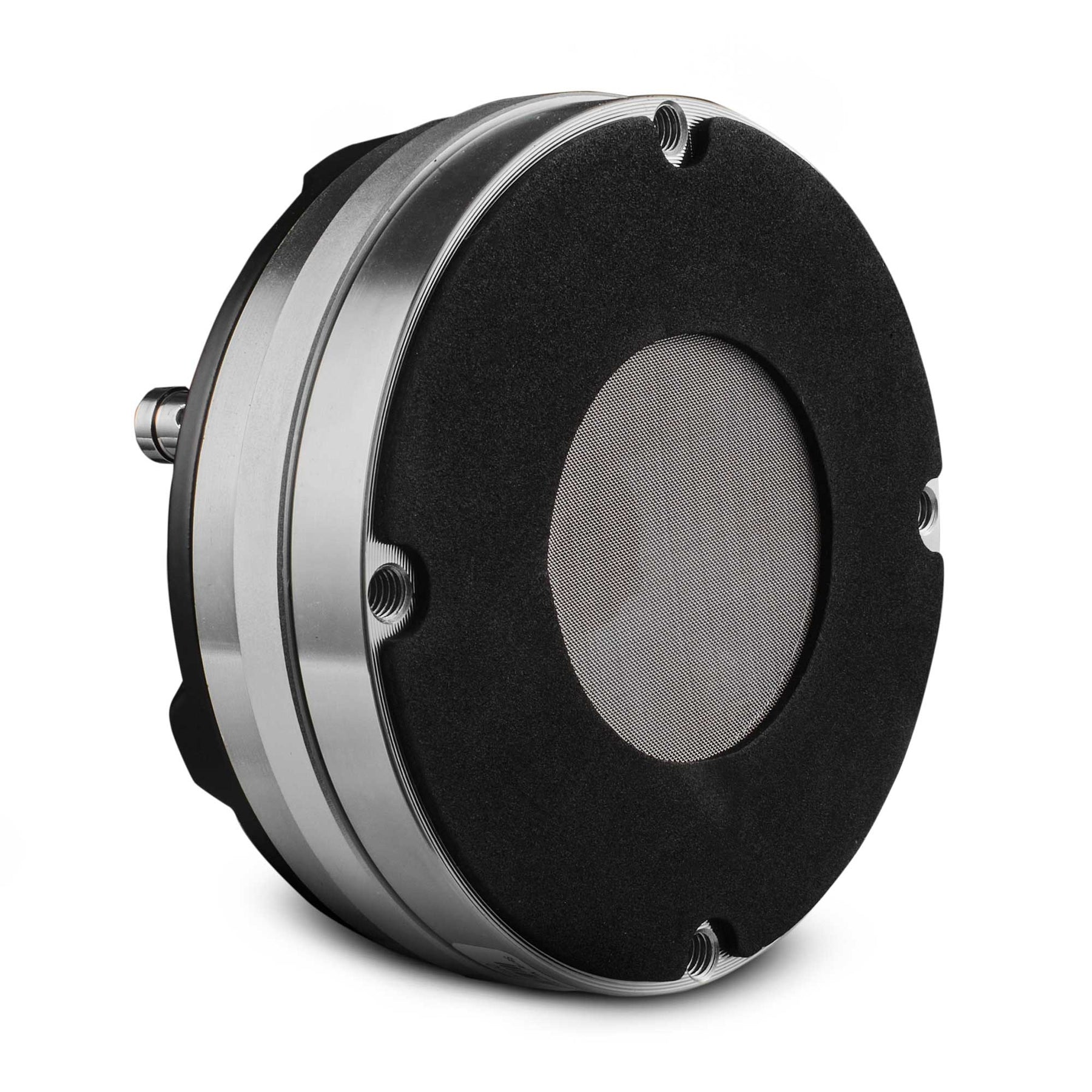

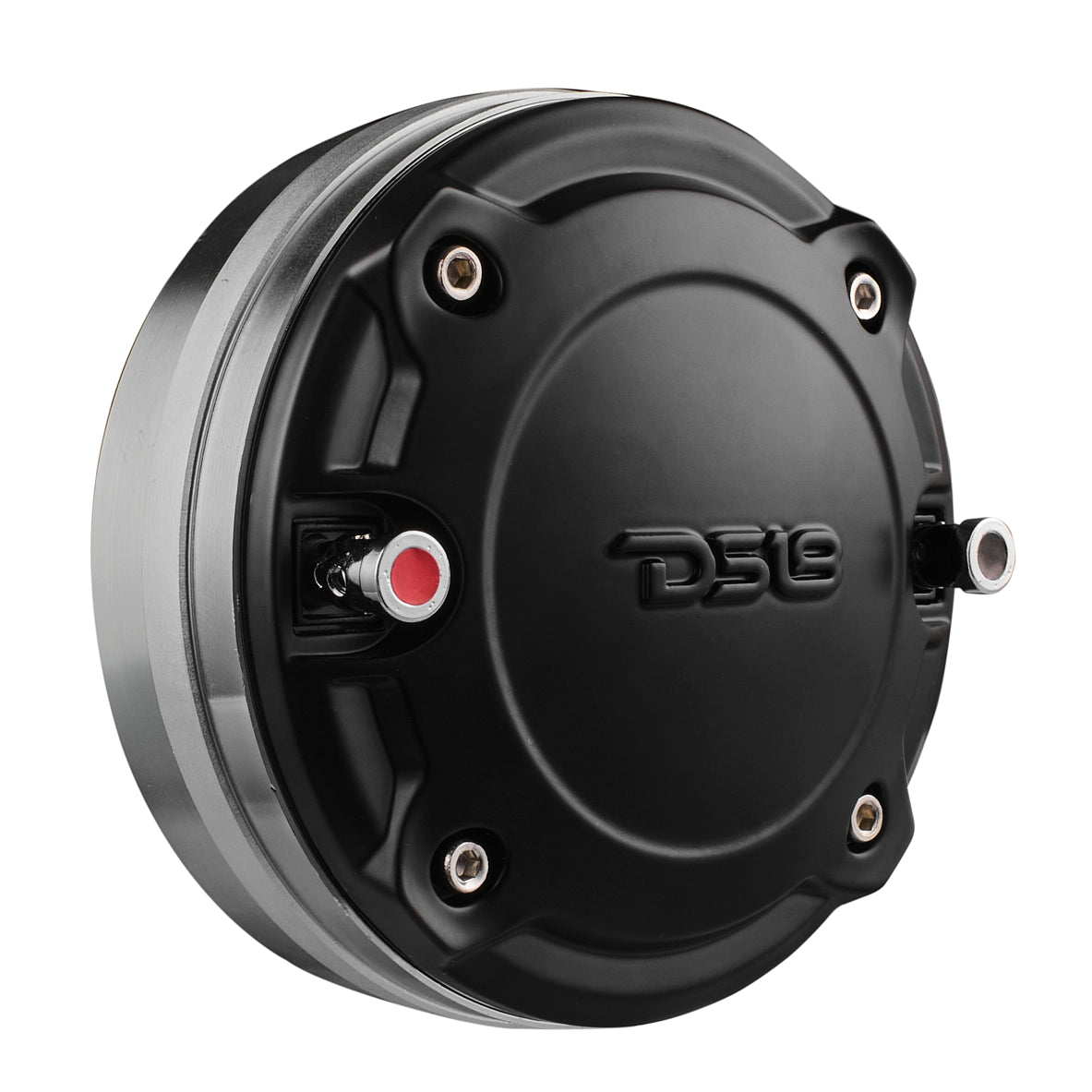

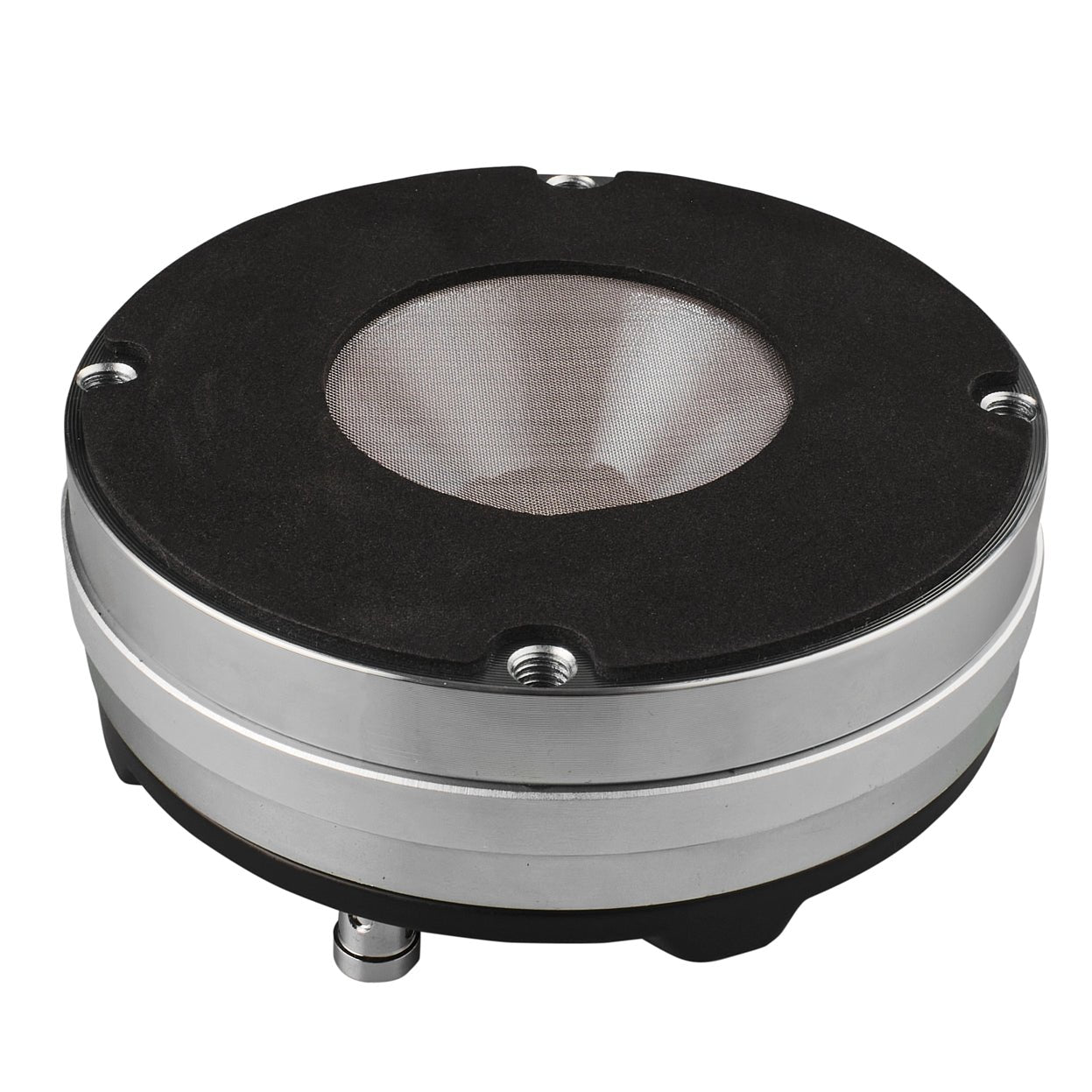

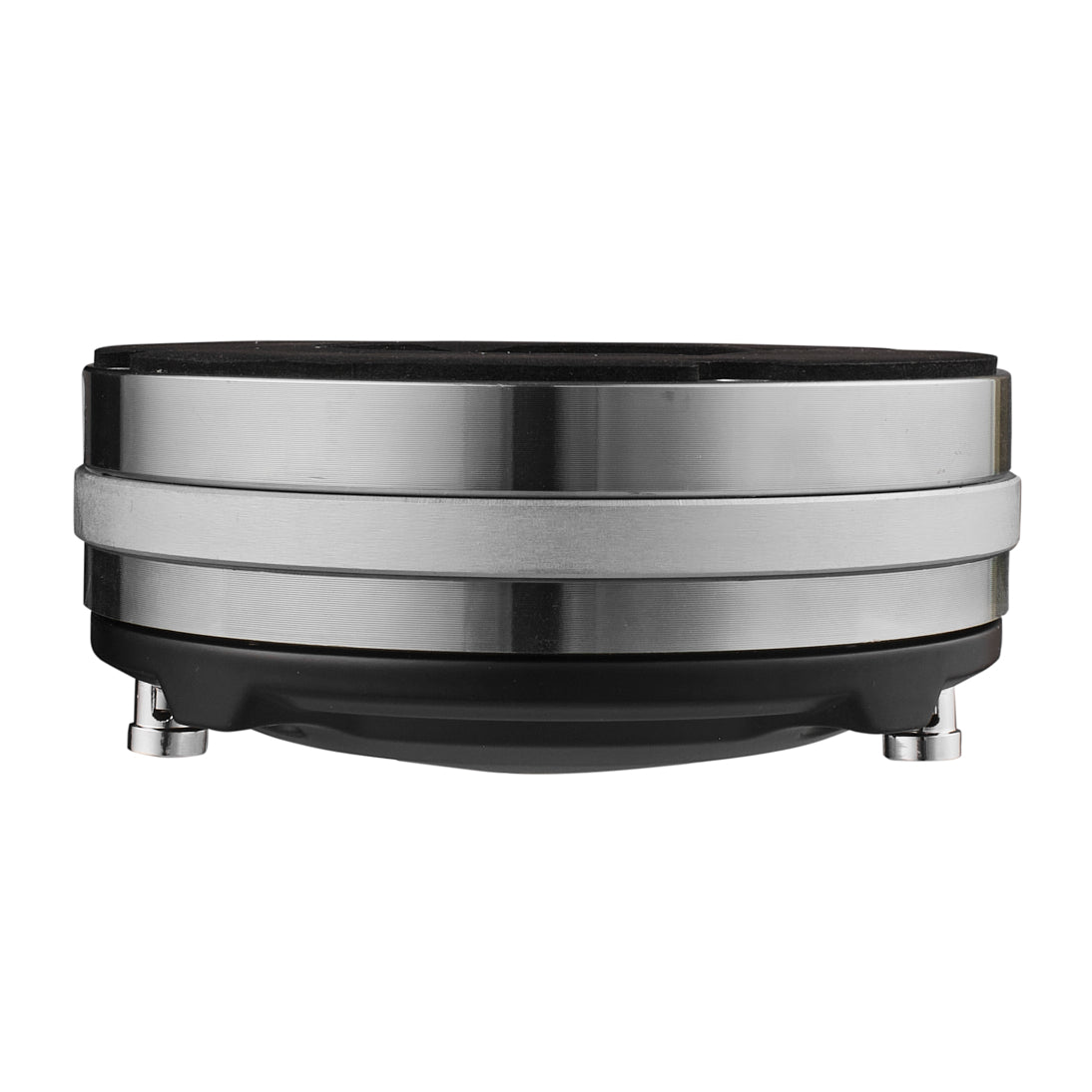

DS18 PRO-DN22PY.8
The PRO-DN22PY.8 is a high-performance compression driver designed to deliver loud, clear, and detailed high-frequency sound for car audio and professional sound systems. Featuring a 2″ throat and 8-ohm impedance, it is engineered to work seamlessly with compatible horns or waveguides for efficient sound projection and enhanced treble clarity. Built with a polyimide diaphragm, this driver offers excellent heat resistance, reduced distortion, and stable performance during high-output operation. The PRO-DN22PY.8 is ideal for SPL builds and PA applications where reliability, efficiency, and crisp high-frequency reproduction are essential.
Specifications
| Feature | Details |
|---|---|
| SKU | PRO-DN22PY.8 |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 200 W |
| Program Power Handling | 400 W |
| Peak Power Handling | 800 W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 630 Hz – 12.5 KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold In | Single |
Body / Features
| Feature | Details |
|---|---|

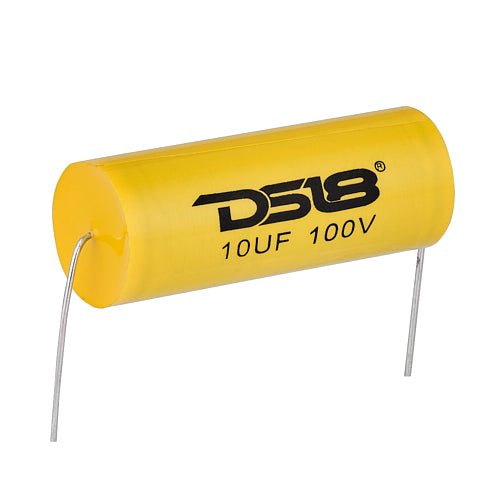

| Filter (Bass Blocker) | 10 µF / 100 V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium |
| Magnet Weight | 9.9 oz |
Product Overview
2” Throat Bolt-On Compression Driver (2” Polyimide Voice Coil / 8-Ohm)
Get superior sound with DS18’s PRO-DN22PY.8, an 8-ohm 2″ high-power compression driver designed to deliver crystal-clear sound across mid-to-high frequencies, transforming your car’s sound system into an audiophile’s dream. Handling an AES power of 200W / Program power of 400W / and a peak power of 800W, the PRO-DN22PY.8 stands as a titan in car audio upgrades, ensuring you experience every note with unparalleled clarity and volume.
The DS18 PRO-DN22PY.8 offers a seamless bolt-on installation, making it a perfect fit for serious automotive sound enhancements. Its professional-grade design features a robust 2″ throat diameter and 8-ohm impedance, providing seamless integration into high-performance setups. The lightweight yet powerful neodymium magnet speaker and polyimide voice coil are crafted to sustain the demands of high-output audio systems, ensuring durability without sacrificing performance.
With an impressive frequency response ranging from 630Hz to 12.5kHz and a high sensitivity of 109 dB, this driver delivers exceptional sound output with minimal power usage. Its compact dimensions—4.4″ overall diameter and 2.2″ depth—allow for versatile installation, providing you with the flexibility you need to customize their setup without compromise.
DS18’s PRO-DN22PY.8 is tailored for you to get more from your sound system. Upgrade today and feel the difference that expert engineering and premium materials can make in your listening experience.
