Description

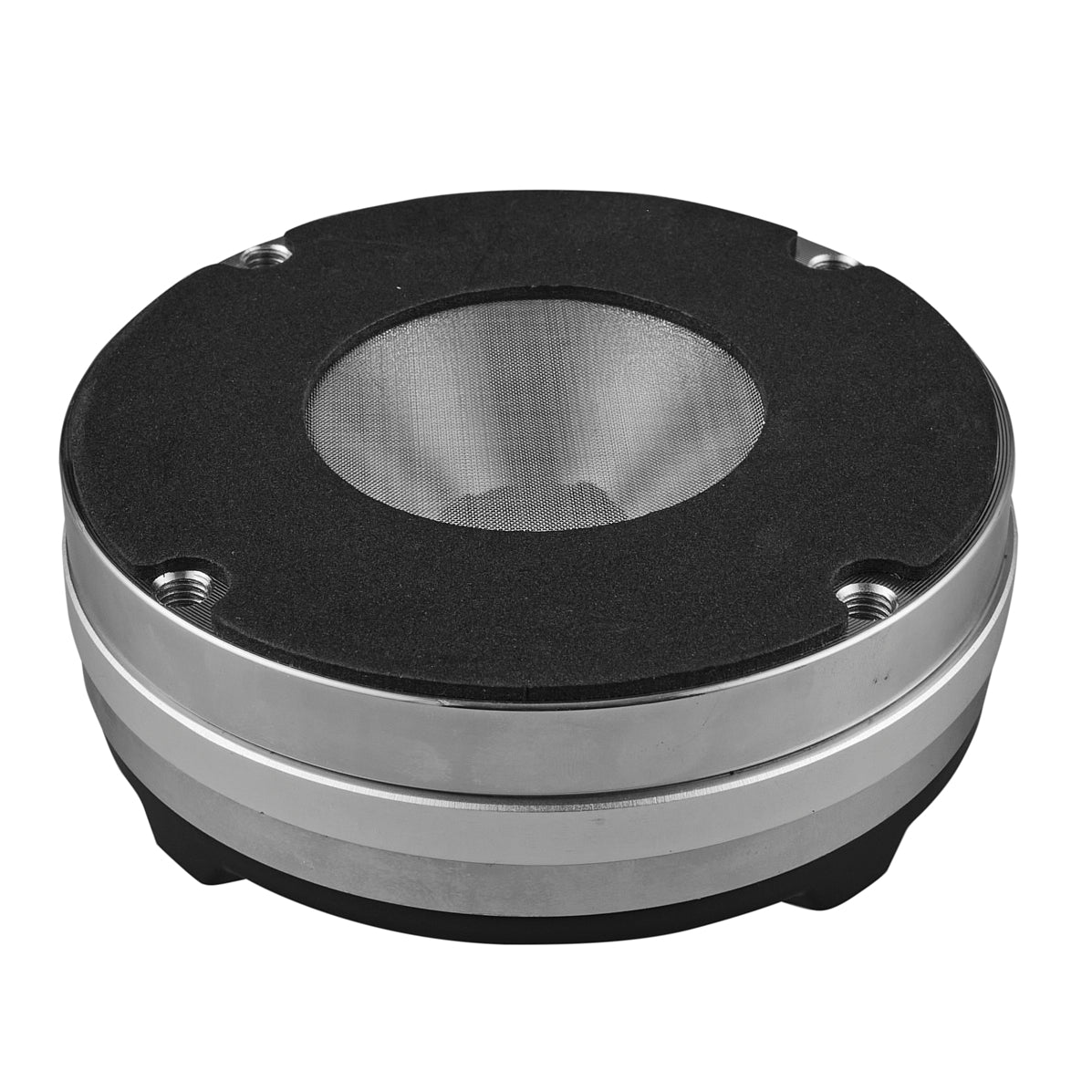

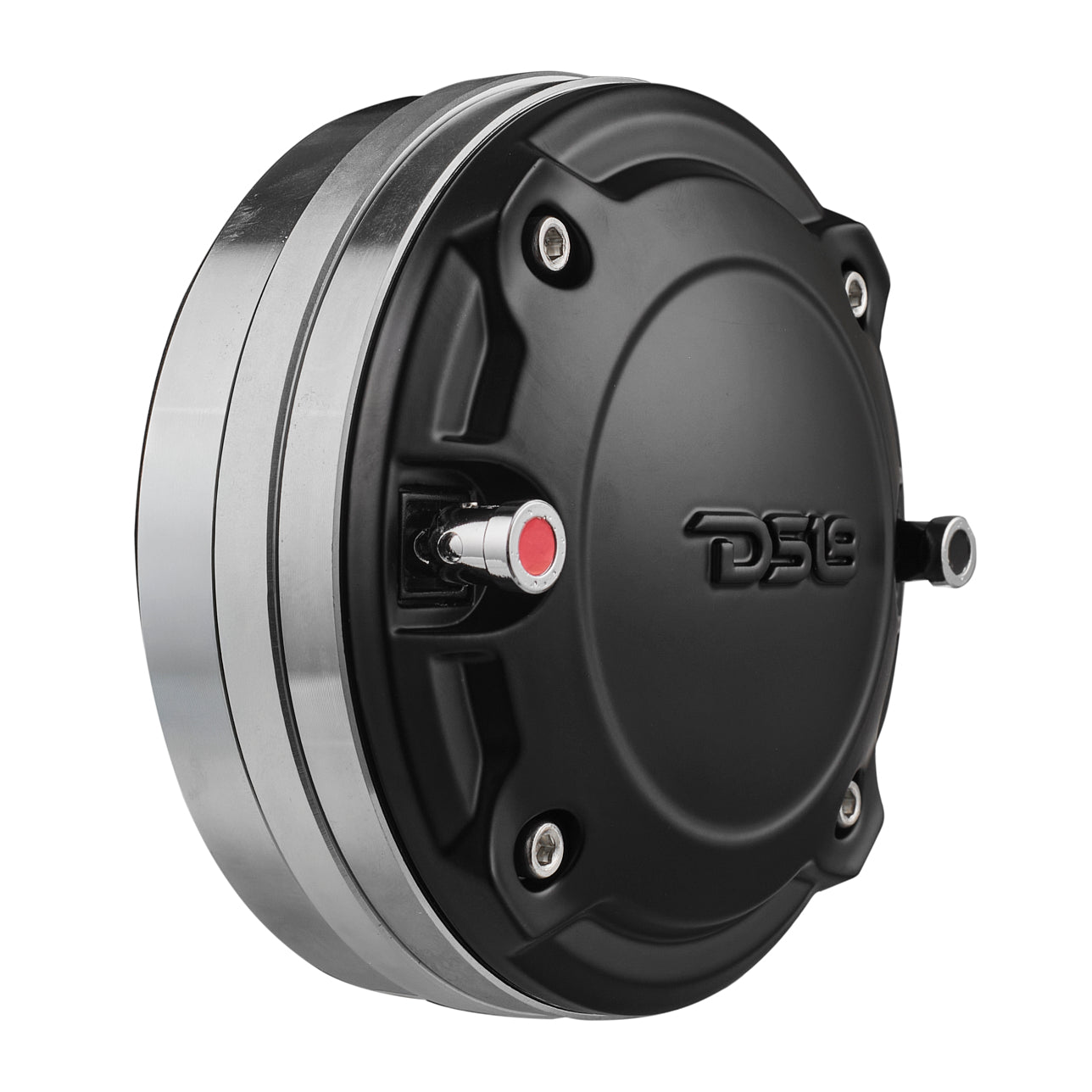

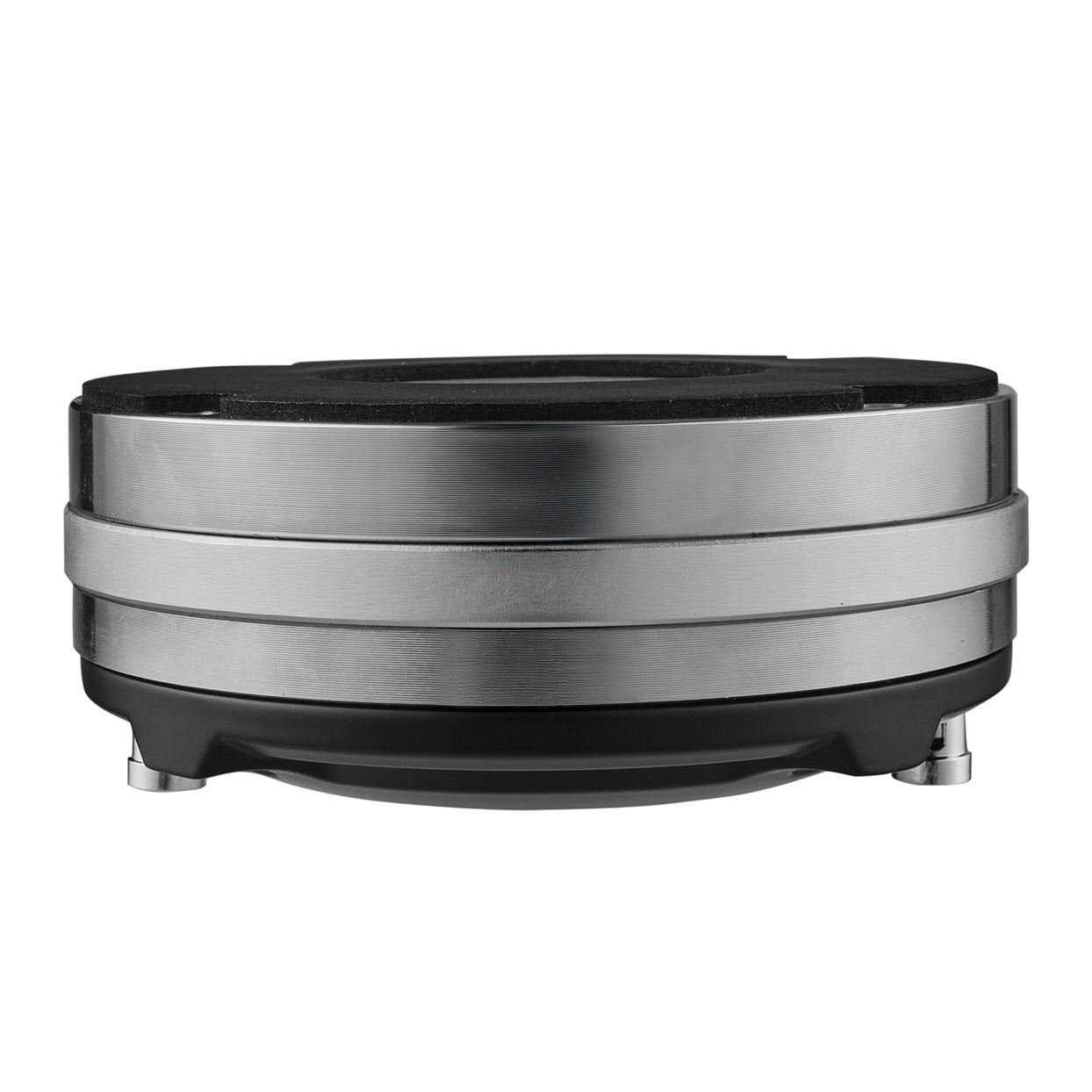

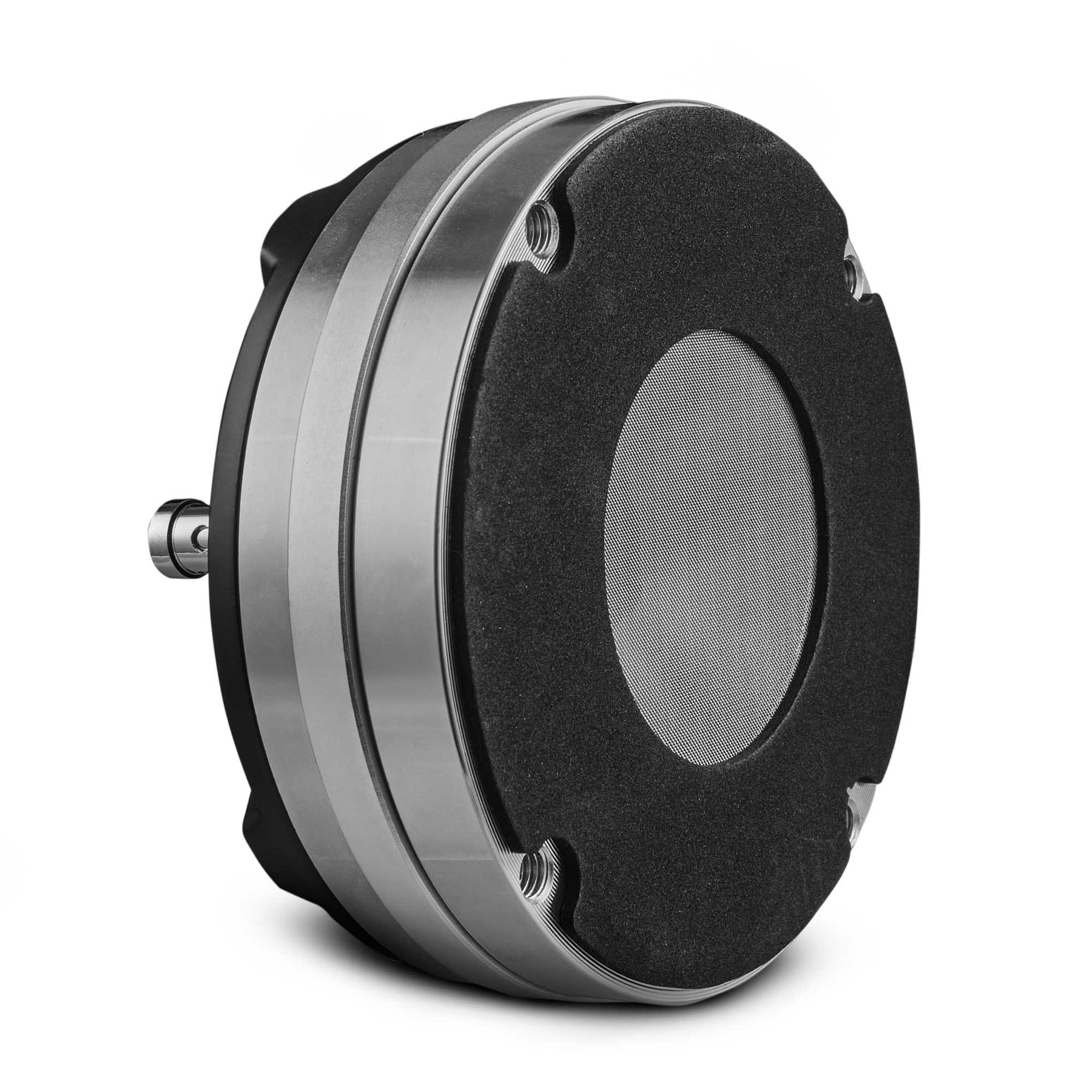

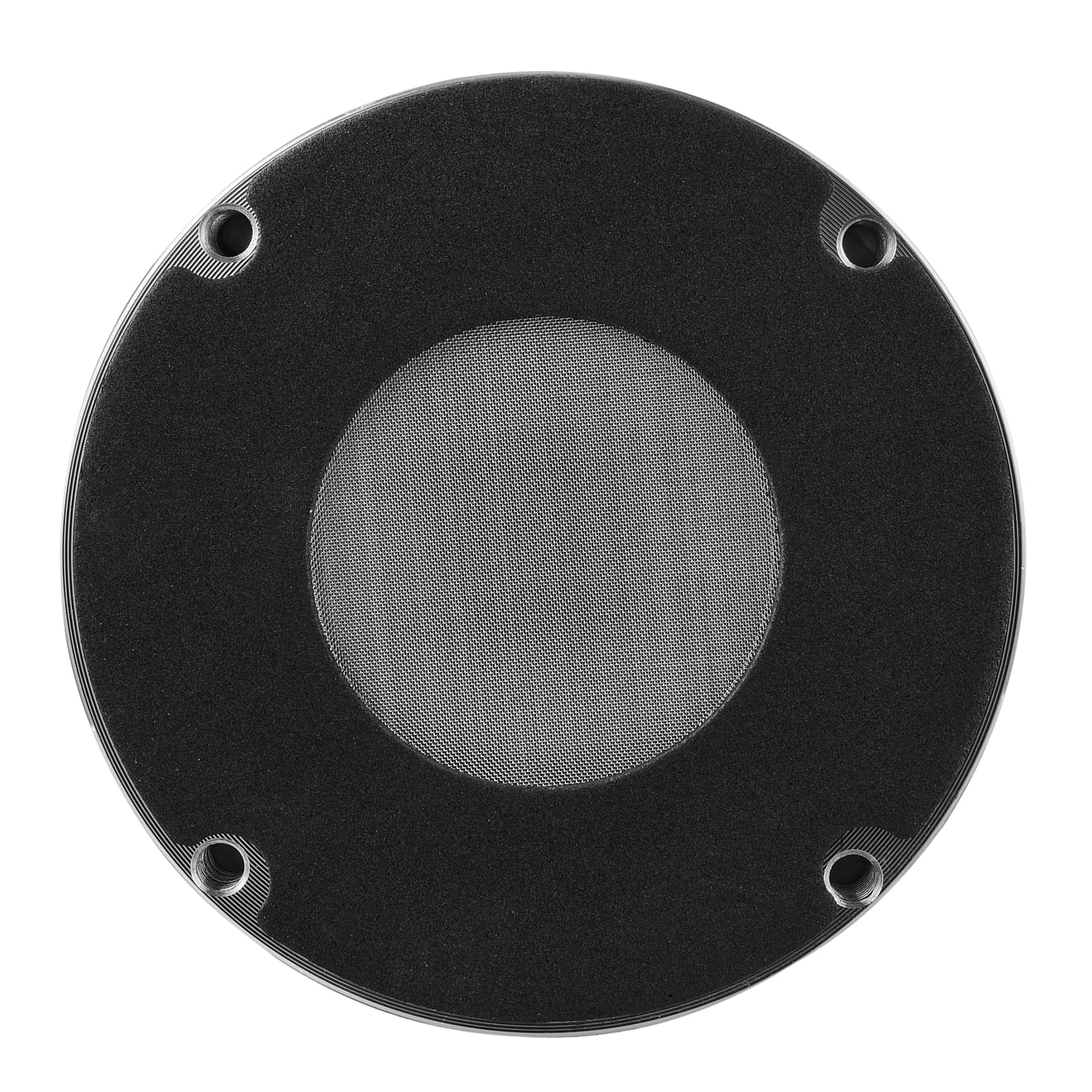

DS18 PRO-DN22PH.8
The PRO-DN22PH.8 is a high-performance dual-diaphragm compression driver engineered to deliver powerful, clear, and detailed high-frequency sound for car audio and professional sound systems. Featuring a 2″ throat and 8-ohm impedance, it is designed to be paired with compatible horns or waveguides for maximum efficiency and sound projection. The dual-diaphragm design improves power handling and reduces distortion, allowing crisp vocals and sharp treble even at high SPL levels. Built with durable materials and effective heat management, the PRO-DN22PH.8 ensures consistent, reliable performance in demanding SPL builds and PA applications.
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DN22PH.8 |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 200 W |
| Program Power Handling | 400 W |
| Peak Power Handling | 800 W |
| Sensitivity (1w/1m) | 111 dB |
| Frequency Response | 630 Hz – 8 KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold In | Single |
Body / Features
| Feature | Details |
|---|---|
| Filter (Bass Blocker) | 10 µF / 100 V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Weight | 9.9 oz |
Product Overview
2” Throat Bolt-On Compression Driver (2” Phenolic Voice Coil / 8-Ohm)
Hear your audio as intended with DS18’s PRO-DN22PH.8, a 2″ high-power compression driver designed to deliver warm, natural tones across mid-to-high frequencies, transforming your car’s sound system into an audiophile’s dream. Handling an AES power of 200W / Program power of 400W / and a peak power of 800W, the PRO-DN22PH.8 stands as a titan in car audio upgrades, ensuring you experience the unparalleled clarity of every note.
DS18’s PRO-DN22PH.8 offers a seamless bolt-on installation, making it a perfect fit for serious automotive sound enhancements. Its professional-grade design features a robust 2″ throat diameter and 8-ohm impedance, providing seamless integration into high-performance setups. The lightweight yet powerful neodymium magnet speaker and phenolic voice coil are crafted to sustain the demands of high-output audio systems, ensuring durability without sacrificing performance.
With an impressive frequency response ranging from 630Hz to 8kHz and a high sensitivity of 111dB, this driver delivers exceptional sound output with minimal power usage. Its compact dimensions—4.4″ overall diameter and 2.2″ depth—allow for versatile installation, providing you with the flexibility you need to customize their setup without compromise.
DS18’s PRO-DN22PH.8 is tailored to bring you authentic tones in your audio. Upgrade today and experience the #DS18Difference.
