Description
DS18 PRO-DKN175WG
The PRO‑DKN175WG is a professional‑grade compression driver speaker kit designed for high‑output sound systems, especially in pro audio and PA (public address) setups. It features a 1″ titanium diaphragm compression driver paired with a 3.5″ × 4.4″ wave guide horn, delivering clear, powerful high‑frequency sound and wide horizontal dispersion ideal for loud environments. Built with a neodymium magnet for lightweight yet strong magnetic performance, this unit handles 90 W AES (180 W program / 360 W peak) and offers excellent efficiency and SPL (sound pressure level). Its rugged construction makes it suitable for mobile audio rigs, concerts, DJ systems, and other professional sound installations.
Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 90W |
| Program Power Handling | 180W |
| Peak Power Handling | 360W |
| Sensitivity (1W/1M) with Horn | 105 dB |
| Frequency Response | 1.5 kHz – 20 kHz |
| Recommended High-Pass Crossover | 2 kHz |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1.75″ / 44.4 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| VC Cover Material | ABS |
| Magnet Weight | 11.6 oz |
| Motor Diameter | 4″ / 102 mm |
Horn Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 3.5″ × 4.4″ / 89 × 111 mm |
| Throat Diameter | 1″ / 25.4 mm |
| Sound Coverage | 140° H × 15° V |
| Body Material | Aluminum Cast |
| Color / Finish | Satin Black |
Measurement / Mounting
| Specification | Details |
|---|---|
| Overall Diameter | 3.5″ × 4.4″ / 89 × 111 mm |
| Overall Depth | 6.5″ / 165.4 mm |
| Mounting Depth | 6.3″ / 160.4 mm |
| Mounting Hole Cut-out | 1″ × 4″ / 25.4 × 101.6 mm |
Product Overview

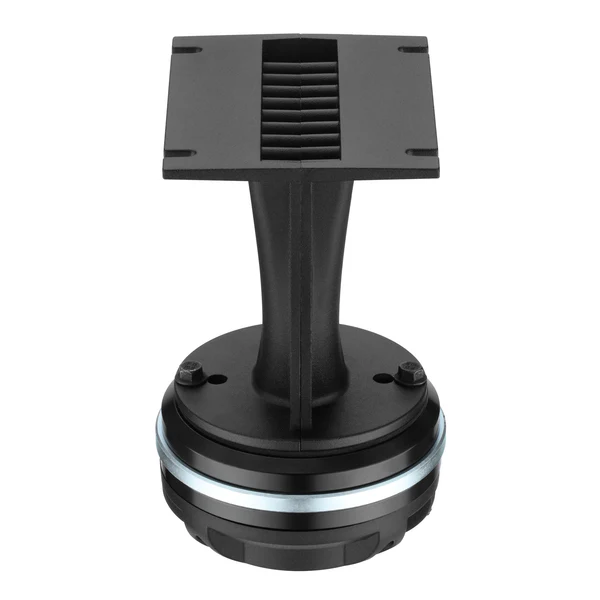

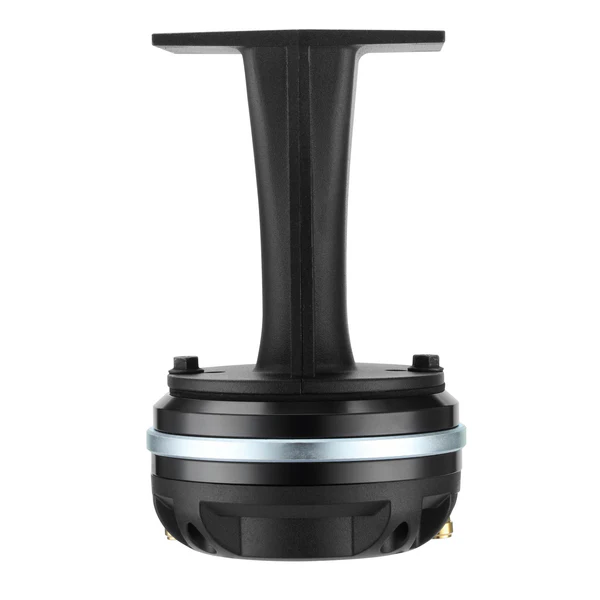

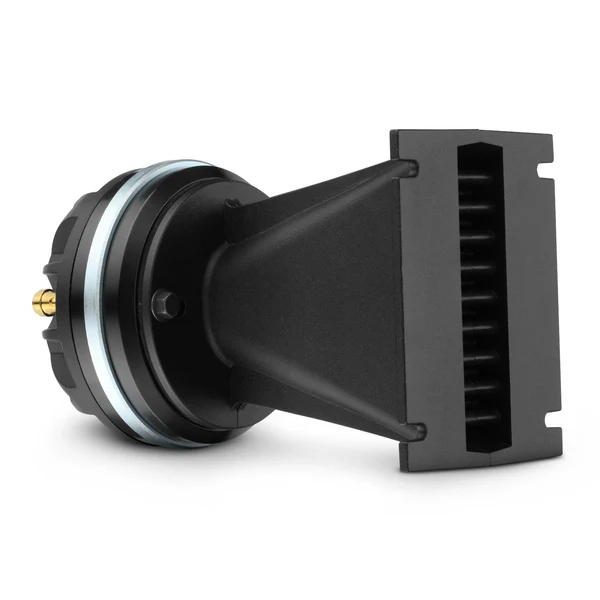

3.5” x 4.4” Wave Guide Horn + 1” Compression Driver Kit (Neodymium Magnet)
DS18’s PRO-DKN175WG uses a neodymium magnet to pack more punch in a lighter build. It’s a perfect fit for pro-audio systems that demand performance.

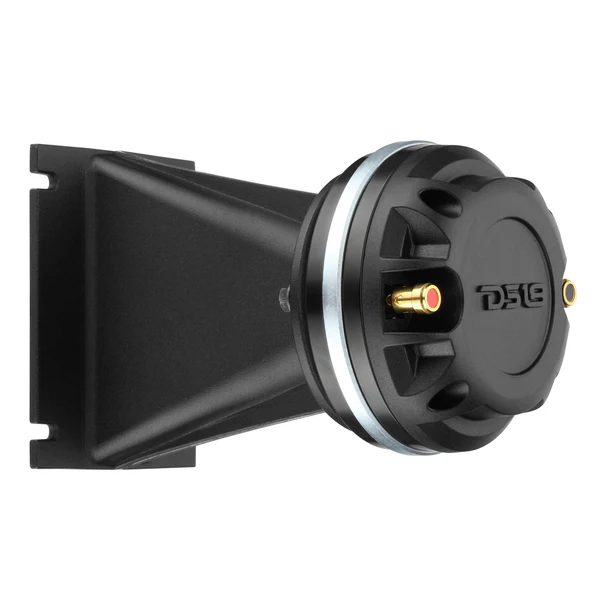

Titanium Voice Coil + Neodymium Motor
This combo features a 1.75” titanium voice coil with a neodymium motor: rated for 90W AES, 180W Program, 360W Peak power handling and 105dB sensitivity — bringing ultra-clear highs with less distortion and more efficiency.
High-Powered Clarity

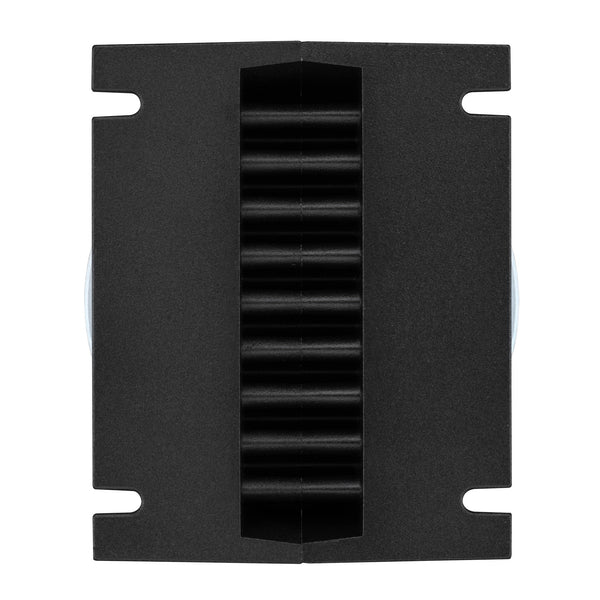

The 3.5” x 4.4” cast aluminum waveguide offers wide horizontal sound dispersion and narrow vertical control. This compression driver cuts cleanly through ambient noise with aggressive tone and dynamic presence.
DS18 Standard Build
The satin-black waveguide and ABS cover provide long-lasting durability for demanding applications — on or off the road.
