Description
DS18 PRO-D22PY.8
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-D22PY.8 |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 160W |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| Sensitivity (1w/1m) | 106 dB |
| Frequency Response | 630Hz – 12.5KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold in | Single |
| Filter (Bass Blocker) | 10Uf / 100V |
| Body Material | Aluminum |
| Body Color / Finish | Black / Machined |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Polyimide |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
Measurements
| Feature | Details |
|---|---|
| Overall Diameter | 5.31″ / 135 mm |
| Overall Depth | 2.08″ / 53 mm |
| Bolt Pattern / Type | 4xM6 – 4″ / 102 mm |
Product Overview

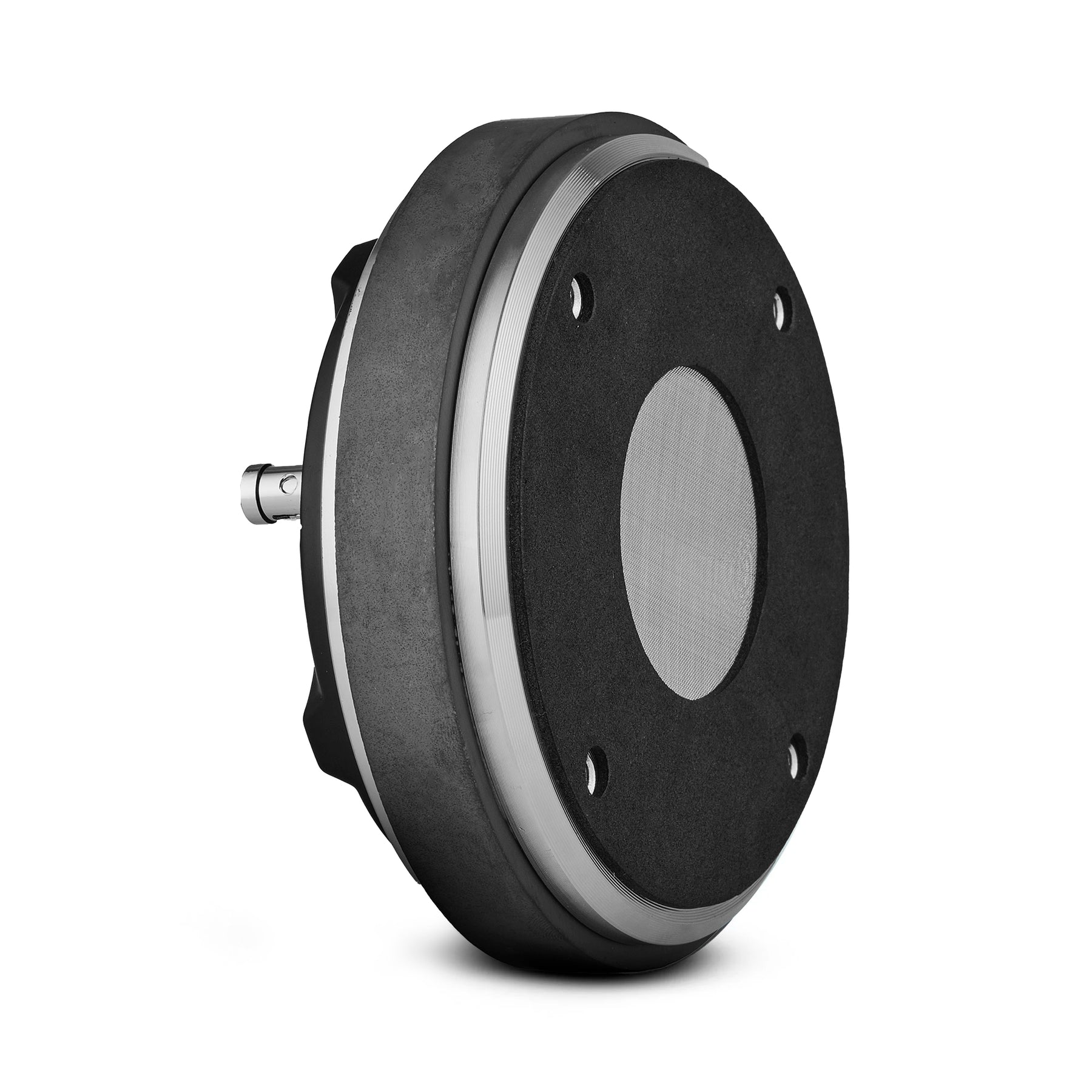

DS18’s PRO-D22PY.8 delivers unparalleled performance and clarity, taking your audio experience to new heights.
DS18’s PRO-D22PY.8 features a 2″ throat diameter, bolt-on installation type, and 8-ohm nominal impedance: ensuring seamless integration into your existing setup. Its impressive power ratings of 160W AES, 320W Program Power, and a Peak Power of 640W ensure that this compression driver can handle even the most demanding audio requirements.
What truly sets the DS18 PRO-D22PY.8 apart is its exceptional sensitivity of 106dB (1w/1m), guaranteeing crystal-clear sound reproduction that fills the room with every note. The wide frequency response range of 630Hz-12.5KHz ensures that no detail is missed.
The voice coil, with a diameter of 2″, is made from high-quality Kapton material and attached to a Polyimide diaphragm and Ferrite magnet for enhanced durability and exceptional sound reproduction with minimal distortion.
With an overall diameter of 5.31″ and an overall depth of 2.08″, the DS18 PRO-D22PY.8 offers a compact yet powerful solution. Its black machined finish gives it a sleek and professional look that complements any audio setup.
Order DS18’s PRO-D22PY.8 and experience the DS18 difference in your sound system.
