Name: DS18 PRO-CF8.4SLN
SKU: PRO-CF8.4SLN
Availability: InStock

Description

DS18 PRO-CF8.4SLN

The PRO‑CF8.4SLN is an 8″ pro‑audio full‑range loudspeaker with a slim shallow‑mount design engineered to deliver balanced, high‑efficiency sound across the frequency spectrum while fitting into space‑constrained installations. It provides smooth bass, clear midrange, and crisp highs, making it ideal for car audio systems, motorcycles, Jeeps, UTVs, PA setups, and custom audio builds where quality full‑range sound and compact installation are key. Its durable construction and optimized motor design ensure consistent performance even at higher volume levels.

Specifications

Specification	Value
Nominal Diameter	8 inch 203 mm
Nominal Impedance	4 ohms
RMS Power Handling	200 W
Max Power Handling	400 W
Sensitivity 1w 1m	95 dB
Frequency Response	80 Hz to 5 kHz
Recommended Hi Pass Crossover	100 Hz
Sold In	Single
Grill Included	No

FEATURES

Feature	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Spade

MOTOR AND CONSTRUCTION

Specification	Value
Voice Coil Diameter	1.5 inch 38 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Water Resistant Carbon Fiber
Dust Cap Material	Water Resistant Carbon Fiber
Surround Material	Treated Cloth
Leads Connection Type	Crossed Spider
Basket Material	Steel
Basket Finish	Glossy Black
Magnet Material	Neodymium
Magnet Weight	3.8 oz

THIELE AND SMALL PARAMETERS

Parameter	Value
Equivalent Volume Vas	6.92 L 0.241 ft3
Excursion One Way Xmax	2.5 mm
Free Air Resonance Fs	102 Hz
Mechanical Factor Qms	7.03
Electrical Factor Qes	0.7
Total Factor Qts	0.63
Mechanical Mass Mms	18.679 g
Mechanical Compliance Cms	0.12 mm per N
BL Factor BL	7.63
Voice Coil Inductance Le	0.11 mH
Cone Area Sd	190 cm2
DC Resistance Re	3.2 ohms
Mechanical Mass without Air Mmd	17.12 g

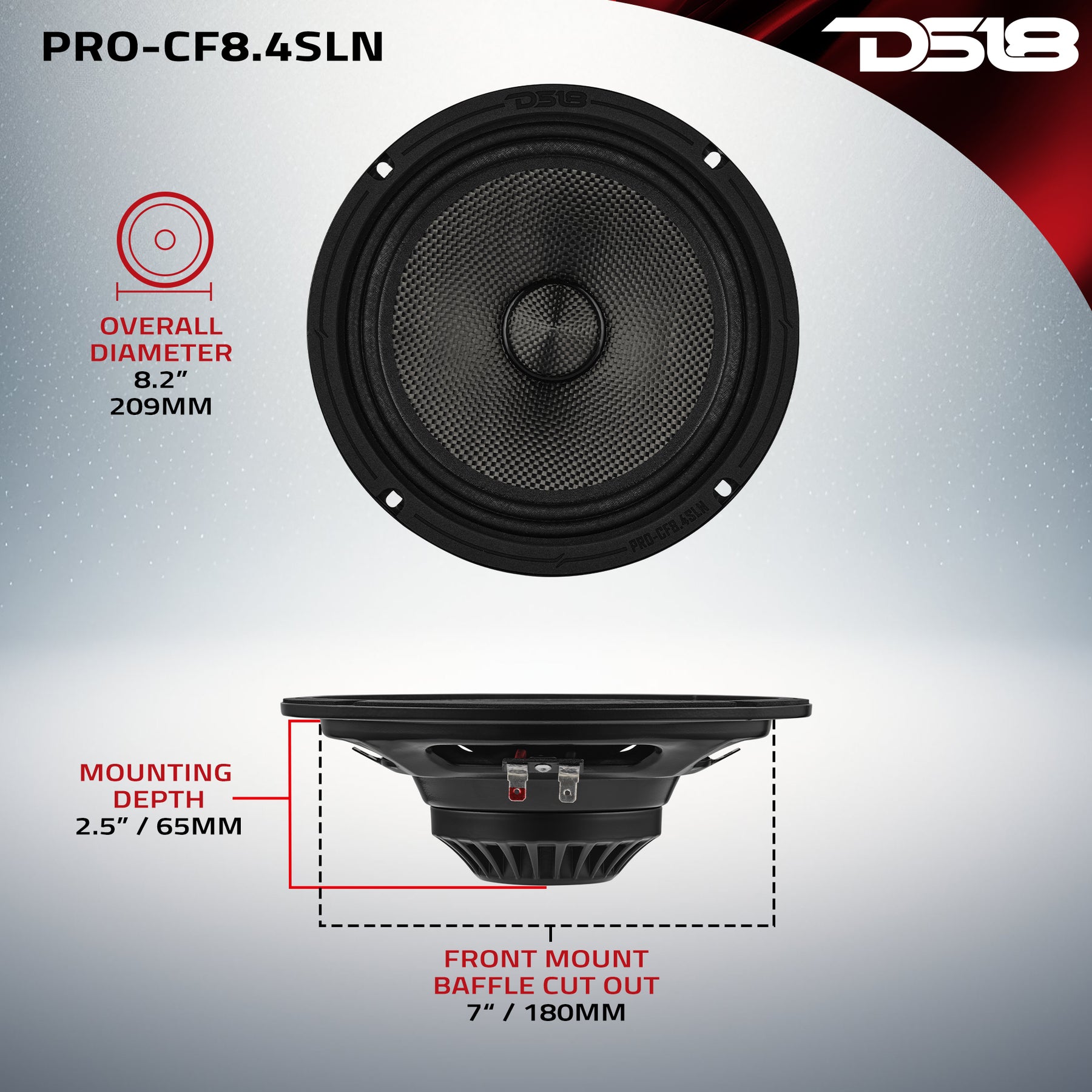

MEASUREMENTS

Specification	Value
Overall Diameter	8.2 inch 209 mm
Overall Depth	2.87 inch 73 mm
Front Mount Baffle Cutout	7 inch 180 mm
Mounting Depth	2.5 inch 65 mm
Motor Diameter	3.6 inch 92 mm

Product Overview

8″ Slim Water-Resistant Midrange Speaker | 400W | 4Ω

The PRO-CF8.4SLN brings serious midrange performance to motorcycle, powersports, and other outdoor installs!

A carbon fiber cone helps the PRO-CF8.4SLN handle everything the road throws at you. Rated at 200W RMS / 400W MAX at 4 ohms with an impressive 95dB sensitivity you get audio that projects over ALL noise easily.

Powerful Output
The 1.5” Kapton voice coil is paired with an ultra-efficient motor structure to produce sharp midrange frequencies from 80Hz to 5KHz for higher range and presence.

Easy Fit
The PRO-CF8.4SLN’s shallow design, lightweight neodymium magnet, and weather-resistant construction make it the ideal speaker for your next offroad or motorcycle build.

Get elite midrange output with DS18’s PRO-CF8.4SLN!
