Description

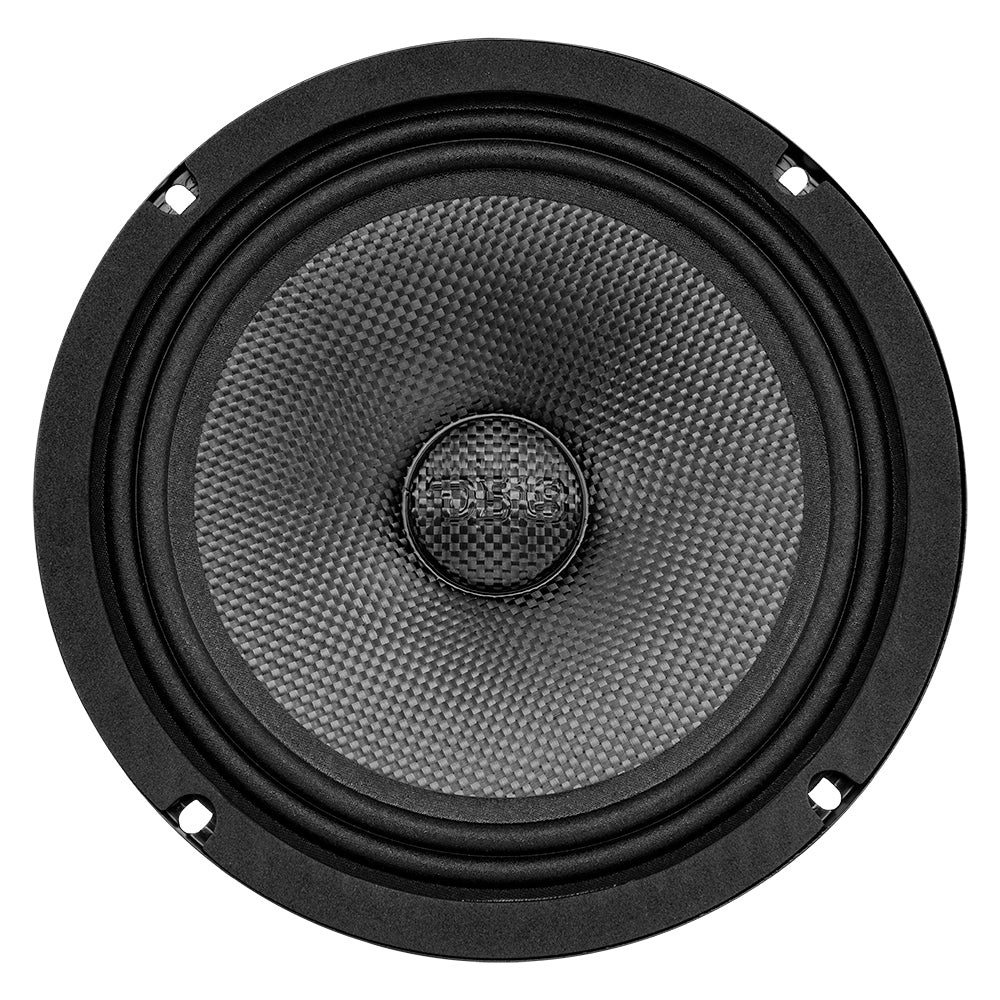

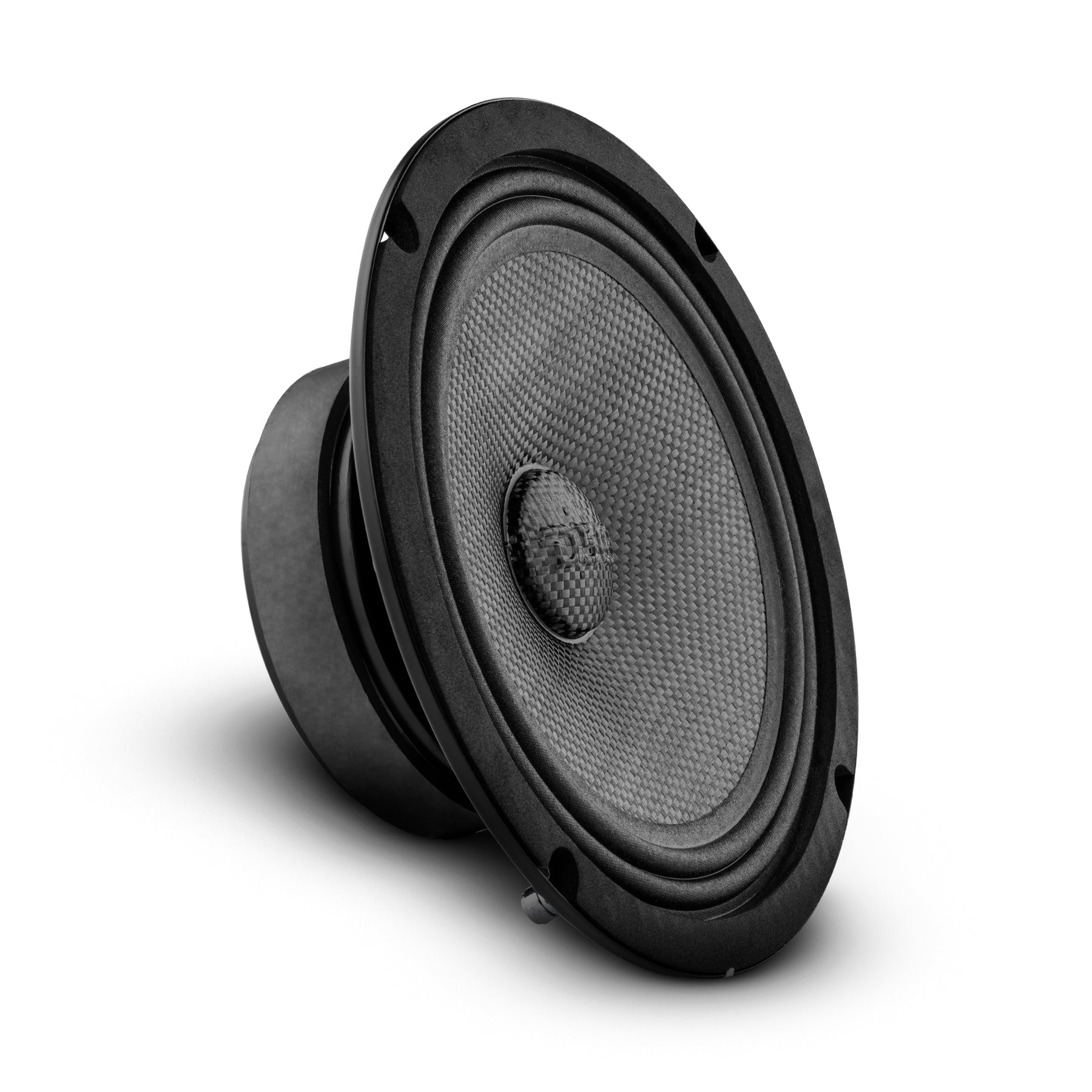

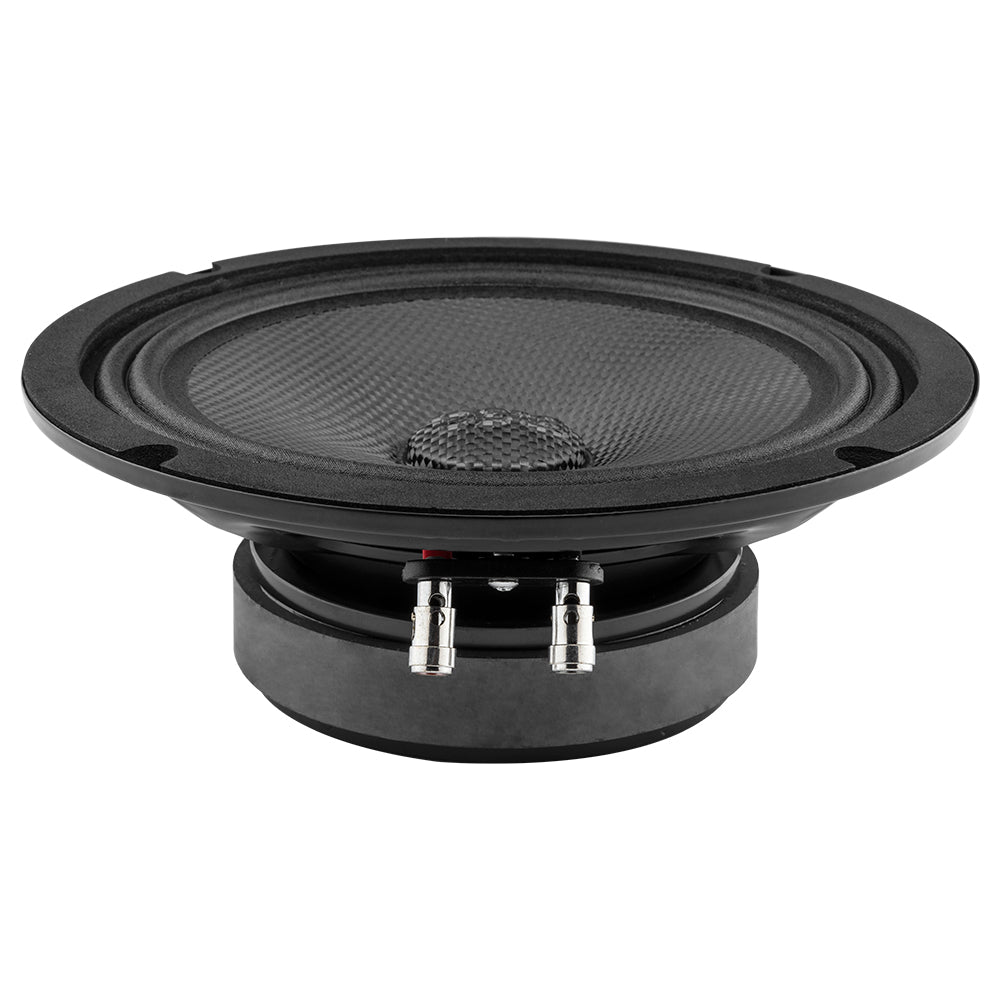

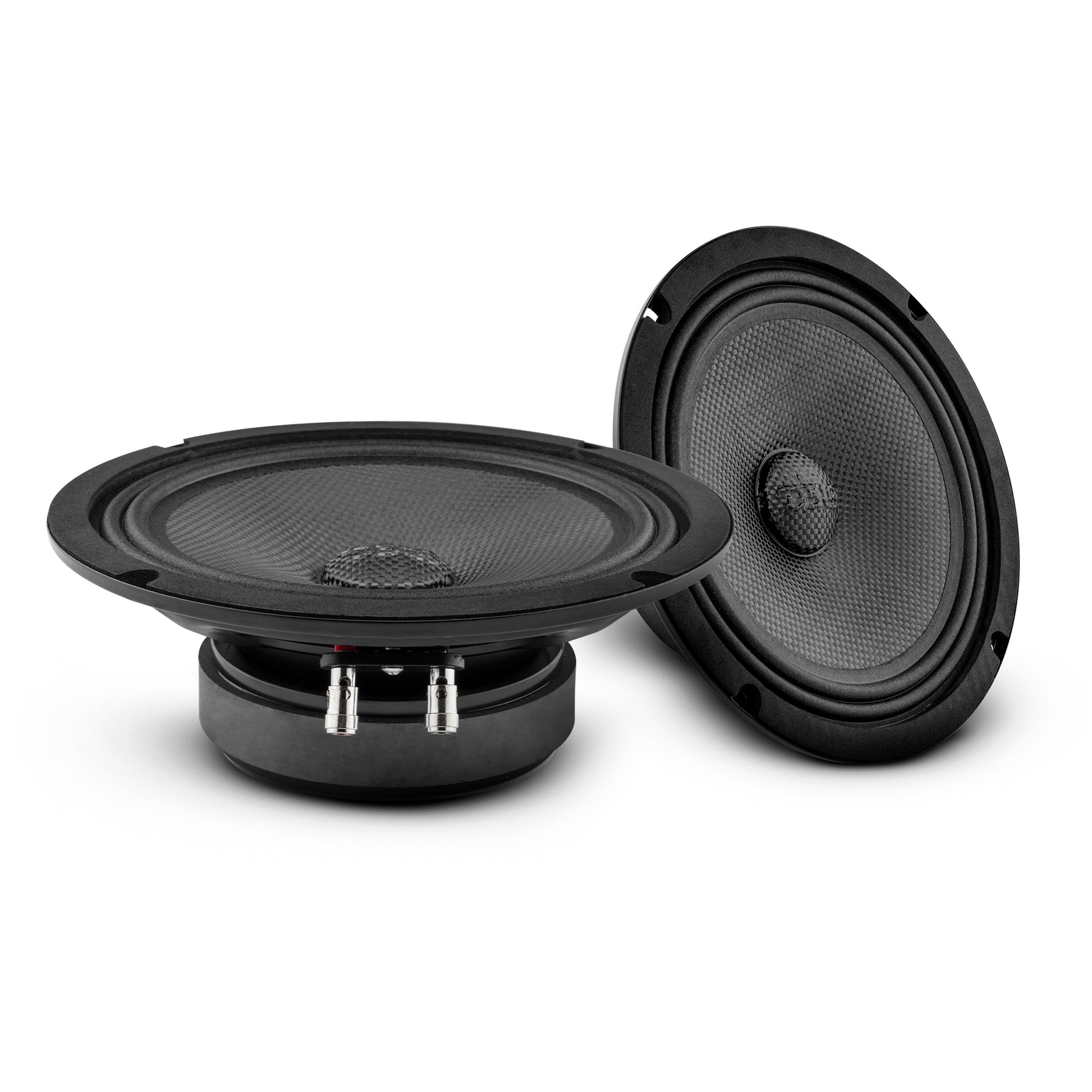

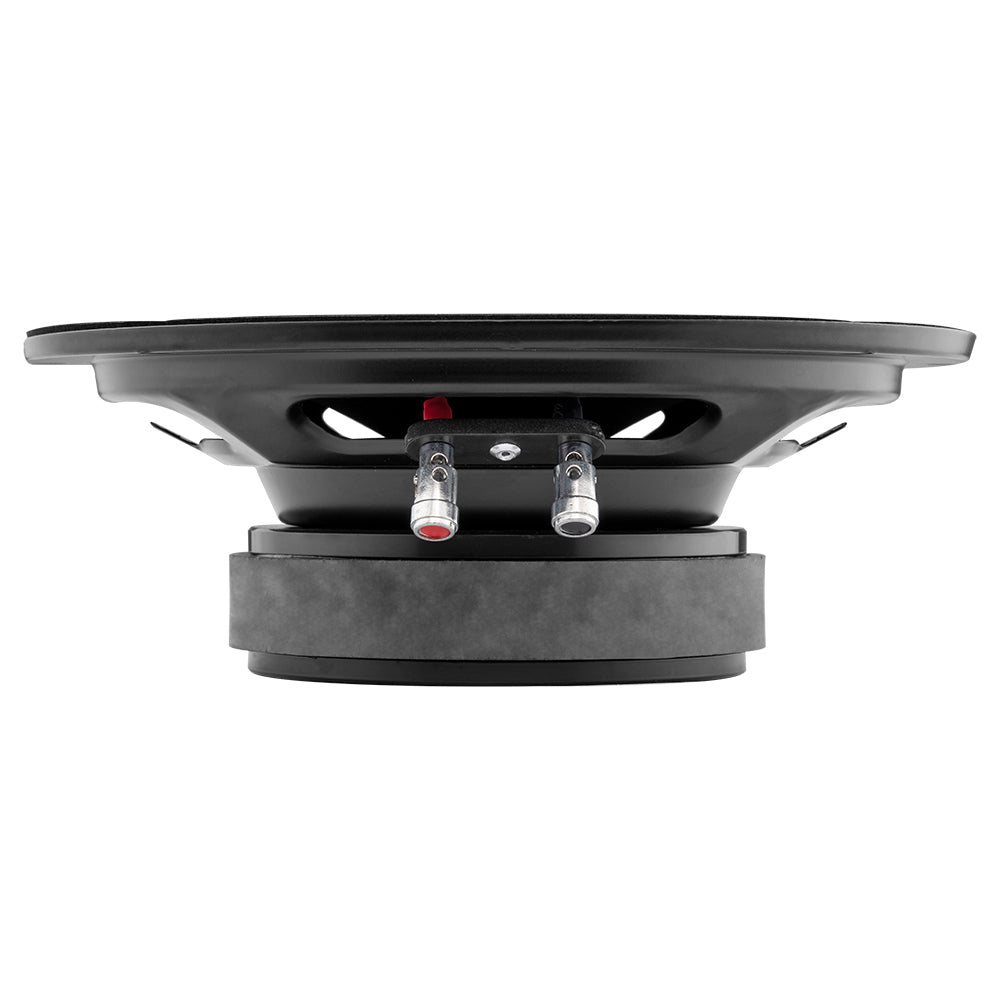

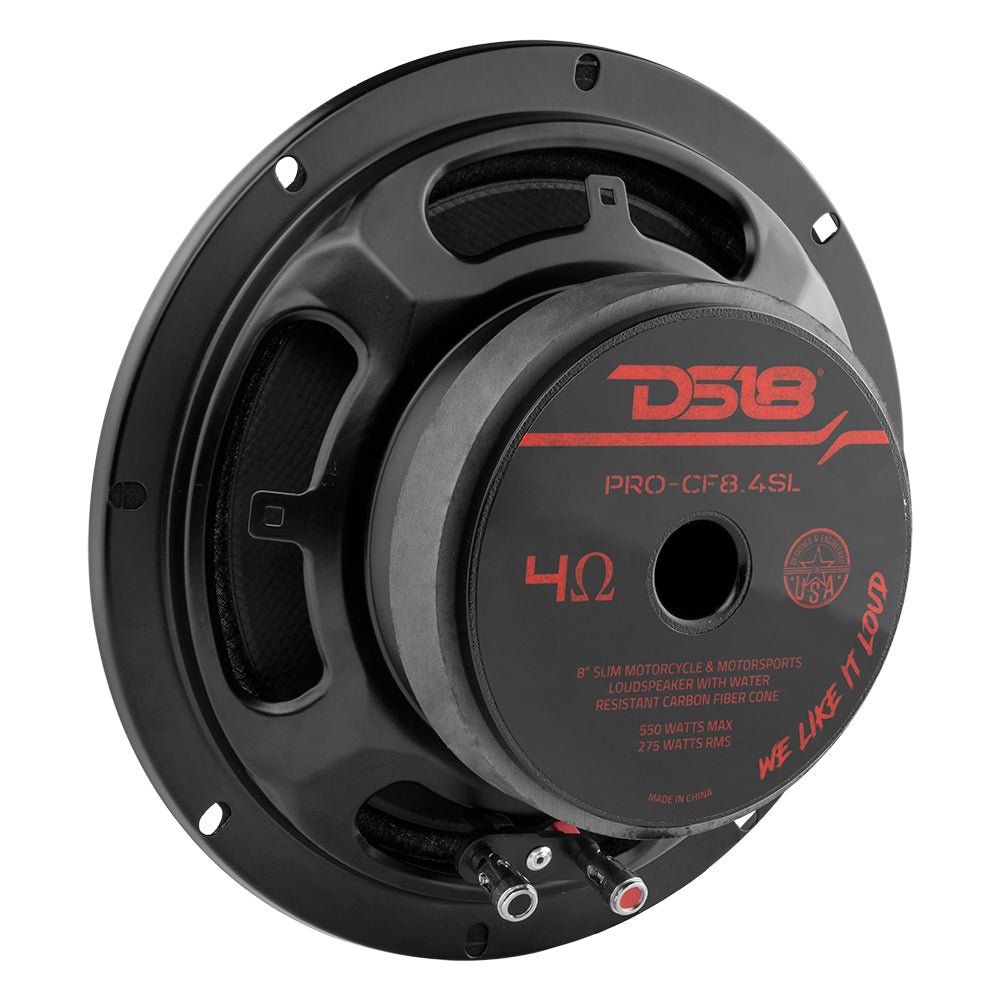

DS18 PRO-CF8.4SL

The PRO-CF8.4SL is an 8″ pro-audio full-range speaker designed for high-efficiency sound reproduction with a shallow mount profile, making it perfect for installations with limited space. It delivers punchy mid-bass and clear midrange response while maintaining solid overall frequency coverage, ideal for car audio systems, motorcycles, Jeeps, UTVs, and custom pro builds. The durable construction and optimized motor design ensure reliable performance in demanding audio setups.


Specifications

Category Specification
SKU PRO-CF8.4SL
Nominal Diameter 8″ / 203 mm
Nominal Impedance 4 Ω
RMS Power Handling 275 W
Maximum Power Handling 550 W
Sensitivity (1W/1m) 96 dB
Frequency Response 60Hz–12.5KHz
Recommended High-Pass Crossover 80 Hz

Motor / Voice Coil Specifications
Feature Specification
Voice Coil Diameter 1.5″ / 38.5 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material Steel
Magnet Weight 33.5 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 18.78 L / 0.663 ft³
Excursion (Xmax) 2.5 mm
Free Air Resonance (Fs) 108 Hz
Mechanical Factor (Qms) 19.02
Electrical Factor (Qes) 0.928
Total Factor (Qts) 0.88
DC Resistance (Re) 3.8 Ω

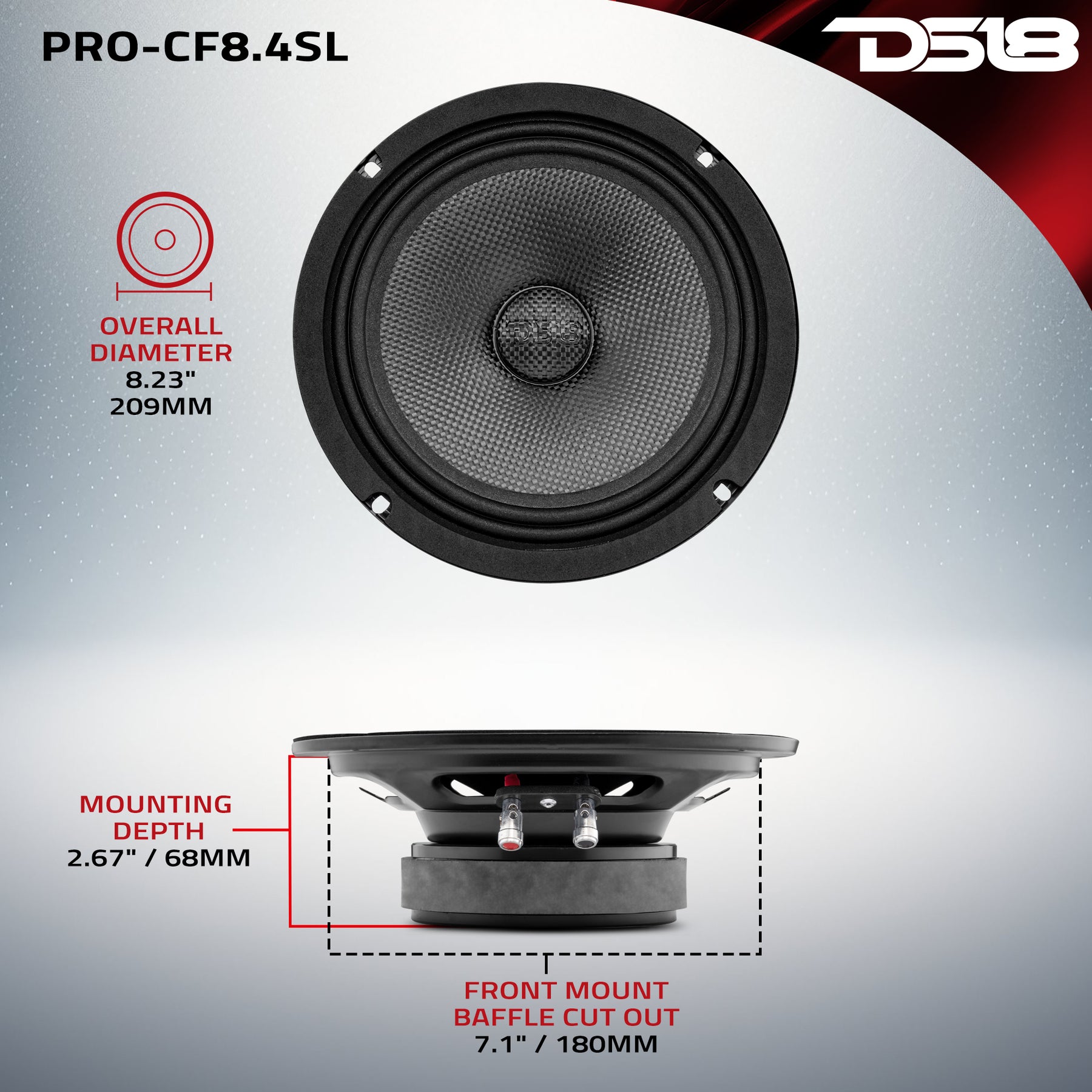

Measurements
Dimension / Feature Value
Overall Diameter 8.23″ / 209 mm
Front Mount Baffle Cutout 7.1″ / 180 mm
Mounting Depth 2.67″ / 68 mm
Overall Depth 2.95″ / 75 mm
Product Weight 5 lbs
Product Dimensions (W x L x H) 9 x 9 x 3.5 in
Master Carton Weight 41.5 lbs
Master Carton Dimensions 18.5 x 18.5 x 8.5 in
Quantity per Master Carton 8
Sold In Piece

Product Overview

PRO 8” Slim Carbon Fiber Water Resistant Cone Mid-Bass Loudspeaker 550W MAX 4-Ohm

The PRO-CF8.4SL effortlessly blends incredible highs with a thunderous low mid-bass response. Its unparalleled versatility allows it to deliver frequencies ranging from a piercing 12.5KHz to a deep and resonating 60Hz.
Designed for performance and reliability, the PRO-CF8.4SL features a water-resistant design that guarantees exceptional audio even in the harshest conditions. DS18’s cutting-edge waterproof carbon fiber cone design, coupled with super-strong rubber surrounds, ensures that these speakers remain undeterred by the elements. And the increased 96dB sensitivity level, allows the PRO-CF8.4SL to deliver crystal-clear sound during every session.
With its size reduction, the PRO-CF8.4SL can seamlessly be integrated into any setup, adapting to your unique needs with ease. The inclusion of user-friendly push terminals not only ensures a secure and protected wiring connection but also simplifies installation, saving you precious time and effort.
The impressive RMS power handling of 275W and the staggering MAX power handling of 550W guarantees a mind-blowing audio experience. Everything from the subtlest whisper to a thunderous roar, every beat, every note, will resonate with astonishing clarity and precision. But, the PRO-CF8.4SL is not just about raw power—it excels in efficiency as well. Its exceptional design and engineering translate into an unbeatable combination of power and performance.
The PRO-CF8.4SL’s unmatched versatility, durability, and power handling will elevate your driving experience to new heights.

Reviews

There are no reviews yet.

Be the first to review “DS18 PRO-CF8.4SL”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the PRO-CF8.4SL?

A1: It’s an 8″ pro-audio full-range speaker with a slim shallow-mount design for space-saving installations.

Q2: Is this speaker good for car audio systems?

A2: Yes, it’s ideal for car audio builds, motorcycles, Jeeps, and UTVs where space is limited but quality sound is needed.

Q3: Does it require an external amplifier?

A3: For best performance and louder output, pairing it with an external amplifier is recommended.

Q4: Can it handle deep bass?

A4: It’s optimized for full-range sound but focused more on mid-bass and midrange. For deeper bass, pair it with a subwoofer.

Q5: What makes the PRO-CF8.4SL unique?

A5: Its slim profile allows installation in tight spaces without sacrificing high-quality full-range audio performance.
