Name: DS18 PRO-CF8.2SLN
SKU: PRO-CF8.2SLN
Availability: InStock

Description

DS18 PRO-CF8.2SLN

The PRO-CF8.2SLN is an 8″ pro-audio full-range loudspeaker with a slim shallow-mount design, engineered to deliver balanced, high-efficiency sound across a wide frequency range while fitting into space-constrained installations. It provides smooth bass, clear mids, and responsive highs, making it ideal for car audio systems, motorcycles, Jeeps, UTVs, PA setups, and custom build projects where quality full-range audio and compact installation are important. Its durable build and optimized motor design ensure consistent performance even at higher volumes.

Specifications

Specification	Value
Nominal Diameter	8 inch 203 mm
Nominal Impedance	2 ohms
RMS Power Handling	200 W
Max Power Handling	400 W
Sensitivity 1w 1m	95 dB
Frequency Response	80 Hz to 5 kHz
Recommended Hi Pass Crossover	100 Hz
Sold In	Single
Grill Included	No

FEATURES

Feature	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Spade

MOTOR AND CONSTRUCTION

Specification	Value
Voice Coil Diameter	1.5 inch 38 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Water Resistant Carbon Fiber
Dust Cap Material	Water Resistant Carbon Fiber
Surround Material	Treated Cloth
Leads Connection Type	Crossed Spider
Basket Material	Steel
Basket Finish	Glossy Black
Magnet Material	Neodymium
Magnet Weight	3.8 oz

THIELE AND SMALL PARAMETERS

Parameter	Value
Equivalent Volume Vas	6.84 L 0.241 ft3
Excursion One Way Xmax	2.5 mm
Free Air Resonance Fs	106 Hz
Mechanical Factor Qms	3.32
Electrical Factor Qes	0.51
Total Factor Qts	0.46
Mechanical Mass Mms	17.549 g
Mechanical Compliance Cms	0.12 mm per N
BL Factor BL	6.87
Voice Coil Inductance Le	0.18 mH
Cone Area Sd	190 cm2
DC Resistance Re	1.6 ohms
Mechanical Mass without Air Mmd	15.99 g

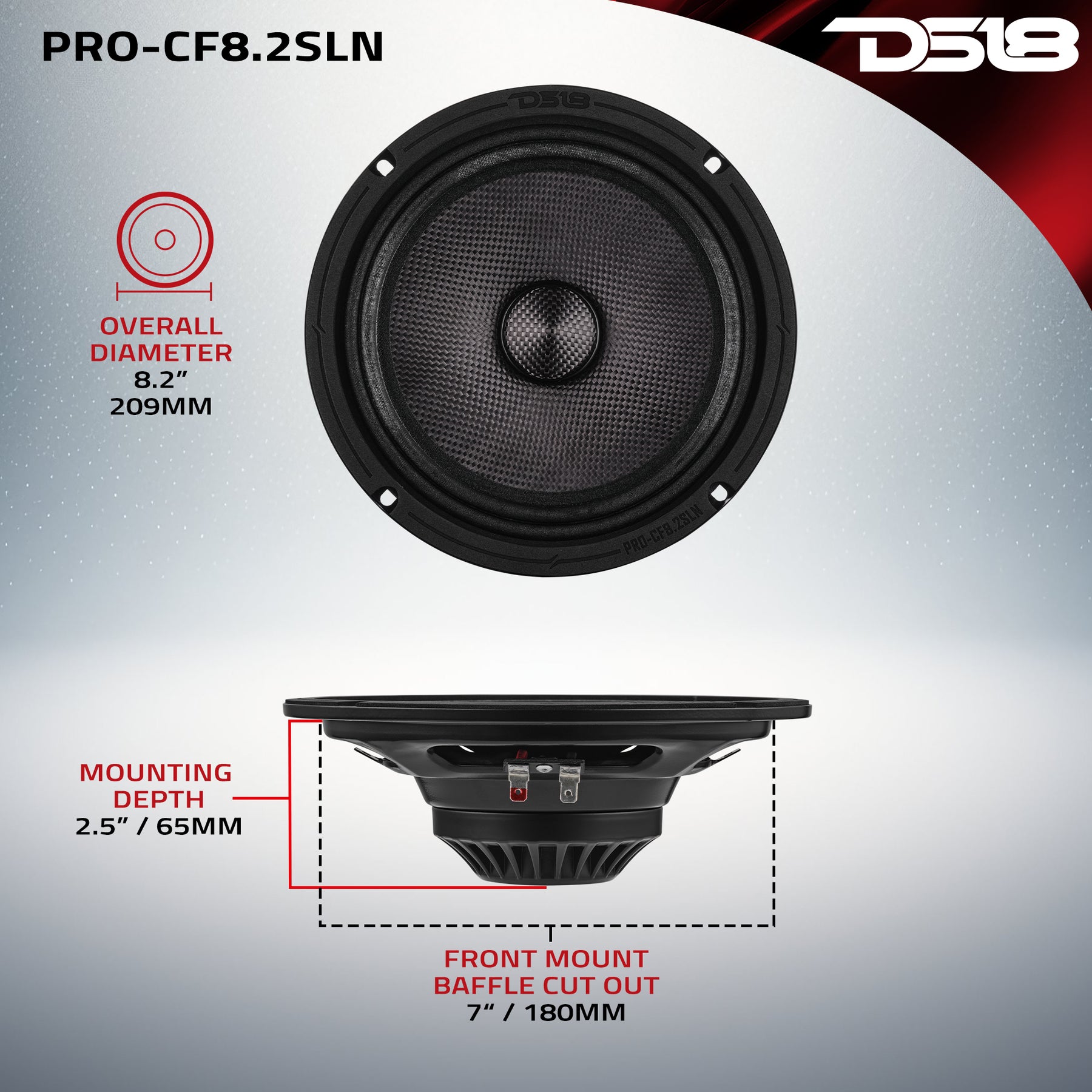

MEASUREMENTS

Specification	Value
Overall Diameter	8.2 inch 209 mm
Overall Depth	2.87 inch 73 mm
Front Mount Baffle Cutout	7 inch 180 mm
Mounting Depth	2.5 inch 65 mm
Motor Diameter	3.6 inch 92 mm

Product Overview

The PRO-CF8.2SLN is a high-performance, shallow-mount midrange speaker engineered for motorcycle, powersports, and off-road applications that need a speaker that does it all!

At 2 ohms, the PRO-CF8.2SLN pulls MAX POWER from your amplifier handling a powerful 200W RMS / 400W MAX with ease. Its 95dB sensitivity ensures it cuts through all noise while maintaining tonal clarity across an 80Hz–5KHz range.

Ready for the Elements

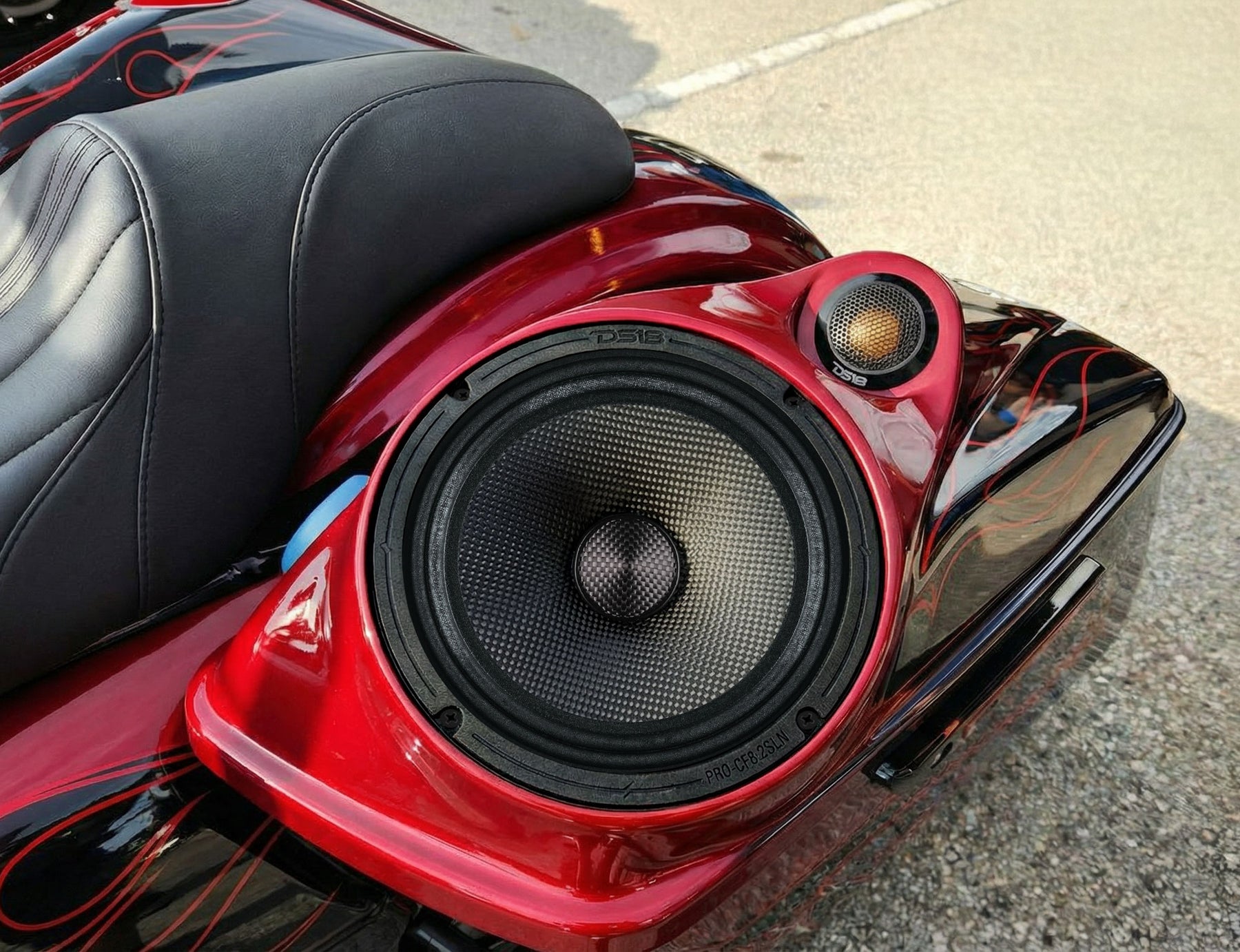

Constructed with a water-resistant carbon fiber cone and treated cloth surround, this speaker is built to withstand anything the road throws at you. Its lightweight neodymium magnet and slim 2.5″ mounting depth make it ideal for tight installs on motorcycles, UTVs, or marine applications.
