Name: DS18 PRO-CF6.4SLN
SKU: PRO-CF6.4SLN
Availability: InStock

Description

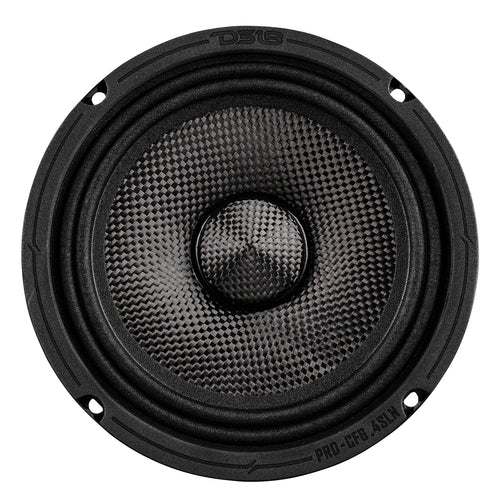

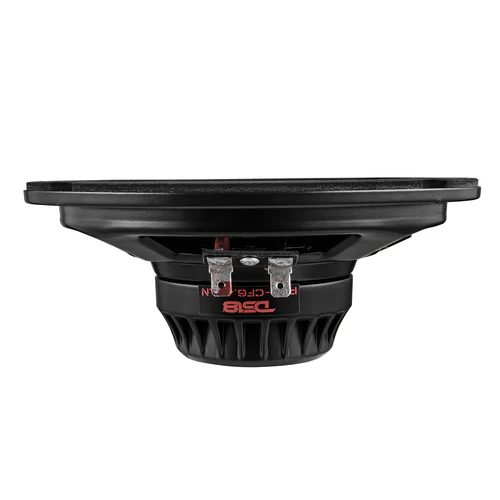

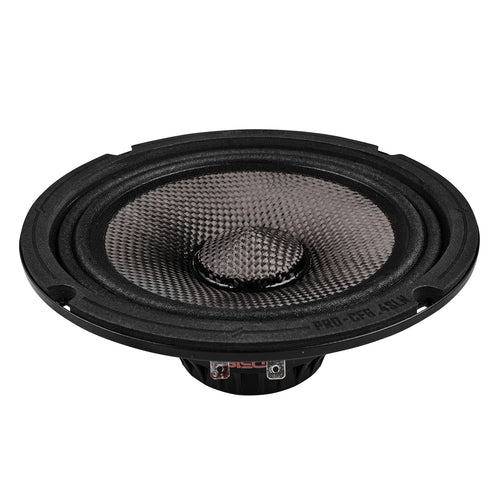

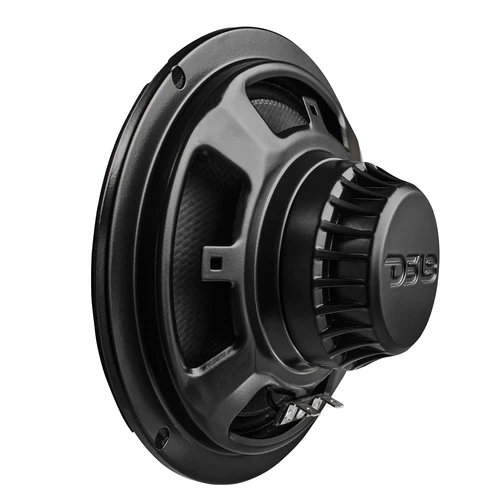

DS18 PRO-CF6.4SLN

The PRO-CF6.4SLN is a 6.5″ pro-audio full-range loudspeaker featuring a slim shallow-mount design optimized for balanced, high-efficiency sound reproduction in space-limited installations. It delivers smooth bass, clear midrange, and responsive highs, making it ideal for car audio systems, motorcycles, Jeeps, UTVs, and custom pro audio builds where quality full-range sound and easy installation are priorities. Its durable construction and optimized motor design ensure consistent performance even at higher volumes.

Specifications

Specification	Value
SKU	PRO CF6 4SLN
Nominal Diameter	6.5 inch 165 mm
Nominal Impedance	4 ohms
RMS Power Handling	150 W
Max Power Handling	300 W
Sensitivity 1w 1m	93 dB
Frequency Response	100 Hz to 6 kHz
Recommended Hi Pass Crossover	120 Hz
Sold In	Single
Grill Included	No

FEATURES

Feature	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Spade

MOTOR AND CONSTRUCTION

Specification	Value
Voice Coil Diameter	1.5 inch 38 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Water Resistant Carbon Fiber
Dust Cap Material	Water Resistant Carbon Fiber
Surround Material	Treated Cloth
Leads Connection Type	Spider Crossed
Basket Material	Steel
Basket Finish	Glossy Black
Magnet Material	Neodymium
Magnet Weight	3.8 oz

THIELE AND SMALL PARAMETERS

Parameter	Value
Equivalent Volume Vas	3.05 L 0.107 ft3
Excursion One Way Xmax	2.5 mm
Free Air Resonance Fs	126 Hz
Mechanical Factor Qms	7.48
Electrical Factor Qes	1.20
Total Factor Qts	1.04
Mechanical Mass Mms	11.26 g
Mechanical Compliance Cms	0.14 mm per N
BL Factor BL	6.92
Voice Coil Inductance Le	0.11 mH
Cone Area Sd	126.68 cm2
DC Resistance Re	3.6 ohms
Mechanical Mass without Air Mmd	10.43 g

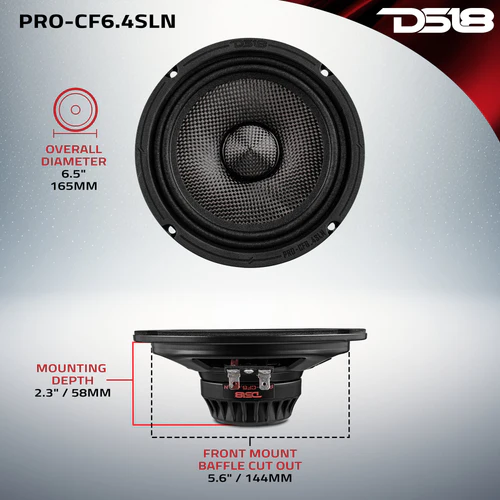

MEASUREMENTS

Specification	Value
Overall Diameter	6.5 inch 165 mm
Overall Depth	2.5 inch 65 mm
Front Mount Baffle Cutout	5.6 inch 144 mm
Mounting Depth	2.3 inch 58 mm
Motor Diameter	2.9 inch 73 mm

Product Overview

6.5” Slim Powersports Loudspeaker with Carbon Fiber Cone and Neodymium Magnet – 4Ω | 150W RMS | Water-Resistant

Built for thrill-seekers, the PRO-CF6.4SLN is engineered for motorcycles, ATVs, and UTVs where space is tight and sound matters. Its compact 2.3” mounting depth makes it perfect for your most limited installs—without compromising volume or clarity.

Premium Audio Anywhere
This 6.5″ midrange loudspeaker is tuned to deliver high-intensity mids and punchy lows with a wide frequency response of 100Hz–6KHz. Powered by a 1.5” CCAW voice coil, a water-resistant carbon fiber cone, and a neodymium magnet, the PRO-CF6.4SLN hits hard with 150W RMS and 300W MAX—crystal-clear, distortion-free sound on any ride.

Rugged to the Core
Durability meets innovation. A treated cloth surround and steel basket ensure stability, while the spider-crossed lead connections and Kapton voice coil former enhance thermal control and power handling. Demodulating rings reduce distortion and keep your sound clean and consistent—even at peak volume.
