Name: DS18 PRO-CF6.2SLN
SKU: PRO-CF6.2SLN
Availability: InStock

Description

DS18 PRO-CF6.2SLN

The PRO-CF6.2SLN is a 6.5″ pro-audio full-range loudspeaker with a shallow mount design and optimized sound performance, perfect for installations where space is limited but quality audio is required. It delivers balanced full-range sound with strong midrange clarity and smooth bass response, making it ideal for car audio systems, motorcycles, Jeeps, UTVs, and custom pro audio builds. Its durable construction and efficient motor ensure reliable performance in demanding environments.

Specifications

Specification	Value
SKU	PRO CF6 2SLN
Nominal Diameter	6.5 inch 165 mm
Nominal Impedance	2 ohms
RMS Power Handling	150 W
Max Power Handling	300 W
Sensitivity 1w 1m	93 dB
Frequency Response	100 Hz to 6 kHz
Recommended Hi Pass Crossover	120 Hz
Sold In	Single
Grill Included	No

FEATURES

Feature	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Spade

MOTOR AND CONSTRUCTION

Specification	Value
Voice Coil Diameter	1.5 inch 38 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Water Resistant Carbon Fiber
Dust Cap Material	Water Resistant Carbon Fiber
Surround Material	Treated Cloth
Leads Connection Type	Crossed Spider
Basket Material	Steel
Basket Finish	Glossy Black
Magnet Material	Neodymium
Magnet Weight	3.8 oz

THIELE AND SMALL PARAMETERS

Parameter	Value
Equivalent Volume Vas	3.17 L 0.11 ft3
Excursion One Way Xmax	2.5 mm
Free Air Resonance Fs	126 Hz
Mechanical Factor Qms	3.46
Electrical Factor Qes	0.45
Total Factor Qts	0.40
Mechanical Mass Mms	12.04 g
Mechanical Compliance Cms	0.14 mm per N
BL Factor BL	5.72
Voice Coil Inductance Le	0.18 mH
Cone Area Sd	126.68 cm2
DC Resistance Re	1.6 ohms
Mechanical Mass without Air Mmd	11.21 g

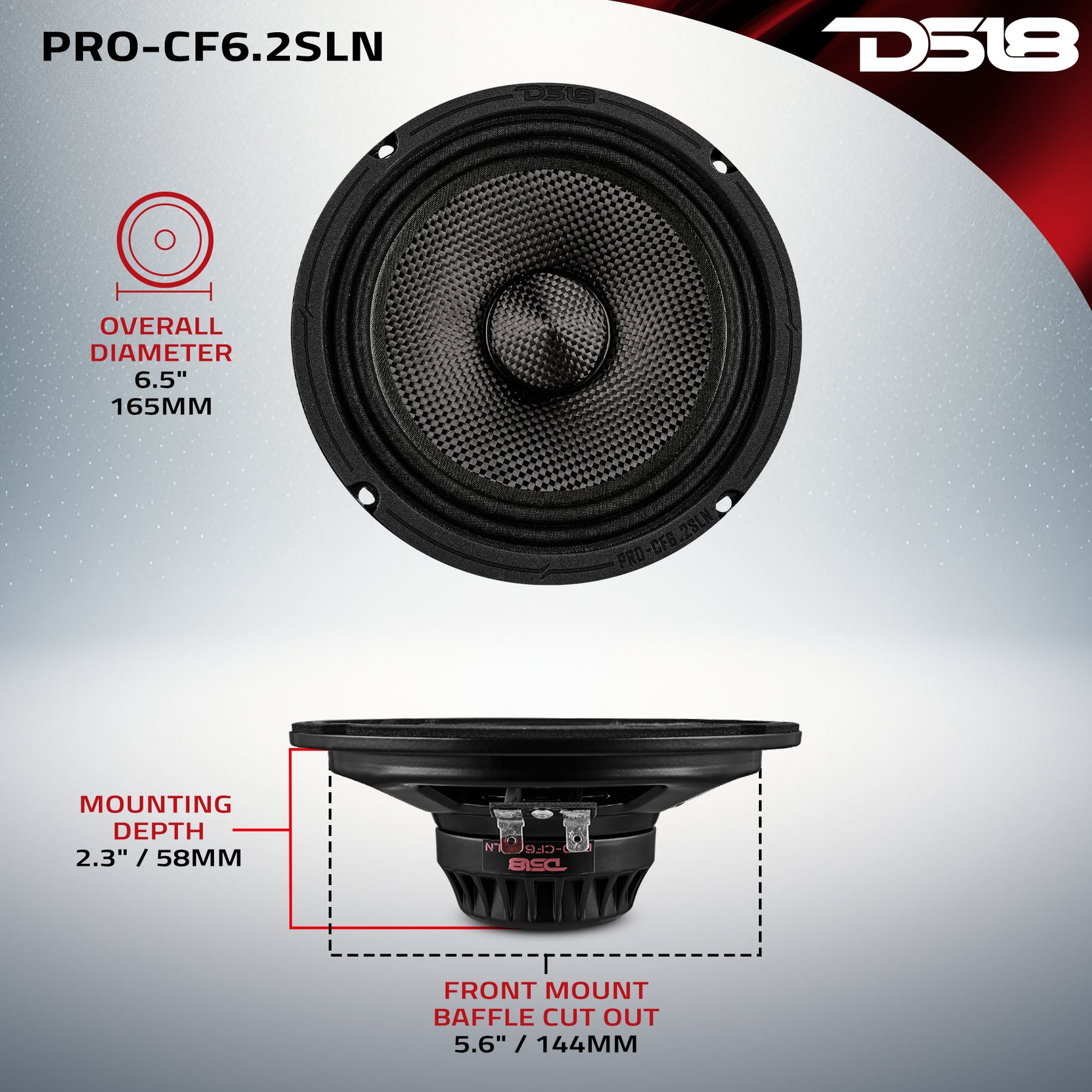

MEASUREMENTS

Specification	Value
Overall Diameter	6.5 inch 165 mm
Overall Depth	2.5 inch 65 mm
Front Mount Baffle Cutout	5.6 inch 144 mm
Mounting Depth	2.3 inch 58 mm
Motor Diameter	2.9 inch 73 mm

Product Overview

6.5” Slim Motorcycle Loudspeaker with Water-Resistant Carbon Fiber Cone & Neodymium Magnet

The PRO-CF6.2SLN is built for motorcycles, ATVs, UTVs, and powersports machines that are built for real sound. This slim 6.5″ loudspeaker runs at 2 ohms and pushes 150W RMS and 300W peak, giving you pro-audio at highway speeds.Neodymium Power Meets Carbon Fiber Toughness
With a water-resistant carbon fiber cone and a high-strength neodymium magnet, the PRO-CF6.2SLN delivers powerful mids and crisp highs that cut through any noise in your way — and stands up to the elements.

High Sensitivity, Low Distortion, LOUD Sound
A 93 dB sensitivity means it gets LOUD easy, while demodulating rings and a curvilinear cone shape keep distortion low and heat under control. No matter how hard you ride, your sound stays clean.

Designed to Fit Tight Installs
At just 2.3″ mounting depth, the PRO-CF6.2SLN fits into tight spaces without sacrificing output. Upgrade your bike, quad, or side-by-side: this slim speaker drops in easy and hits hard.
