Description
DS18 PRO-1KP8.4
The DS18 PRO-1KP8.4 is an 8-inch high-power subwoofer designed for car audio enthusiasts who demand deep, precise, and high-output bass. Featuring a dual 4-ohm voice coil, it is rated at 500 W RMS (1000 W peak), delivering tight, punchy low frequencies with exceptional clarity and impact. Its durable construction ensures reliable performance for daily drivers, custom SPL builds, or compact car audio systems requiring maximum bass output. Compatible with both sealed and ported enclosures, the PRO-1KP8.4 provides bass response down to approximately 35 Hz, making it ideal for compact setups that need strong, immersive low-end performance.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-1KP8.4 |
| Nominal Diameter | 8 inch |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 1000 Watts |
| Maximum Power Handling | 2000 Watts |
| Sensitivity (1W/1M) | 96 dB |
| Frequency Response | 110 Hz – 15 KHz |
| Recommended Hi Pass Crossover | 120 Hz |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 3 inch |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 90 Oz |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Vas | 4.737 L |
| Fs | 120 Hz |
| Qms | 11.44 |
| Qes | 0.312 |
| Qts | 0.304 |
| Re | 2.8 Ohms |

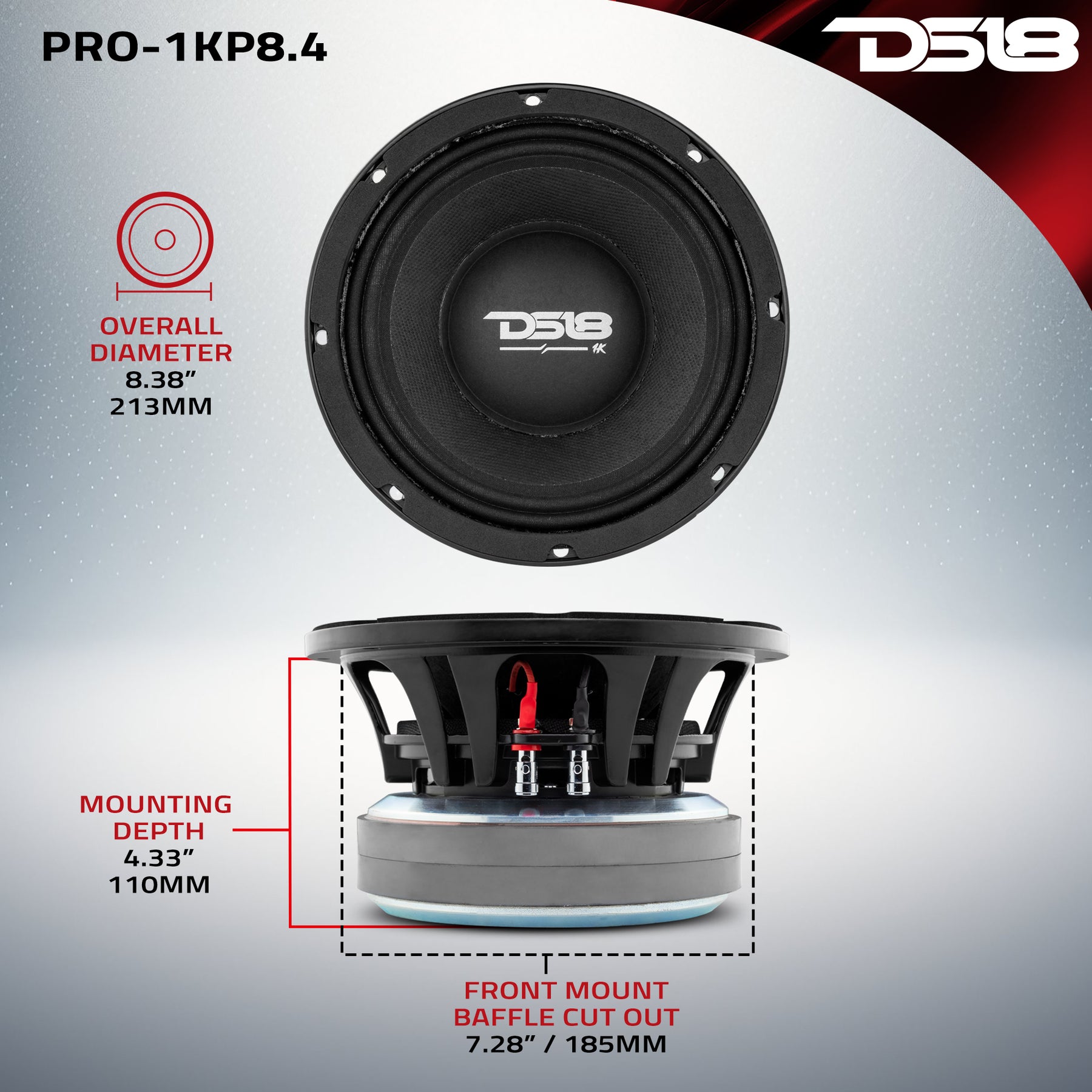

Measurements
| Measurement | Details |
|---|---|
| Overall Diameter | 8.38 inch / 213 mm |
| Front Mount Baffle Cutout | 7.28 inch / 185 mm |
| Mounting Depth | 4.33 inch / 110 mm |
| Overall Depth | 4.92 inch / 125 mm |
Product Overview
8” PANCADAO Mid-Bass Loudspeaker 1000W RMS 4-Ohm
Prepare to be blown away by the DS18 PRO-1KP8.4 PANCADÃO Mid-Bass Loudspeaker – the ultimate addition to any high-performance pro audio system. This speaker is not for the faint-hearted. With a name that means “hard-hitting bass” in Brazilian Portuguese, this speaker delivers just that.
Featuring a large high-strength ferrite magnet and reinforced aluminum basket, the PRO-1KP8.4 is built to handle insane amounts of power and get LOUD like no other. Its 1000 Watts RMS Power Handling and 2000 Watts MAX Power Handling make it one of the most powerful mid-bass speakers on the market.
But that’s not all – this speaker is a true “do-all” woofer, capable of playing an incredible range of frequencies from hard-punching mid-bass to mid-high vocals, all at an unbelievable volume. With a sensitivity of 95dB and a frequency response of 110Hz-15kHz, the PRO-1KP8.4 sets a new standard for sound quality.
The DS18 PRO-1KP8.4 PANCADÃO Mid-Bass Loudspeaker is designed to be versatile enough to fit in any sound system, and this is further emphasized by the range of impedances available for this speaker. The PRO-1KP8.4 is offered in a 4-Ohm configuration, which makes it compatible with a wide range of amplifiers and audio systems, but these speakers also come in a 8-ohm configuration. This flexibility in impedance options allows the speaker to work seamlessly with different audio setups, ensuring that you get the best performance out of your sound system.
If you’re looking for a speaker that will set your sound system apart from the rest, look no further than the DS18 PRO-1KP8.4 PANCADÃO Mid-Bass Loudspeaker.
