Description
DS18 PRO-1.5KP10.4
The DS18 PRO-1.5KP10 is a 10-inch high-power subwoofer available in both 4-ohm and 8-ohm voice coil configurations, designed for car audio enthusiasts seeking deep, punchy, and high-output bass. Rated at 750 W RMS (1500 W peak), it delivers tight, controlled low frequencies with exceptional clarity and impact. Its durable construction ensures reliable performance for daily drivers, custom SPL builds, and high-performance compact car audio systems. Compatible with both sealed and ported enclosures, the PRO-1.5KP10 provides bass response down to approximately 33 Hz, making it ideal for setups that require strong, immersive low-end while offering flexibility in wiring with either 4-ohm or 8-ohm systems.
Specifications
| Specification | Details |
|---|---|
| SKU | PRO-1.5KP10.4 |
| Nominal Diameter | 10 inch |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 1500 Watts |
| Maximum Power Handling | 3000 Watts |
| Sensitivity (1W/1M) | 94.4 dB |
| Frequency Response | 80 Hz – 10 kHz |
| Recommended Hi Pass Crossover | 80 Hz |
| Sold In | Piece |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 3 inch |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 90 Oz |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Vas | 13.935 L |
| Xmax | Not specified |
| Fs | 81 Hz |
| Qms | 5.622 |
| Qes | 0.409 |
| Qts | 0.382 |
| Re | 2.08 Ohms |

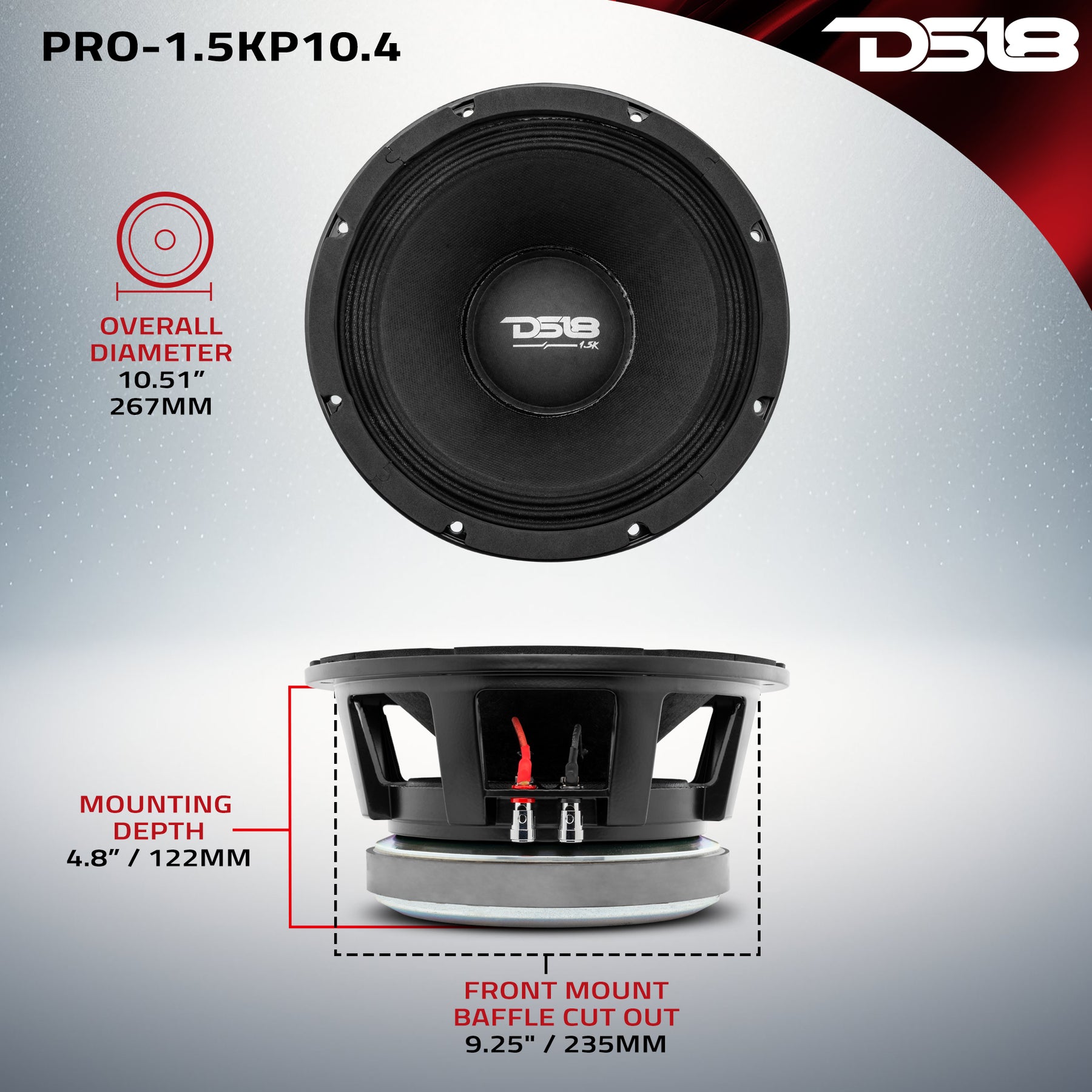

Measurements and Packaging
| Measurement | Details |
|---|---|
| Overall Diameter | 10.51 inch / 267 mm |
| Front Mount Baffle Cutout | 9.25 inch / 235 mm |
| Mounting Depth | 4.8 inch / 122 mm |
| Overall Depth | 5.23 inch / 133 mm |
| Product Weight | 1 lb |
| Product Dimensions | 11.25 x 11.5 x 6.5 inch |
| Master Carton Weight | 1 lb |
| Master Carton Dimensions | 11.25 x 11.5 x 6.5 inch |
| Master Carton Quantity | 1 |
Product Overview

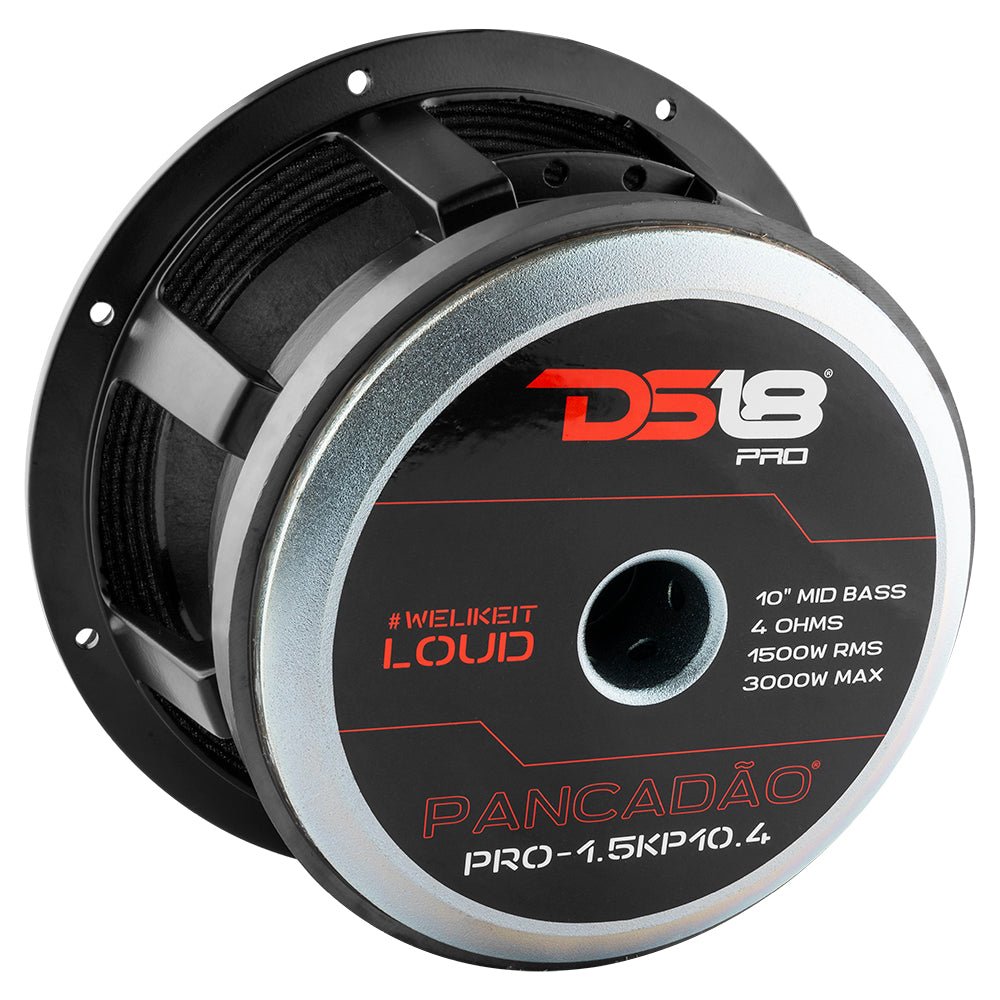

10” PANCADAO Mid-Bass Loudspeaker 1500W RMS 4-Ohm
Prepare to be blown away by the DS18 PRO-1.5KP10.4 PANCADÃO Mid-Bass Loudspeaker – the ultimate addition to any high-performance pro audio system. This speaker is not for the faint-hearted. With a name that means “hard-hitting bass” in Brazilian Portuguese, this speaker delivers just that.
Featuring a large high-strength ferrite magnet and reinforced aluminum basket, the PRO-1.5KP10.4 is built to handle insane amounts of power and get LOUD like no other. Its 1500 Watts RMS Power Handling and 3000 Watts MAX Power Handling make it one of the most powerful mid-bass speakers on the market.
But that’s not all – this speaker is a true “do-all” woofer, capable of playing an incredible range of frequencies from hard-punching mid-bass to mid-high vocals, all at an unbelievable volume. With a sensitivity of 94.4dB and a frequency response of 80Hz-10kHz, the PRO-1.5KP10.4 sets a new standard for sound quality.
The DS18 PRO-1.5KP10.4 PANCADÃO Mid-Bass Loudspeaker is designed to be versatile enough to fit in any sound system, and this is further emphasized by the range of impedances available for this speaker. The PRO-1.5KP10.4 is offered in a 4-Ohm configuration, which makes it compatible with a wide range of amplifiers and audio systems, but these speakers also come in a 8-ohm configuration. This flexibility in impedance options allows the speaker to work seamlessly with different audio setups, ensuring that you get the best performance out of your sound system.
If you’re looking for a speaker that will set your sound system apart from the rest, look no further than the DS18 PRO-1.5KP10.4 PANCADÃO Mid-Bass Loudspeaker.
