Description
DS18 NXL-X6TP/RD

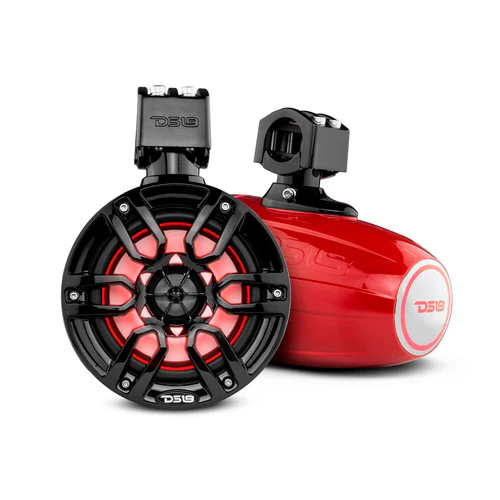

The NXL‑X6TP is a pair of 6.5″ full‑range marine wakeboard tower speakers with integrated RGB LED lighting and rugged water‑resistant construction. Designed to deliver rich mids and clear highs with a 2‑way speaker design, these speakers are ideal for outdoor, marine, UTV, ATV, and custom audio installations. With 360° adjustable clamp mounts and IP65 weather protection, they provide immersive sound performance and long‑lasting durability.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-X6TP |
| Nominal Diameter | 6.5″ |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 100 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W / 1m) | 91 dB |
| Frequency Response | 65 Hz – 23 kHz |
| Recommended Hi-Pass Crossover | 80 Hz |
Body / Features
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB speaker lighting, acrylic ring lighting, and back logo with 6 core wires for lighting and speaker |
| Grill Type | ASA (Injection Grill) |
| Pair | Yes |
| Clamps | Die-cast adjustable (1″–2″), 360° rotation mounting, buried or open wire optional, includes NBR pad & stainless hardware (screws, stop washers, hex wrench, safety rope, screw fastening glue) |
| Front Logo | Yes, can be rotated for correct angle display |
| Rear Logo | Yes, can be rotated for correct angle display |
| Colors Available | Black, White, Red, Carbon Fiber |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1.2″ |
| Cone Material | Waterproof injection polypropylene |
| Surround Material | Butyl |
| Basket Material | PC injection-molded composite |
| Magnet Material | Ferrite + Reverse Neodymium |
| Magnet Grade | Y35 + N40H |
| Passive Radiator | No |
Tweeter Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1″ |
| Type | Dome PEI Surround |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Crossover | 6 dB / Oct |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 8.5 L |
| Excursion (one-way Xmax) | 4 mm |
| Free Air Resonance (Fs) | 65 Hz |
| Total Factor (Qts) | 0.622 |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 6.93″ / 176.1 mm |
| Overall Depth | 11.37″ / 288.8 mm |
| Overall Height | 10.7″ / 271.7 mm |
Product Overview
6.5″ Marine Water-Resistant Wakeboard Tower Speakers with Integrated RGB LED Lights
DS18’s NXL-X6TP’s are built to blast through wind, water, and trail noise with clarity and confidence. These full-range 6.5″ tower speakers deliver rich, immersive sound in a rugged, marine-grade housing.
Full-Range Setup
Each speaker features a 4-ohm impedance, 1.2″ woofer voice coil, and 1″ PEI tweeter, driven by a hybrid Ferrite + Neodymium magnet structure. You get strong mids, crisp highs, and smooth frequency response from 65Hz–23kHz—perfect for full-range projection in any outdoor setup.
360° Adjustable Clamp System
Designed to fit bars from 1” to 2”, these die-cast aluminum clamps allow full 360-degree rotation, letting you aim your sound exactly where it’s needed. Quick to mount, built to stay locked in. Need a larger fitment? Pair it with the optional CLPX2T3 Clamp Adaptor to mount on towers from 2.25” to 3”—perfect for larger marine or powersport builds.
No tubular mount points? No problem. For flat surface installations, pair it with DS18’s FLMBPX flat mount bracket for a rock-solid install with vertical positioning and secure fitment—ideal for jet skis, decks, or roof panels.
Marine-Grade Protection
UV-compliant, IP65 water-resistant, and ready to handle the harshest environments—spray, salt, sand, and trail dust are no match for this tower setup.
Integrated RGB LED Lighting
Take the visuals up a notch with built-in multicolor RGB LED rings around the speakers and DS18 logo. Sync it with your system using DS18’s lighting controllers for full visual control.
4 Killer Finishes
Match your build’s style with four bold color options: Black, White, Red, and Carbon Fiber.
