Description
DS18 NXL-X360.2D
The DS18 NXL‑X360.2D is a 2‑channel Class D marine and powersports amplifier built to deliver strong, reliable audio performance in outdoor environments — perfect for boats, UTVs, ATVs, trailers, or any rugged installation. With a compact, IP67 waterproof and dust‑proof chassis, UV and salt‑fog protection, and efficient digital amplification, it’s designed to endure harsh conditions without sacrificing sound quality. This amp can power speakers directly or be bridged for higher output to a subwoofer, and features selectable crossover filters for flexible tuning.
Specifications
| Specification | Details |
|---|---|
| SKU | NXL-X360.2D |
| Total Watts (Peak) | 1000W |
| RMS Power @ 4Ω | 2 × 180W |
| RMS Power @ 2Ω | 2 × 250W |
| RMS Power @ 4Ω (Bridge) | 1 × 500W |
AUDIO
| Specification | Details |
|---|---|
| Frequency Response | 10Hz – 20KHz |
| Signal-to-Noise Ratio (1W @ 4Ω) | >82dB |
| Efficiency @ 4Ω | 84% |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | <0.03% |
| Low Level Input Range | 200mV – 5V |

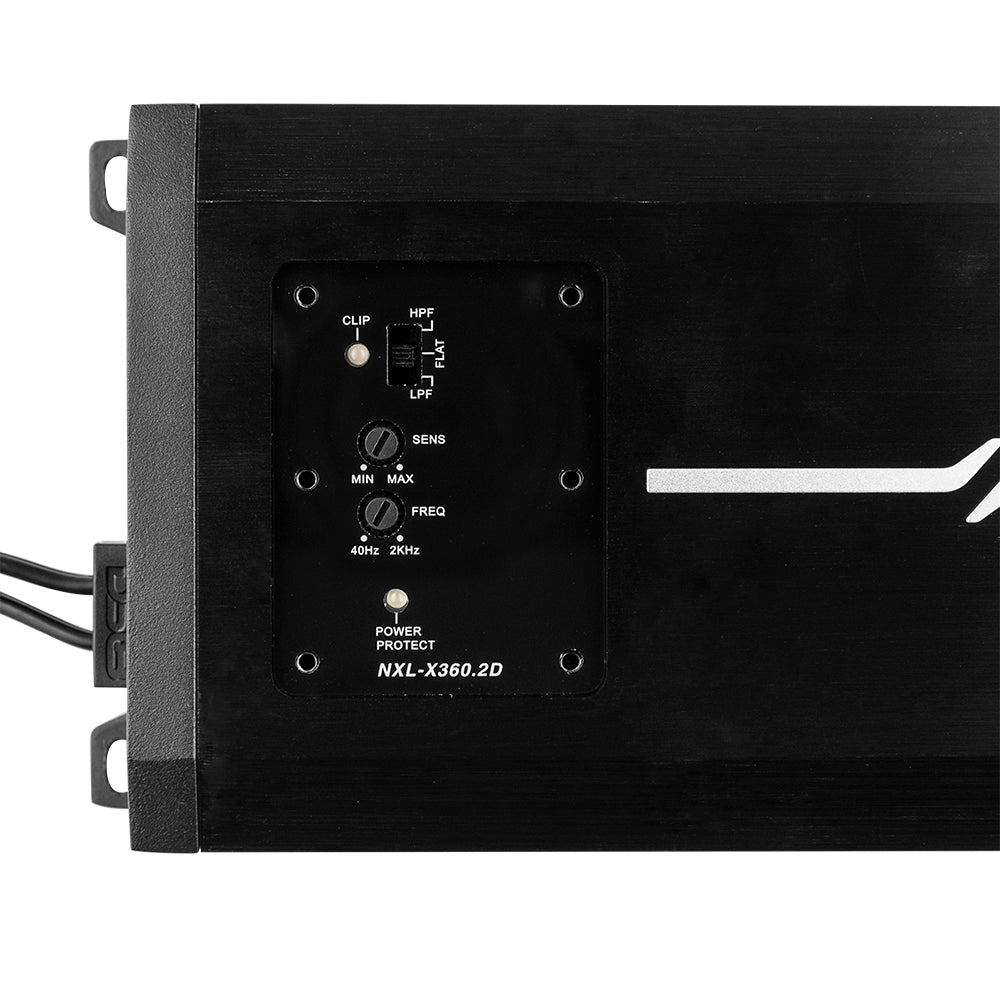

| Selectable X-Over | HPF / Full / LPF |
| X-Over Filter Range | 40Hz – 2KHz |
FEATURES 1
| Specification | Details |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 2 |
| Minimum Impedance | 2Ω (Stereo) / 4Ω (Bridge) |
| LED Indicator | Power / Protection / Clip |
| Power Input Size | 8GA Tinned OFC |
FEATURES 2
| Specification | Details |
|---|---|
| Fuse Size | 2 × 20A (40A) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7–16V) |
| Body Color / Finish | Black Brushed Aluminum |
EXTRA FEATURES
| Specification | Details |
|---|---|
| RCA Audio Output | Yes |
| Water Resistant Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
MEASUREMENT
| Specification | Details |
|---|---|
| Overall Length | 8.3 in / 211 mm |
| Overall Width | 4.4 in / 112 mm |
| Overall Height | 1.77 in / 45 mm |
| Heatsink Length | 6.7 in / 171 mm |
| Gross Single Unit Weight | 1.6 kg |
| Product Weight | 4 lb |
| Product Dimensions | 12 × 9 × 3.75 in |
| Master Carton Weight | 26 lb |
| Master Carton Dimensions | 23 × 13 × 10 in |
| Master Carton Quantity | 6 |
| Sold In | Piece |
Product Overview
2 Channel Marine Waterproof Amplifier Class D 180W x 2CH @ 4 Ohm
DS18’s NXL-X360.2D is a powerhouse designed by DS18 for those seeking exceptional power output and enhanced sound performance.
With its 2-channel configuration, the NXL-X360.2D is perfect for powering a set of speakers or bridging the power to supercharge a subwoofer, offering versatile options for customization. The high pass and low pass filters allow precise tuning, ensuring crystal clarity at any volume level for an unparalleled audio experience.
The NXL-X360.2D has an IP67 waterproof rating, making it ideal for marine environments and outdoor adventures. Whether you’re hitting the trails or cruising on the lake, the NXL series will withstand UV rays, saltwater exposure, and foggy conditions without compromising on performance.
The DS18 HYDRO NXL-X360.2D delivers a maximum output of 1000W, with 500W bridged at 4-Ohms, 180W x 2CH at 4-Ohms, and 250W x 2CH at 2-Ohms, ensuring a powerful and immersive sound experience.

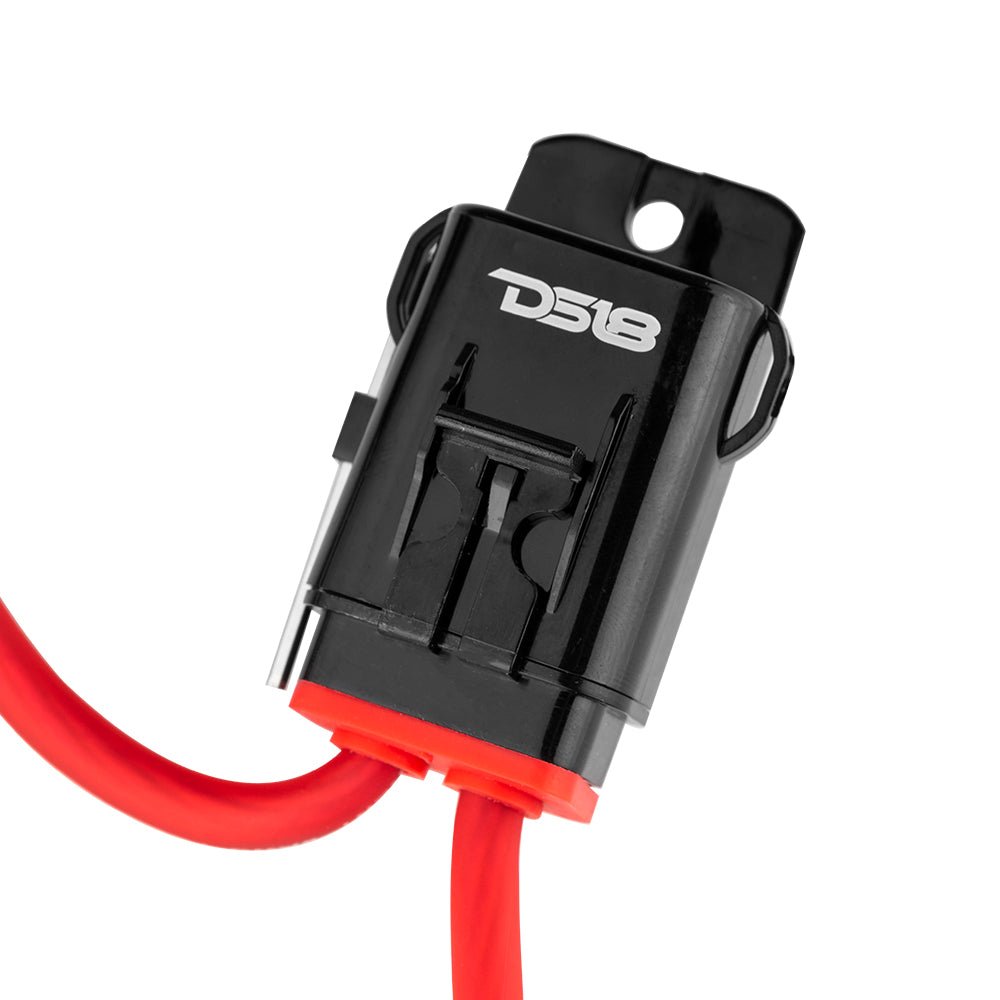

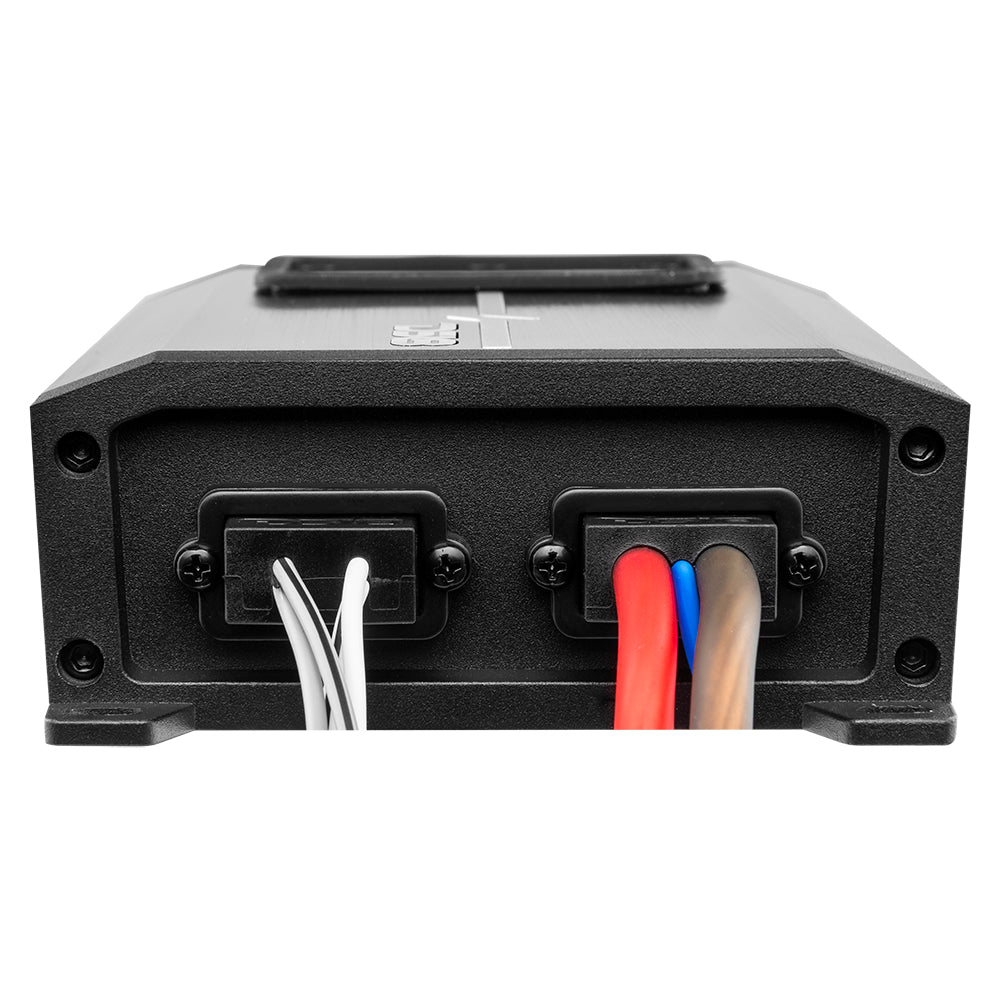

Installation is a breeze thanks to the ultra-compact size and direct power harness design with marine-grade OFC tinned wires. DS18’s latest digital amplifier design with SMC technology guarantees top-notch audio quality, while the included marine-grade fuse and fuse holder provide ultimate protection against the elements.
