Description

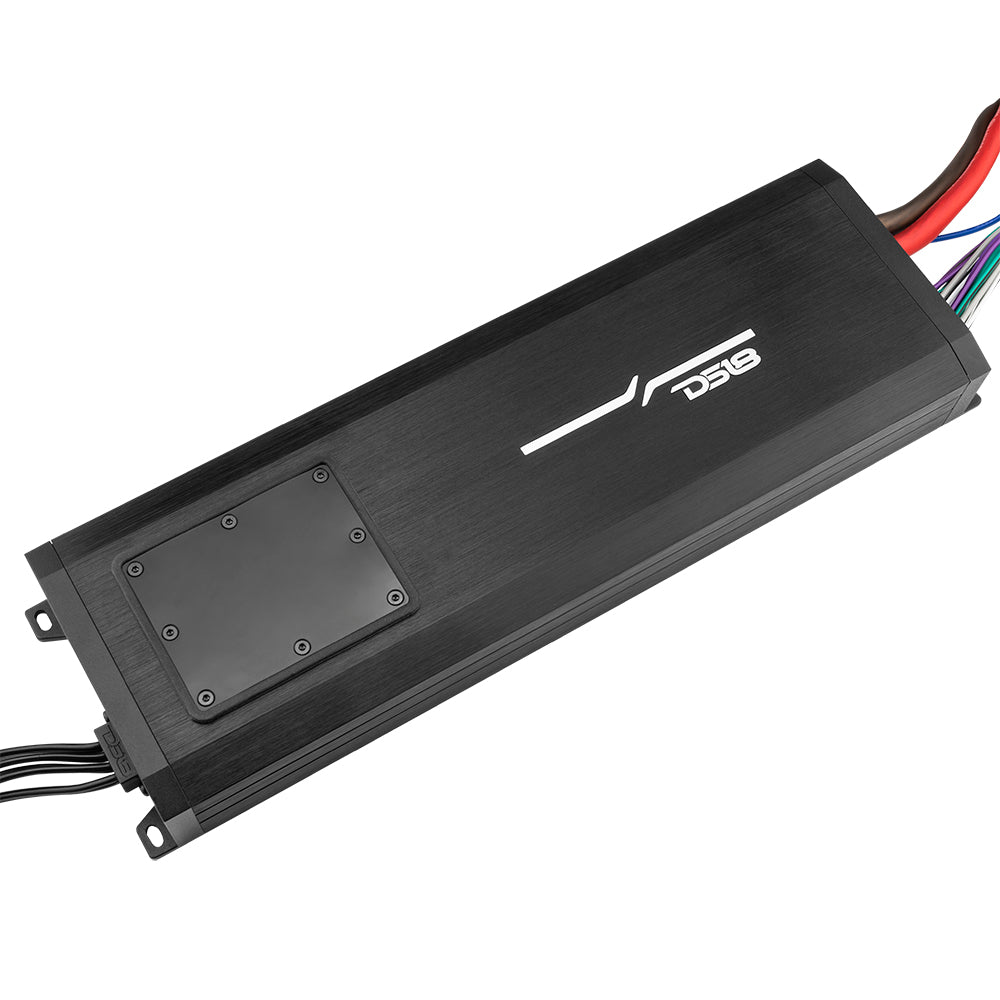

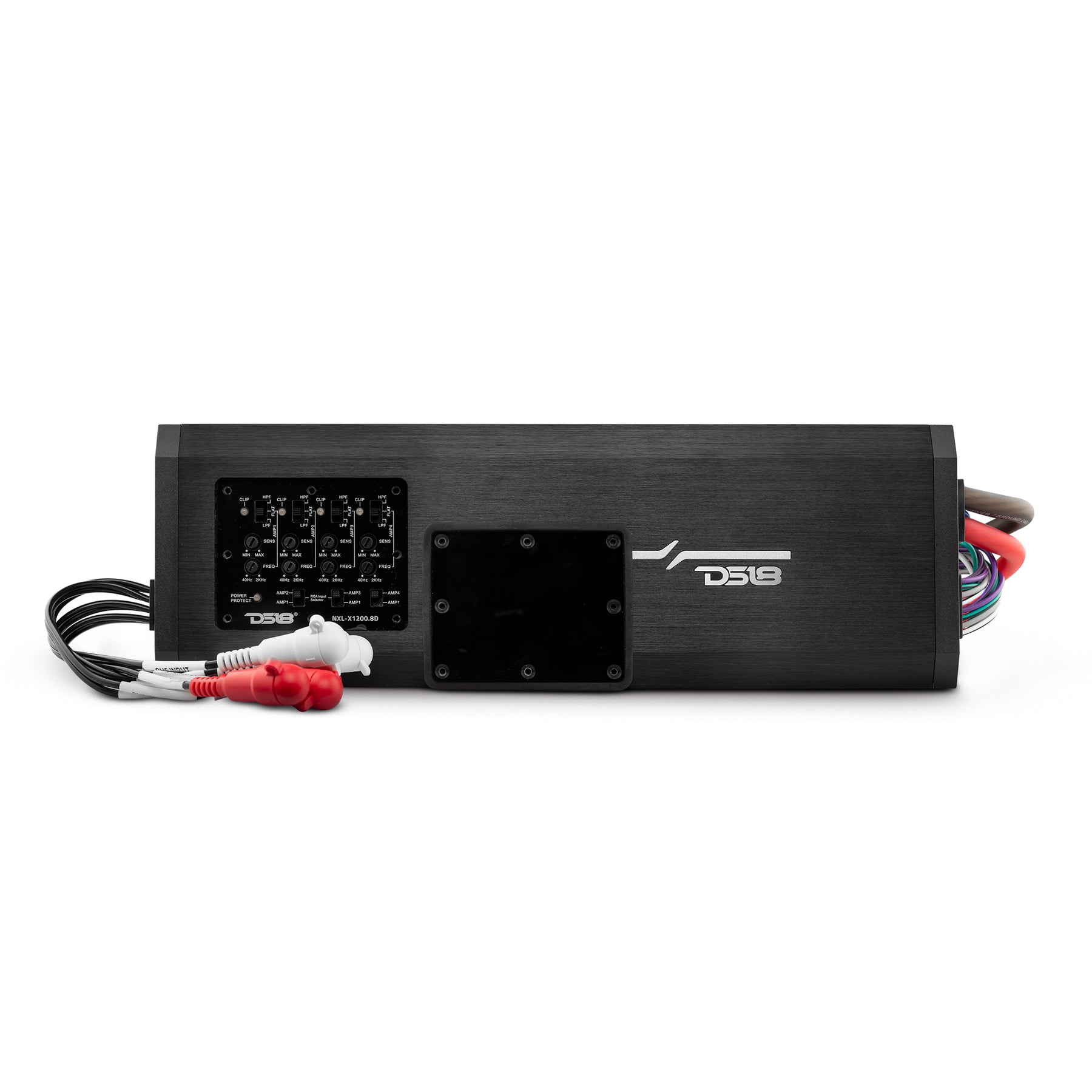

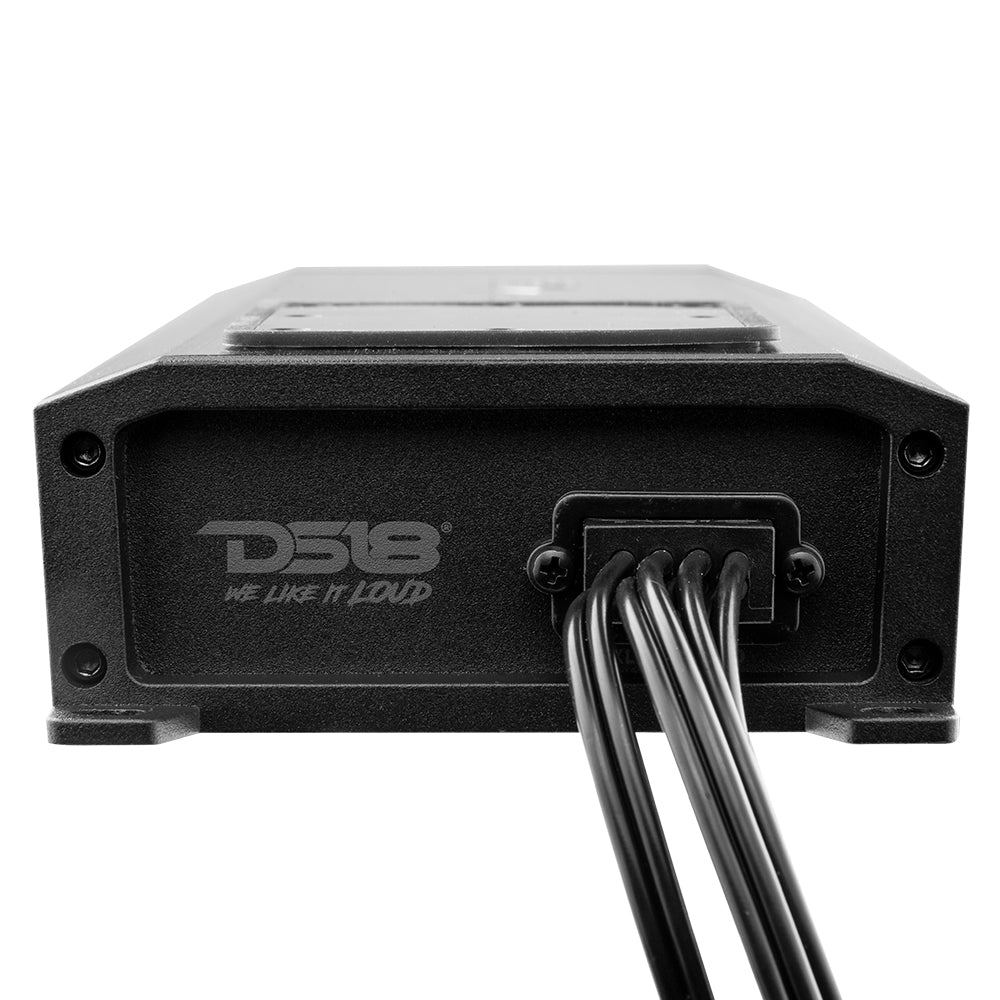

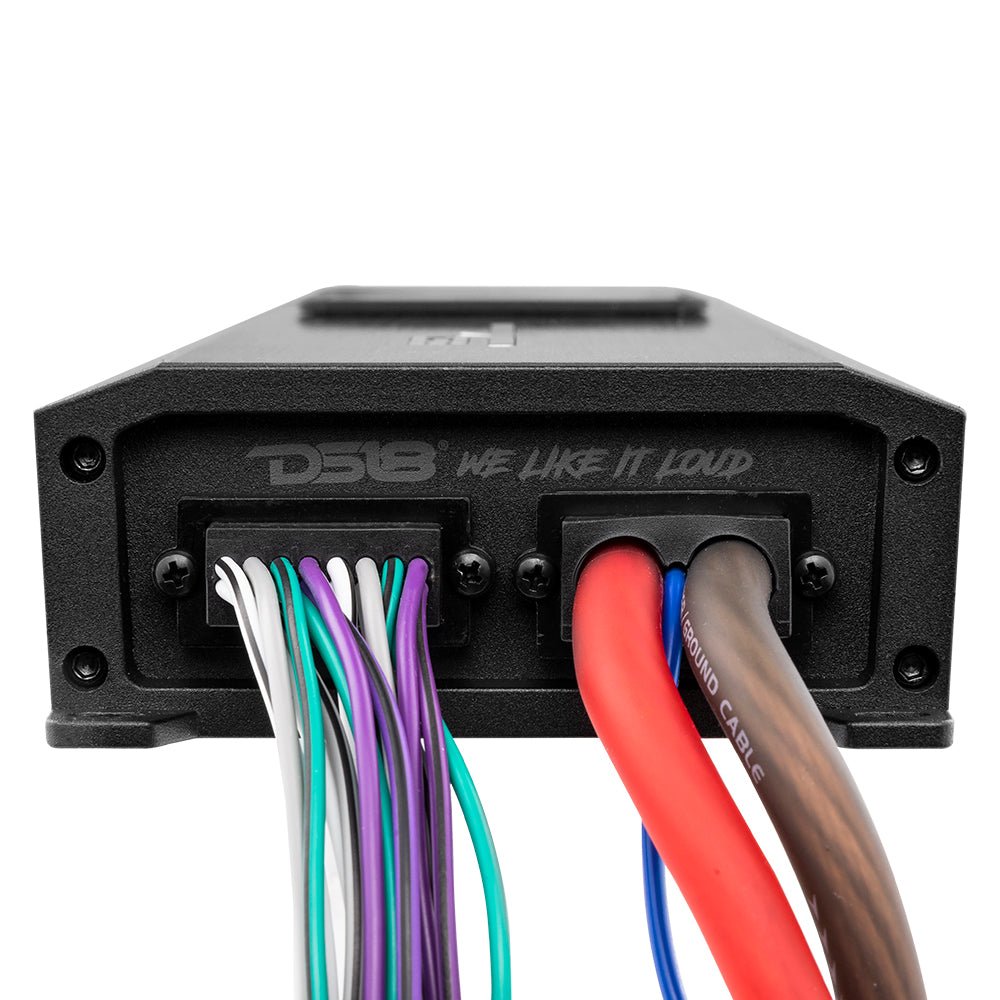

DS18 NXL-X1200.8D
The NXL-X1200.8D is an 8-channel Class D amplifier designed for high-efficiency, high-output audio performance in automotive, marine, and powersports applications. With a compact, rugged chassis and IP67-rated waterproof and dustproof protection, it delivers clear, distortion-free sound across all channels. Ideal for cars, boats, UTVs, ATVs, and custom audio installations, this amplifier provides reliable power for multi-speaker and subwoofer setups.
Specifications
| Specification | Details |
|---|---|
| SKU | NXL-X1200.8D |
| Total Watts (Peak) | 2800W |
| RMS Power @ 4Ω | 8 × 150W |
| RMS Power @ 2Ω | 8 × 220W |
| RMS Power @ 4Ω (Bridge) | 4 × 450W |
AUDIO
| Specification | Details |
|---|---|
| Frequency Response | 10Hz – 20KHz |
| Signal-to-Noise Ratio (1W @ 4Ω) | >80dB |
| Efficiency @ 4Ω | 81% |
| Input Impedance | 20KΩ |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | <0.04% |
| Low Level Input Range | 200mV – 5V |

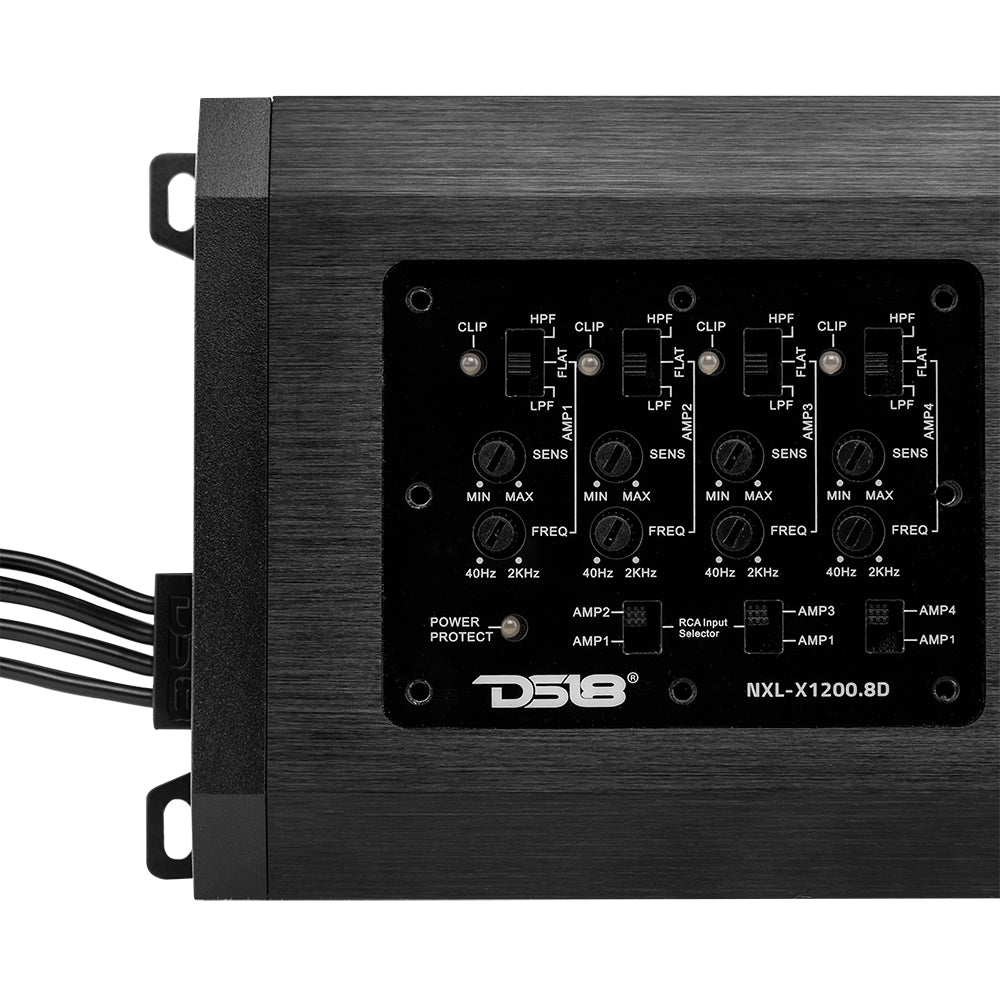

| Selectable X-Over | Yes (HPF / Full / LPF) |
| X-Over Filter Range | 40Hz – 2KHz |
FEATURES
| Specification | Details |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 8 |
| Minimum Impedance | 2Ω (Stereo) / 4Ω (Bridge) |
| LED Indicator | Power / Protection / Clip |
| Power Input Size | 4GA Tinned OFC |
| Fuse Size | 150A |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7–16V) |
| Body Color / Finish | Black Brushed Aluminum |
EXTRA FEATURES
| Specification | Details |
|---|---|
| Channels Input Selector | Yes (2 / 4 / 6 / 8 CH) |
| RCA Audio Output | No |
| Water Resistant Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |

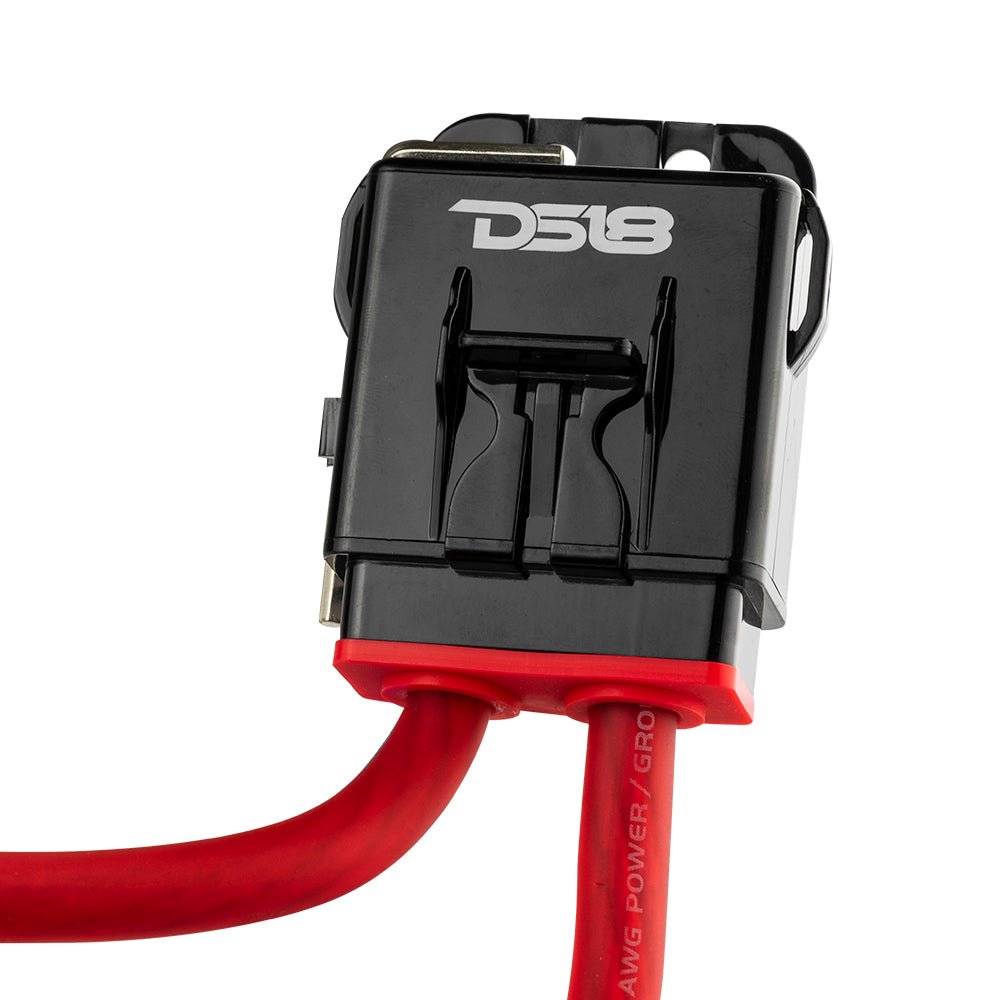

| Marine Grade Fuse Holder | Yes |
MEASUREMENTS
| Specification | Details |
|---|---|
| Overall Length | 14 in / 360 mm |
| Overall Width | 4.4 in / 112 mm |
| Overall Height | 1.77 in / 45 mm |
| Heatsink Length | 12.5 in / 320 mm |
| Gross Single Unit Weight | 2.5 kg |
Product Overview
Elevate your marine sound experience to new heights with DS18’s NXL-X1200.8D. Designed to deliver the best performance for your marine speakers, this digital class 8-channel amplifier is the ultimate choice for those who refuse to settle for anything less than exceptional.
Not only does DS18’s NXL-X1200.8D deliver unparalleled performance, but it’s also IP67 Waterproof Rated, providing protection against water intrusion. Additionally, this amplifier is built to withstand harsh marine conditions with its UV, Salt, and Fog protection. It’s designed to endure whatever nature throws at it without compromising on sound quality.
With its Direct Power harness design featuring marine-grade OFC tinned wires, this amplifier ensures optimal power transfer and efficiency. Every detail has been carefully crafted to provide you with a seamless and hassle-free installation process.
Experience the future of marine amplification with the latest digital amplifier design and SMC technology. This cutting-edge combination enhances audio clarity and precision, allowing you to enjoy every note with exceptional clarity and detail.
Prepare to be blown away by the NXL-X1200.8D’s staggering performance, delivering 8 x 150W RMS at 4-ohm, 8 x 220W RMS at 2-ohm, and 4 x 450W RMS @ 4-ohm bridge. These power settings are guaranteed to supercharge any custom marine build.
Don’t settle for mediocre sound on your boat or powersport vehicle. Upgrade to the DS18 NXL-X1200.8D Marine & Powersports Digital Amplifier and unleash the true potential of your marine speakers.
Not only does DS18’s NXL-X1200.8D deliver unparalleled performance, but it’s also IP67 Waterproof Rated, providing protection against water intrusion. Additionally, this amplifier is built to withstand harsh marine conditions with its UV, Salt, and Fog protection. It’s designed to endure whatever nature throws at it without compromising on sound quality.
With its Direct Power harness design featuring marine-grade OFC tinned wires, this amplifier ensures optimal power transfer and efficiency. Every detail has been carefully crafted to provide you with a seamless and hassle-free installation process.
Experience the future of marine amplification with the latest digital amplifier design and SMC technology. This cutting-edge combination enhances audio clarity and precision, allowing you to enjoy every note with exceptional clarity and detail.
Prepare to be blown away by the NXL-X1200.8D’s staggering performance, delivering 8 x 150W RMS at 4-ohm, 8 x 220W RMS at 2-ohm, and 4 x 450W RMS @ 4-ohm bridge. These power settings are guaranteed to supercharge any custom marine build.
Don’t settle for mediocre sound on your boat or powersport vehicle. Upgrade to the DS18 NXL-X1200.8D Marine & Powersports Digital Amplifier and unleash the true potential of your marine speakers.
