Description
DS18 NXL-X1000.1D
The DS18 NXL‑X1000.1D is a high‑power 1‑channel Class D marine and powersports amplifier (monoblock) engineered for rugged outdoor environments — including boats, UTVs, ATVs, and off‑road vehicles. With a robust IP67 waterproof and dust‑proof rating, UV/salt fog protection, and a compact aluminum housing, it’s built to withstand moisture and harsh conditions without compromising sound performance. Capable of driving powerful subwoofers, this monoblock delivers up to 1000 W RMS at 1 Ω with efficient DSP‑style controls like bass boost and low‑pass crossover, making it ideal for bass‑heavy setups and high‑output audio systems.
Specifications
| Specification | Details |
|---|---|
| SKU | NXL-X1000.1D |
| Total Watts (Peak) | 2000W |
| RMS Power @ 4Ω | 1 × 350W |
| RMS Power @ 2Ω | 1 × 600W |
| RMS Power @ 1Ω | 1 × 1000W |
AUDIO
| Specification | Details |
|---|---|
| Frequency Response | 10Hz – 250Hz |
| Signal-to-Noise Ratio (1W @ 4Ω) | >82dB |
| Efficiency @ 4Ω | 83% |
| Input Impedance | 20KΩ |
| Total Harmonic Distortion (THD) | <0.05% |
| Low Level Input Range | 200mV – 5V |

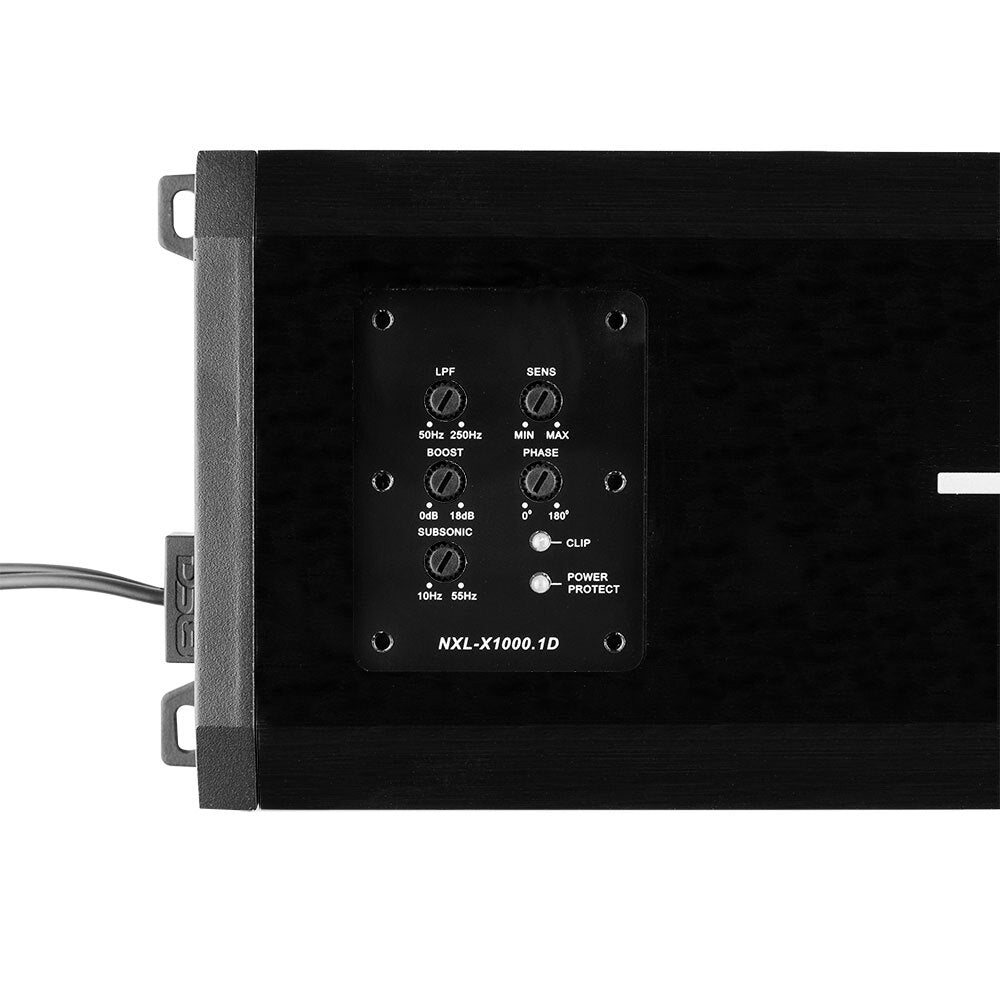

| X-Over Filter Range | 50Hz – 250Hz |
| Bass Boost Range | 0 – 18dB |
| Bass Boost Frequency | 42Hz |
| Infrasonic Filter | 10Hz – 55Hz |
| Phase Selector | 0° – 180° |
| Selectable X-Over | LPF Fixed |
FEATURES 1
| Specification | Details |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1Ω |
| LED Indicator | Power / Protection / Clip |
| Power Input Size | 4GA Tinned OFC |
FEATURES 2
| Specification | Details |
|---|---|
| Fuse Size | 2 × 50A (100A total) |
| Thermal Protection | Yes (75°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (7–16V) |
| Body Color / Finish | Black Brushed Aluminum |
EXTRA FEATURES
| Specification | Details |
|---|---|
| RCA Audio Output | No |
| Waterproof Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
MEASUREMENT
| Specification | Details |
|---|---|
| Overall Length | 11.8 in / 302 mm |
| Overall Width | 4.4 in / 112 mm |
| Overall Height | 1.77 in / 45 mm |
| Heatsink Length | 11 in / 281.6 mm |
| Gross Single Unit Weight | 2.21 kg |
| Product Weight | 6 lb |
| Product Dimensions | 15.5 × 9 × 3.75 in |
| Master Carton Weight | 31 lb |
| Master Carton Dimensions | 19.25 × 16.5 × 10 in |
| Master Carton Quantity | 5 |
| Sold In | Piece |
Product Overview
1-Channel Marine Waterproof Amplifier – Class D 1000 Watts RMS @ 1 Ohm
DS18’s HYDRO NXL-X1000.1D is a powerhouse designed for those who crave a compact audio solution that doesn’t compromise on power or sound quality.
With its high pass and low pass filters, the NXL-X1000.1D allows you to fine-tune your speaker setup for crystal-clear audio at any volume level. Featuring the latest digital amplifier design with SMC technology, this amplifier delivers powerful and efficient performance while minimizing distortion. The stable and reliable 4-layer PCB layout ensures optimal signal flow for exceptional audio precision.
One of the standout features of this amplifier is its IP67 waterproof rating, ensuring reliable performance even in wet and challenging conditions. UV, salt, and fog protection further enhance its durability, making it perfect for marine applications and off-road excursions.
With a peak power output of 2000W and RMS power ranging from 350W to an impressive 1000W at 1 ohm, you can enjoy immersive sound and enhanced bass that will elevate your audio experience to new heights.

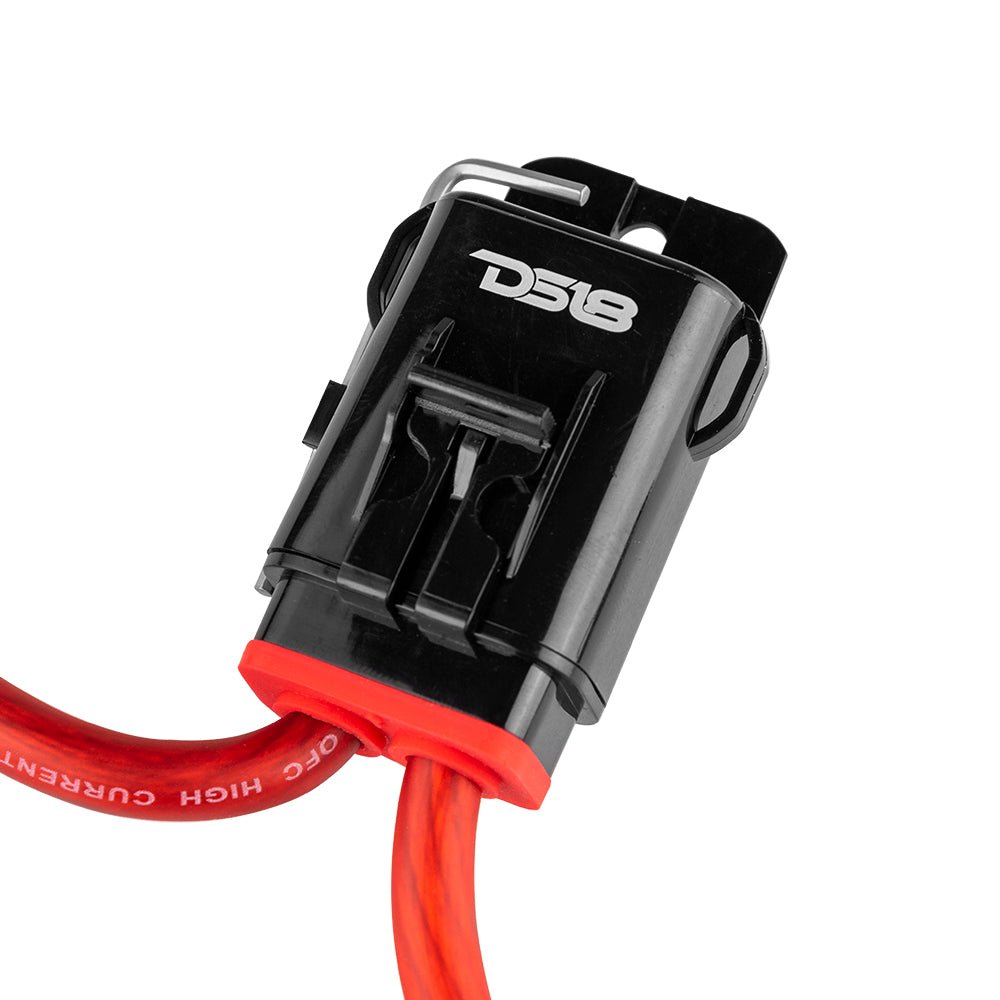

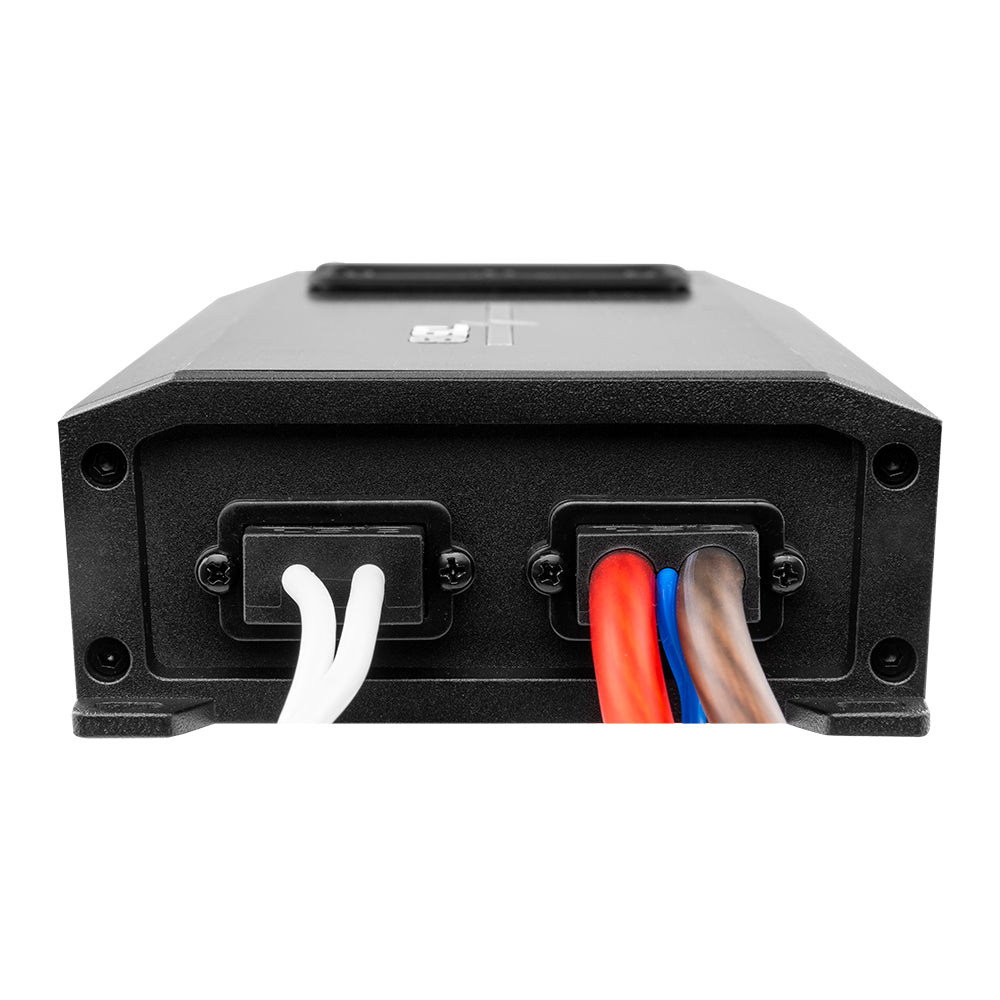

The direct power harness design with marine-grade OFC tinned wires guarantees a secure and efficient connection, but also offers convenience. Its ultra-compact size makes installation a breeze, while the included marine-grade fuse and fuse holder provide ultimate protection against electrical surges.
Experience the DS18 difference with DS18’s HYDRO NXL-X1000.1D and take your sound system to the next level.
