Description
DS18 NXL-PS6BK

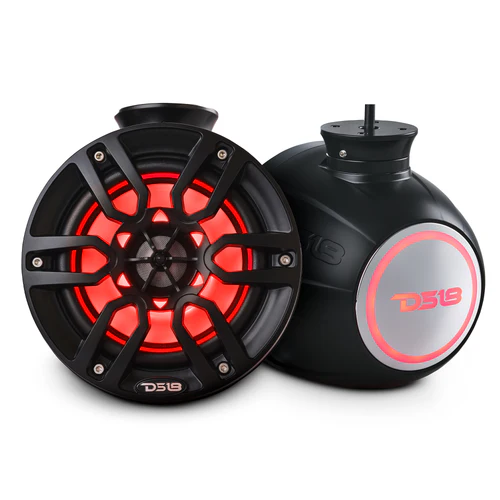

The NXL‑PS6 is a pair of 6.5″ marine‑grade 2‑way pod speakers with integrated RGB LED lighting designed for outdoor, marine, UTV, ATV, powersports, and custom audio installations. Built with a waterproof IP65 housing and UV‑stable materials, these speakers deliver crisp mids and clear highs with a 2‑way coaxial design and strong overall output. Flexible mounting options make them easy to install on towers, bars, and flat surfaces.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-PS6 |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 100 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W / 1m) | 91 dB |
| Frequency Response | 65 Hz – 23 kHz |
| Recommended Hi-Pass Crossover | 80 Hz |
Body / Features
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB speaker cone + back logo lighting, 6 core wires for lighting and speaker |
| Grill Type | Injection molded ASA + UV coating |
| Pair | Yes |
| Clamps | CNC aluminum base for flat mounting and die-cast solid aluminum 360° rotation mobile clamps for 1.75″ or 2″ mast included |
| Front Logo | Yes, can be rotated for correct angle display |
| Rear Logo | Yes, can be rotated for correct angle display |
| Finish | Matte Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1.2″ |
| Cone Material | Injection-molded UV-compliant polypropylene |
| Surround Material | Butyl |
| Basket Material | High-temp injection molded composite + UV coating |
| Magnet Material | Ferrite + Neodymium |
| Magnet Grade | Y35 / N40H |
| Passive Radiator | No |
Tweeter Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1″ |
| Type | Dome |
| Diaphragm Material | Titanium + PEI surround |
| Magnet Material | Neodymium |
| Crossover | 6 dB / Oct |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 8.5 L / 0.3 ft³ |
| Excursion (one-way Xmax) | 4 mm |
| Free Air Resonance (Fs) | 65 Hz |
| Total Factor (Qts) | 0.622 |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 6.94″ / 176.2 mm |
| Overall Depth | 6.25″ / 158.7 mm |
| Overall Height (with Mast Clamp) | 9.91″ / 251.6 mm |
| Overall Height (with Flat Clamp) | 7.76″ / 197.2 mm |
Product Overview
6.5″ All Elements Pod Speaker (Pair) – Perfect for Jet Skis
The NXL-PS6 is the perfect 6.5″ speaker pod for marine, UTV, ATV, and off-road applications that need serious sound in a compact form. Don’t let the size fool you—these speakers get LOUD in any environment.
Built For Audio Power
With a 1.2″ voice coil, 2-way design, and 91dB sensitivity, the NXL-PS6 pumps out 100W RMS / 300W Peak Power for clean mids and crisp highs from 65Hz to 23kHz—even in open-air environments.
RGB LED Lighting Built In
The DS18 logo and speaker cone are fully backlit with multicolor RGB. Control the vibe using the DS18 LED-BTC controller and the DS18 LED-BTC App on iOS or Android.
Flexible Mounting Options Included
The NXL-PS6 comes with both pole and flat mounting options in the box—making it easy to install on towers, roll bars, or flat surfaces. Want even more adjustability? Add the FLMBPS/V2 flat mount bracket (sold separately) for a premium mounting upgrade with 30° tilt and enhanced directional control—ideal for custom surfaces or angle tuning.
Marine-Ready Durability
With an IP65 waterproof rating and UV-resistant housing, the NXL-PS6 is ready for salt, splash, dust, and sun.
