Description
DS18 NXL-N1

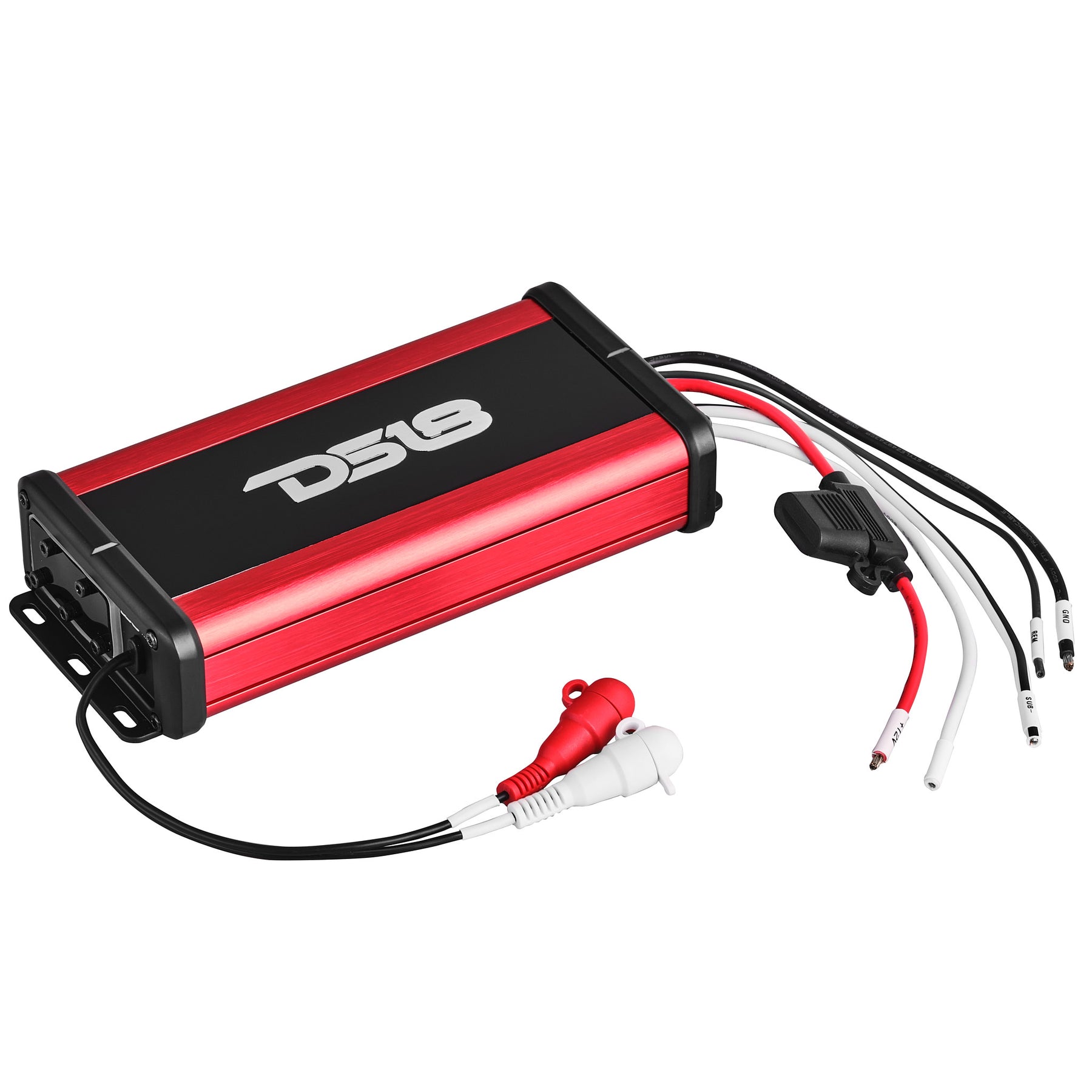

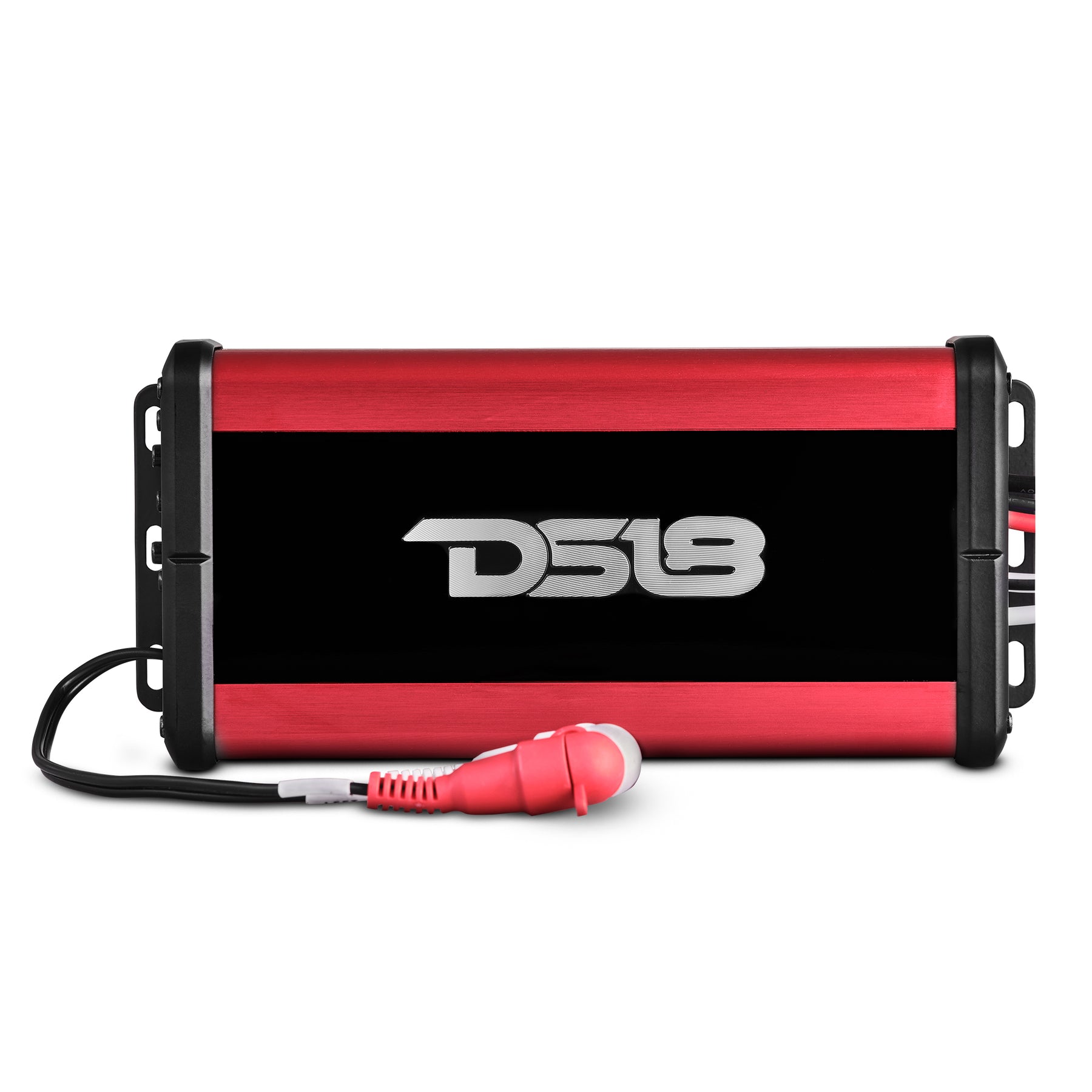

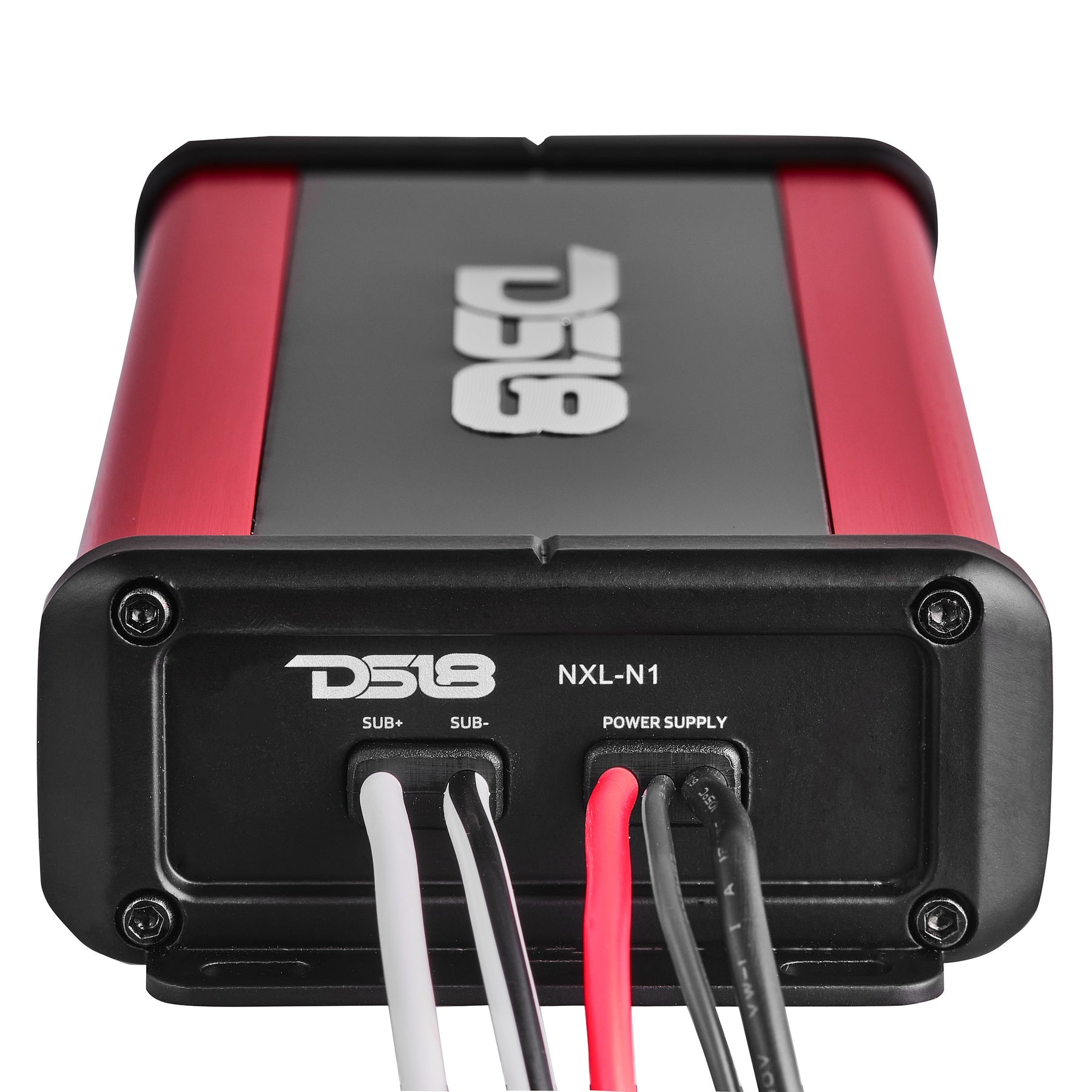

The DS18 NXL-N1 is a compact 1-channel Class D marine and powersports monoblock amplifier from the Hydro-Nano series. Designed for outdoor audio systems such as boats, UTVs, ATVs, motorcycles, and other rugged applications, it delivers powerful, clean bass performance while resisting harsh elements with an IP67 waterproof rating and ultra-compact footprint. Its digital design and boosted low-frequency controls make it ideal for driving subwoofers and enhancing low-end impact in custom audio systems.
Specifications
| Specification | Details |
|---|---|
| SKU | NXL-N1 |
| Total Watts (Peak) | 1050W |
| RMS Power @ 4Ω | 1 × 140W |
| RMS Power @ 2Ω | 1 × 230W |
| RMS Power @ 1Ω | 1 × 350W |
AUDIO
| Specification | Details |
|---|---|
| Frequency Response | 20Hz – 20KHz |
| Signal to Noise Ratio (1W @ 4Ω) | 90dB |
| Total Harmonic Distortion (THD) | 0.1% |

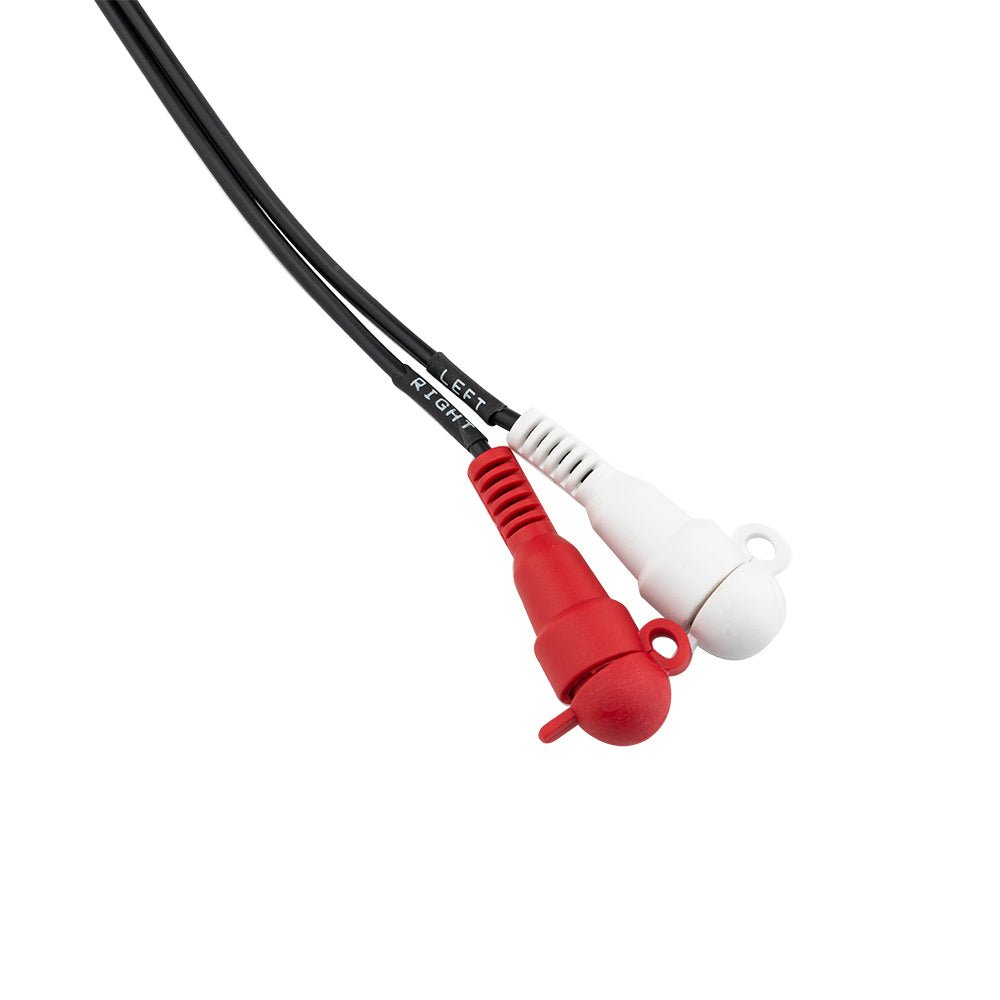

| Low Level Input Range | 200mV – 5V |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50 – 250Hz |
| Bass Boost Range | 0 – 18dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10 – 50Hz |
FEATURES 1
| Specification | Details |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| LED Indicator | Power / Protection |

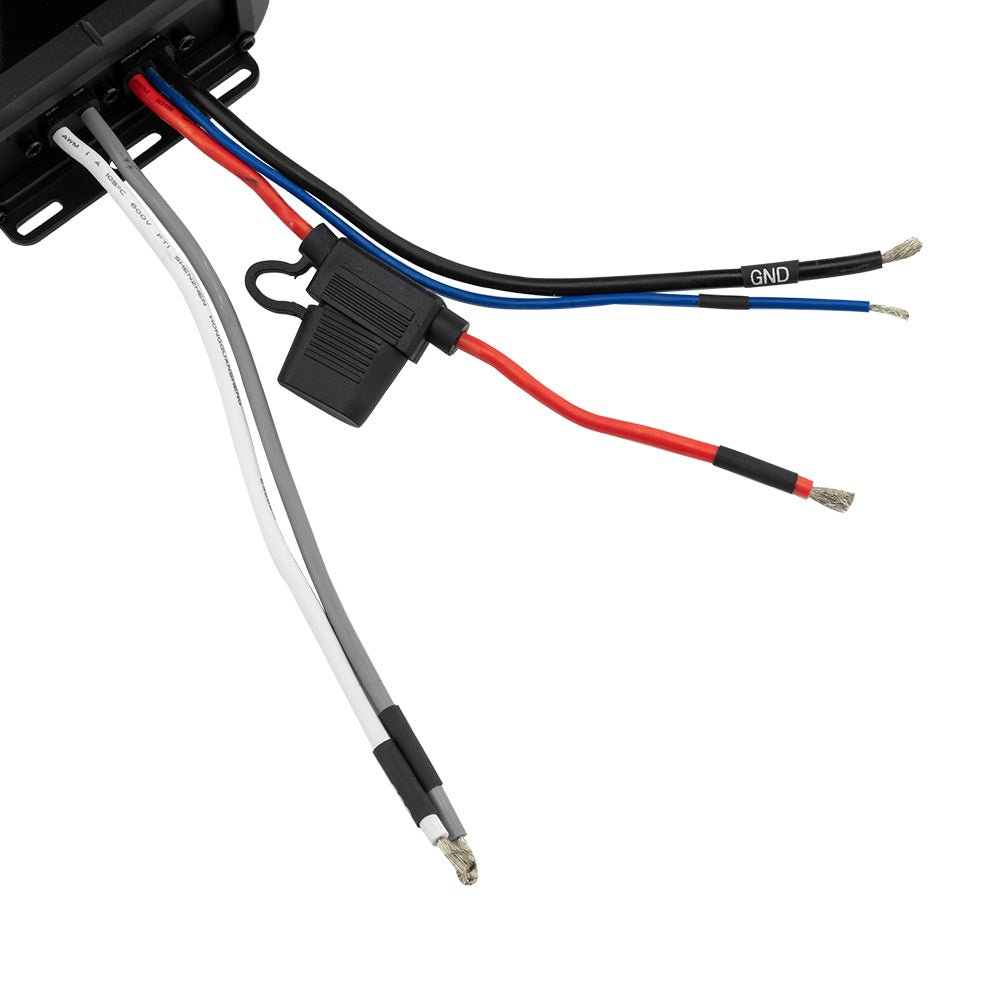

| Power Input Size | Wired 10Ga OFC |

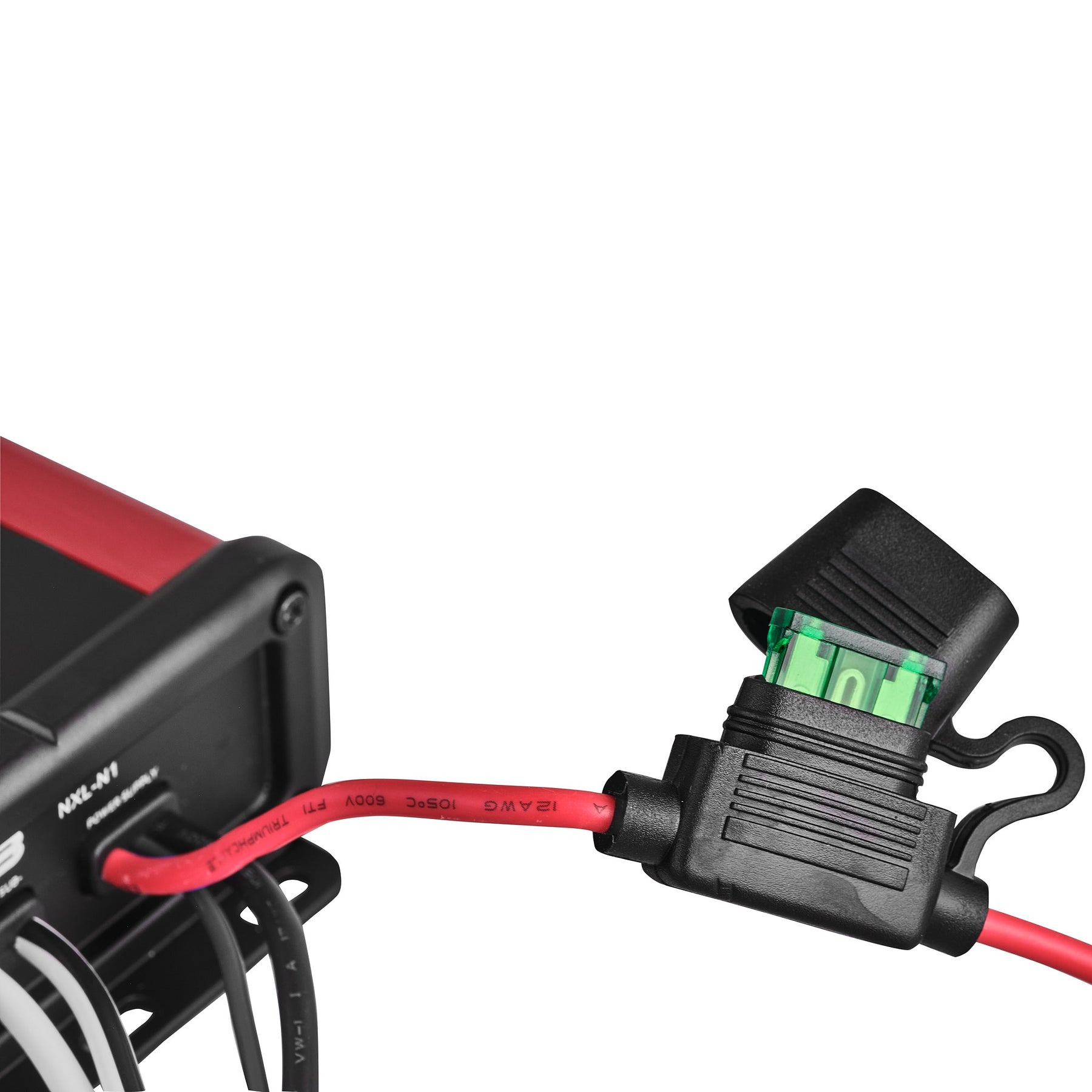

| Fuse Size | 30A |
| Thermal Protection | Yes |
FEATURES 2
| Specification | Details |
|---|---|
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (>15V) |
| Body Color | Aluminum Black and Red |
| Waterproof Rating | IPX67 |
| Full Range Digital Design (IR Platform) | Yes |
| Ultra Compact Design | Yes |
| PCB Design | Stable 4-Layer Layout |
| Quality Control Verification | AP Instruments |
MEASUREMENT
| Specification | Details |
|---|---|
| Overall Length | 7.87 in / 200 mm |
| Overall Width | 3.67 in / 93.4 mm |
| Overall Height | 1.56 in / 39.8 mm |
| Heatsink Length | 7.16 in / 182 mm |
| Gross Single Unit Weight | 2.14 lb / 974 g |
| Product Weight | 2 lb |
| Product Dimensions | 10.25 × 5 × 3 in |
| Master Carton Weight | 25.5 lb |
| Master Carton Dimensions | 16 × 11 × 10.75 in |
| Master Carton Quantity | 10 |
| Sold In | Piece |
Product Overview
Nano Digital Marine Monoblock Amplifier 1050W
DS18’s NXL-N1 is the ultimate power solution for audio enthusiasts who like it LOUD on the go! Whether you’re hitting the open road on your bike, tearing through rough trails on your side by side, or cruising the open waters, this waterproof rated amp delivers exceptional performance in a compact package.
DS18’s NXL-N1 is designed to power your entire system with efficiency and precision. With a 1-channel configuration these amplifiers provide your subwoofers with uninterrupted power for them to get as LOUD as possible!
Built with a stable and reliable 4-layer PCB layout design, the NXL-N4 ensures consistent performance even in challenging conditions. Rated IP67 for powersports applications, they are fully waterproof and ready to withstand the harshest environments. Plus, their ultra-compact size makes installation a breeze, fitting seamlessly into any setup.
Featuring a max power of 1050W, this amplifier delivers rich and immersive sound with 1 x 230W of RMS power at 2 Ohm and 1 x 350W of RMS power at 1 Ohm!
Experience the DS18 difference with DS18’s NXL-N1 1-Channel Monoblock Marine Amplifier.
