Description
DS18 NXL-10SUB/WH
The NXL-10SUB is a 10″ marine and outdoor subwoofer designed to deliver deep, powerful bass for boats, UTVs, ATVs, and custom audio systems. Featuring a rugged IP65 water-resistant construction and built-in RGB LED lighting, this subwoofer provides rich low-frequency output with clear detail even in harsh environments. Its 4-ohm single voice-coil design and high-temperature components ensure reliable performance with both sealed and ported enclosures.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-10SUB/WH |
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 300 W |
| Maximum Power Handling | 600 W |
| Sensitivity (1W / 1m) | 89 dB |
| Frequency Response | 35 – 250 Hz |
| Recommended Low-Pass Crossover | 100 Hz |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Basket Material | High-temp injection molded composite with UV protection coating |
| Magnet Weight | 72 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 26.7 L / 0.94 ft³ |
| Free Air Resonance (Fs) | 45 Hz |
| Mechanical Factor (Qms) | 8.919 |
| Electrical Factor (Qes) | 0.805 |
| Total Factor (Qts) | 0.457 |
| DC Resistance (Re) | 3.65 Ohms |

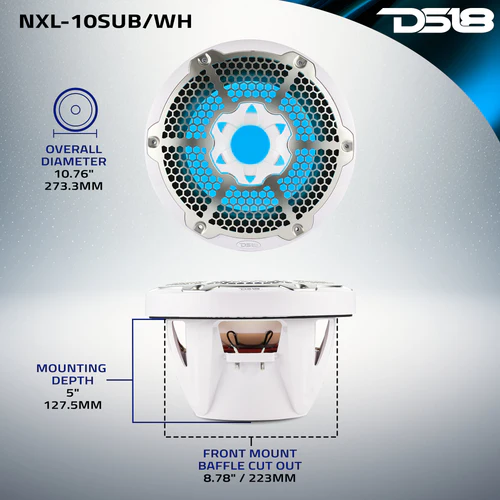

Measurements & Packaging
| Parameter | Specification |
|---|---|
| Overall Diameter | 10.76″ / 273.3 mm |
| Front Mount Baffle Cutout | 8.78″ / 223 mm |
| Mounting Depth | 5″ / 127.5 mm |
| Overall Depth | 6.73″ / 171 mm |
| Product Weight | 14 lb |
| Product Dimensions | 13.25 × 13.25 × 8.75 |
| Master Carton Weight | 30 lb |
| Master Carton Dimensions | 27 × 13.75 × 9.5 |
| Master Carton Quantity | 2 |
| Sold In | Piece |
Product Overview
Powerful Bass Built for the Water, Weather & Adventure
Upgrade your marine or outdoor audio system with the DS18 NXL-10SUB/WH, a premium 10-inch marine-grade subwoofer engineered to deliver deep, impactful bass in the harshest environments. Designed by DS18, this subwoofer combines rugged durability, powerful performance, and eye-catching RGB lighting—perfect for boats, off-road vehicles, and outdoor sound systems.
Key Features & Benefits
Marine-Grade Weather-Resistant Construction (IP65 Rated) – Built to withstand water, moisture, salt, and sun exposure, making it ideal for marine and outdoor applications.

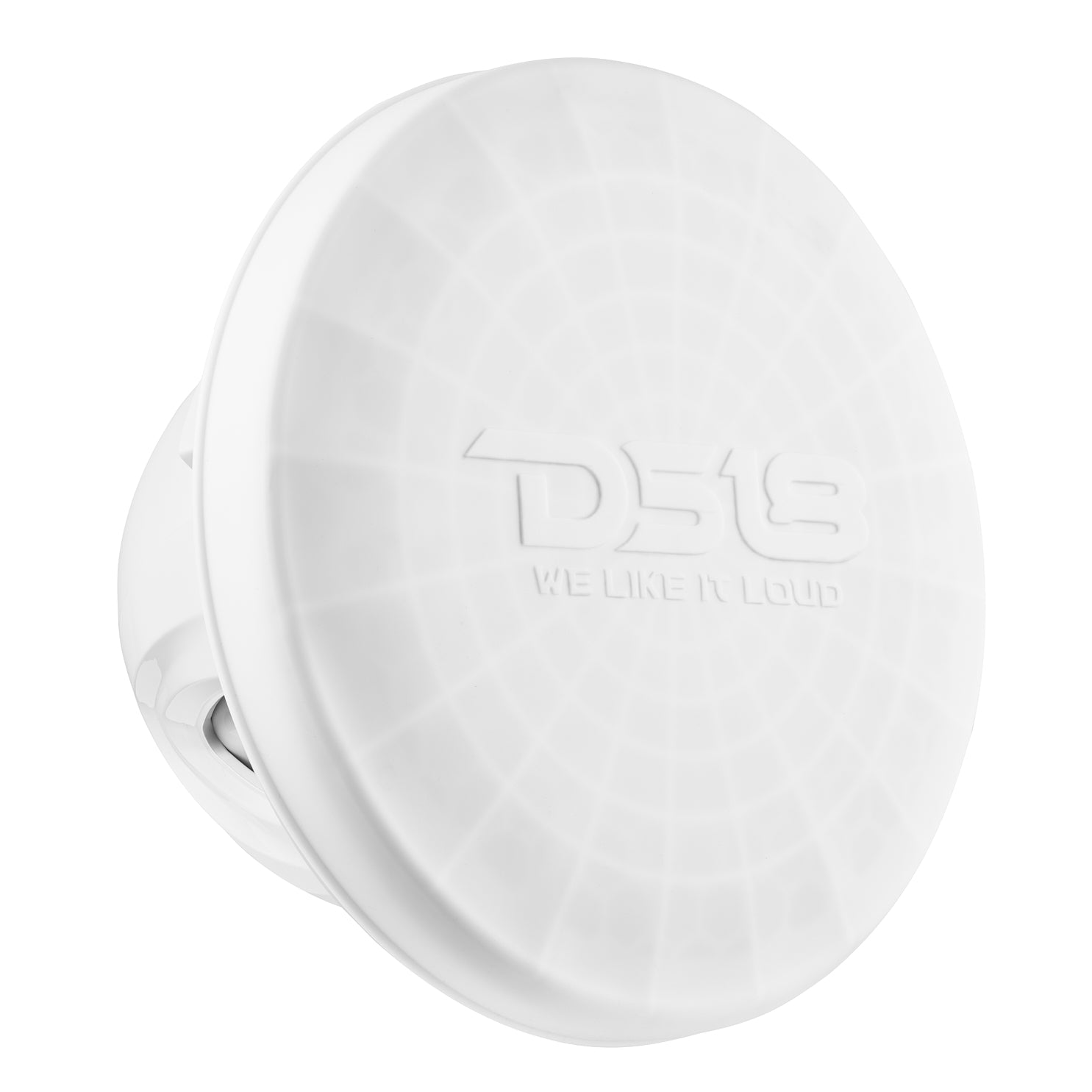

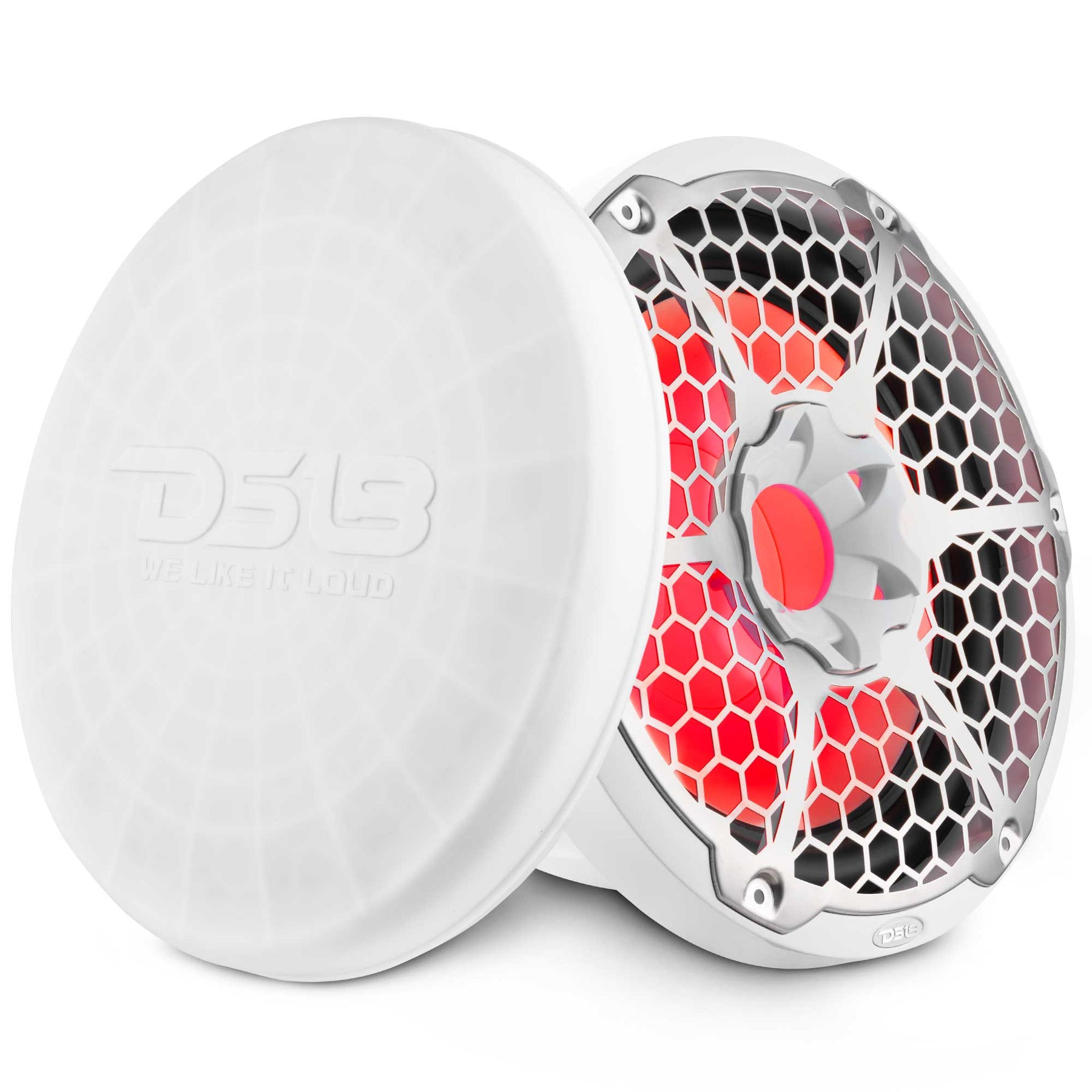

Protective Silicone Cover Included – Comes with a silicone protective cover that adds an extra layer of defense against the elements while helping preserve the subwoofer’s finish and longevity.
600W MAX Power Handling – Handles 300W RMS / 600W MAX, delivering powerful, clean, and distortion-free bass you can feel.
Single 4-Ohm Voice Coil (SVC) – Optimized for efficient power transfer and easy system integration.
Integrated RGB LED Lighting – Built-in RGB LEDs connect to any 4-wire RGB circuit, allowing you to customize colors and enhance your system’s visual appeal.
For full lighting control, DS18 LED-BTC or LC-RGB controllers are recommended (sold separately).
High-Performance Audio Components – Features a durable 2-inch voice coil former, powerful ferrite magnet, and UV-compliant cone materials for long-lasting, high-output performance.
Sealed & Ported Enclosure Compatible – Engineered to perform exceptionally well in both sealed and ported enclosures, giving you flexibility in your system design.
