Description
DS18 NXL-10MD/WH

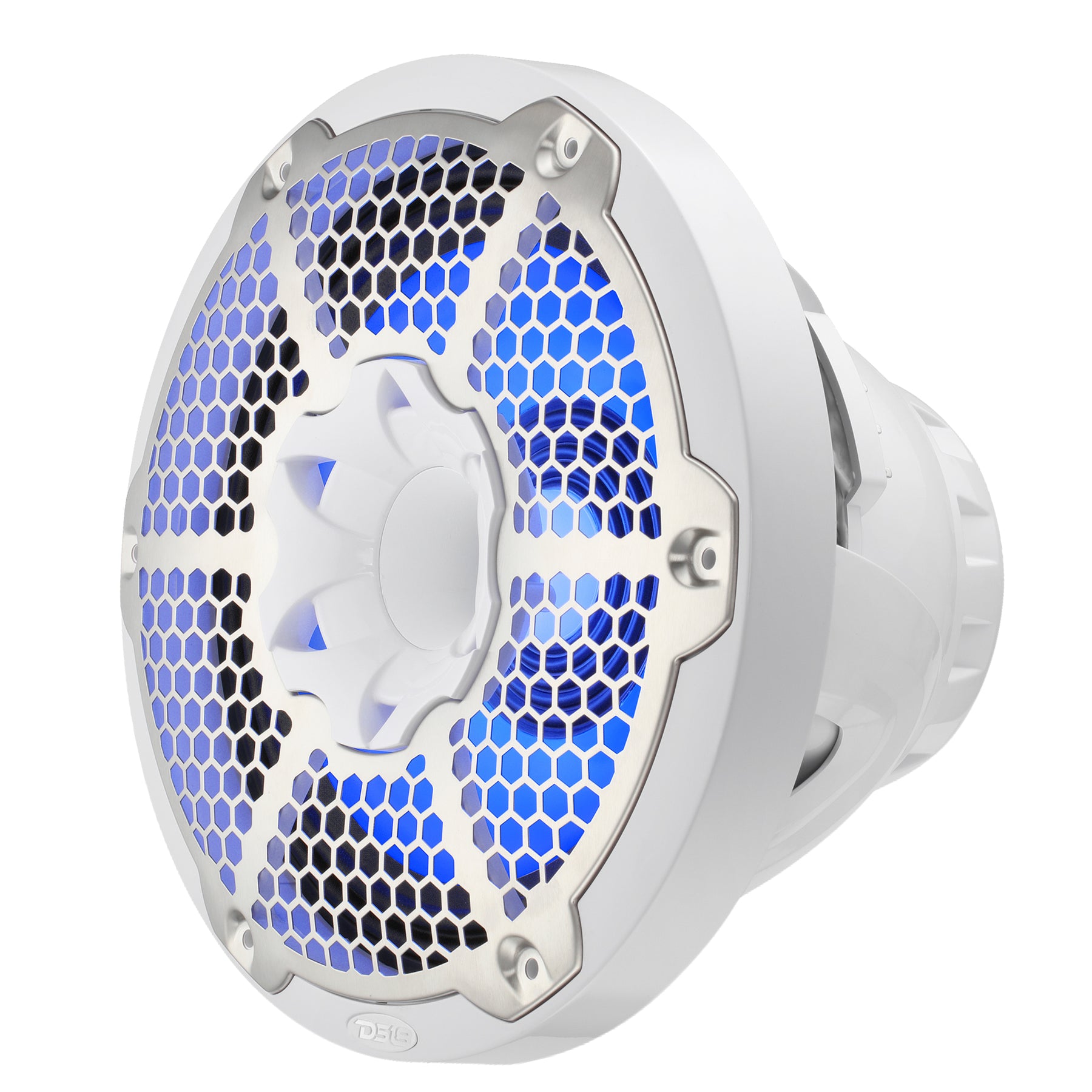

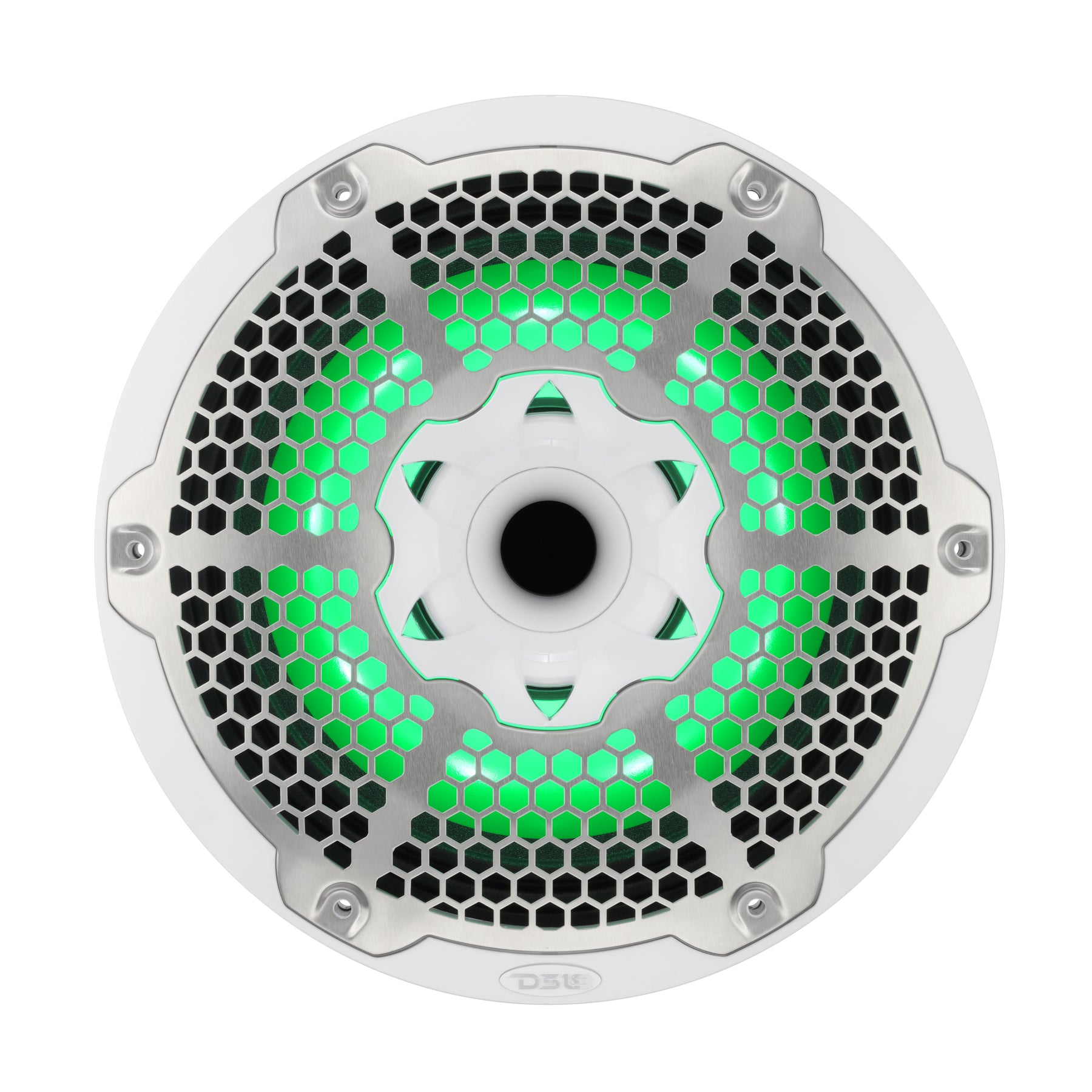

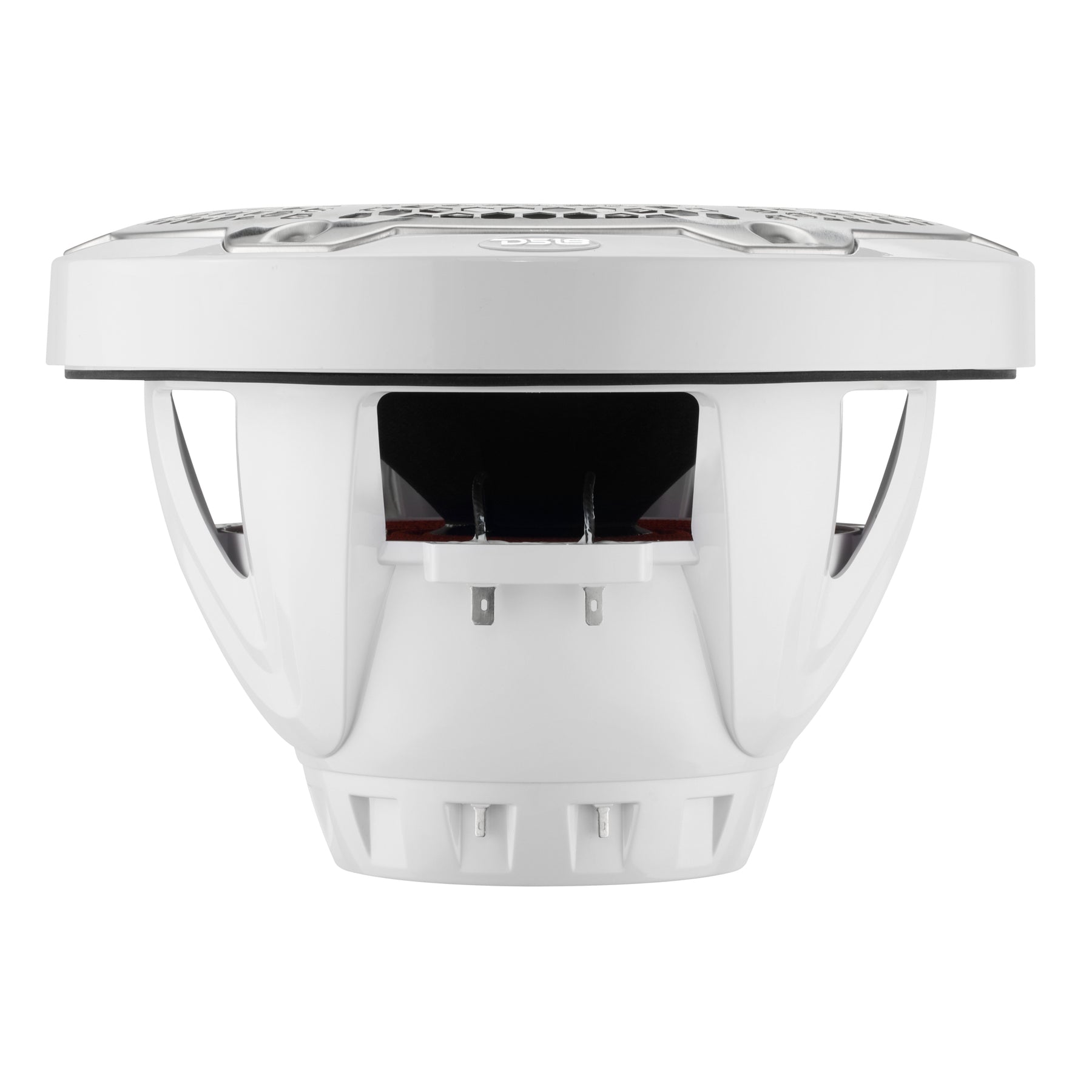

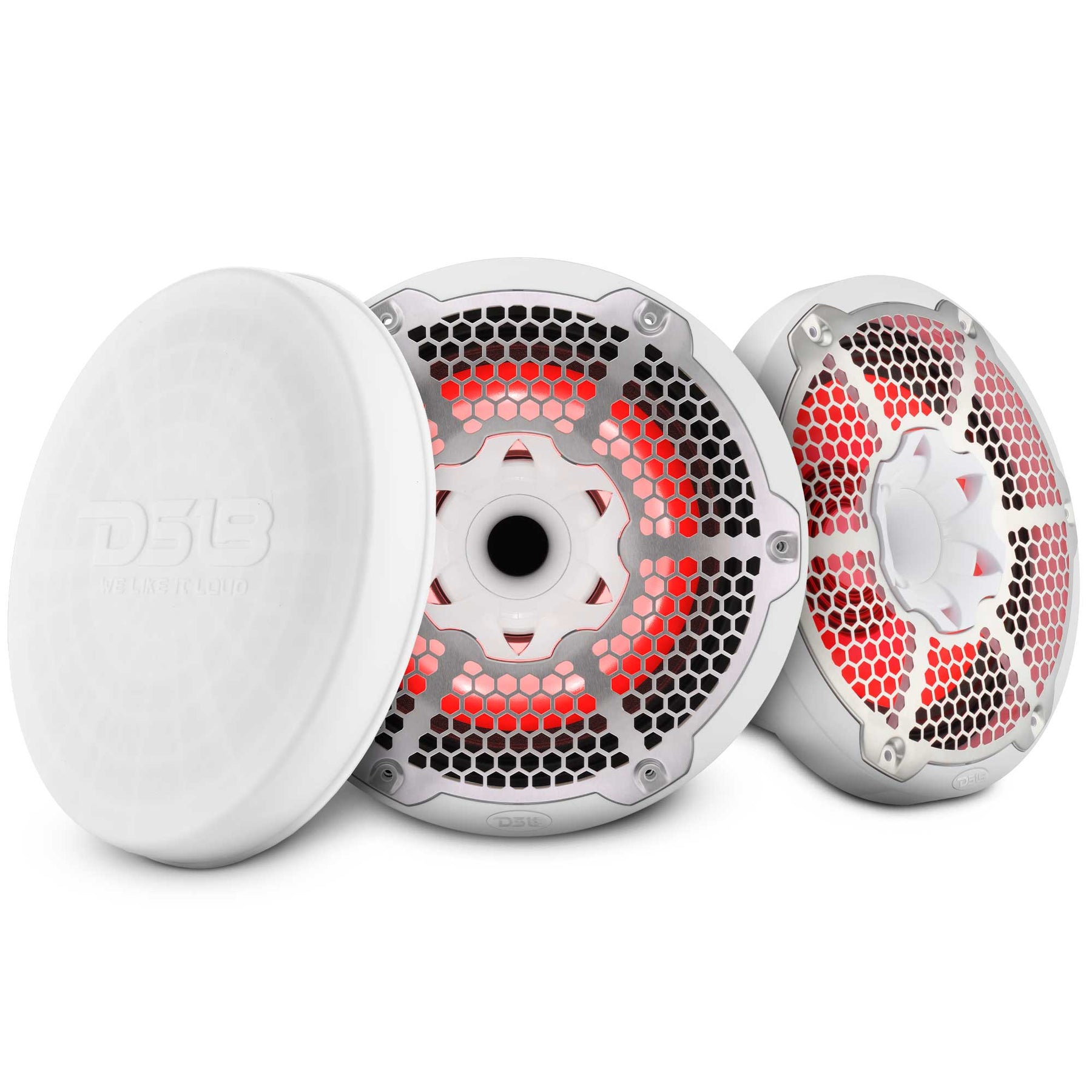

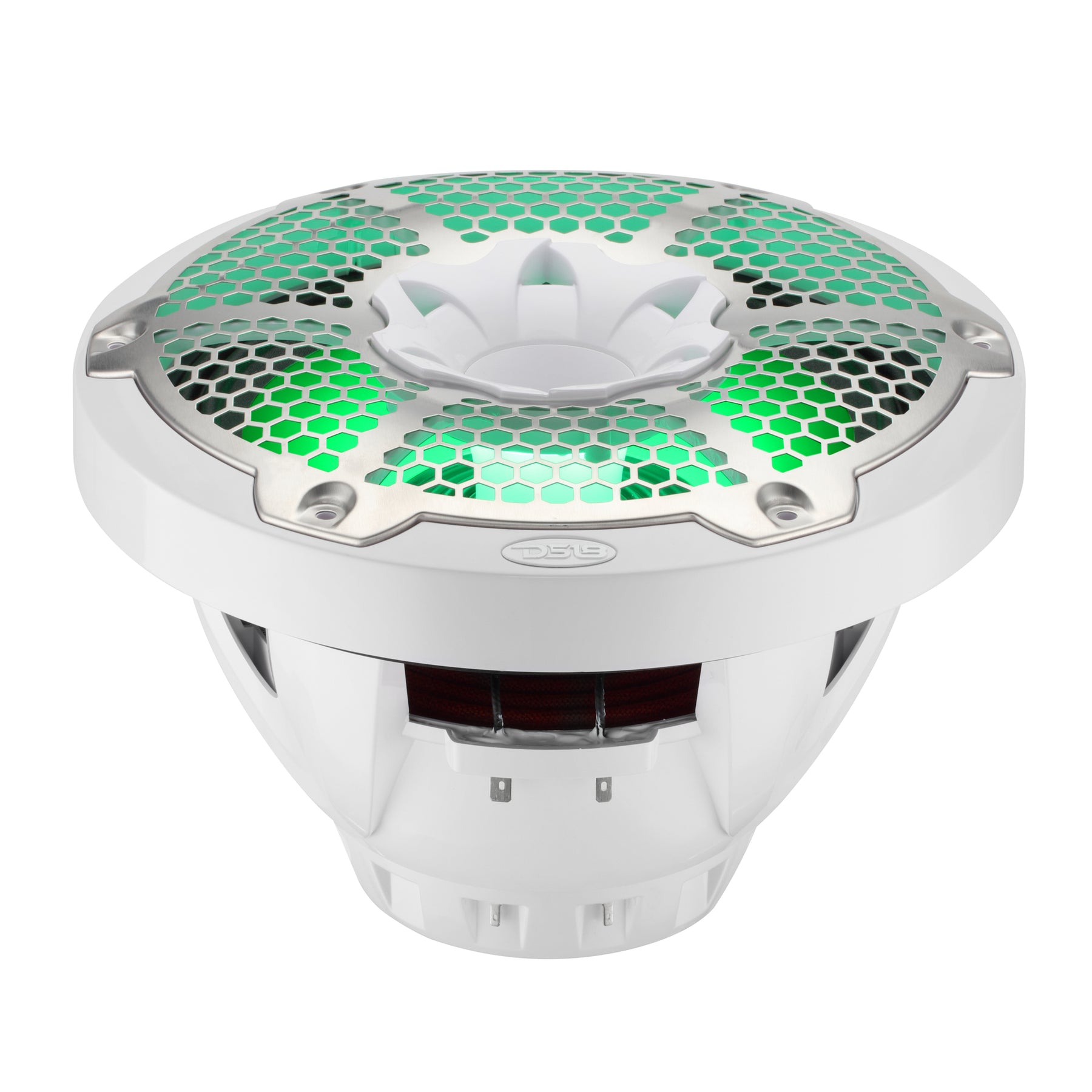

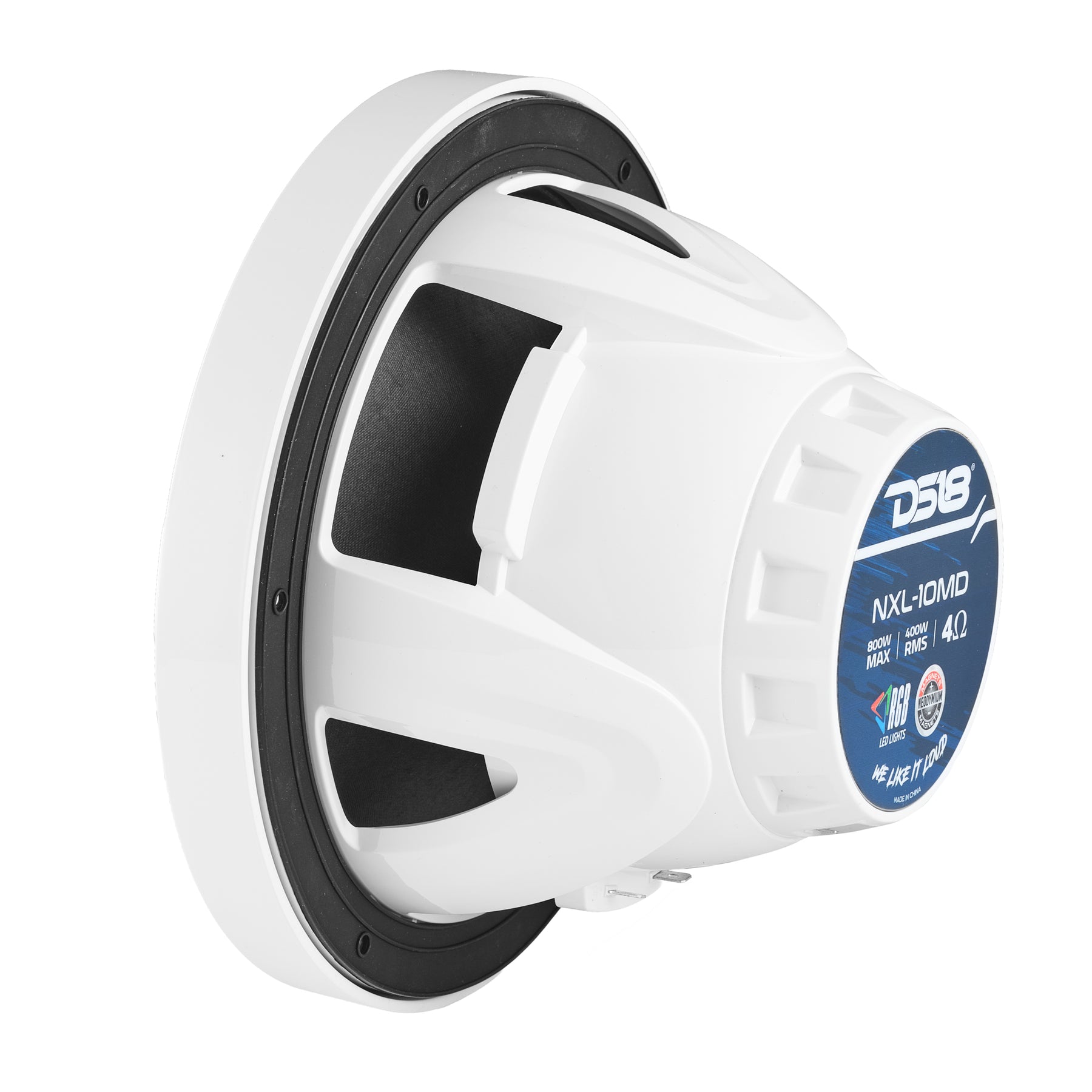

The NXL-10MD is a 10″ marine-grade hybrid 2-way speaker pair with a high-efficiency neodymium woofer and a CNC-machined aluminum compression driver horn. Designed for marine, powersports, UTV, ATV, and outdoor audio installations, it delivers powerful full-range sound with deep mids, crisp highs, and vibrant integrated RGB LED lighting. Built with IP65 water-resistant and UV-stable construction and removable stainless steel grills, this speaker pair is ideal for rugged environments and immersive audio setups.
Specifications
| Parameter | Specification |
|---|---|
| Nominal Diameter | 10″ / 254mm |
| RMS Power Handling (Combined) | 450W |
| MAX Power Handling (Combined) | 900W |
| Sensitivity (1W/1m) (Combined) | 109dB |
| Frequency Response (Combined) | 40Hz – 20kHz |
| Number of Ways | 2-Ways |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, 12VDC LED integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating + Removable 316 Stainless Steel metal mesh |
| Sold in Pair | Yes |
| Color / Finish | Matte Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 400W |
| MAX Power Handling | 800W |
| Sensitivity (1W/1m) | 96dB |
| Frequency Response | 40Hz – 5kHz |
| Recommended Band-Pass Crossover | 60Hz – 2.5kHz |
| Voice Coil Diameter | 2″ / 50.8mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Injection Molded PC with UV Protection coating |
| Magnet Material | Neodymium (N40H) |
| Magnet Weight | 14.2 oz |
Driver Specifications
| Parameter | Specification |
|---|---|
| Type | Compression driver with CNC solid aluminum horn |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50W |
| MAX Power Handling | 100W |
| Sensitivity (1W/1m) | 109dB |
| Frequency Response | 1kHz – 20kHz |
| Crossover | Built-In 12dB/Oct with overload protection |
| Recommended High-Pass Crossover | 2.5kHz |
| Voice Coil Diameter | 1.5″ / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Round Aluminium Wire |
| Diaphragm Material | PI |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 oz |
Thiele & Small Parameters
| Parameter | Specification |
|---|---|
| Equivalent Volume | 18.18L / 0.642ft³ |
| Excursion (One Way) | 5.5mm |
| Free Air Resonance | 72Hz |
| Mechanical Factor (Qms) | 5.786 |
| Electrical Factor (Qes) | 0.987 |
| Total Factor (Qts) | 0.844 |
| Moving Mass | 37.721g |
| Compliance | 129.768 µM/N |
| BL Factor | 6.953 |
| Voice Coil Inductance | 0.40mH |
| Cone Area | 314.16 cm² |
| DC Resistance | 3 Ohms |
| Efficiency Bandwidth Product | 73 |

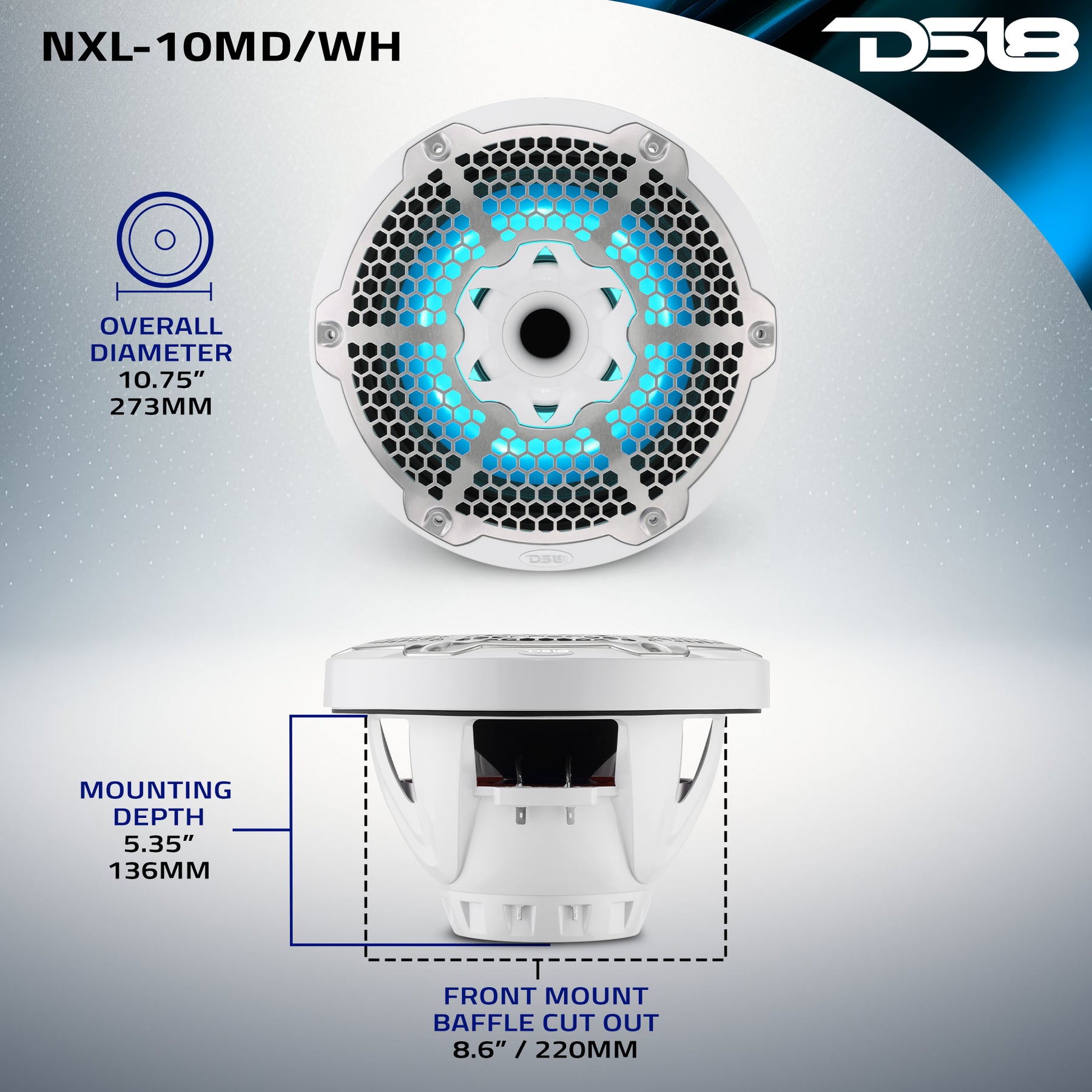

Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 10.75″ / 273mm |
| Overall Depth | 7.1″ / 180mm |
| Front Mount Baffle Cutout | 8.6″ / 220mm |
| Mounting Depth | 5.35″ / 136mm |
| Motor Diameter | 4.3″ / 110mm |
Product Overview
10” Marine Grade Hybrid Speaker with RGB LED, Compression Driver, Neodymium Magnet
Rated at 450W RMS and 900W MAX, the NXL-10MD is the ultimate marine hybrid speaker for those who demand pristine clarity on the water or trail.
Hybrid Design
This speaker combines a large 2” voice coil woofer with a water-resistant paper cone and a 1.5” neodymium compression driver with a solid aluminum CNC horn. Covering an expansive 40Hz to 20kHz frequency range, the NXL-10MD delivers full-spectrum sound to complement any system.
Built Tough

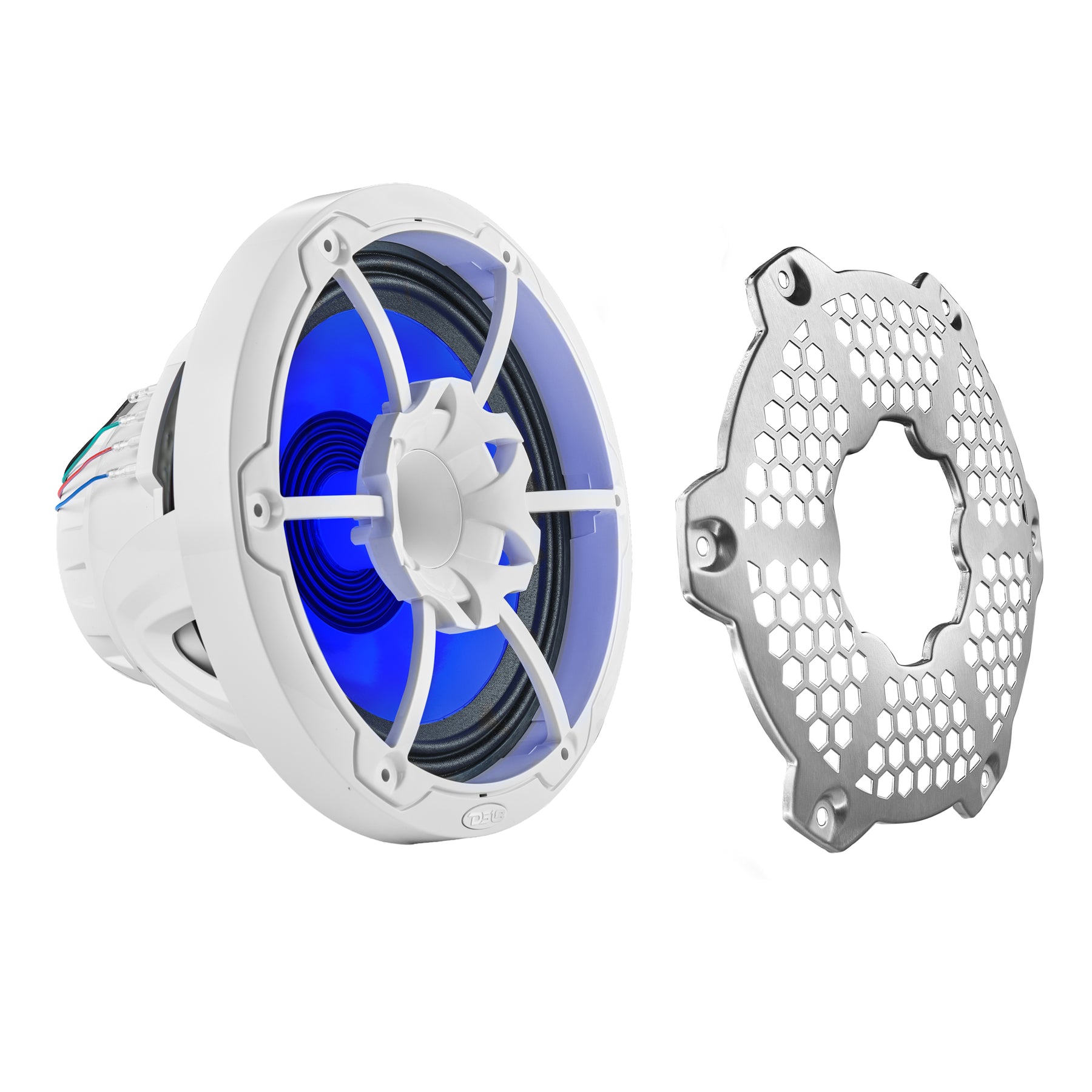

Constructed with IP65 rated injection-molded ASA basket, 316 stainless steel removable grills, and finished in stylish carbon fiber texture. The integrated 12V RGB LED system lets you customize your lighting for night cruises or off-road parties.
Simple Installation
Designed for 10.75” cutouts with a 5.35” mounting depth, the NXL-10MD installs easy and comes in pairs for complete stereo setups.
Ready for Every Adventure
Finished in a sleek texture and available in Black, White, or Carbon Fiber: the NXL-10MD is as stylish as it is durable.
