Description
DS18 NXL-10M/BK

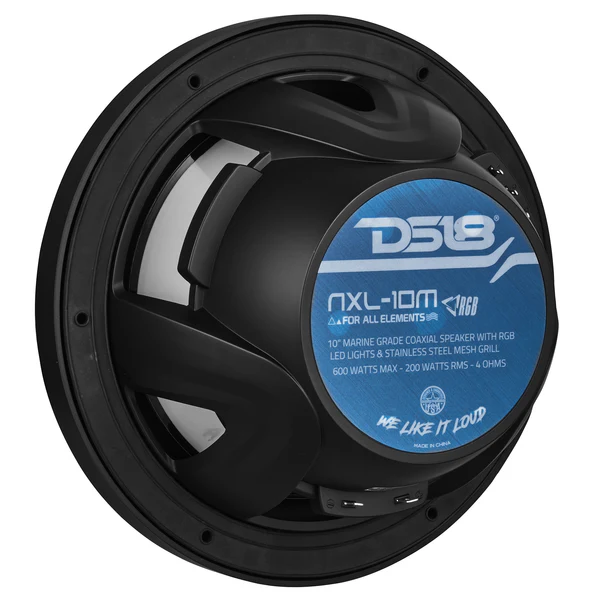

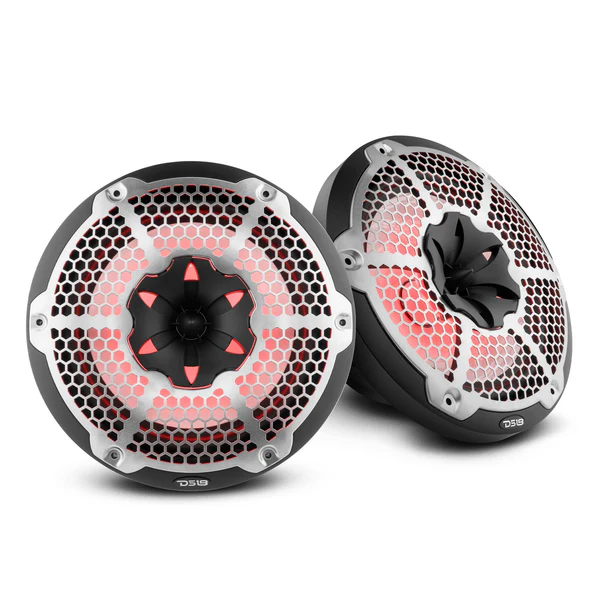

The NXL-10M is a 10″ marine-grade 2-way coaxial speaker pair with integrated RGB LED lighting and rugged IP65 water-resistant construction. Designed for boats, UTVs, ATVs, powersports, and outdoor audio systems, it delivers powerful full-range sound with deep midbass and crisp highs. Its weather-resistant build ensures reliable performance in harsh environments while the RGB LED lighting adds visual appeal to custom installations.
Specifications
| Specification |
Value |
| SKU |
NXL-10M/BK |
| Nominal Diameter |
10″ / 254 mm |
| Nominal Impedance |
4 Ohm |
| RMS Power Handling |
200 W |
| MAX Power Handling |
600 W |
| Sensitivity (1W/1M) |
94.3 dB |
| Frequency Response |
35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover |
50 Hz |
Body / Features
| Feature |
Description |
| UV Compliant |
Yes, 100% Stable |
| Marine Grade Type |
IP65 |
| RGB LED |
Yes, RGB Integrated |
| Grill Type |
Injection Molded Composite ASA with 316 Stainless Steel Mesh |
| Pair |
Yes |
| Color / Finish |
Black / Satin |
Woofer Specifications
| Specification |
Value |
| Voice Coil Diameter |
1.5″ / 38.6 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Cone Material |
Injection Molded Polypropylene + UV Compliant |
| Surround Material |
Butyl (Rubber) |
| Basket Material |
High-Temp Injection Molded Composite ASA with UV Protection Coating |
| Magnet Material |
Ferrite (Y35) + Neodymium (N35) |
| Magnet Weight |
50 oz + 0.56 oz |
Tweeter Specifications
| Specification |
Value |
| Nominal Diameter |
1″ / 25.4 mm |
| Voice Coil Diameter |
1″ / 25.4 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Diaphragm Material |
PEN |
| Magnet Material |
Neodymium (N38H) |
| Magnet Weight |
0.51 oz |
Thiele & Small Parameters
| Parameter |
Value |
| Vas (Equivalent Volume) |
197.13 L / 6.96 ft³ |
| Xmax (One Way) |
6 mm |
| Fs (Free Air Resonance) |
42 Hz |
| Qms (Mechanical Factor) |
6.874 |
| Qes (Electrical Factor) |
0.838 |
| Qts (Total Factor) |
0.747 |
| Mms (Moving Mass) |
11.37 g |
| Cms (Compliance) |
1.264 mm/N |
| Bl Factor |
3.4 |
| Le (Voice Coil Inductance) |
0.60712 mH |
| Sd (Cone Area) |
333.29 cm² |
| Re (DC Resistance) |
3.2 Ohms |
| EBP |
50.12 |
Speaker Measurements & Packaging
| Measurement |
Value |

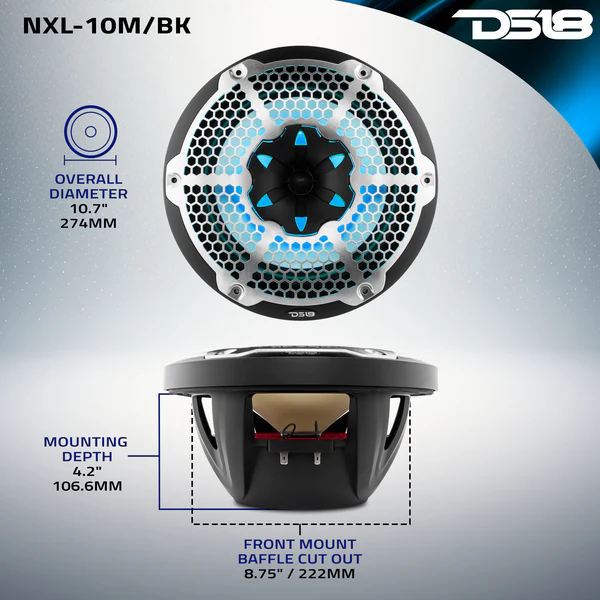

| Overall Diameter |
10.7″ / 274 mm |
| Overall Depth |
5.7″ / 144.7 mm |
| Front Mount Baffle Cutout |
8.75″ / 222 mm |
| Mounting Depth |
4.2″ / 106.6 mm |
| Motor Diameter |
5.3″ / 135 mm |
| Gross Single Unit Weight |
20 lb |
| Single Unit Box Dimensions (W × L × H) |
23 × 12.75 × 7.5 in |
| Units per Master Carton |
20 |
| Gross Master Carton Weight |
41.5 lb |
| Master Carton Dimensions (W × L × H) |
23.5 × 14 × 16 in |
Product Overview
10″ 2-Way Marine Water Resistant Speakers with Integrated RGB LED Lights 600W – Black
DS18’s NXL-10M’s cutting-edge design and impressive features, makes it the ultimate companion for all your marine adventures!
Built to withstand even the harshest elements, the NXL-10M’s feature a durable IP65 waterproof rating. Whether you’re cruising through rough waters or battling the elements, these speakers will keep playing and delivering exceptional sound quality.
Featuring a 10-inch woofer and an integrated tweeter, the NXL-10M’s offer an impressive frequency response 35Hz – 20KHz and deliver crystal-clear sound. Experience the full depth and richness of your music in every session.
One of the standout features of the NXL-10M is its integrated RGB LED lighting system. The sleek grill design not only offers protection but also illuminates in a stunning array of colors. Customize your boat’s ambiance and create a captivating atmosphere as you enjoy your favorite tunes.
DS18 has spared no expense in guaranteeing the highest quality for their marine speakers. The exclusive metal mesh grill design ensures maximum protection for your investment, while the UV-compliant materials maintain stability even under extreme conditions.
Upgrade your marine audio system with DS18’s NXL-10M and dominate the waters with superior craftsmanship and unbeatable performance.
