Description

DS18 NXL-10/BK

The NXL‑10 is a pair of 10″ marine‑grade 2‑way coaxial speakers with integrated RGB LED lighting and rugged IP65 water‑resistant construction. Designed for boats, UTVs, ATVs, powersports, and outdoor audio systems, it delivers balanced full‑range sound with strong midbass and clear highs. Integrated LED lighting enhances visual appeal for custom installations while the weather‑resistant build ensures durability in harsh environments.


Specifications

Parameter Specification
SKU NXL-10/BK
Nominal Diameter 10″ / 254 mm
Nominal Impedance 4 Ohm
RMS Power Handling 200W
Maximum Power Handling 600W
Sensitivity (1W/1m) 94.3 dB
Frequency Response 35Hz – 20kHz
Recommended Hi-Pass Crossover 50Hz
Silicone Cover Included Yes

Voice Coil / Motor Specifications
Parameter Specification
Voice Coil Diameter 1.5″ / 38.6mm
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material High Temp Injection Molded Composite with UV Protection Coating
Magnet Weight 50 oz + 0.56 oz

Thiele & Small Parameters
Parameter Specification
Vas 197.13L / 6.96 ft³
Xmax 6 mm
Fs 42 Hz
Qms 6.874
Qes 0.838
Qts 0.747
Re 3.2 Ohm

Measurements & Packaging
Parameter Specification

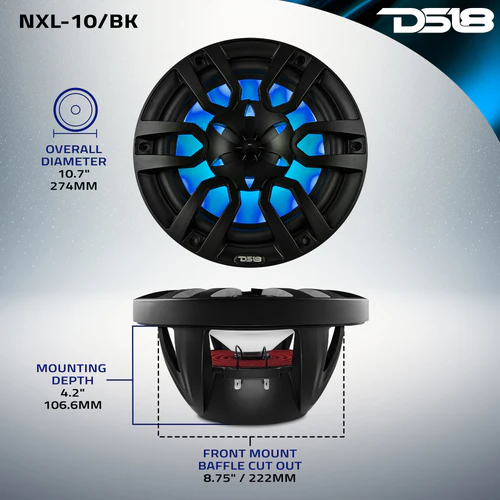

Overall Diameter 10.7″ / 274 mm
Front Mount Baffle Cutout 8.75″ / 222 mm
Mounting Depth 4.2″ / 106.6 mm
Overall Depth 5.7″ / 144.7 mm
Product Weight 19.5 lbs
Product Dimensions 23 × 12.75 × 7.5 in
Master Carton Weight 40.5 lbs
Master Carton Dimensions 23.5 × 14 × 16 in
Master Carton Quantity 2
Sold In Pair

Product Overview

10″ 2-Way Coaxial Marine Speaker With LED RGB Lights 200W Rms 4-Ohm – Black

DS18’s NXL-10/BK blows the competition away with innovative design and exceptional performance!

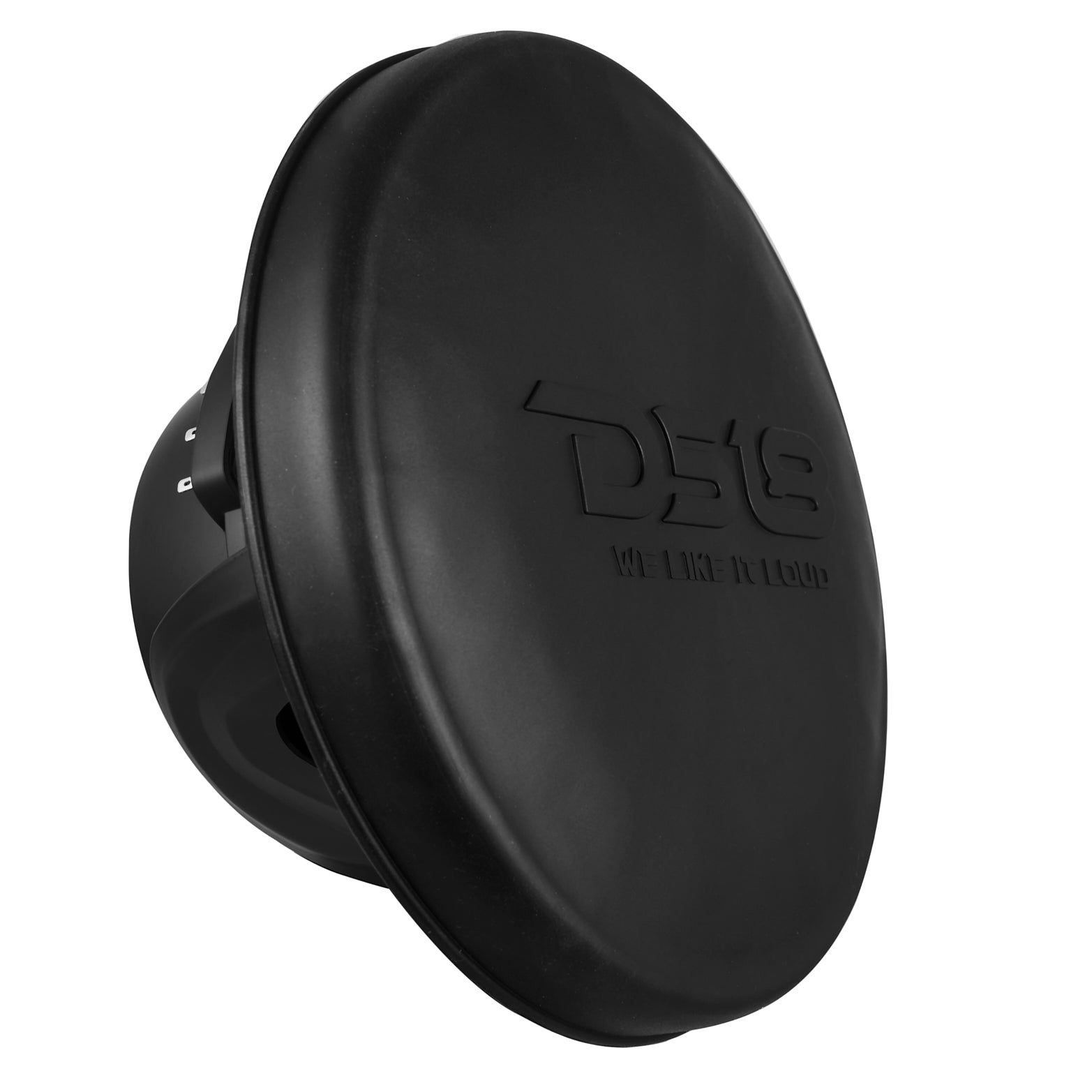

Built to withstand the harshest elements, these speakers are IP65 waterproof rated and come with a stylish silicone cover, ensuring durability and longevity in any weather condition. Available in white or black, they seamlessly blend with your vehicle’s accents, adding a touch of elegance to your setup.

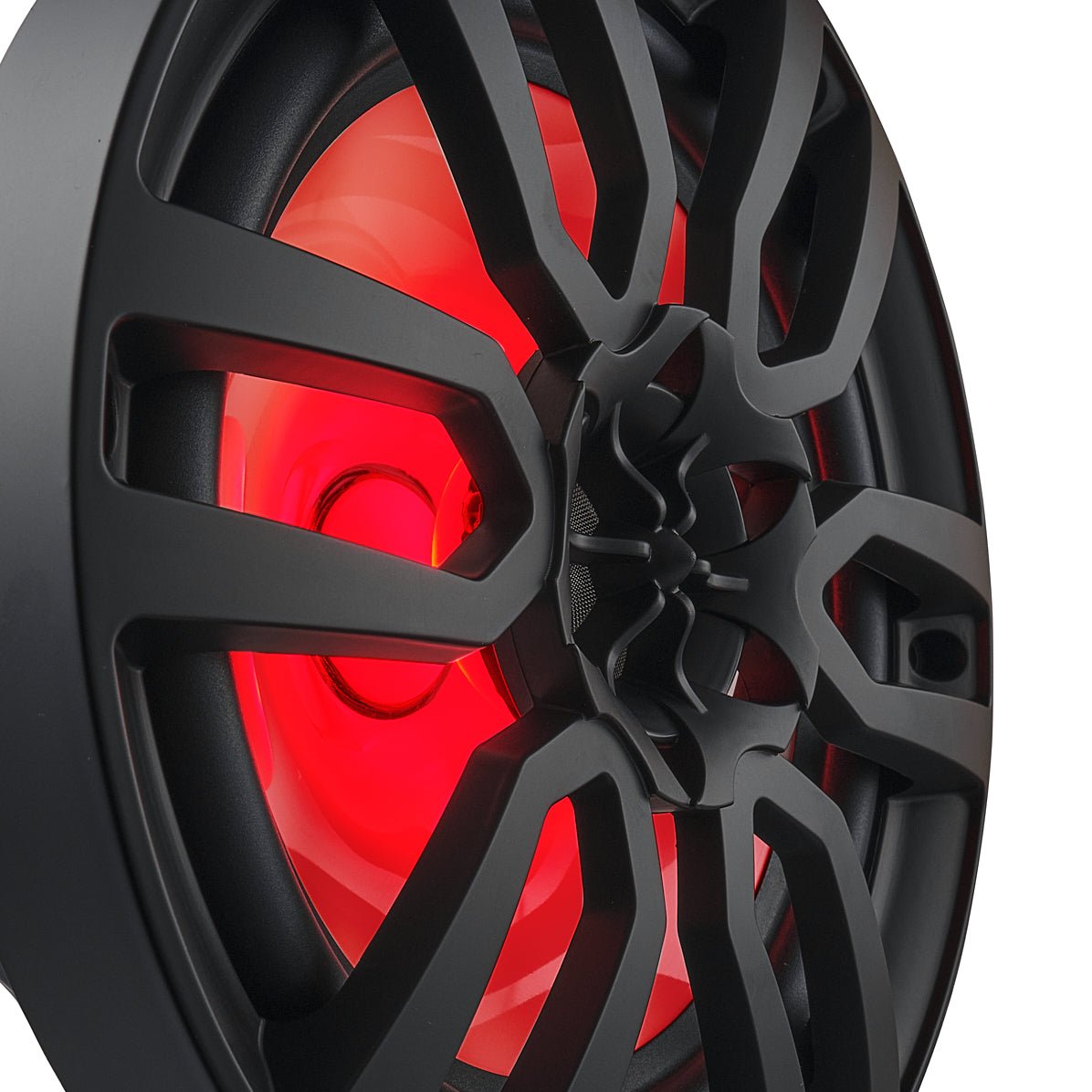

But that’s not all – these speakers feature integrated RGB lighting on the grill. The vibrant lights shine down on the waterproof cones, enhancing your color scheme and setting the perfect ambiance for your adventures.
Not only do these speakers look impressive, but they also deliver an unparalleled sound experience. With a combination of an integrated tweeter and mid-range woofer, the NXL-10’s produce frequencies from 55Hz to 22KHz and exceptional sound quality. The result is a full and rich audio performance that will elevate your favorite music to new heights.
DS18’s commitment to excellence is evident in every detail. The exclusive grill design provides optimum protection while maintaining superior audio output.
Build your Boat’s Audio System towards perfection with DS18’s NXL-10!

Reviews

There are no reviews yet.

Be the first to review “DS18 NXL-10/BK”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the NXL‑10?

A1: It is a 10″ marine‑grade 2‑way coaxial speaker pair with integrated RGB LED lighting for outdoor and marine audio systems.

Q2: What is the power handling of these speakers?

A2: The NXL‑10 handles about 150 W RMS and 450 W peak power per speaker.

Q3: What impedance do these speakers have?

A3: They have a nominal impedance of 4 ohms, making them compatible with most marine or car audio amplifiers.

Q4: What is the frequency response?

A4: They offer a wide frequency range suitable for full‑range performance in outdoor setups.

Q5: Are these speakers weather‑resistant?

A5: Yes, they are built with IP65 water‑resistant and UV‑stable construction, ideal for marine and outdoor environments.
