Description
DS18 NVY-M8DTPS/BK

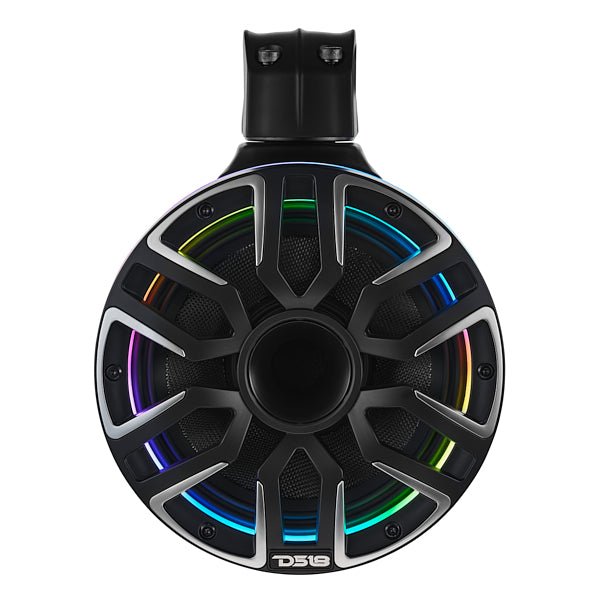

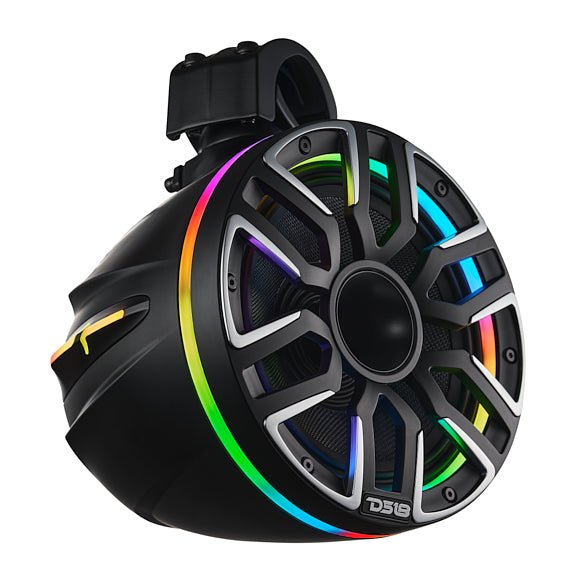

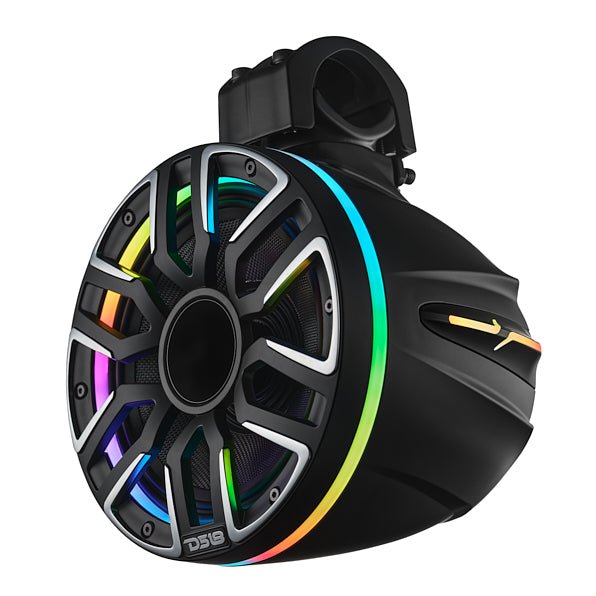

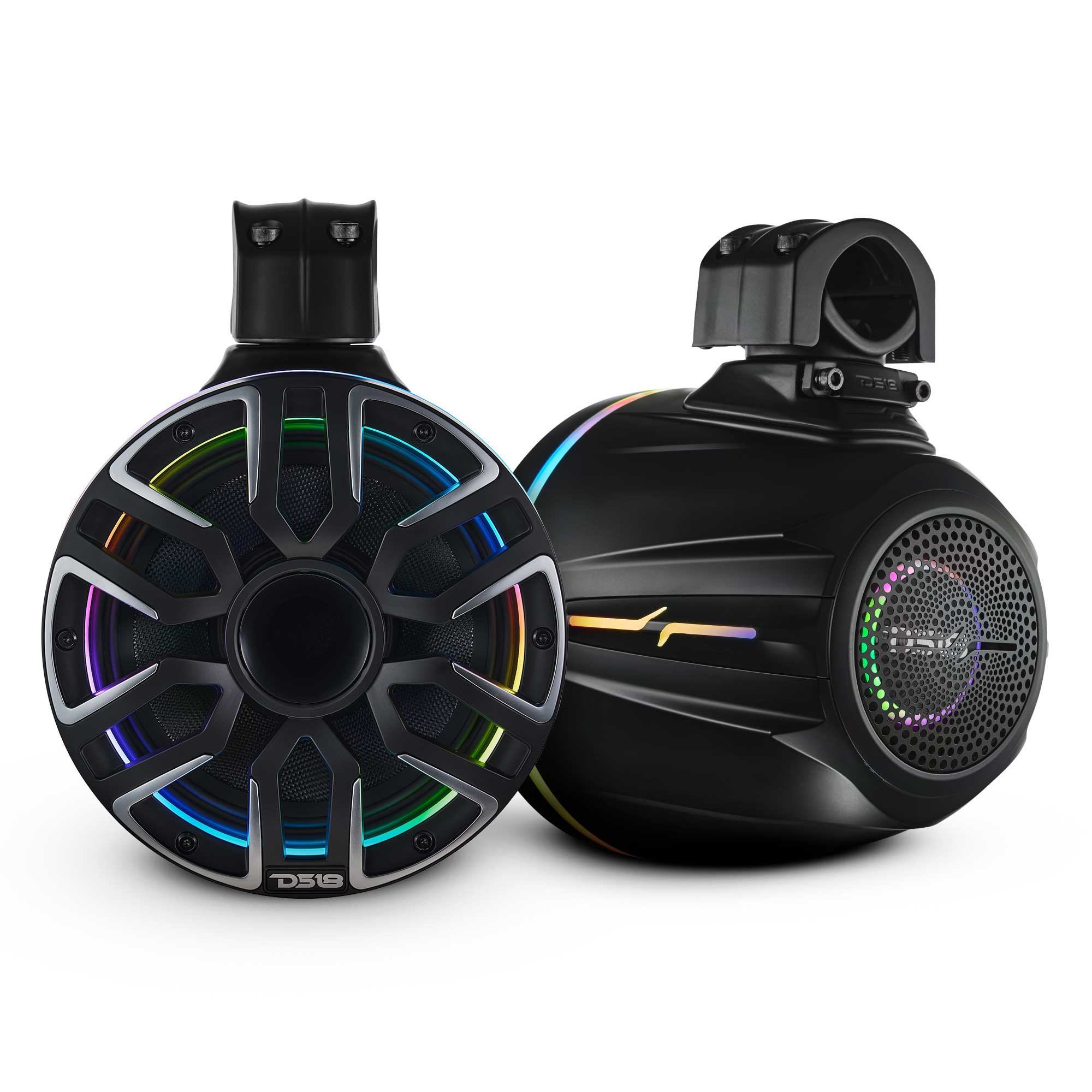

The NVY‑M8DTPS is a premium 8″ marine/tower speaker pair engineered for high‑end boats, yachts, UTVs, ATVs, and powersports audio applications. Featuring a 2‑way design with a mid‑bass woofer and horn‑loaded compression driver, Kevlar‑reinforced cone, neodymium magnet motor, and integrated digital LED lighting, it delivers full‑range sound with crisp highs, deep mids, and powerful output. Built with IP65 water‑resistant and UV‑stable construction along with 360° adjustable mounting clamps, it’s ideal for rugged outdoor use.
Specifications
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |

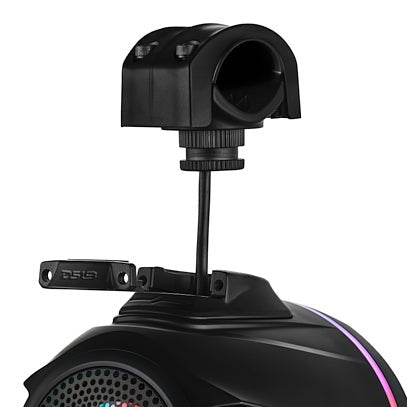

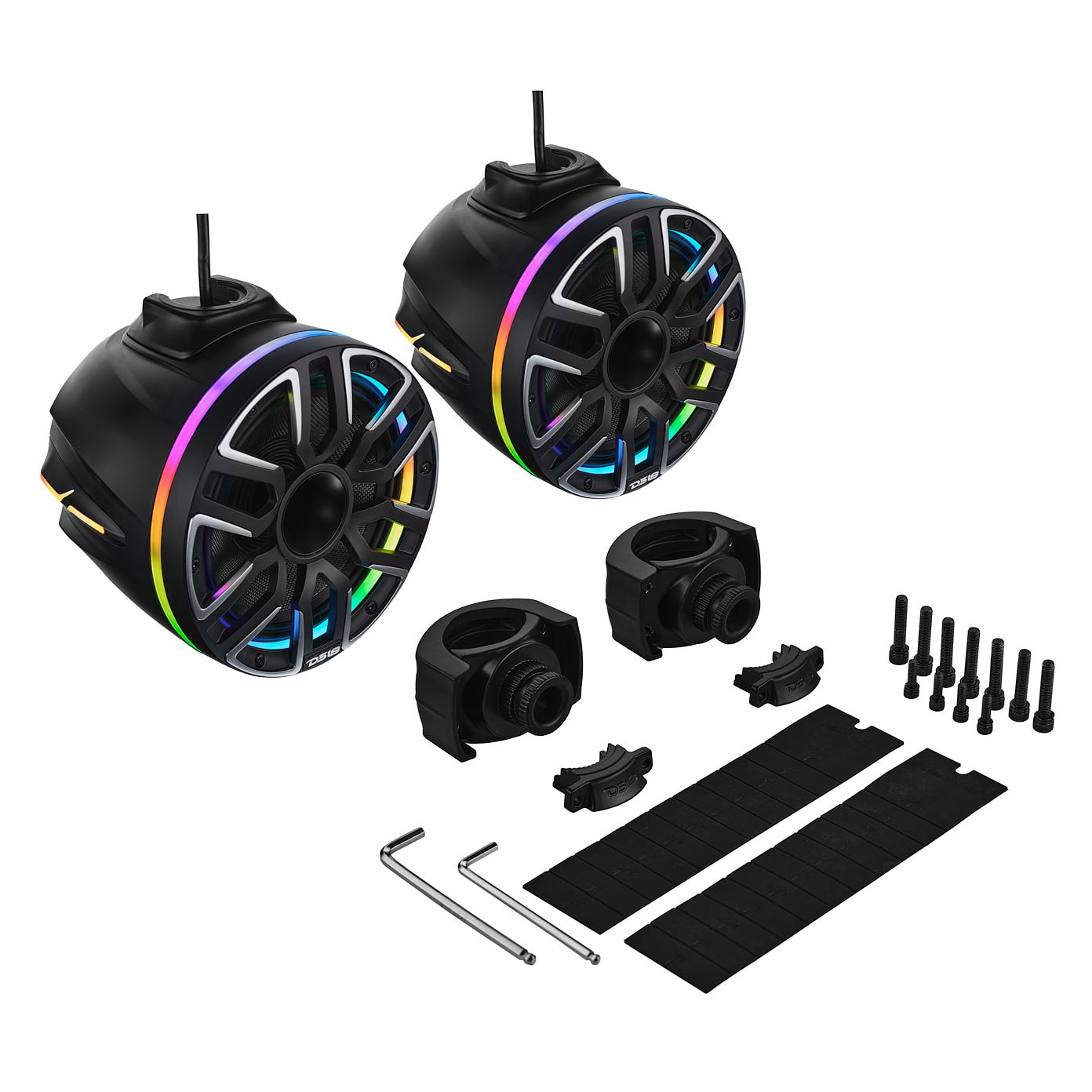

| Clamps | Die-cast adjustable (1″–2″), 360° rotation mounting, buried wire |
| Wiring | 5 core wires for lighting and speaker |
| UV Protection | Yes, 100% stable |
| Marine Grade | IP65 |
| Protection Coating | Yes, PU coating |
| Decorative Strips | Yes, electroplated |
| LED Lights | Yes, integrated digital LED |
| Digital LED Connection Type | 12V + digital input |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection molded composite ASA |
| Color / Finish | Matte Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.6 mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Kevlar |
| Surround Material | Santoprene (rubber) |
| Basket Material | Aluminum molded with UV protection |
| Magnet Material | Neodymium |
| Magnet Weight | 8 oz |

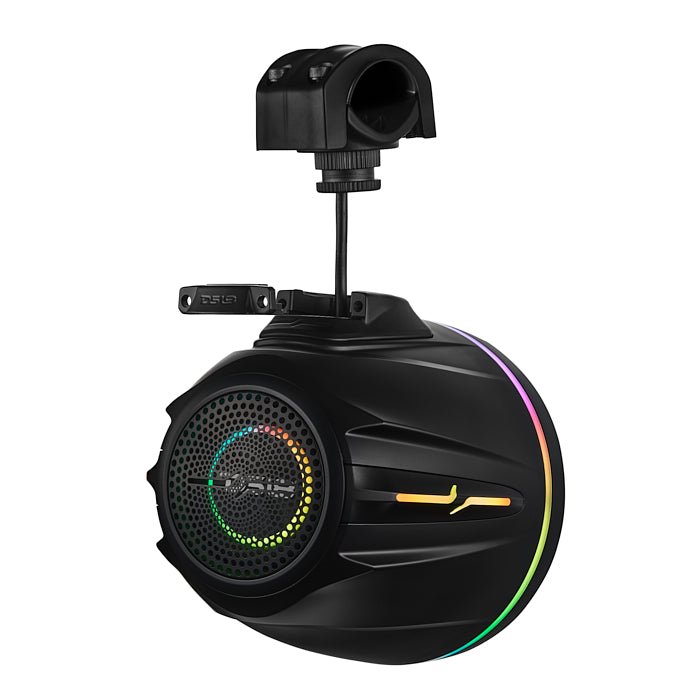

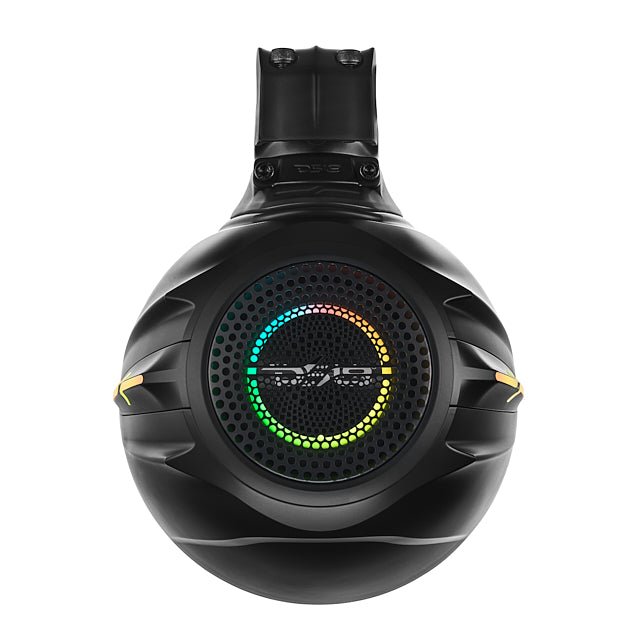

| Passive Radiator | Yes, 4″ |
Driver Specifications
| Parameter | Specification |
|---|---|
| Type | Compression horn |
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Horn Material | Aluminum |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 1.85 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 52.36 L / 1.849 ft³ |
| Excursion (one-way Xmax) | 3.2 mm |
| Free Air Resonance (Fs) | 85 Hz |
| Mechanical Factor (Qms) | 12.46 |
| Electrical Factor (Qes) | 0.653 |
| Total Factor (Qts) | 0.621 |
| Moving Mass (Mms) | 26.82 g |
| Compliance (Cms) | 0.165 mm/N |
| BL Factor | 8.5 |
| Voice Coil Inductance (Le) | 0.31 mH |
| Diaphragm Area (Sd) | 213.8 cm² |
| DC Resistance (Re) | 3.3 Ohms |
| Efficiency Bandwidth Product (EBP) | 130 |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 8.6″ / 219 mm |
| Overall Depth | 8.2″ / 207 mm |
| Overall Height (with Mast Clamp) | 12.4″ / 316 mm |
Product Overview
Made For Marine Applications
The NVY-M8DTPS is built to resist all conditions. An IP65-rated enclosure, UV-stable materials, and stainless hardware ensures every element works through the extremes.
Revitalize Your System

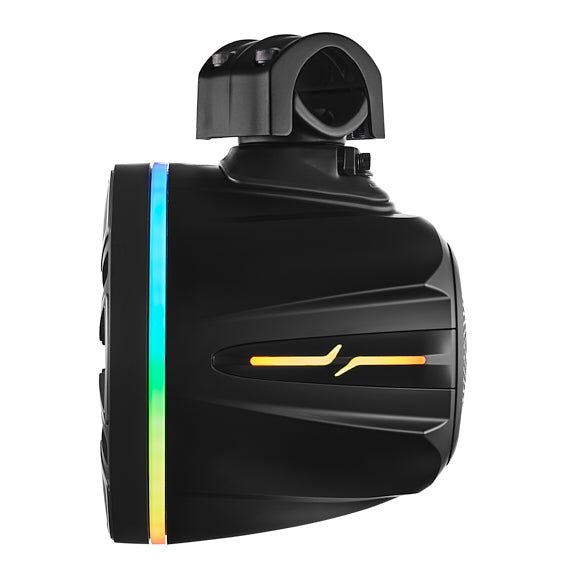

A digital LED ring gives the M8DTPS its unmistakable signature. Customizable through the LC-DRM module and DS18 LC app, this towers digital lighting brings life to your system.
Fit For Any Vision
Compact proportions and water-resistant connections make installation clean—across towers, roll bars, or custom mounts. Choose between Glossy White or Satin Black to complete your system’s look.
