Description
DS18 NVY-M8DTP/BK
The NVY-M8DTP is a high-performance 8-inch coaxial car speaker designed to deliver clear mids, crisp highs, and dynamic sound in a compact form factor. Built with durable materials and precision engineering, this speaker offers reliable performance for both daily driving and high-energy music listening. Its dual-cone design ensures balanced audio reproduction, making it ideal for upgrading factory speakers or enhancing a custom car audio system. The NVY-M8DTP combines efficiency, clarity, and durability to provide an immersive in-car audio experience.
Specifications
| Feature | Details |
|---|---|
| Enclosure Material | Injection PC+ABS |
| Clamps | Die-Cast Adjustable (1″–2″) with 360° Rotation, Mounting Buried Wire |
| Wiring | 5 Core Wires for Lighting and Speaker |
| UV Protection | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| Protection Coating | PU Coating |
| Decorative Strips | Electroplated |
| LED Lights | Digital LED Integrated + White Dome Light |
| Digital LED Connection | 12V + Digital Input |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA |
| Color / Finish | Black |
Woofer Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 2″ / 50.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Kevlar |
| Surround Material | Santoprene (Rubber) |
| Basket Material | Aluminum Molded with UV Protection |
| Magnet Material | Neodymium |
| Magnet Weight | 8 Oz |
| Passive Radiator | Yes, 4″ |
Driver Specifications
| Specification | Details |
|---|---|
| Type | Compression Horn |
| Voice Coil Diameter | 1″ / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Horn Material | Aluminum |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 1.85 Oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 52.36 L / 1.849 ft³ |
| Excursion (Xmax) | 3.2 mm |
| Free Air Resonance (Fs) | 85 Hz |
| Mechanical Factor (Qms) | 12.46 |
| Electrical Factor (Qes) | 0.653 |
| Total Factor (Qts) | 0.621 |
| Moving Mass (Mms) | 26.82 g |
| Compliance (Cms) | 0.165 mm/N |
| Bl Factor (BI) | 8.5 |
| Voice Coil Inductance (Le) | 0.31 mH |
| Diaphragm Area (Sd) | 213.8 cm² |
| DC Resistance (Re) | 3.3 Ω |
| Efficiency Bandwidth Product (EBP) | 130 |
Speaker Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 8.6″ / 219 mm |
| Overall Depth | 12.3″ / 312 mm |
| Overall Height (with Mast Clamp) | 12.5″ / 318 mm |
Product Overview
NVY-Grade Durability
With a sealed aluminum basket, Kevlar cone, UV-coated finish, and IP65 compliance, the NVY-M8DTP is engineered to play through every shift in the weather.
Your System. Your Style
Digital LED lighting and an integrated white dome light offer ambiance. Controlled via the LC-DRM module and DS18’s LC app, you can shift the lighting to match your scene.
Fit For All Applications

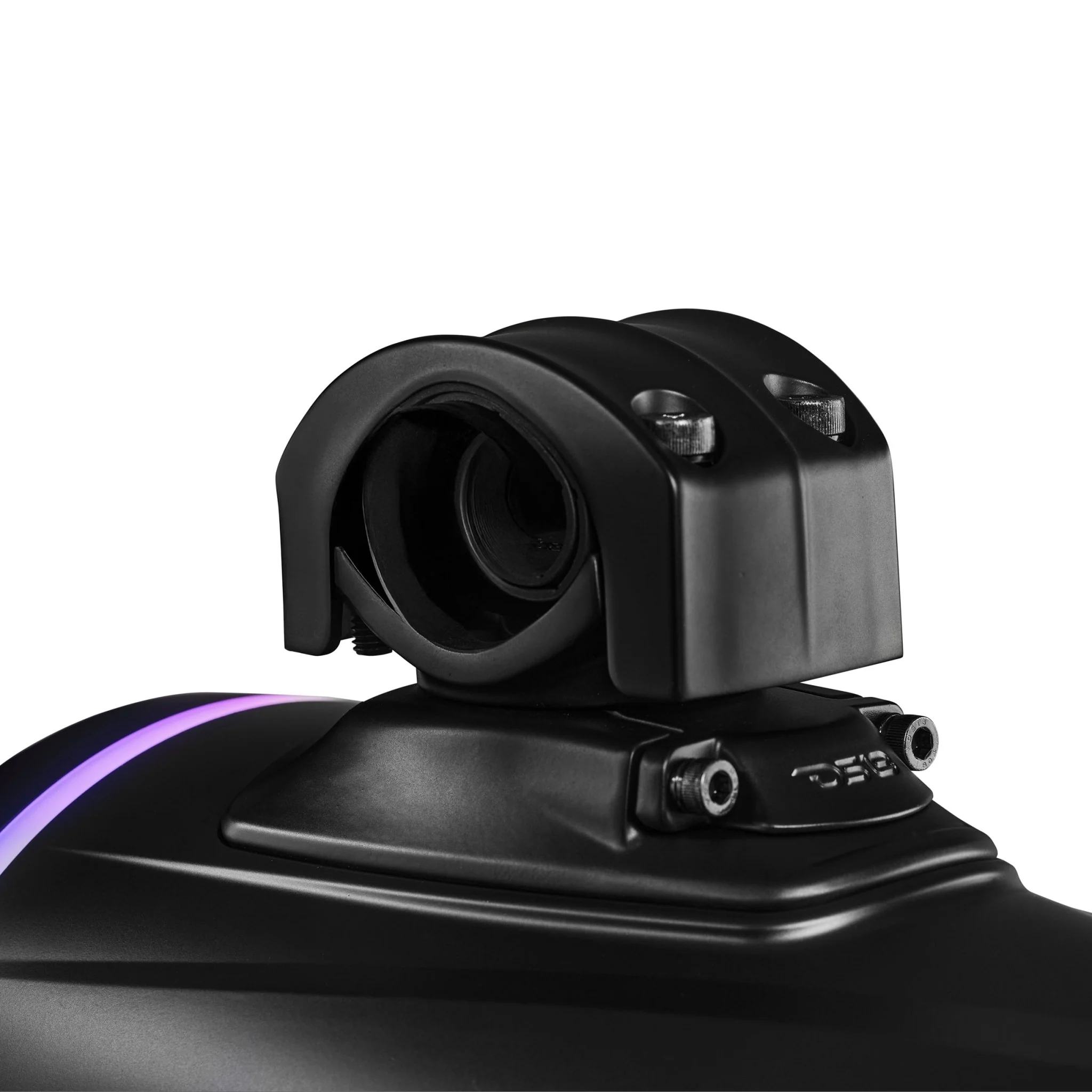

360° adjustability and size-adaptive clamps make the M8DTP easy to install across all applications.
