Description

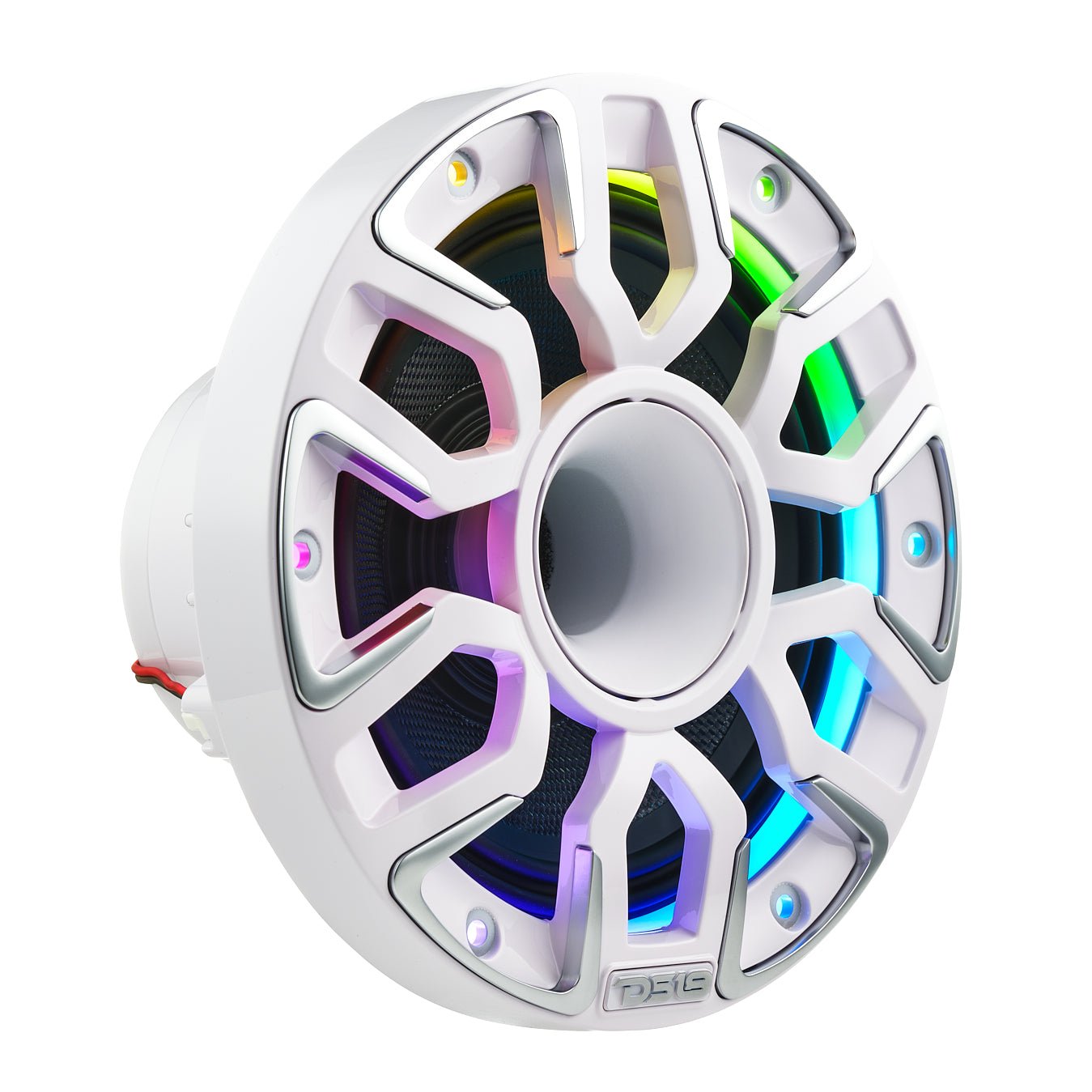

DS18 NVY-M6DC/WH

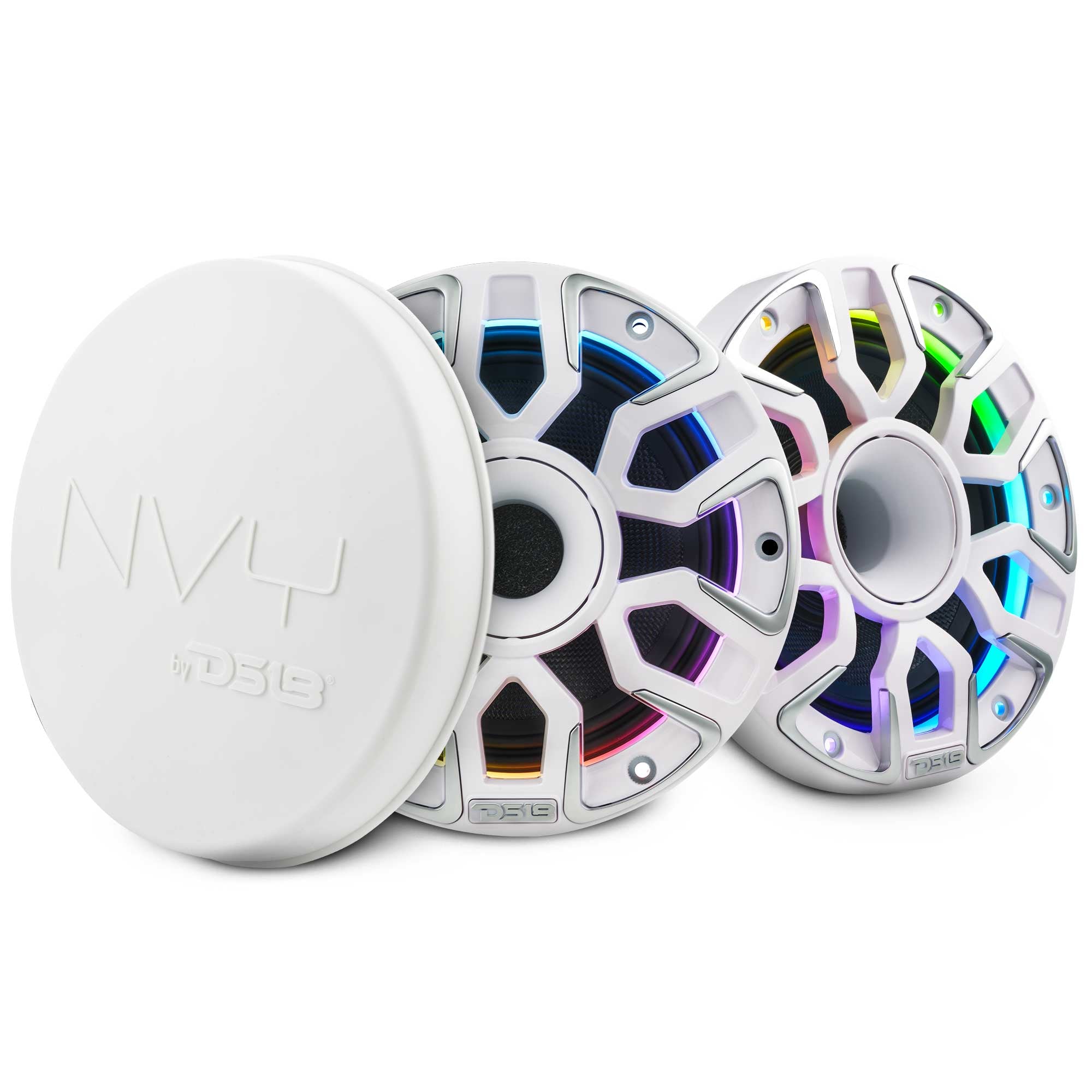

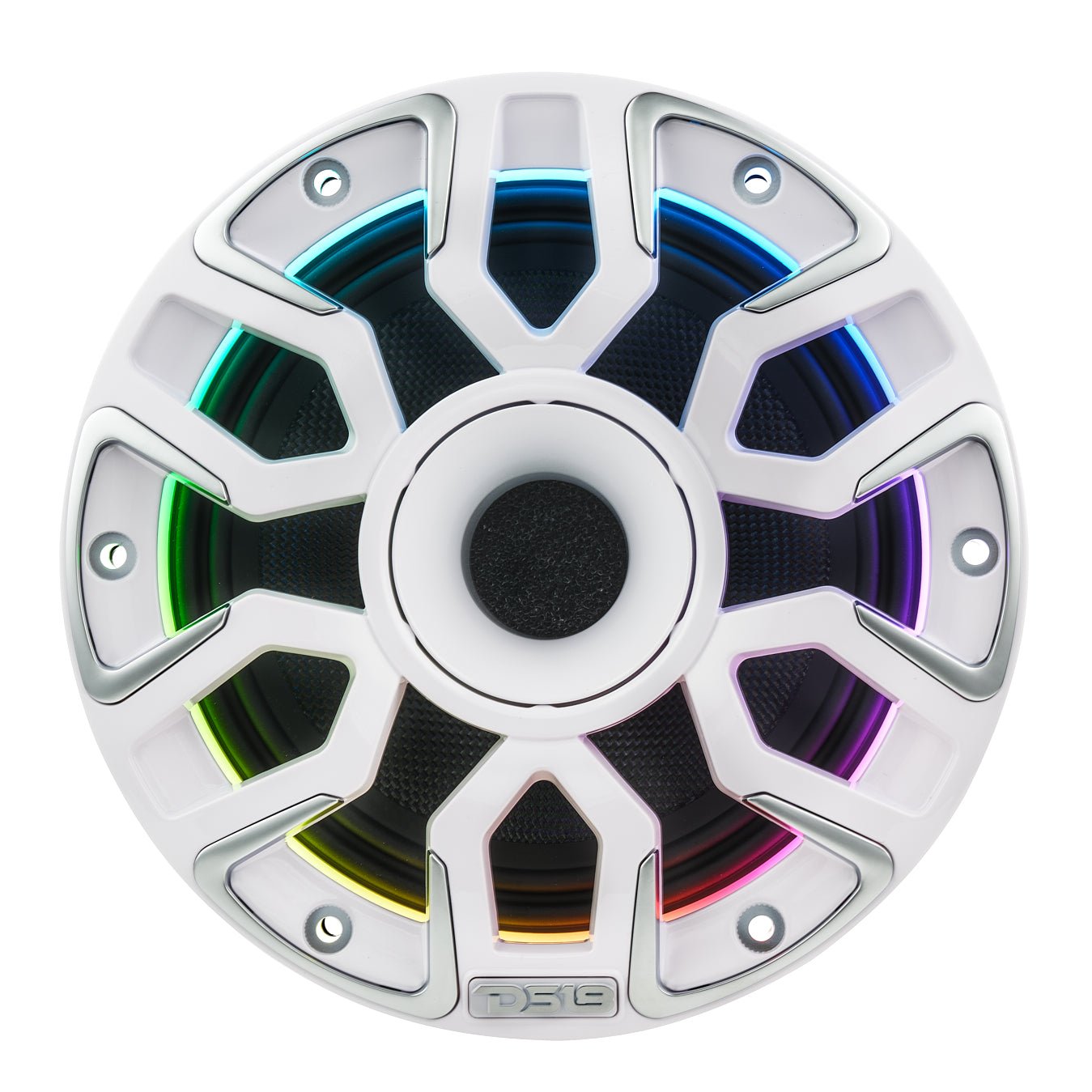

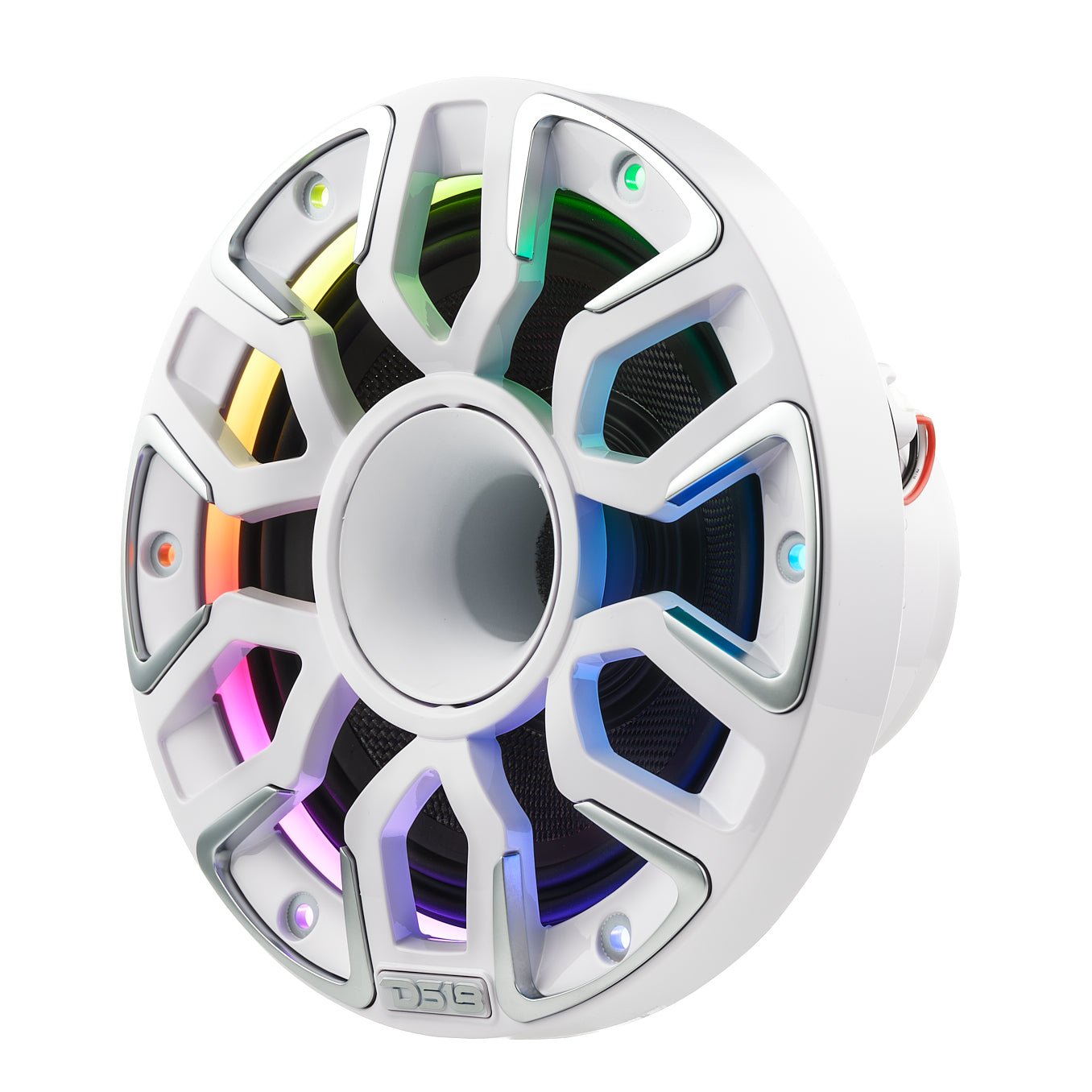

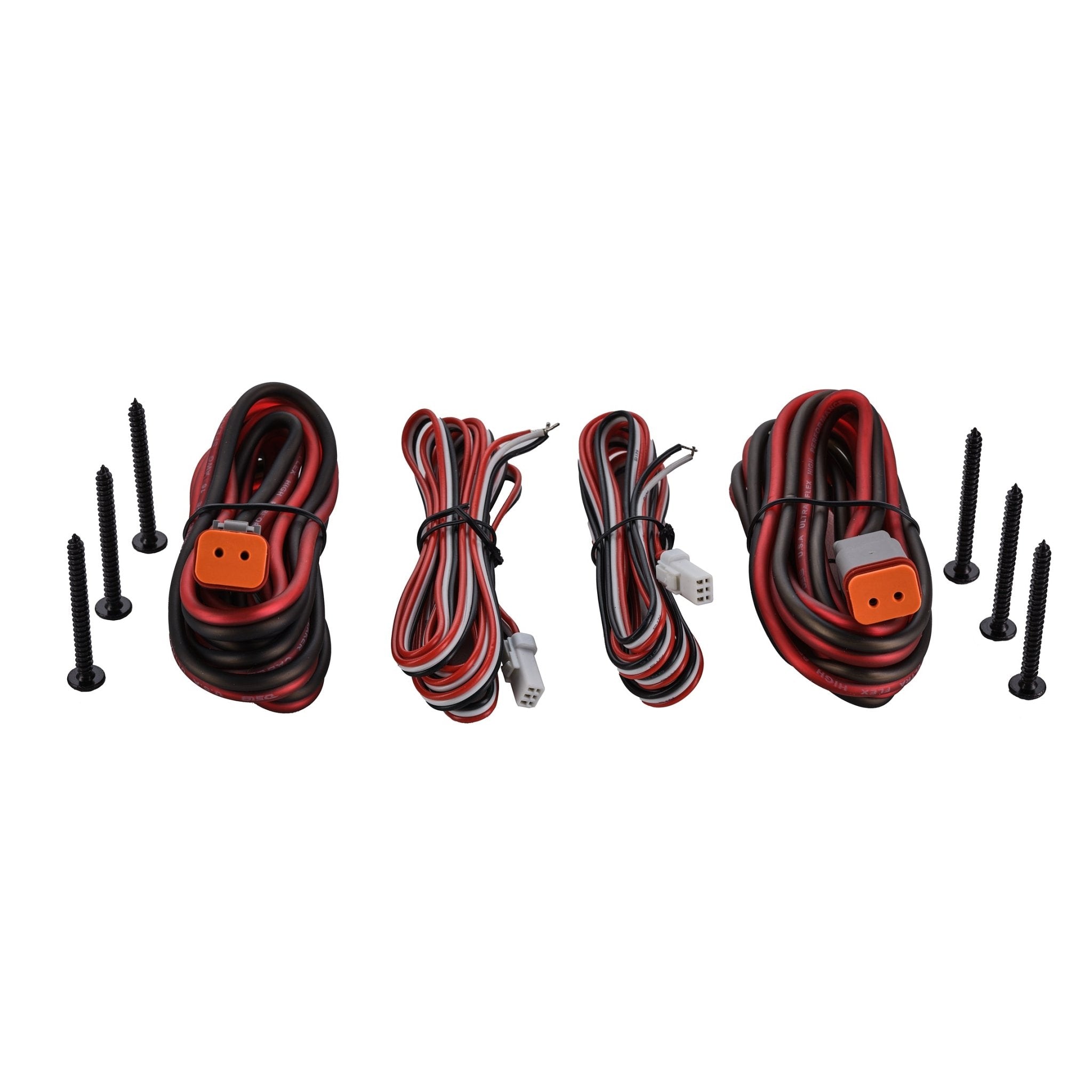

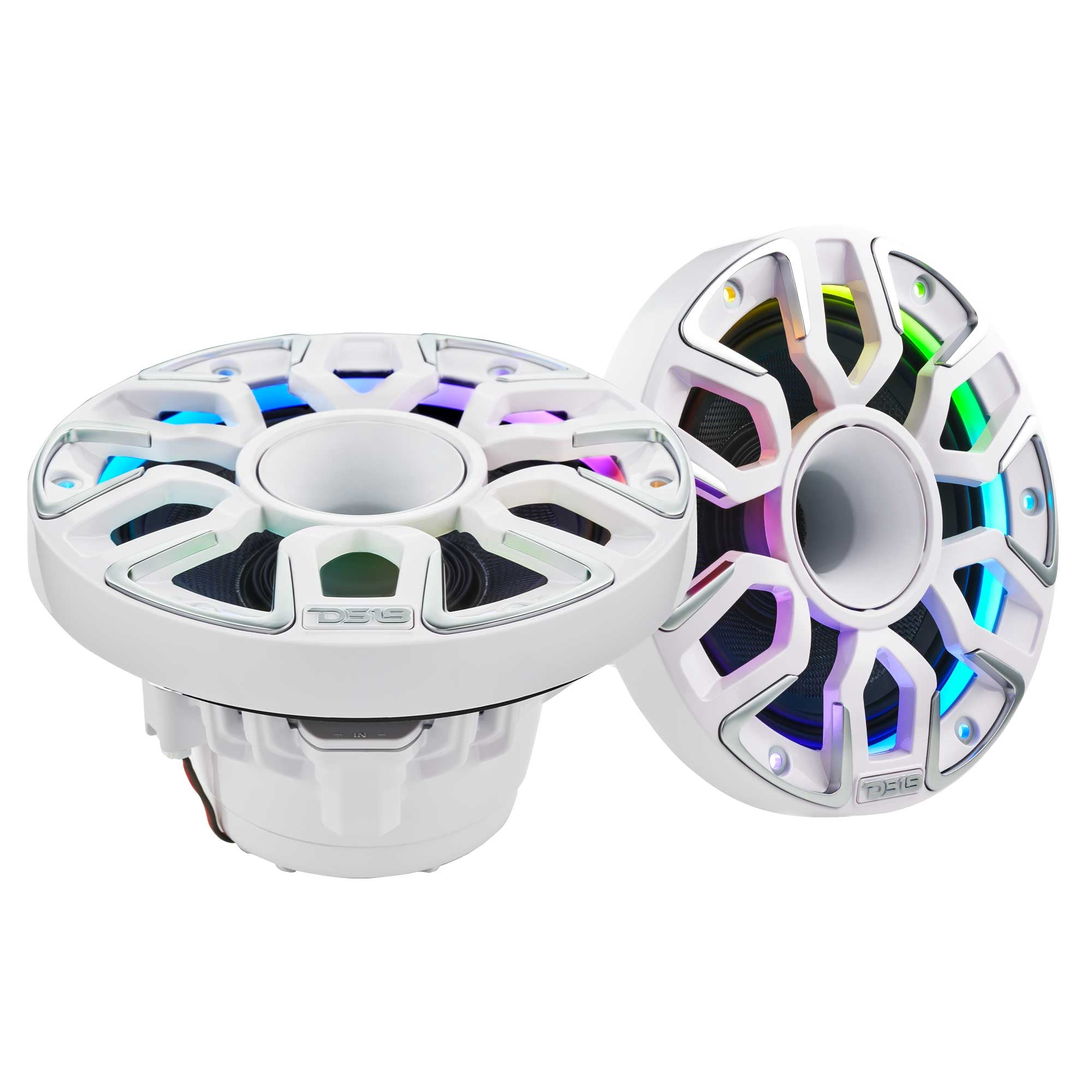

The NVY‑M6DC is a premium 6.5″ marine‑grade hybrid coaxial speaker pair featuring a Kevlar mid‑bass woofer and horn‑loaded compression driver for powerful, detailed full‑range sound. Built with waterproof IP65 and UV‑stable construction, it delivers precision‑tuned audio performance in marine, powersports, UTV, ATV, and outdoor applications. Integrated digital RGB LED lighting enhances aesthetic appeal and ambiance, and the floating bullet tweeter ensures clear high frequencies. Sold as a pair with all mounting hardware included.
Specifications
| Feature | Specification |
|---|---|
| UV Protection | Yes, 100% Stable |
| Protection Coating | Yes, with PU |
| Decorative Strips | Yes, Electroplated |
| Marine Grade Type | IP65 |
| Digital LED | Integrated |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA |
| Color / Finish | Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Kevlar |
| Dust Cap Material | Kevlar |
| Surround Material | Santoprene (Rubber) |
| Basket Material | Aluminum Molded with UV Protection |
| Magnet Material | Neodymium |
| Magnet Weight | 6.5 oz + 1.3 oz |
Driver Specifications
| Parameter | Specification |
|---|---|
| Type | Compression Horn |
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Horn Material | Aluminum |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 1.85 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 15.32 L / 0.541 ft³ |
| Excursion (one-way Xmax) | 2.2 mm |
| Free Air Resonance (Fs) | 120 Hz |
| Mechanical Factor (Qms) | 10.87 |
| Electrical Factor (Qes) | 0.714 |
| Total Factor (Qts) | 0.67 |
| Moving Mass (Mms) | 12.77 g |
| Compliance (Cms) | 0.165 mm/N |
| BL Factor | 7.257 |
| Voice Coil Inductance (Le) | 0.25 mH |
| Diaphragm Area (Sd) | 122.7 cm² |
| DC Resistance (Re) | 3.2 Ohms |
| Efficiency Bandwidth Product (EBP) | 168 |

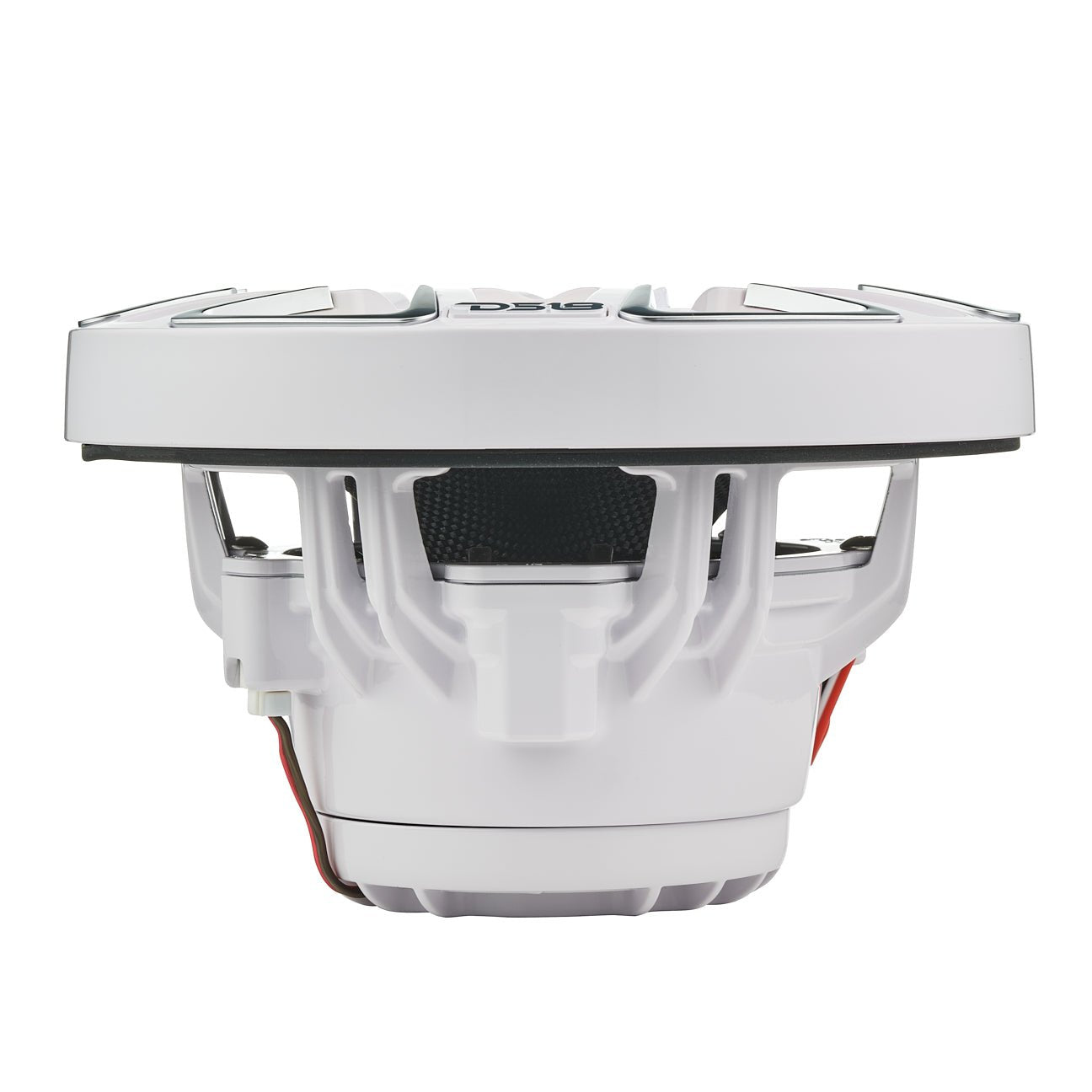

Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 6.97″ / 177 mm |
| Overall Depth | 3.84″ / 97.49 mm |
| Front Mount Baffle Cutout | 5.30″ / 134.63 mm |
| Mounting Depth | 2.57″ / 65.25 mm |
| Motor Diameter | 3.6″ / 91.5 mm |
Product Overview
Ready for Real Conditions
From salt spray to sun exposure, the NVY-M6DC is sealed against the elements. UV-coated surfaces, stainless hardware, and a fully IP65-rated build ensure that performance stays consistent—even when the weather doesn’t.
Light Up Every Moment
An integrated Digital LED ring gives the NVY-M6DC its visual signature. Fully customizable via the LC-DRM module and DS18 LC app—allowing you to set the mood or match it.
NVY Finish

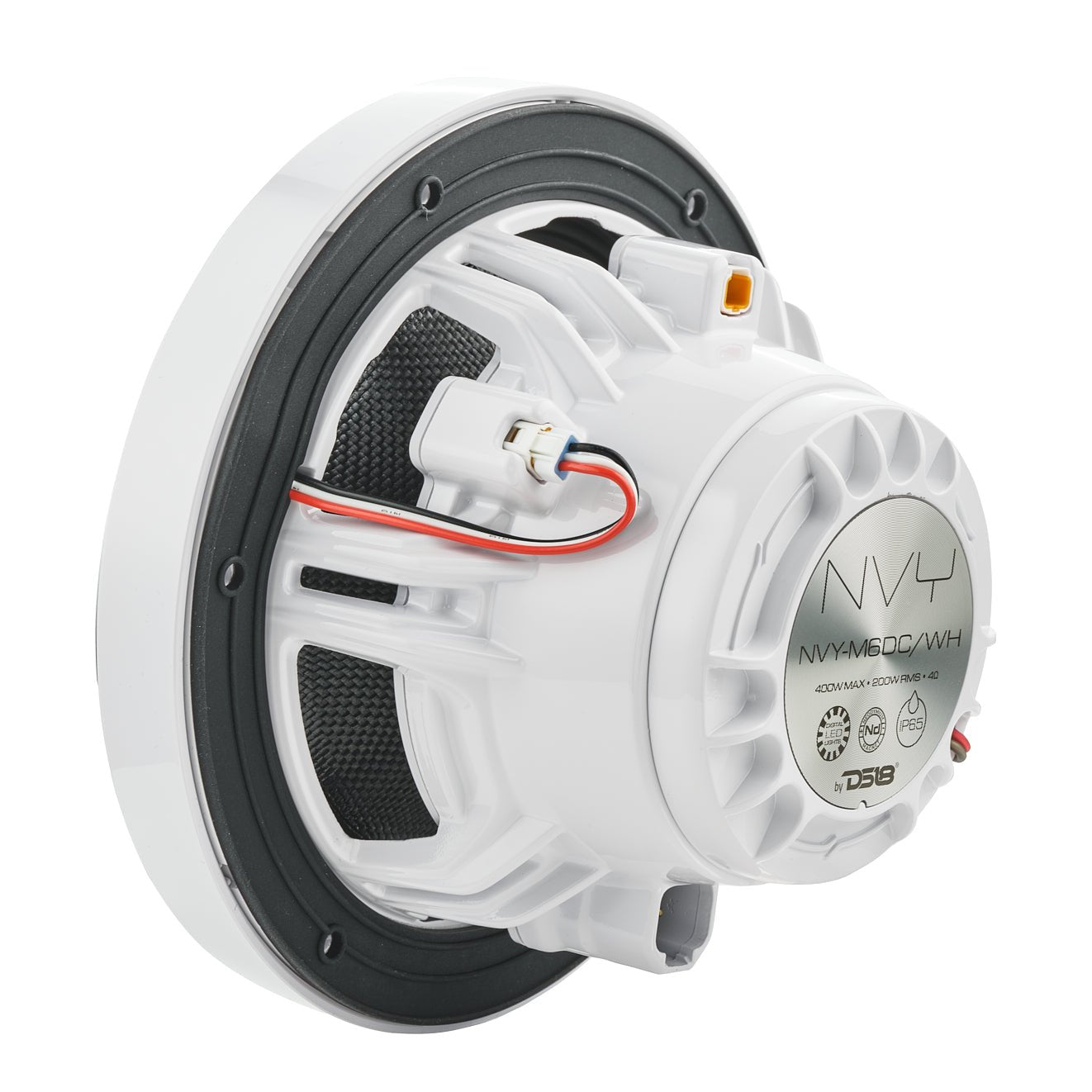

Precision terminals and a compact, sealed frame make installation clean across all marine and powersports applications. Choose between Glossy White or Satin Black to match your layout.
