Description

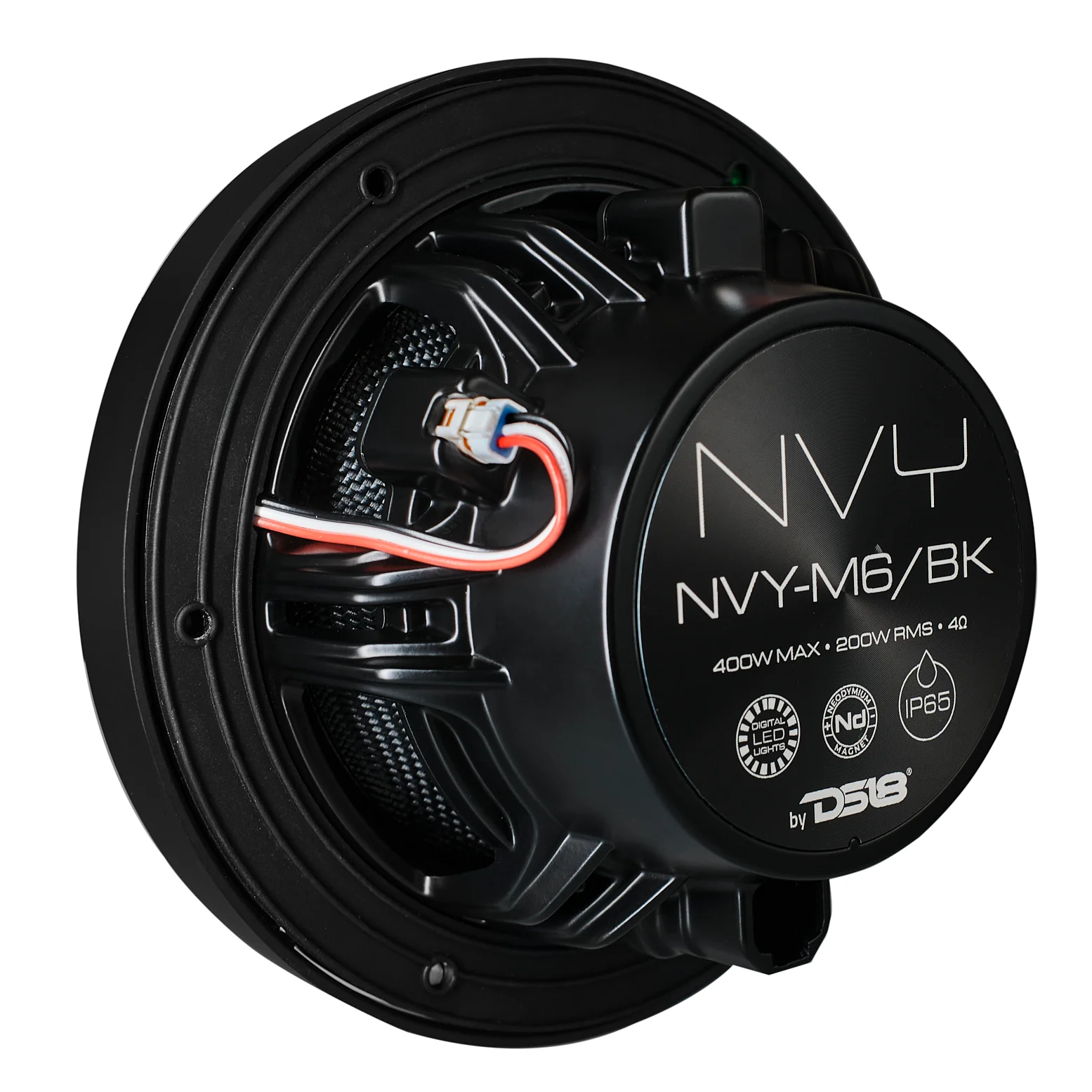

DS18 NVY-M6/BK
The NVY-M6 is a premium 6.5-inch marine coaxial speaker designed to deliver powerful and crystal-clear sound in marine and outdoor environments. Built with a durable Kevlar cone, floating bullet tweeter, and a high-efficiency neodymium magnet, this speaker produces strong mid-bass, detailed mids, and crisp high frequencies. Engineered with marine-grade materials and IP65 water resistance, the NVY-M6 is designed to withstand harsh environments such as boats, motorcycles, ATVs, and powersports vehicles. It also features integrated digital LED lighting for a stylish audio setup while maintaining excellent sound performance.
Specifications
| Feature | Specification |
|---|---|
| UV Protection | Yes, 100% Stable |
| Protection Coating | Yes, with PU |
| Decorative Strips | Yes, Electroplated |
| Marine Grade Type | IP65 |
| Digital LED | Integrated |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA |
| Color / Finish | Black |
Woofer Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 2″ / 50.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Kevlar |
| Dust Cap Material | Kevlar |
| Surround Material | Santoprene (Rubber) |
| Basket Material | Aluminum Molded with UV Protection |
| Magnet Material | Neodymium |
| Magnet Weight | 6.5 Oz + 1.3 Oz |
Tweeter Specifications
| Specification | Value |
|---|---|
| Type | Bullet Tweeter |
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Bullet Material | Injection Molded Composite PC |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.61 Oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 13.38 L / 0.472 ft³ |
| Excursion (Xmax) | 2.6 mm |
| Free Air Resonance (Fs) | 120 Hz |
| Mechanical Factor (Qms) | 9.29 |
| Electrical Factor (Qes) | 0.662 |
| Total Factor (Qts) | 0.618 |
| Moving Mass (Mms) | 15.18 g |
| Compliance (Cms) | 0.156 mm/N |
| BL Factor | 7.54 |
| Voice Coil Inductance (Le) | 0.25 mH |
| Diaphragm Area (Sd) | 122.7 cm² |
| DC Resistance (Re) | 3.2 Ohms |
| Efficiency Bandwidth Product (EBP) | 181 |
Speaker Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 6.97″ / 177 mm |
| Overall Depth | 3.84″ / 97.49 mm |
| Front Mount Baffle Cutout | 5.30″ / 134.63 mm |
| Mounting Depth | 2.57″ / 65.25 mm |
| Motor Diameter | 3.6″ / 91.5 mm |
Product Overview
Constructed with advanced materials selected for performance and resilience, the NVY-M6 features a UV-coated aluminum basket and IP65 water resistance. No matter your application, it remains structurally sound and acoustically precise.
Each NVY-M6 set is built for seamless integration across premium builds. With your choice of Glossy White or Satin Black. Using the installation-ready terminals, The NVY-M6 integrates with purpose and performs without hesitation.
