Description

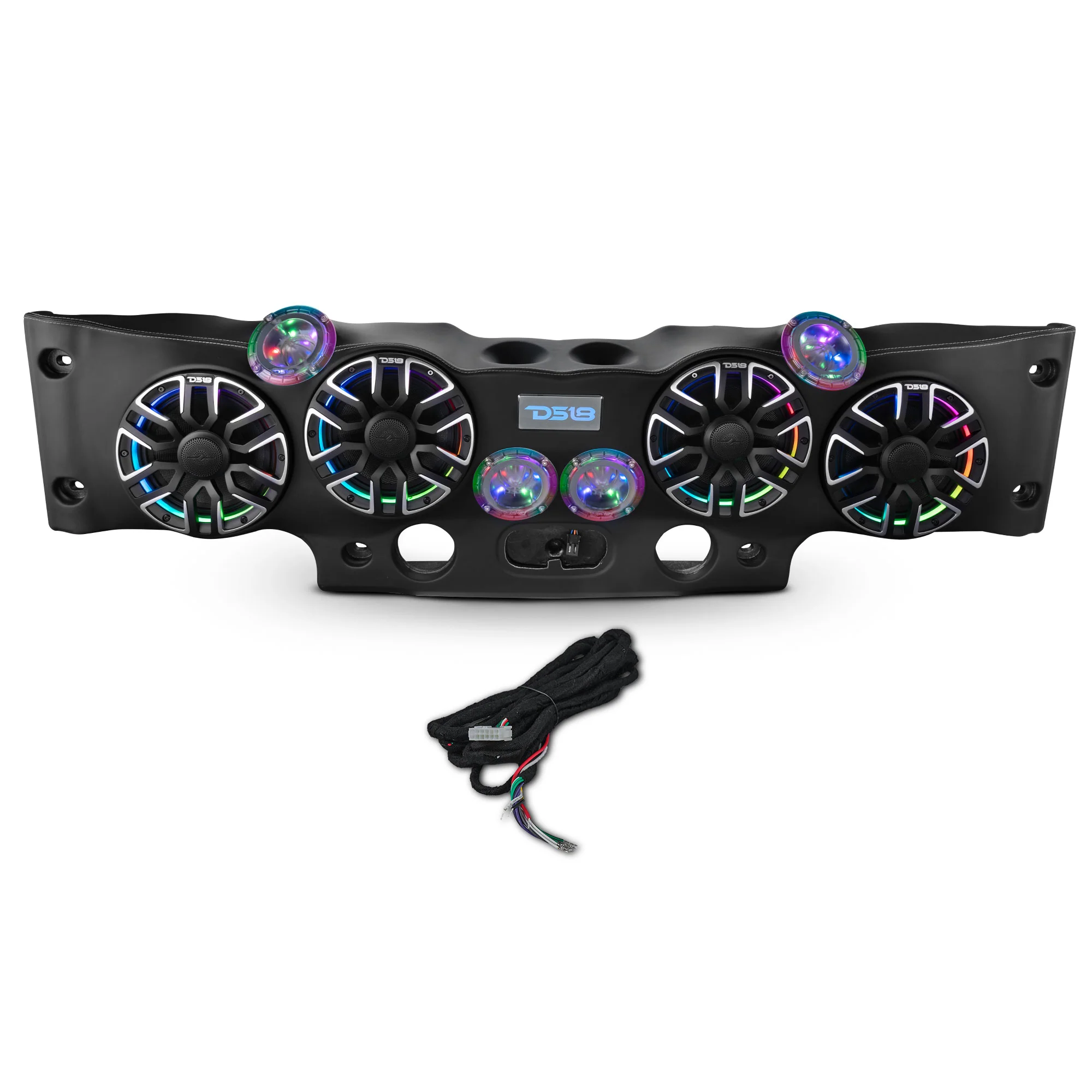

DS18 NVY-JKSBARLD
The DS18 NVY-JKSBARLD is a rugged, high-performance Jeep JK soundbar designed for off-road enthusiasts who want clear, full-range audio in a compact, durable package. Built with heavy-duty drivers and a reinforced enclosure, this soundbar delivers balanced highs, detailed mids, and punchy lows, providing an immersive audio experience for Jeep JK vehicles.
Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 8″ / 203 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 200 W |
| MAX Power Handling | 400 W |
| Sensitivity (1w/1m) | 99 dB |
| Frequency Response | 40 Hz – 20 kHz |
| Number of Ways | 2-Way |
| Recommended Hi-Pass Crossover | 60 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade | IP65 |
| Digital LED Lights | Integrated |
| Woofer Voice Coil Diameter | 2″ / 50.6 mm |
| Woofer Voice Coil Former Material | Glass Fiber |
| Woofer Magnet Material | Neodymium |
| Tweeter Type | Floating Bullet Tweeter |
| Tweeter Voice Coil Diameter | 1″ / 25.4 mm |
| Tweeter Material | Neodymium (N38H) |
PRO-TW4LD RGB Bullet Tweeter Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 4.5″ / 114.3 mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 140 W |
| Program Power Handling | 280 W |
| Peak Power Handling | 560 W |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 1.5 kHz – 20 kHz |
| Recommended High-Pass Crossover | 2 kHz |
| Body Material | Transparent Polycarbonate |
| Body Color | Translucid, Digital LED Illuminated |
| Bullet Material | Transparent Polycarbonate |
| LED | Yes, with 3.2 ft Input Wire |
| Voice Coil Diameter | 1.75″ / 44.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite Y30 |
PRO-DRNSC1.5 Screw-On Compression Driver Specifications
| Specification | Details |
|---|---|
| Throat Diameter | 1″ / 25.4 mm |
| Installation Type | Screw-On |
| Nominal Impedance | 8 Ohm |
| AES Power Handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power Handling | 320 W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 1 kHz – 20 kHz |
| Recommended High-Pass Crossover | 2 kHz |
| Voice Coil Diameter | 1.5″ / 38 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 oz |
| Body Material | Aluminum |
| Body Color | Silver |
Product Overview
Ready for Off-Road
Wrapped in UV-treated leather and sealed for all-weather use, the NVY-JKSBARLD is built to last. Clean seams, rugged surface texture, and zero compromise on finish—inside or out.
Set The Tone
Digital RGB lighting brings visual presence to NVY’s full-range performance. Add the optional LC-DRM module for full control using DS18’s LC App and tailor your lighting to match your setup.
Factory Fit. NVY Finish

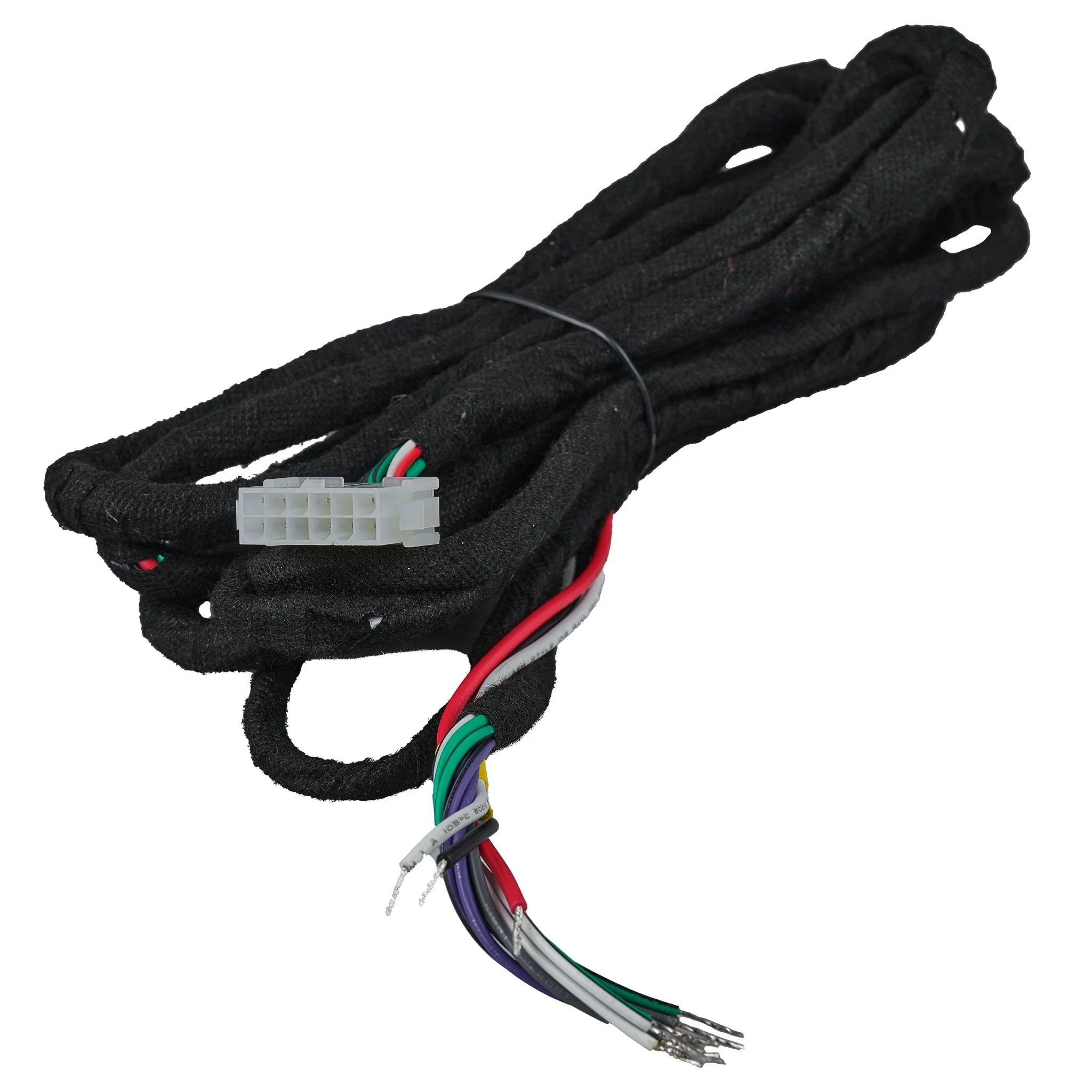

The NVY-JKSBARLD installs using factory mounting points. A pre-terminated harness and installation hardware come included, so everything locks in clean.
