Description
DS18 NVY-6PROXL-N4
The NVY-6PROXL is a high-performance 6.5-inch midrange speaker designed to deliver extremely loud and clear vocal reproduction for professional car audio systems. Engineered for pro audio and SPL setups, this midrange speaker produces powerful mid frequencies with excellent clarity and minimal distortion. Its high-efficiency motor structure and durable cone design allow it to perform reliably even at high volume levels. The NVY-6PROXL is available in 2-ohm and 4-ohm impedance options, giving installers flexibility when building powerful multi-speaker audio systems. This speaker is ideal for car audio enthusiasts who want strong vocals and midrange detail in their sound system.
Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 2 in / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper with water-resistant coating |
| Dust Cap Material | Paper with water-resistant coating |
| Surround Material | Treated cloth |
| Leads Connection Type | Spider crossed |
| Basket Material | Aluminum |
| Basket Color | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 10 oz |
| Speaker Displacement | 0.02 L |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 6.14 L / 0.216 ft³ |
| Excursion (Xmax, one way) | 2.3 mm |
| Free Air Resonance (Fs) | 82 Hz |
| Mechanical Factor (Qms) | 4.47 |
| Electrical Factor (Qes) | 0.23 |
| Total Factor (Qts) | 0.22 |
| Moving Mass (Mms) | 9.69 g |
| Mechanical Compliance (Cms) | 0.23 mm/N |
| BL Factor | 6.01 |
| Voice Coil Inductance (Le) | 0.04 mH |
| Cone Area (Sd) | 136.85 cm² |
| DC Resistance (Re) | 3.9 Ohms |
| Mechanical Mass without Air (Mmd) | 8.77 g |

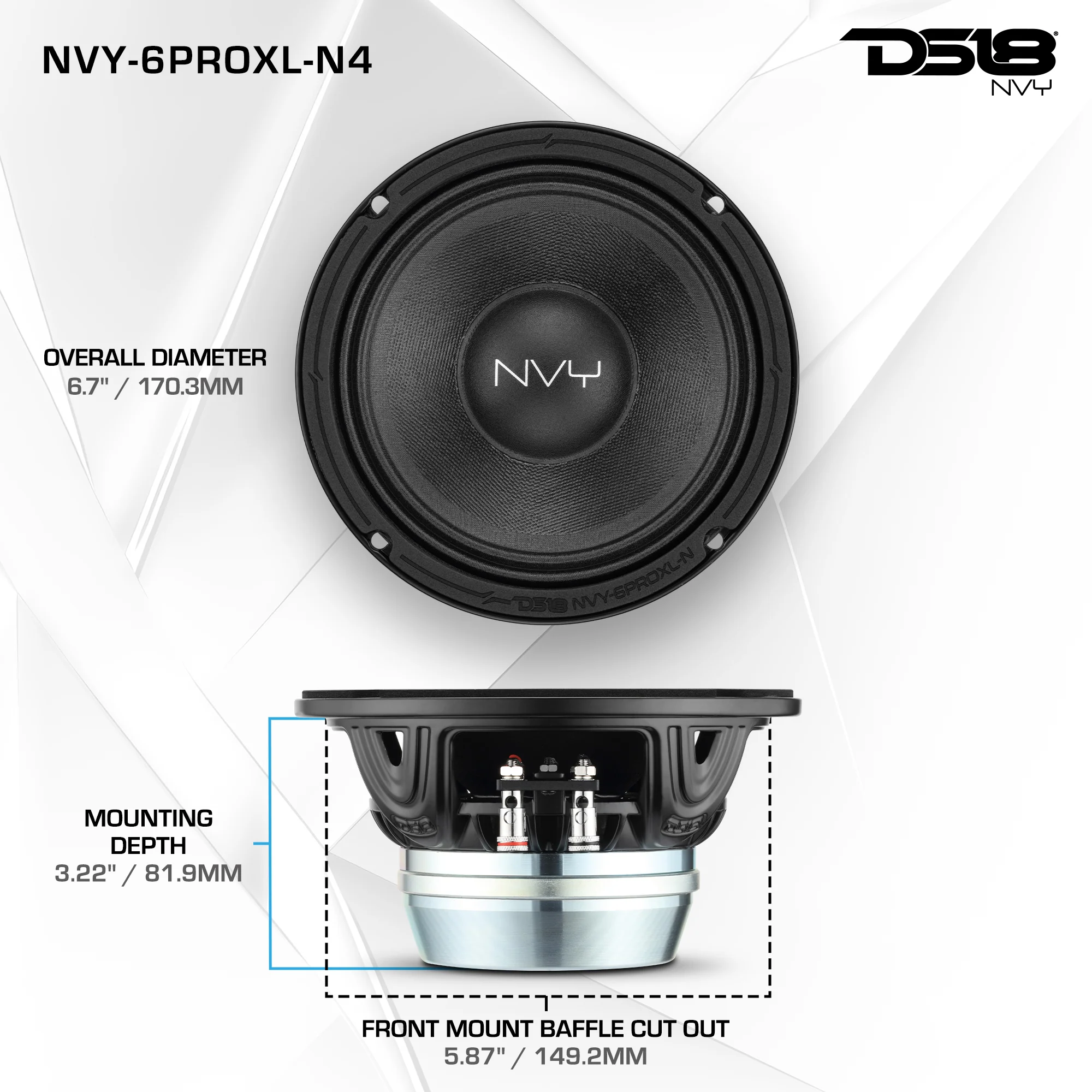

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 6.7 in / 170.3 mm |
| Overall Depth | 3.6 in / 91.2 mm |
| Front Mount Baffle Cutout | 5.87 in / 149.2 mm |
| Mounting Depth | 3.22 in / 81.9 mm |
| Motor Diameter | 4 in / 102 mm |
Product Overview
Touring-Tuned Performance
With 400W RMS and 96dB sensitivity, this speaker is made for high-output systems that stay clean and controlled at highway speed. Its 65Hz–10kHz frequency response is voiced for midrange dominance — the perfect complement to tweeter and sub setups in baggers or fairings.
Weather-Ready Construction
The NVY-6PROXL-N4 features a treated paper cone, water-resistant dust cap, and durable cloth surround — all sealed in an IP65-rated structure that shrugs off rain, heat, and vibration.
Neodymium Power
A lightweight neodymium core delivers high-efficiency output without adding bulk to your system. It’s the ideal solution when space and clarity both matter.
